Shadow-Caster SCM-PD-PLUS Manual

Standard Layout
HOW TO OPERATE
Power On/Off
Press Button Change Color or Color
Rotation Scheme
Press and Hold Button for 2 seconds
Step through modes: Solid Color / Fade /
Strobe
MODE DIP SWITCH SETTINGS
(from left to right counting up)
1 2
Extended Color
Network Enable Chase Mode On
Range Enabled
Extended Color
Network Disable Chase Mode Off
Range Disabled
Indicates recommended settings for this installation
LIGHT ENABLE DIP SWITCH SETTINGS
(from left to right counting up)
1 2 3
Light 1 Enable Light 2 Enable Light 3 Enable Light 4 Enable
Light 1 Disable Light 2 Disable Light 3 Disable Light 4 Disable
Indicates recommended settings for this installation
REVISED
March 17th 2021

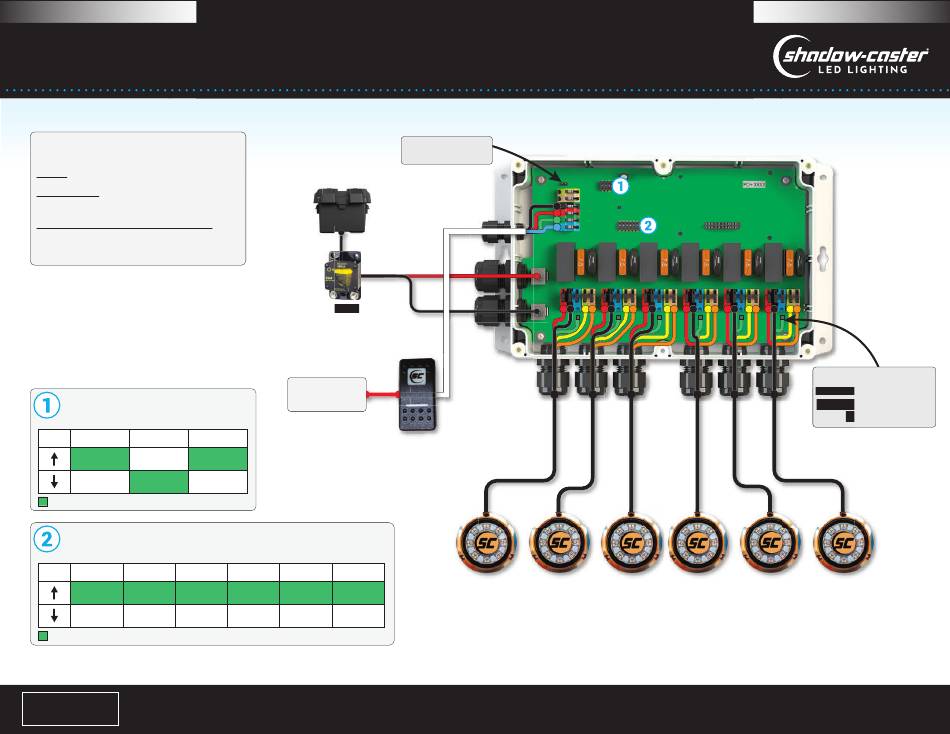

SCM-PD-PLUS with
SCR-24-CC Underwater Lights
Battery
24V or 12V DC
Breaker Breaker
12V DC
Power Source
3
Pre Wired Switch
(included with SCM-PD-PLUS)
4 5 6
Light 5 Enable Light 6 Enable
Light 5 Disable Light 6 Disable
Remove Bypass jumper for
normal switch operation
if only using a switch. wires are not connected Blue PWM controller
SCR-24-CC Underwater Lights
SCM-PD-PLUS
(Includes 6 X 7.5A Fuses)
Green PWM controller wires
are not connected and should are not connected and should
be cut and capped when only be cut and capped when only
using a switch using a switch
