Aewin AW-EM730 User Manual

Intel pentium m embedded sbc with lvds, lan, audio & ssd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AEWIN Technology Inc.
3.5" Embedded SBC
Model Number AW-EM730
Intel® Pentium® M Embedded SBC with LVDS, LAN, Audio & SSD
User's Manual
Version 1.3
We embed your need!
©Copyright 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW-EM730 and is the answer not in the manual?

Questions and answers

Related Manuals for Aewin AW-EM730

Summary of Contents for Aewin AW-EM730

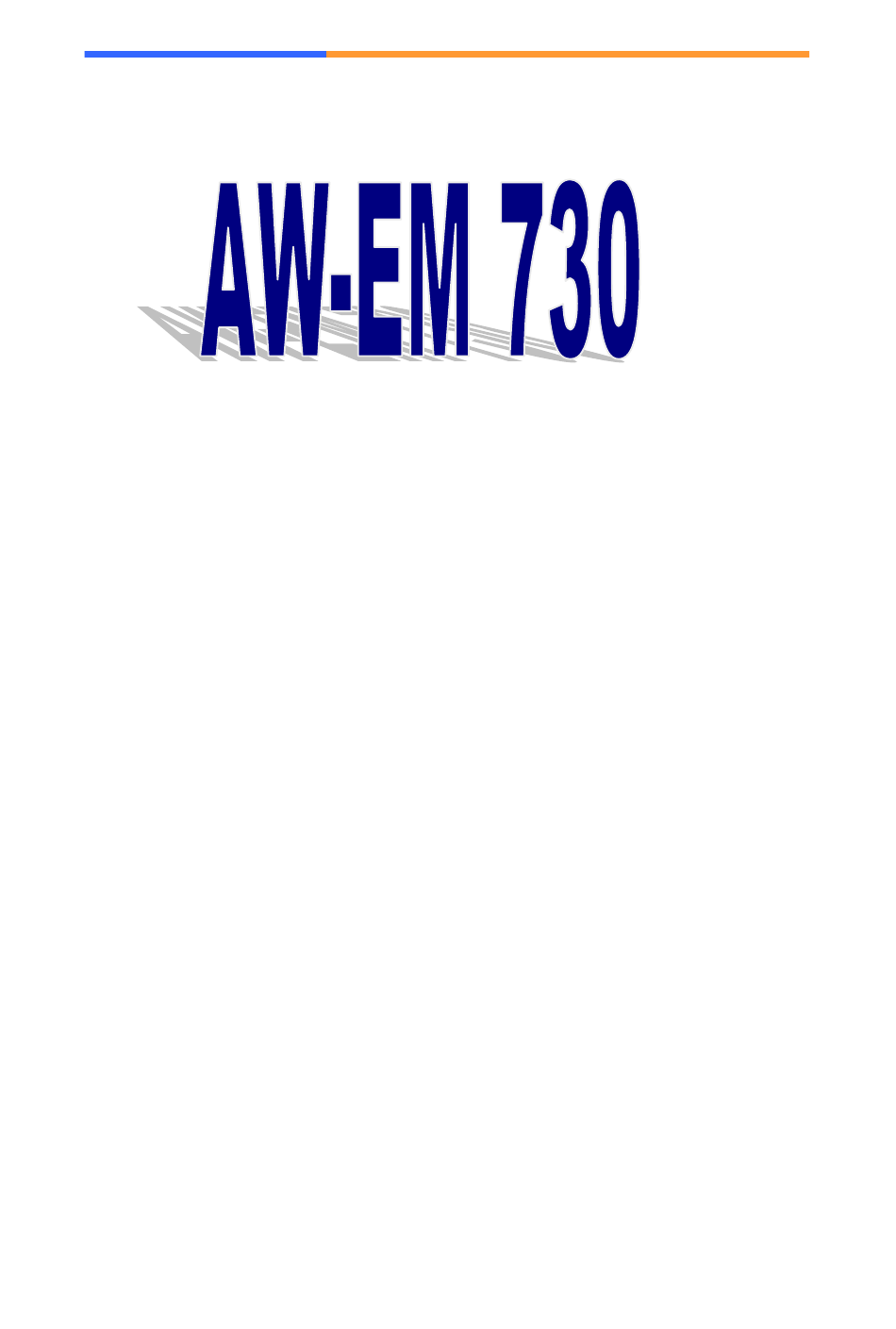

  • Page 1 AEWIN Technology Inc. 3.5” Embedded SBC Model Number AW-EM730 Intel® Pentium® M Embedded SBC with LVDS, LAN, Audio & SSD User’s Manual Version 1.3 We embed your need! ©Copyright 2006...
  • Page 2 While reasonable efforts have been made to ensure the accuracy of this manual, the manufacturer and distributor assume no liability resulting from errors or omissions in this manual, or from the use of the information contained herein. ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3 Mar, 2006...

  • Page 3: Table Of Contents

    Appendix A: Optional Module ................... 49 1. AC97 Audio Kit (SPK Out, MIC In) ................ 49 2. +12~24V Power adapter Kit ..................51 Appendix B: Optional Cable List ..................54 ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3 Mar, 2006...

  • Page 4: Chapter 1. General Information

    User’s Manual Chapter 1. General Information 1.1 Introduction The AW-EM730 3.5” embedded board is based on Intel® architecture with 852GM+ICH4 chipset supporting the Pentium® M Celeron M processor with 400MHz FSB. The memory supports DDR SO-DIMM socket up to 1GB. Through Intel®...

  • Page 5: Package

    AW-EM730 in near future. After you unpack the goods, inspect and make sure the packaging is intact. Do not plug the power adapter to the main board of AW-EM730 if you already find it appears damaged.

  • Page 6: Precautions

    Please make sure you properly ground yourself before handling the AW-EM730 board or other system components. Electrostatic discharge can be easily damage the AW-EM730 board. Do not remove the anti-static packing until you are ready to install the AW-EM730 board. Ground yourself before removing any system component from it protective anti-static packaging.

  • Page 7: Board Layout

    User’s Manual 1.5 Board Layout (Front View) AW-R031 AW-R041 (Audio Kit) (Power Adapter Kit) (Rear View) ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3 Mar, 2006...

  • Page 8: Board Dimension

    User’s Manual 1.6 Board Dimension (Front View) (Rear View) ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3 Mar, 2006...

  • Page 9: Chapter 2. Connector/Switch Location And Configuration

    User’s Manual Chapter 2. Connector/Switch Location and Configuration 2.1 Connector/Jumper Location and Definition ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3 Mar, 2006...
  • Page 10 List of Jumpers Jumper Description Power On/Off Control Power Selection for Inverter LCD Panel Power Selection CMOS Jumper RS232/485 Jumper RS485 Terminal Jumper Adjust the brightness of backlight JP3 JP4 ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 11: Install Memory

    2.2 Install Memory To insert a DIMM Memory: The AW-EM730 supports one SO-DIMM DDR socket, memory up to 1GB. Please make sure to insert DDR with registered. To Insert a DIMM Memory: Please align the module with the socket key and press down until the levers at each end of the socket snap close up.
  • Page 12 User’s Manual To Remove a DIMM Memory: To remove a DIMM, press down on the levers at both end of the module until the module pops out ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 13: Connector And Jumper Setting

    User’s Manual 2.3 Connector and Jumper Setting CN1: VGA Connector The AW-EM730 supports a standard D-SUB VGA connector for CRT display. Signal GREEN BLUE Ground Ground Ground Ground Ground DDC Data H-SYNC V-SYNC DDC Clock CN2, CN17, CN19: Serial Ports The AW-EM730 supports four serial ports: three RS-232 (COM1/COM3/COM4) and one RS-232/422/485 (COM2).
  • Page 14 Ground CN3: +12V input Connector The AW-EM730 can support +12V power input. If +12V power is needed, we offer AW-R029 that is a +12V DC to +5V DC adapter. Please install & assemble the adapter, then connect the CN5 in AW-R029 to the AW-EM730 CN3.
  • Page 15 User’s Manual CN4: PS/2 Mouse/Keyboard Connector (MINI DIN Jack) The AW-EM730 can support MINI DIN jack for PS/2 mouse or keyboard use. Signal KB-DATA MS-DATA Ground KB-CLK MS-CLK CN6: Front Panel Signal Signal Power LED+ (+5V) Power LED- (GND) IDE_LED+ (+5V)
  • Page 16 User’s Manual CN7: Inverter Connector The AW-EM730 can provide the power +12V or +5V for backlight inverter and brightness control through the inverter connector CN7. Signal +12V/+5V +12V/+5V Ground Ground Backlight Enable Brightness Note: The power input (+12V or +5V) selection depends on the JP3, please refer to the JP3 setting to get more information.
  • Page 17 User’s Manual CN8: USB2.0 Connector The AW-EM730 is equipped with two USB 2.0 (Universal Serial Bus) ports, which can support plug and play, hot attach/detach functions. It also can be backward compliant with USB 1.1 interface. Signal 5VUSB0 USBDT0- USBDT0+...
  • Page 18 User’s Manual CN10: RJ45 Connector The AW-EM730 is equipped with one RJ-45 connector. It can let the device to support 10Mbps and 100Mbps Ethernet. CN10 Signal TX0+ TX0- RX0+ RX0- CN11: USB2.0 Pin-Header AW-EM730 is equipped with USB2.0 pin header; it can support two more USB2.0 devices.
  • Page 19 RxIN2+ CLKIN- CLKIN+ RxIN3- RxIN3+ DDCPDATA DDCPCLK CN15: AC97 Connector This AW-EM730 supports AC97 function, the connector is designed as 12 pin for CD Audio cable that depends on the CD-ROM drive type. Signal Signal AC97_BITCLK +3.3V KEY pin AC97_SDIN...
  • Page 20 100 RESERVED_ REQ# GNT# WIP4 3.3V 101 GND 102 GND AD{31} PME# 103 AC_SYNC 104 M66EN AD{29} RESERVED 105 AC_SDATA_IN 106 AC_SDATA_ AD{30} AD{27} 3.3V 107 AC_BIT_CLK 108 AC_CODEC_ ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
  • Page 21 User’s Manual ID0# 109 AC_CODEC_ AC_RESET# ID1# MOD_AUDIO_ RESERVED AUDIO_GND SYS_AUDIO_ SYS_AUDIO_ SYS_AUDIO_ SYS_AUDIO_ OUT G IN G AUDIO_GND 120 AUDIO_GND 121 RESERVED 122 MPCIACT# 123 VCC5VA 124 3.3VAUX ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
  • Page 22 User’s Manual CN17: COM2 RS-232/485 PIN-Header Signal Signal 485TXD+ 485TXD- CN17 485RXD+ 485RXD- CN18: Power connector Signal CN18 ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
  • Page 23 User’s Manual CN19: COM3/4 Pin-Header Signal Signal DCD3 DSR3 RXD3 RTS3 TXD3 CTS3 DTR3 Ground DCD4 DSR4 RXD4 RTS4 CN19 TXD4 CTS4 DTR4 Ground ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
  • Page 24 CN20: IDE Connector The AW-EM730 is equipped with a 44 pin IDE connector. It can configure two hard disks via IDE cable, one can be Master mode on the primary IDE connector and the other can be Slave mode on the secondary IDE connector.
  • Page 25 User’s Manual CN21: LPT Pin-Header The AW-EM730 supports one parallel port accessed through CN21. It needs a 26 pin cable to connect the DB-25 connector. The port is designed as LPT1 and can be changed to LPT2 or LPT3 by adjusting the Integrated Peripherals Setup in BIOS setting. You can also select the ECP/EPP mode via Integrated Peripherals Setup function in BIOS setting.
  • Page 26 JP4: LCD Panel Voltage Select Setting Define +3.3V JP5: CMOS Clear Setting Define Normal Status (Default) Clear CMOS JP7: COM2 RS-232/485 Selector (Default: RS-232) Setting COM Ports RS-232 (Default) ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
  • Page 27 User’s Manual RS-485 (Two wire) RS-485 (Four wire) JP8: RS-485 terminal (120 ohm) Setting VR1: Adjust the brightness of backlight ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 28: Chapter 3. Bios Setup

    Type of display adapter installed Number and type of disk drives The CMOS memory is maintained by battery installed on the AW-EM730 board. By using the battery, all memory in CMOS can be retained when the system power switch is turned off.

  • Page 29: Entering The Cmos Setup Program

    1. Turn on or reboot the system. After the BIOS performs a series of diagnostic checks, the following message appears: “Press DEL to enter SETUP” 2. Press the <DEL> key to enter CMOS Setup program. The main menu appears: ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 30: Menu Options

    Configure the CPU speed and, if the optional Winbond W83627HF system monitor IC is installed, view system information LOAD FAIL-SAFE DEFAULT: Loads BIOS default values. Use this option as diagnostic aid if your system behaves erratically ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 31: Standard Cmos Features Setup

    1. Choose “Standard CMOS Features” from the main menu. The following screen appears: 2. Use the arrow keys to move between fields. Modify the selected field using the PgUP/PgDN/+/- keys. Some fields let you enter numeric values directly. ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 32: Advanced Bios Features Setup

    3.5 Advanced BIOS Features Setup Use the Advanced BIOS Features Setup option as follows: 1. Choose “Advanced BIOS Features Setup” from the main menu. The following screen appears: ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
  • Page 33 This entry allows you to select how gate A20 is handled. Gate A20 is a device use to address memory above 1MB. Initially, gate A20 was handled via the keyboard controller. ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 34: Advanced Chipset Features Setup

    This field is used to select the timing of the DRAM. DRAM timing Configure < By SPD> X – CAS Latency Time X – Active to Precharge Delay ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 35: Integrated Peripherals

    800*600 or 1024*768 LVDS. BIOS Write Protect Select enabled or disabled. When enabled, the BIOS can be updated. 3.7 Integrated Peripherals Use the Integrated Peripherals Setup option as follows: ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
  • Page 36 Disables the onboard USB. USB2.0 Controller If you are using USB2.0, this field must be set to Enabled. AC97 Audio Auto Select this option when using the onboard audio codec. ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
  • Page 37 Half Data is completely transmitted before receiving data. Full Transmits and receives data simultaneously. Onboard Parallel Port 378/IRQ7, 3BC/IRQ7, 278/IRQ5 Selects the I/O address and IRQ for the onboard parallel port. ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 38: Power Management Setup

    Use the Power Management Setup option as follows: 1. Choose “Power Management Setup” from the main menu. The following screen ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
  • Page 39 VGABIOS if S3 Resume to “ S3 (STR)” Power Management This field allows you to select the type (or degree) of power saving by changing the length of idle time that ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
  • Page 40 Pressing and then releasing the power button at once will immediately power off your system. Resume on PCI Event Enable this field should be set to enabled only if your PCI ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 41: Pnp/Pci Configuration

    This option is used to configure Plug and Play assignments and route PCI interrupts to designated ISA interrupts. Use the PNP/PCI Configuration Setup option as follows: 1. Choose “PNP/PCI Configuration Setup” from the main menu, the following screen appears. ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
  • Page 42 This field determines whether the MPEG ISA/VESA VGA cards a work with PCI/VGA or not Enable MEPG ISA/VESA VGA cards work with PCI/VGA Disabled MPEG ISA/VESA VGA card does not work with PCI/VGA ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 43: Pc Health Status Configuration Setup

    This is useful if you are having problems with the main board and need to debug or troubleshoot the system. The loaded default settings do not affect the Standard CMOS Setup screen. ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 44: Load Optimized Defaults

    <Enter> if you want to load the BIOS default. 3.12 Load Optimized Defaults This option loads optimized settings stored in the BIOS ROM. The auto-configured settings do not affect the Standard CMOS Setup screen. ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 45: Supervisor/User Password

    8 alphanumeric characters. Press <Enter> after entering the password. At the Next Prompt, confirm the new password by typing it and pressing <Enter> again. ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 46: Save And Exit Setup

    3.14 Save and Exit Setup This function automatically saves all CMOS values before exiting Setup. 3.15 Exit Without Saving Use this function to exit Setup without saving the CMOS value. ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 47: Chapter 4. Software & Driver Utility

    The operation system and driver installation procedure must be performed first. 4.1 Operation System Installation The AW-EM730 supports Windows 2000 SP4, Windows XP SP2 and Linux operation system. Please install the OS first after setup the hardware. 4.2 Device Driver Installation It supports one 10/100 Ethernet Controller by using Intel®...

  • Page 48: Crt And Lvds Driver

    User’s Manual 4.2.2. CRT and LVDS Driver ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 49: Appendix A: Optional Module

    User’s Manual Appendix A: Optional Module 1. AC97 Audio Kit (SPK Out, MIC In) ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
  • Page 50 User’s Manual Plug AW-R029 Power Module Install Audio Driver (need Option AW-R031 Audio Module) ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 51: Power Adapter Kit

    User’s Manual 2. +12~24V Power adapter Kit We offer the AW-R041 that is a +12V~+24V to +5V DC output adapter. If +12V~+24 power input is needed, please assemble the power cable of AW-EM730 CN3 and AW-R041 CN2. AW-R041 Layout ©2006 AEWIN Technologies Co., Ltd. All rights reserved.
  • Page 52 User’s Manual CN2: +12V Output Connector CN4: +5V Output Connector ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
  • Page 53 User’s Manual CN5: +12V Input Power Jack ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...

  • Page 54: Appendix B: Optional Cable List

    Power cable 3.96mm to 4pin AT CN18 46-IUSB03-00 USB Cable 2*5 2mm CN11 46-IOOIDE-00 IDE 44pin Cable CN20 COM3、COM4 Cable 46-ICOM03-00 CN19 46-ICOM02-00 COM2 Cable CN17 46-ILPT01-00 LPT Cable CN21 46-IPS266-00 KB/MS Cable ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
  • Page 55 Add VR1 explanation Ver 1.2 2006/03/20 Modify the BIOS setting of LVDS display & add AW-R041 power adapter description Ver 1.3 2006/03/22 Add mini PCI slot pin definition ©2006 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.3. Mar, 2006...
