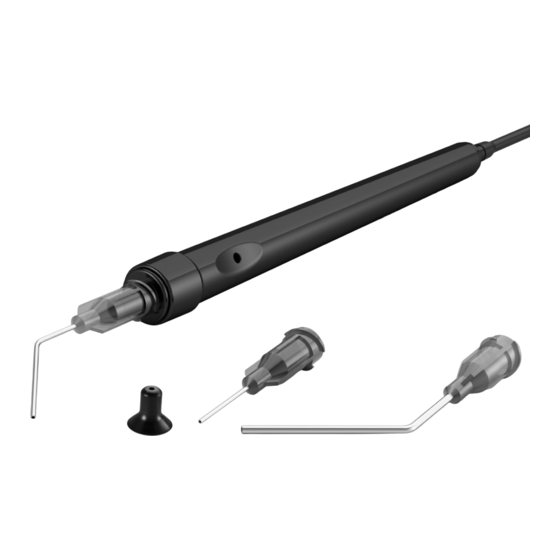

- Page 1 INSTRUCTION MANUAL T260 Pick & Place Handle...
- Page 2 This manual corresponds to the following references: T260-A Packing List The following items are included: Pick & Place Handle ..1 unit CU260 Cups Set ..... 1 unit Ref. 0940163 Ø 4.3 mm - 0940112 (x2) - 0940111 (x2) Ø 7 mm Ø...
- Page 3 para manuales - color gris Connections 130 mm 130 mm Choose the needle that best fits the component and the suction cup if needed. 100 mm Connected the tool to the sation suction plug. 80 mm Needle Suction 60 mm Working For a correct suction process 50 mm...
- Page 4 Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
