Western Products, PO Box 245038, Milwaukee, WI 53224‑9538 • www.westernplows.com
February 1, 2023
Lit. No. 30752EN, Rev. 00

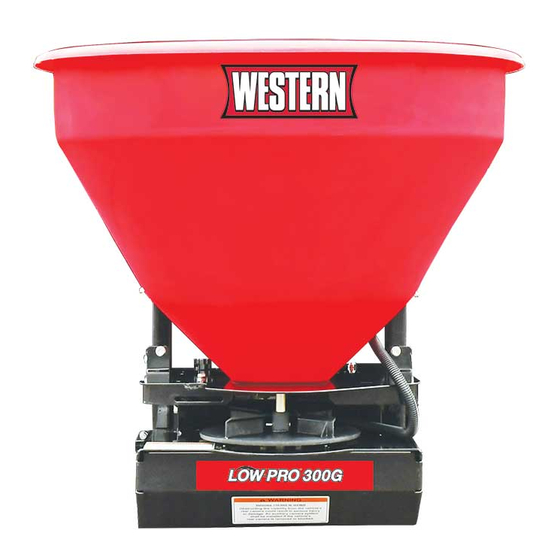

LOW‑PRO 300G Tailgate Spreader
#30870
Owner's Manual and Installation Instructions
Original Instructions
CAUTION
Read this manual before installing or
operating the spreader.
This manual is for WESTERN
LOW‑PRO 300G tailgate spreaders with
®
serial numbers beginning with 210801 and higher.
This document supersedes all editions with an earlier date.
Advertisement
Table of Contents
Related Manuals for Western LOW-PRO 300G
Summary of Contents for Western LOW-PRO 300G
- Page 1 Western Products, PO Box 245038, Milwaukee, WI 53224‑9538 • www.westernplows.com February 1, 2023 Lit. No. 30752EN, Rev. 00 LOW‑PRO 300G Tailgate Spreader #30870 Owner's Manual and Installation Instructions Original Instructions CAUTION Read this manual before installing or operating the spreader.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ............5 OPERATING THE SPREADER ......20 Owner's Information Form ........5 Driving and Spreading on Snow and Ice .... 20 Spreading Tips ............ 20 SAFETY ..............6 REMOVING THE SPREADER ....... 21 LOADING ..............11 MAINTENANCE ............ -
Page 5: Introduction
INTRODUCTION This manual has been prepared to acquaint you with When service is necessary, bring your spreader to the safety information, operation, and maintenance of your distributor. They know your spreader best and are your new tailgate spreader. Please read this manual interested in your complete satisfaction. -
Page 6: Safety
SAFETY SAFETY DEFINITIONS WARNING/CAUTION LABELS Please become familiar with the warning and caution WARNING labels on the spreader. Indicates a potentially hazardous situation that, if not avoided, could result in death or NOTE: If labels are missing or cannot be read, see serious personal injury. - Page 7 SAFETY SERIAL NUMBER LABEL Model No. 00000 Serial No. 000000000000000000 Code Definition Model No. 00000 2‑Digit Year 2‑Digit Month 2‑Digit Day Serial No. YYMMDDLLXXXXZZZZZZ 2-Digit Location Code XXXX 4-Digit Sequential Number ZZZZZZ Assembly Part Number Lit. No. 30751EN/30752EN, Rev. 00 February 1, 2023...
- Page 8 SAFETY SAFETY PRECAUTIONS CAUTION • Do not operate a spreader in need of Improper installation and operation could cause maintenance. personal injury and/or equipment and property • Before operating the spreader, reassemble damage. Read and understand labels and the any parts or hardware removed for cleaning Owner's Manual before installing, operating, or making or adjusting.
- Page 9 SAFETY PERSONAL SAFETY VENTILATION • Remove ignition key and put the vehicle in PARK WARNING or in gear to prevent others from starting the Vehicle exhaust contains lethal fumes. vehicle during installation or service. Breathing these fumes, even in low •...
- Page 10 SAFETY NOISE TORQUE CHART Airborne noise emission during use is below 70 dB(A) CAUTION for the spreader operator. Read instructions before assembling. Fasteners should be finger tight until VIBRATION instructed to tighten according to torque chart. Use standard methods and practices Operating snowplow vibration does not exceed when attaching spreader including proper 2.5 m/s...
-
Page 11: Loading
LOADING APPROXIMATE MATERIAL WEIGHTS This manual covers vehicles which have been recommended for carrying the spreader. Please see your local dealer for proper vehicle applications. WARNING CERTIFICATION Overloading could result in an accident or damage. Do not exceed GVWR or GAWR as found on the driver‑side cornerpost of vehicle. -
Page 12: Mounting The Spreader
MOUNTING THE SPREADER ASSEMBLY INSTRUCTIONS 2. Mount the support frame to the drive assembly using the six supplied 5/16" x 1" cap screws and the four supplied 5/16" locknuts. Tighten fasteners The spreader shall be installed according to according to the torque chart. instructions supplied. - Page 13 MOUNTING THE SPREADER 3. Mount the throat support to the support frame at CAUTION the two lower holes by using the four supplied Before drilling holes, check to be sure that no 5/16" x 1" cap screws and 5/16" locknuts. Tighten vehicle wiring or other components could be the fasteners according to the torque chart.
-
Page 14: Receiver Mount Spreader
MOUNTING THE SPREADER RECEIVER MOUNT SPREADER The spreader shall be installed according to instructions supplied. Your local outlet is trained to provide this service and service your spreader with factory original parts. CAUTION During removal or mounting, securely grip spreader to avoid dropping. Insert the assembled unit into the receiver hitch and secure with the supplied hitch pin and hairpin cotter. -
Page 15: Wiring Instructions
CONTROL AND HARNESS DIAGRAM WIRING INSTRUCTIONS CAUTION Do not alter, modify, or install additional 300G Tailgate Spreaders components in shaded areas shown below. Failure to comply may interfere with airbag 1. Mount the rear plug bracket on the back of the deployment or cause injury to operator in an vehicle. -
Page 16: 300G Wiring Diagram
CONTROL AND HARNESS DIAGRAM 300G WIRING DIAGRAM Control Power Cable Spreader Control Switch Assembly Vehicle Harness IMPORTANT: Do not modify harness length. Any modifications will void warranty. 1. All external connections must have dielectric grease. 2. Read lead labels before attaching to power source or ground. - Page 17 CONTROL AND HARNESS DIAGRAM Spreader Harness 43" 9" 1" 33" 38" Load View Load View 4‑Way Connector Green Black Blue Red Pos. B Black Pos. A Lit. No. 30751EN/30752EN, Rev. 00 February 1, 2023...
- Page 18 CONTROL AND HARNESS DIAGRAM 300G HARNESS DIAGRAMS Vehicle Harness 189" ± 3" Label "M (–)" Black Label "M (+)" Orange Blue Battery Harness 144" 6" Label "B (+)" 2" Label "B (–)" 3" Lit. No. 30751EN/30752EN, Rev. 00 February 1, 2023...
- Page 19 CONTROL AND HARNESS DIAGRAM 300G CONTROL Control Gate Switch OPEN/OFF/CLOSED Spreader Power Spinner Speed ON/OFF Variable 1–10 Load View Switch Assembly Orange Blue Black Black Orange Black Key Way on this End Black Blue Switch Circuits are: Up – ON Middle –...
-
Page 20: Operating The Spreader
OPERATING THE SPREADER DRIVING AND SPREADING ON SNOW SPREADING TIPS AND ICE • Spread ice melters with the storm to prevent unmanageable levels of ice. WARNING • Never exceed 10 mph (16 km/h) when spreading. Drinking and then driving or spreading is very dangerous. -
Page 21: Removing The Spreader
OPERATING THE SPREADER CONTROL Adjusting Spinner Speed The tailgate spreader comes standard with a variable WARNING speed dial. Spinner speed can be adjusted to get Never operate equipment when under the desired spread distance. influence of alcohol, drugs, or medications that might alter your judgment and/or reaction 1. -
Page 22: Maintenance
MAINTENANCE AFTER EACH USE WARNING Never remove the spreader with material in CAUTION the hopper. DO NOT leave unused material in hopper. Material can freeze or solidify, CAUTION causing unit to not work properly. Disconnect electric power at spreader Empty and clean after each use. electrical wiring harness connection and tag out if required before servicing or performing •... -
Page 23: Troubleshooting
TROUBLESHOOTING TAILGATE SPREADER Spreader Auger Fuse blown Jammed auger Fix or replace does not run interference Material issue Bad motor/ Too much Bad motor; 4A to 20A draw, transmission amperage draw contact distributor no load – good assembly 20A+ draw, no load –... - Page 24 Western Products outlets or spreader owner is granted. Western Products reserves the right under its product improvement policy to change construction or design details and furnish equipment when so altered without reference to illustrations or specifications used. Western Products or the vehicle manufacturer may require or recommend optional equipment for spreaders.
