AWNING – POWER
–If Equipped
The Power Awning and Awning Light
switches are located near the entrance door.
Awning Light
Power
Awning
Switch
• Press to
Extend
(OUT).
• Press to
Retract
(IN).

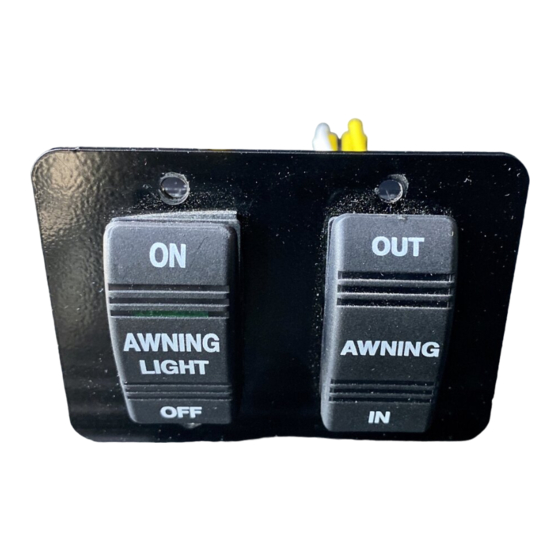

Power Awning and Awning Light Switch
(Located near entrance door.)
-Typical View
CAUTION
Pinch Hazard. Ensure there are no
people who could be harmed or objects
that can be damaged. Failure to heed this
warning could result in severe injury and/
or property damage.
Operating the Awning
Press and Hold the Power Awning switch IN
or OUT to extend or retract the awning as
desired.
Switch
CAUTION
Keep the Coach Battery ON when vehicle
is in motion or in use. Coach batteries
provide power to the awning active brake,
preventing unintentional deployment.
Failure to do so can result in property
damage and, or personal injury.
Ignition Lockout System
The Ignition Lockout System will disable the
extend function while the vehicle ignition key is
in the On position. With this feature, the Awning
will only extend when the vehicle ignition key is
in the Off position. The Awning can retract
anytime regardless of the ignition key position.
Further Information
For complete operating instructions, features,
safety precautions, and maintenance care, refer to
the Power Awning manufacturer's information
provided in your InfoCase.
1
