Using your gas cooktop
Before using your new cooktop, please read this user guide, taking special note of the
make sure all burner control dials are turned off, and turn the power to the cooker on at the wall.
1. Triple-ring wok burner
2. Semi-rapid burner
3. Dual burner
Gas burners
The dial controls the flow of gas through the safety valve.
Semi-rapid and triple-ring wok burners
▪ = closed valve (OFF)
▪ = maximum flow of semi-rapid and triple-ring burner burners
https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFX2/User_Guide_OR90SDBGFX...
Fig 27 Cooktop layout
'Safety and
warnings' section,
Updated: Mon, 10 Apr 2023 23:53:48 GMT
Powered by
1
Advertisement

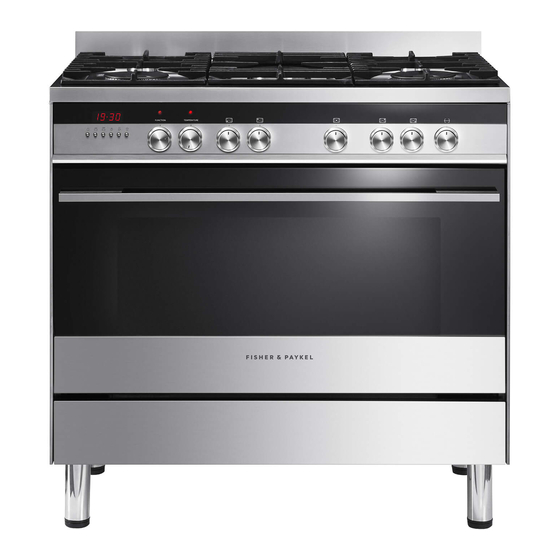

Related Manuals for Fisher & Paykel OR90SDBGFX2
Summary of Contents for Fisher & Paykel OR90SDBGFX2
- Page 1 The dial controls the flow of gas through the safety valve. Semi-rapid and triple-ring wok burners ▪ = closed valve (OFF) ▪ = maximum flow of semi-rapid and triple-ring burner burners https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFX2/User_Guide_OR90SDBGFX… Updated: Mon, 10 Apr 2023 23:53:48 GMT Powered by...
- Page 2 ▪ = maximum flow of inner & outer crowns (turn dial anticlockwise) ▪ = minimum flow of inner & crowns (turn dial anticlockwise) You can choose to cook at any heat between Fig. 28 Burner control dial or between https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFX2/User_Guide_OR90SDBGFX… Updated: Mon, 10 Apr 2023 23:53:48 GMT Powered by...
-
Page 3: Before Using Your Cooktop
Dual burner: press the dial in gently and turn it anticlockwise to the position (to ignite the inner and outer crowns) or press the dial it gently and turn it clockwise to the https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFX2/User_Guide_OR90SDBGFX… Updated: Mon, 10 Apr 2023 23:53:48 GMT... - Page 4 4. To turn the burner off, turn the dial clockwise (semi-rapid and triple-ring burners or dual burner when using both crowns) or anticlockwise (dual burner when using the inner crown only) to https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFX2/User_Guide_OR90SDBGFX… Updated: Mon, 10 Apr 2023 23:53:48 GMT...
-
Page 5: Flame Failure Safety Feature
▪ The ignitors are sparking. If the ignitors are not sparking, they may be dirty or wet. Clean them with a toothbrush and methylated spirits, as shown in Fig.31. Fig. 29 Cleaning the probe and ignitor https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFX2/User_Guide_OR90SDBGFX… Updated: Mon, 10 Apr 2023 23:53:48 GMT Powered by... - Page 6 Triple-ring wok Maximum diameter for woks 36 cm Dual (inner crown only) 12 cm 14 cm 26 cm 28 cm Dual (inner and outer crowns) Maximum diameter for woks 36 cm https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFX2/User_Guide_OR90SDBGFX… Updated: Mon, 10 Apr 2023 23:53:48 GMT Powered by...
- Page 7 • The wok stand MUST BE PLACED ONLY over the pan support for the triple ring or dual burner. The cooktop becomes very hot during operation. Keep children well out of reach. Fig. 33 Correct placement of wok stand https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFX2/User_Guide_OR90SDBGFX… Updated: Mon, 10 Apr 2023 23:53:48 GMT Powered by...
