Installation instructions - Ceramic Glass Cooktop Models
Please follow the installation steps below to ensure your glass cooktop operates correctly.
Ceramic Glass Cooktop Models
Dimensions and clearances
• The cooker must be installed at least 50 mm away from any side walls higher than the cooktop. The cabinetry
surrounding the cooker must be made of heat-resistant material and must be able to withstand temperatures of
65 °C above room temperature.
• Do not install the cooker near flammable materials (eg curtains).
• If you stand the cooker on a pedestal, make sure you provide safety measures to keep it in place.
https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59...

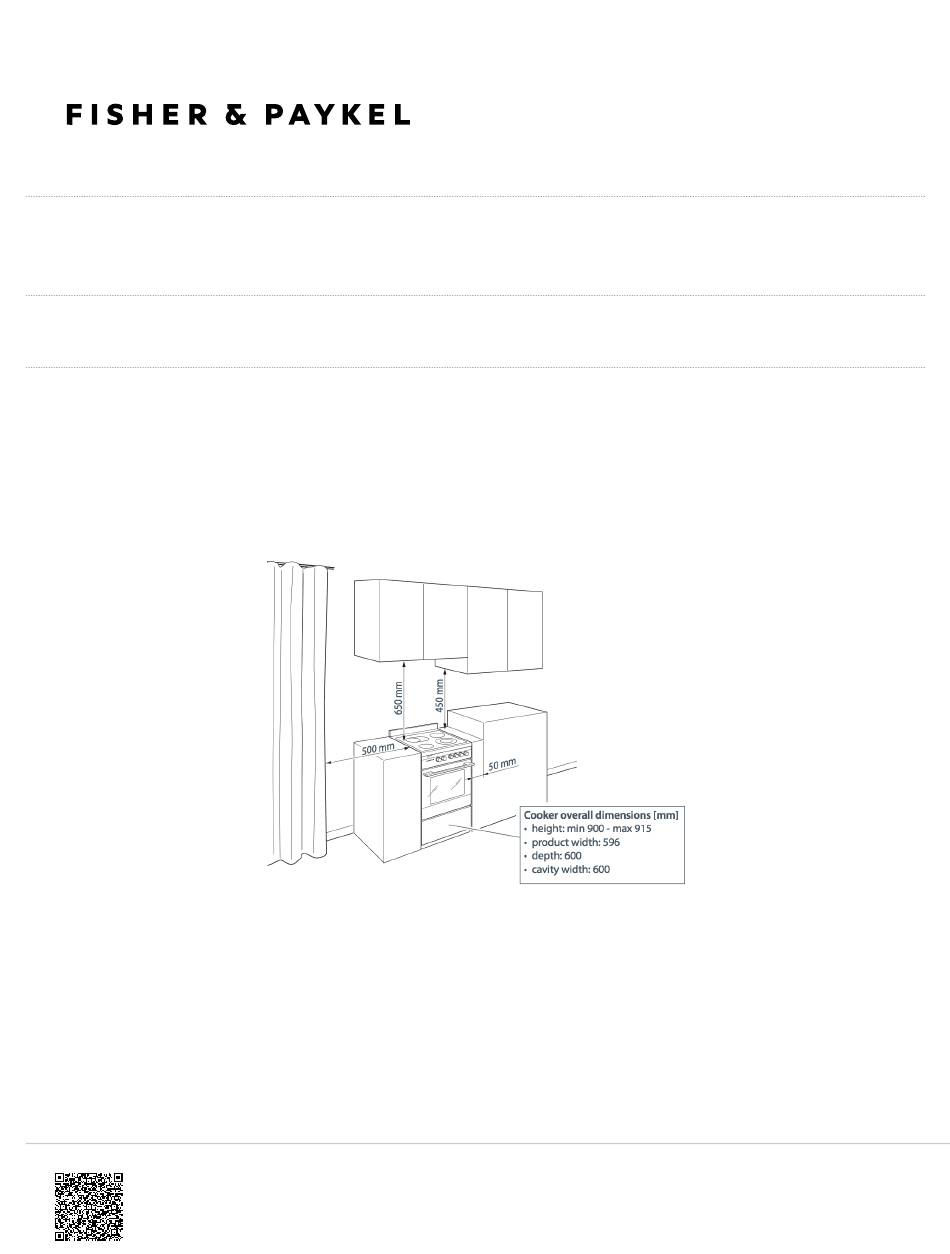

Fig. 15 Dimensions and correct distances from cooker
Updated: Fri, 08 May 2020 08:21:57 GMT
Powered by
1
Advertisement
Related Manuals for Fisher & Paykel OR60SDBSX2
Summary of Contents for Fisher & Paykel OR60SDBSX2
- Page 1 • Do not install the cooker near flammable materials (eg curtains). • If you stand the cooker on a pedestal, make sure you provide safety measures to keep it in place. Fig. 15 Dimensions and correct distances from cooker https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59… Updated: Fri, 08 May 2020 08:21:57 GMT Powered by...
-
Page 2: Levelling The Cooker
3. Stand the cooker and level it by screwing or cooker in the feet kit) unscrewing the feet with an adjustable spanner. Use the supplied nuts if necessary. See Figs. 16a- 16d. https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59… Updated: Fri, 08 May 2020 08:21:57 GMT Powered by... - Page 3 Fig. 16b Do not use the supplied nuts for height adjustments between 0 and 8 mm. Fig. 16c Use the supplied nuts for height adjustments between 8 and 15 mm. Fig. 16d Levelling the cooker https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59… Updated: Fri, 08 May 2020 08:21:57 GMT Powered by...
- Page 4 1. After you have located where the cooker is to be positioned, mark on the wall the place where the Fig. 18a Fitting the anti-tilt bracket two screws of the anti-tilt bracket have to be fitted. https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59… Updated: Fri, 08 May 2020 08:21:57 GMT Powered by...
- Page 5 7. Access the bracket and fit the lock pin; • Remove the drawer (Fig. 18b). • Fit the lock pin through the bracket, as shown (Fig.18c). • Refit the drawer. Fig. 18b Removing the drawer https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59… Updated: Fri, 08 May 2020 08:21:57 GMT Powered by...
-
Page 6: Connecting The Power Supply Cable
The earth wire must be left about 30 mm longer than the others. Voltage and power consumption 230 V~ 50 Hz 9700 W (diversity not applied) 240 V~ 50 Hz 10550 W (diversity not applied) https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59… Updated: Fri, 08 May 2020 08:21:57 GMT Powered by... - Page 7 Power supply cable section This cooker must be connected to the electrical supply using V105 insulated cable. 230-240 V~ 3 x 4 mm2 Fig. 19a Connection diagram Fig. 19b https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59… Updated: Fri, 08 May 2020 08:21:57 GMT Powered by...
-
Page 8: Wiring Diagram
CIR Circular heating M Terminal block TS Safety thermostat element CR Residual heat T Earth connection CF Cooling PR Electronic programmer lamp fan motor TL Thermal overload S1 Thermostat pilot lamp https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59… Updated: Fri, 08 May 2020 08:21:57 GMT Powered by...
