SERVICE MANUAL

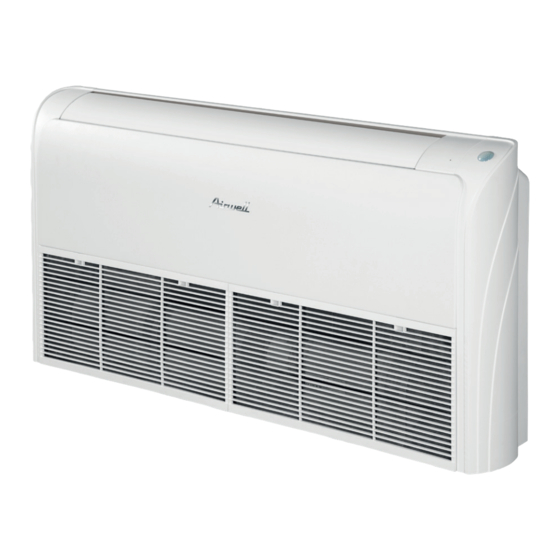

Convertible Type Indoor Unit
FVVA Range R410a
English Manual
FVVA-025N-01M22
FVVA-050/045/035N-01M22
FVVA-090/080/070N-01M22
FVVA-140/110N-01M22
IMPORTANT NOTE:
Read this manual carefully before installing or operating your new air conditioning unit. Make sure to
save this manual for future referenc
e.
23.AW.FVVA.025-140.R410A.SM.EN.06.05.Rev01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FVVA-025N-01M22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Airwell FVVA-025N-01M22

Summary of Contents for Airwell FVVA-025N-01M22

  • Page 1 SERVICE MANUAL Convertible Type Indoor Unit FVVA Range R410a English Manual FVVA-025N-01M22 FVVA-050/045/035N-01M22 FVVA-090/080/070N-01M22 FVVA-140/110N-01M22 IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future referenc 23.AW.FVVA.025-140.R410A.SM.EN.06.05.Rev01...
  • Page 2 1. Convertible Type Indoor Unit 1.1 Features FVVA-025N-01M22 FVVA-050/045/035N-01M22 FVVA-090/080/070N-01M22 FVVA-140/110N-01M22 • Appearance without screw, easy care • New DC fan motor • Flexoble installation ,on the floor or on the ceiling • Turbo mode 4.2m(14KW) which is flexible for installation choice;...

  • Page 3: Specification

    1.2 Specification MODEL FVVA-025N-01M22 FVVA-035N-01M22 FVVA-045N-01M22 Power supply Ph-V-Hz 1,220~230,50/60 1,220~230,50/60 1,220~230,50/60 Capacity kBtu/h 12.3 15.4 Capacity Cooling Power input Current 0.14 0.14 0.16 Capacity kBtu/h 10.9 13.6 17.1 Capacity Heating Power input Current 0.14 0.14 0.16 Heating capacity at low temp.
  • Page 4 MODEL FVVA-025N-01M22 FVVA-035N-01M22 FVVA-045N-01M22 Cabinet coating type Plastic Plastic Plastic Cabinet salt spray test Cabinet Hour duration Control box IP class IP20 IP20 IP20 Sheet metal thickness Drain pan material Construction Drain pan insulation Drain pump option Branch outlet option...
  • Page 5 MODEL FVVA-050N-01M22 FVVA-070N-01M22 FVVA-080N-01M22 Power supply Ph-V-Hz 1,220~230,50/60 1,220~230,50/60 1,220~230,50/60 Capacity kBtu/h 19.1 24.2 27.3 Capacity Cooling Power input Current 0.16 0.21 0.23 Capacity kBtu/h 21.5 27.3 30.7 Capacity Heating Power input Current 0.16 0.21 0.23 Heating capacity at low temp. Operating current 0.16 0.21...
  • Page 6 MODEL FVVA-050N-01M22 FVVA-070N-01M22 FVVA-080N-01M22 Cabinet coating type Plastic Plastic Plastic Cabinet salt spray test Cabinet Hour duration Control box IP class IP20 IP20 IP20 Sheet metal thickness Drain pan material Construction Drain pan insulation Drain pump option Branch outlet option Material Plastic Plastic...
  • Page 7 MODEL FVVA-090N-01M22 FVVA-110N-01M22 Power supply Ph-V-Hz 1,220~230,50/60 1,220~230,50/60 Capacity kBtu/h 30.7 38.2 Capacity 11.2 Cooling Power input Current 0.23 0.51 Capacity kBtu/h 34.1 42.6 Capacity 12.5 Heating Power input Current 0.23 0.51 Heating capacity at low temp. Operating current 0.23 0.51 Power consumption Brand...
  • Page 8 MODEL FVVA-110N-01M22 FVVA-090N-01M22 Cabinet coating type Plastic Plastic Cabinet salt spray test Cabinet Hour duration Control box IP class IP20 IP20 Sheet metal thickness Drain pan material Construction Drain pan insulation Drain pump option Branch outlet option Material Plastic Plastic Indoor wall Thickness Double or single skin...
  • Page 9 MODEL FVVA-140N-01M22 Power supply Ph-V-Hz 1,220~230,50/60 Capacity kBtu/h 48.0 Capacity 14.0 Cooling Power input Current 0.51 Capacity kBtu/h 55.0 Capacity 16.0 Heating Power input Current 0.51 Heating capacity at low temp. 12.5 Operating current 0.51 Power consumption Brand zhongshan broad-ocean Model ZWK511B500030 Type...
  • Page 10 MODEL FVVA-140N-01M22 Cabinet coating type Plastic Cabinet salt spray test Cabinet Hour duration Control box IP class IP20 Sheet metal thickness Drain pan material Construction Drain pan insulation Drain pump option Branch outlet option Material Plastic Indoor wall Thickness Double or single skin single Material Air filter...
  • Page 11 1.3 Dimension FVVA-025N-01M22 FVVA-050/045/035N-01M22...
  • Page 12 FVVA-090/080/070N-01M22...
  • Page 13 FVVA-140/110N-01M22...

  • Page 14: Piping Diagram

    1.4 Piping diagram Liquid pipe Gas pipe Filter Filter Indoor heat exchanger...

  • Page 15: Wiring Diagram

    1.5 Wiring diagram...

  • Page 16: Electric Characteristics

    1.6 Electric characteristics Units Power supply Indoor fan motor Power input (W) Volt. Output Model Phase Voltage Cooling Heating range AC092MDERA 50/60 220-230 198~253 0.18 0.14 AC122MDERA 50/61 220-230 198~253 0.18 0.14 AC162MDERA 50/62 220-230 198~253 0.20 0.16 AC182MDERA 50/63 220-230 198~253 0.20 0.16...

  • Page 17: Air Velocity And Temperature Distribution

    1.7 Air velocity and temperature distribution On the floor a. Cooling / Air velocity distribution Coolin g Blowy angle: 25 Air velocity distribution 2.4m 0.5m/s 1.0m/s 1.5m/s 5.5m b. Cooling / Temperature distribution Coolin g Blowy angle: 25 Temperature distribution 2.4m 27 ℃...
  • Page 18 c. Heating / Air velocity distribution Heating Blowy angle: 5 Air velocity distribution 2.4m 0.5m/s 1.0m/s 1.5m/s 5.5m d. Heating / Temperature distribution Heating Blowy angle: 5 Temperature distribution 2.4m ℃ ℃ ℃ 5.5m...
  • Page 19 B) Ceiling a. Cooling / Air velocity distribution Cooling Blowy angle: 25 Air velocity distribution 2.4m 1.5m/s 1.0m/s 0.5m/s 5.5m b. Cooling / Temperature distribution Cooling Blowy angle: 25 Temperature distribution 2.4m 22℃ 25℃ 27℃ 5.5m...
  • Page 20 c. Heating / Air velocity distribution Heating Blowy angle: 65 Air velocity distribution 2.4m 1.5m/s 1.0m/s 0.5m/s 5.5 m d. Heating / Temperature distribution Heating Blowy angle: 65 Temperature distribution 2.4m 27℃ 25℃ 22℃ 5.5 m...

  • Page 21: Sound Pressure Level

    1.8 Sound pressure level (1) Testing illustrate: (2) Testing condition: a. Unit running in the nominal condition b. Test in the semi-anechoic chamber c. Noise level varies from the actual factors such as room structure, etc. (3) Octave band level: AC09~242MDERA AC28~302MDERA Limit of...

  • Page 22: Installation Procedures

    Installation Procedures This manual does not cover all user cases; please contact Haier marketing centers in local places to propose new This manual does not cover all user cases; please contact Haier marketing centers in local places to propose new requirements and clear new doubts and problems.
  • Page 23 Figure 3 Figure 2 Remove the Side cover (1) Remove the screw. Figure 3 Figure 2 Remove the Side cover (2) Push the Side cover according to the direction of the rrowhead. (1) Remove the screw. Remove the Side cover (2) Push the Side cover according to the direction of the rrowhead.
  • Page 24 Connecting pipe Connecting pipe Floor Floor Left Right Left Right Drain pipe Drain pipe Over 30cm Over 30cm 4. Ceiling Installation 4. Ceiling Installation Over 30cm Over 30cm 4.Ceiling Installation 4.Ceiling Installation Left Right Ceiling Left Right Ceiling Model Model AC092~182MDERA Over 30cm Over 30cm...
  • Page 25 Model AC092MDERA AC122MDERA AC162MDERA AC182MDERA AC242MDERA AC282MDERA 1204 AC302MDERA AC382MDERA 1530 AC482MDERA For half-concealed installation Supension-bolt pitch should be as shown below (3) Installing Hanger Bolt and leveling instruments shall be available to ensure balanced installation. (4) Please use hexagon bolts when installing Installation Procedures (5) Air Conditioner Installation Diagram ①...
  • Page 26 (Ceiling) ≤40mm Bolt Sleeve Mounting Rack Unit (Wall) Flat Spacer Hexagon Bolt Double Nut Leveling is forbidden after air conditioner is installed; please make adjustment according to diagram indication. Hanger bolt is 40mm below ceiling. ③ Installing Air Conditioner ④ Drain Pipe Leading-out Direction Mounting Rack CAUTION: Bolt...
  • Page 27 PVC tube. • Stretch the hose directly to make connections as to avoid distortion. The soft end of the hose should be positioned with a clamp. hose hose clamp • The hose should be used in the horizon direction. Heat Insulating Treatment: •...

  • Page 28: Electrical Wiring

    Electrical Wiring 1.9.1 Electrical wiring WARNING • • regulations on wiring. Connecting and fastening should be performed reliably to avoid the external force of cables from • There must be the ground connection according to the criterion. Unreliable grounding may cause electrical shocks. Do not connect the grounding line to the gas pipe, water pipe, lightening rod and telephone line.
  • Page 29 Electrical Wiring Signal Wiring Drawing (This machine) (AC machine) (AC machine) (DC machine) Outdoor units are of parallel connection via three lines with polarity. The main unit, central control and all indoor units are of parallel connection via two lines without polarity. There are three connecting ways between line control and indoor units: indoor unit 5 is the line-controlled main unit(directly connected to the indoor unit of line control) and others are the ine- controlled sub units.
  • Page 30 C. One wired controller controls multiple units 00151800555 PCB Note: 1. Plug the wired controller terminal to the CN22 terminal of master unit which wired address is 0, the slave unit also connects ABC terminal. 2. Wired address setting Wired control address OFF OFF OFF OFF Master unit in group control SW01_1...
  • Page 31 Indoor power supply wiring & signal wiring between indoor and outdoor & signal wiring between indoor. Items Cross sectional Rated Rated current of residual circuit Cross area of signal Line Length current of breaker (A) Total section overflow Ground fault Interrupter (mA) Outdoor Indoor current of...
  • Page 32 1.9.2 Test run Before Test Run ■ Before switching it on, test the supply terminal tier (L, N terminals) and grounding points with 500V megaohm meter and check if the resistance is above 1MΩ. It can't be operated if it is below 1MΩ. ■...
  • Page 33 Consult with the sales agency or manufacturer for details. ATTENTION : Le design et les données techniques sont donnés à titre indicatif et peuvent être modifiés sans préavis. AIRWELL RESIDENTIAL SAS 10,Rue du Fort de Saint Cyr, 78180 Montigny le Bretonneux - France www.airwell.com...
