SUPPORT BRACKET INSTALLATION

Make sure that the wall or ceiling chosen for the placement of the machine is suitable to
support the weight indicated in the technical data sheet.

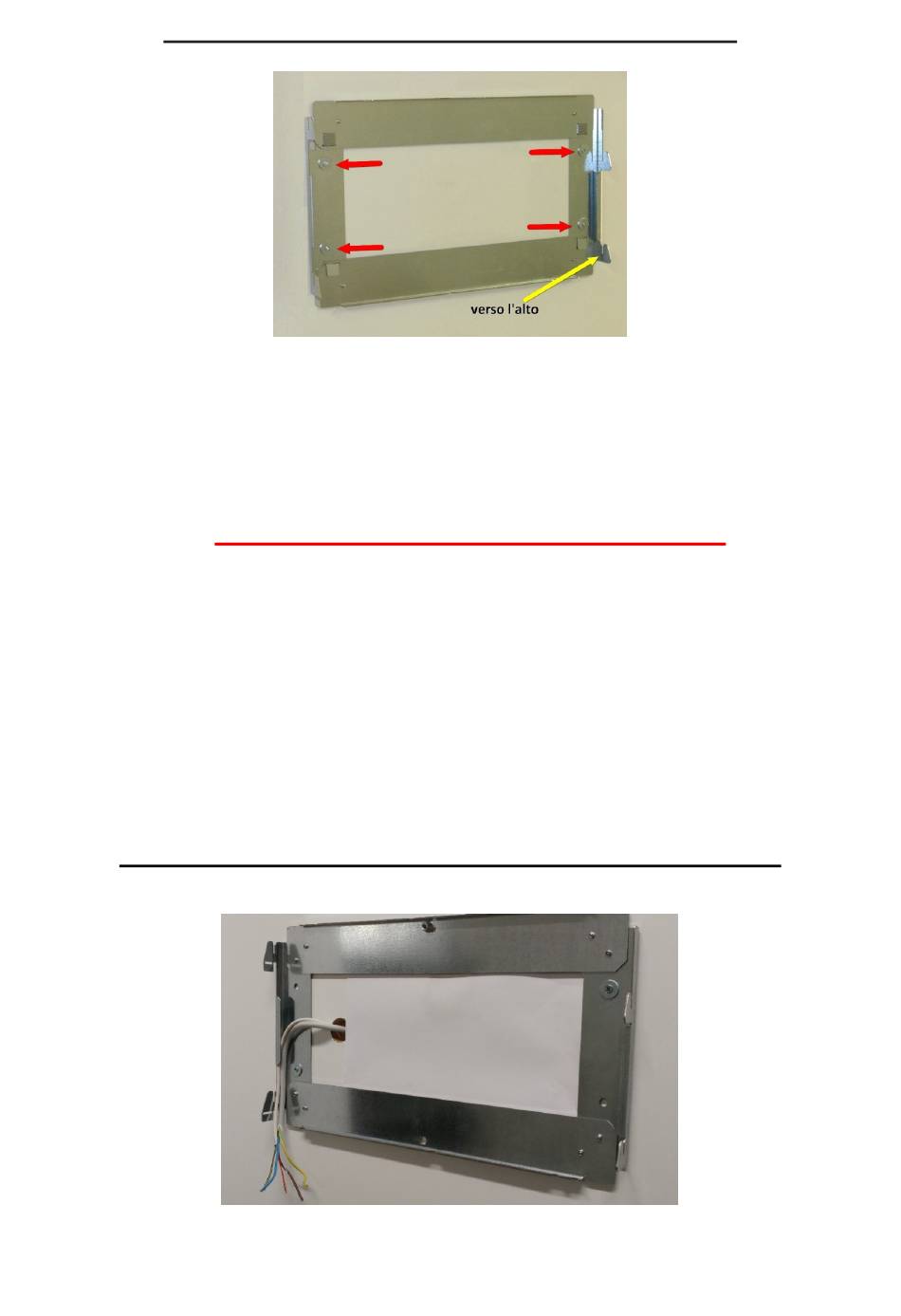

Position the bracket as shown in the photo at a minimum distance of 15 cm from the ceiling.
DO NOT TURN THE APPLIANCE
For wall installation
Use 4 dowels (fisher) of 10 mm of the type suitable for the wall on which the machine will be
installed.
If necessary, it is possible to drill the bracket at any point of it adjacent to the wall.
In the case of ceiling installation directly to the wall, the procedure does not change.
In the case of "Floating" installation (spaced from the ceiling), use 10 mm galvanized steel
threaded rods instead of the dowel screws and lock the bracket between nut and counternut.
PREDISPOSITION – CABLE POSITIONING
7
