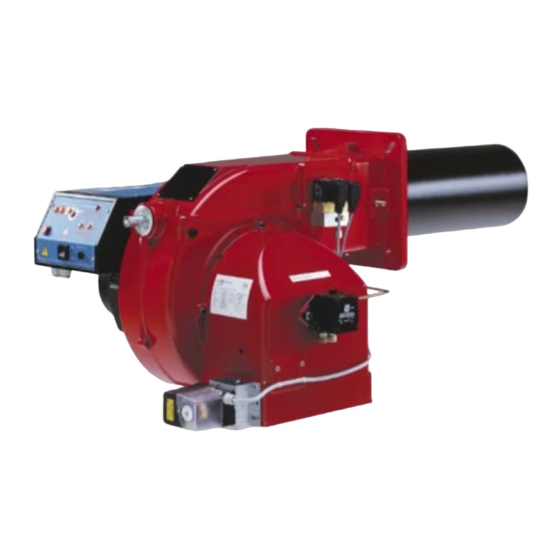

CIB UNIGAS PG60 Manual Of Installation - Use - Maintenance
Light oil/biodiesel double-stage burners
Hide thumbs
Also See for PG60:
- Manual of installation - use - maintenance (44 pages) ,
- Manual of installation - use - maintenance (116 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for CIB UNIGAS PG60
Summary of Contents for CIB UNIGAS PG60
- Page 1 PG60 PG70 PG81 Light oil/Biodiesel double-stage burners Versions with: - 12VDC voltage supply - oleo-static driven fan motor MANUAL OF INSTALLATION - USE - MAINTENANCE BURNERS - BRUCIATORI - BRULERS - BRENNER - QUEMADORES - ГОРЕЛКИ M039356CB Rev. 1 05/2008...
-
Page 2: Table Of Contents
C.I.B. UNIGAS - M03997CB TABLE OF CONTENTS WARNINGS ................................3 PART I: INSTALLATION ............................5 Burner model identification ................................5 Technical specifications .................................. 5 Overall dimensions ..................................6 Performance curves ..................................6 MOUNTINGS AND CONNECTIONS .............................. 7 Packing ......................................7 Handling the burner .................................. -
Page 3: Warnings
WARNINGS THIS MANUAL IS SUPPLIED AS AN INTEGRAL AND ESSENTIAL PART OF THE PRODUCT AND MUST BE DELIVERED TO THE USER. INFORMATION INCLUDED IN THIS SECTION ARE DEDICATED BOTH TO THE USER AND TO PERSONNEL FOLLOWING PRO- DUCT INSTALLATION AND MAINTENANCE. THE USER WILL FIND FURTHER INFORMATION ABOUT OPERATING AND USE RESTRICTIONS, IN THE SECOND SECTION OF THIS MANUAL. - Page 4 DIRECTIVES AND STANDARDS 3b) FIRING WITH GAS, LIGHT OIL OR OTHER FUELS Gas burners GENERAL European directives: The burner shall be installed by qualified personnel and in com- - Directive 90/396/CEE - Gas Appliances; pliance with regulations and provisions in force; wrong installation Directive 2006/95/EC on low voltage;...
-
Page 5: Part I: Installation
C.I.B. UNIGAS - M03997CB PART I: INSTALLATION Burner model identification Burners are identified by burner type and model. Burner model identification is described as follows. Type PG60 Model PG60-PG70-PG81 (1) BURNER TYPE G - Light oil A - Biodiesel (2) FUEL... -
Page 6: Overall Dimensions
C.I.B. UNIGAS - M03997CB Overall dimensions (mm) min. max. PG60 12V S Ø153 182 PG60 12V L Ø153 182 PG70 12V S 351 Ø198 228 PG70 12V L 1111 351 Ø198 228 PG81 12V S 991 Ø234 264 PG81 12V L 1141 Ø234 264... -
Page 7: Mountings And Connections
Packing The burners are dispatched in wooden pakages whose dimensions are: PG60: 1200mm x 670mm x 540 mm (L x P x H) PG70-PG81: 1280mm x 850mm x 760 mm (L x P x H) Packing cases of this kind are affected by humidity and are not suitable for stacking. The following are pla- ced in each packing case. -
Page 8: Hydraulic Diagrams For Light Oil Supplying Circuits
C.I.B. UNIGAS - M03997CB Hydraulic diagrams for light oil supplying circuits Fig. 4 - Gravity circuit Fig. 5 - Ring circuit Fig. 6 - Suction circuit Manual valve Light oil filter Light oil feeding pump One way valve Flexible hoses Relief valve NOTE: in plants where gravity or ring feed systems are provided, install an automatic interception device (see n. -
Page 9: Installation Diagram Of Light Oil Pipes
C.I.B. UNIGAS - M03997CB Installation diagram of light oil pipes PLEASE READ CAREFULLY THE “WARNINGS” CHAPTER AT THE BEGINNING OF THIS MANUAL. From tank To tank Fig. 7 - Double-pipe system The burner is supplied with filter and flexible hoses, all the parts upstream the filter must be installed by the customer. As far as the hoses connection, see the related paragraph.. -
Page 10: Determining The Diameter Of Oil Supply Pipes
To change from a 1-pipe system to a 2-pipe-system, insert the by-pass plug G (as for ccw-rotation- referring to the pump shaft). Caution: Changing the direction of rotation, all connections on top and side are reversed. PG60 - PG70: Suntec AJ6 - PG81: Suntec J6 Suntec AJ6... -
Page 11: About The Use Of Fuel Pumps
C.I.B. UNIGAS - M03997CB Bleed Bleeding in two-pipe operation is automatic : it is assured by a bleed flat on the piston. In one-pipe operation, the plug of a pressure gauge port must be loosened until the air is evacuated from the system. About the use of fuel pumps Make sure that the by-pass plug is not used in a single pipe installation, because the fuel unit will not function properly and damage to the pump and burner motor could result. -
Page 12: Oil Pumps
C.I.B. UNIGAS - M03997CB Light oil pumps The pumps provided with these burners can be: PG60 - PG70: Suntec AJ6 PG81: Suntec J6 Suntec AJ6 Viscosity 2.8 - 75 cSt Oil temperature 60°C max Inlet maximum pressure 2 bar Inlet minimum pressure - 0.45 bar to avoid gasing... -
Page 13: Connecting The Light Oil Flexible Hoses
C.I.B. UNIGAS - M03997CB Connecting the light oil flexible hoses To connect the flexible light oil hoses to the pump, proceed as follows, according to the pump provided: remove the closing nuts A and R on the inlet and return connections of the pump; screw the rotating nut of the two flexible hoses on the pump being careful to avoid exchanging the inlet and return lines: see the arrows marked on the pump that show the inlet and the return (see prevoius paragraph). -
Page 14: Adjustments
C.I.B. UNIGAS - M03997CB ADJUSTMENTS ATTENTION: before starting the burner up, be sure that the manual cutoff valves are open. Be sure that the mains switch is closed. Before starting up the burner, make sure that the return pipe to the tank is not obstructed. Any obstruction would cause the pump seal to break. - Page 15 C.I.B. UNIGAS - M03997CB Tab. 2 - Light oil nozzles rate PUMP PRESSURE (bar) NOZZLE NOZZLE G.P.H. G.P.H. LIGHT OIL FLOW RATE (kg/h) 0,30 0,30 0,35 0,35 0,40 0,40 0,45 0,45 0,50 0,50 0,55 0,55 0,60 0,60 0,65 0,65 0,70 0,70 0,75 0,75...
-
Page 16: Hydraulic Scheme - Operating Principle
C.I.B. UNIGAS - M03997CB Hydraulic scheme - operating principle Fig. 8 - IGNITION AND LOW FLAME Voltage on solenoid valve EVG1 Fig. 9 - HIGH FLAME Voltage on solenoid valves EVG, EVG2, EVG3 Fig. 10 - SHUTDOWN There isn’t any solenoid valves activated Keys EVG1 - Solenoid valve, first stage, NC EVG1 - Solenoid valve, second stage, NC... -
Page 17: Hydraulic Circuit - Components Arrangement
C.I.B. UNIGAS - M03997CB Hydraulic circuit - components arrangement pressure gauge plug oil return oil pump delivery low flame air adjustment hydraulic jack high flame air adjustment Fig. 11 Air adjustment Low flame setting To set the low flame, proceed as follows: open the contact of the second stage regulator;... -
Page 18: Combustion Head Adjustment
C.I.B. UNIGAS - M03997CB Combustion head adjustment The burner is factory-set with the combustion head at the "MAX." position (Fig. 13), corresponding to the maximum output. To operate at a lower output, move back the combustion head towards the "MIN." position, twisting the VRT screw (Fig. 12 and Fig. 13) clockwise. -
Page 19: Part Ii: Operation
C.I.B. UNIGAS - M03997CB PART II: OPERATION LIMITATIONS OF USE THE BURNER IS AN APPLIANCE DESIGNED AND CONSTRUCTED TO OPERATE ONLY AFTER BEING CORRECTLY CON- NECTED TO A HEAT GENERATOR (E.G. BOILER, HOT AIR GENERATOR, FURNACE, ETC.), ANY OTHER USE IS TO BE CONSI- DERED IMPROPER AND THEREFORE DANGEROUS. -
Page 20: Part Iii: Maintenance
2 oil pipes - Fig. 16 (use 2 spanners to avoid loosening the connections to the distribution block); (only mod. PG60) loose the screw VRT to free the threaded rod AR, then unscrew the 2 screws V which hold the washer R and the screw VRT;... -
Page 21: Correct Position Of Electrodes And Combustion Head
C.I.B. UNIGAS - M03997CB Correct position of electrodes and combustion head To ensure a good ignition, the measures shown in Fig. 17 must be observed. Be sure to tighten the lock screw of the electrodes assem- bly, before refitting the combustion head. Fig. -
Page 22: Troubleshooting
C.I.B. UNIGAS - M03997CB TROUBLESHOOTING FOR LIGHT OIL BURNER THE BURNER DOESN’T START Mains switch open Line fuses interrupted Temperature governor contact open The flame control device is locked Fault in the flame control device THE BURNER DOESN’T START AND LOCKS Fault in the flame control device Fault of the ignition transformer Fault of relais R1 (command of the ignition circuit) -
Page 23: Spare Parts
C.I.B. UNIGAS - M03997CB SPARE PARTS Desription Code PG60 PG70 PG81 2080249 2080249 2080249 RIGHT SHORT IGNITION ELECTRODE 2080251 2080251 2080251 LEFT EXTENDED IGNITION ELECTRODE 2080346 2080346 2080346 IGNITION ELECTRODES 2090014 2090015 2090015 BIODIESEL FILTER 2090016 2090016 2090016 LIGHT OIL FILTER... -
Page 24: Burner Exploded View
BURNER EXPLODED VIEW POS. DESCRIPTION POS. DESCRIPTION BURNER HOUSING BOARD COVER GENERATOR GASKET 10 PINS CONNECTOR PHOTORESISTOR IGNITION TRANSFORMER AIR INTAKE DAMPER CLOSING PLATE AIR INTAKE DAMPER OIL MANIFOLD AIR INTAKE OIL SOLENOID VALVE PUMP OIL SOLENOID VALVE AIR DAMPER SHAFT COMBUSTION HEAD AIR DAMPER SHAFT NOZZLE HOLDER... -
Page 26: Electrical Wiring Diagrams
C.I.B. UNIGAS - M03997CB ELECTRICAL WIRING DIAGRAMS Wiring diagram 15-071 Rev. 1 Keys EVG1 Solenoid valve, first stage EVG2 Solenoid valve, second stage EVG3 3 ways light oil solenoid valve Photoresistor for flame detection Safety terminal block - if fitted remove the bridge between terminals 8 and 9 on terminal block MA. Safety thermostat Ignition transformer 230V - 50Hz... - Page 28 C.I.B. UNIGAS S.p.A. Via L.Galvani, 9 - 35011 Campodarsego (PD) - ITALY Tel. +39 049 9200944 - Fax +39 049 9200945/9201269 web site: www.cibunigas.it - e-mail: cibunigas@cibunigas.it Note: Specifications and and data subject to change. Errors and omissions excepted.
