Summary of Contents for Panasonic PT-LC75U

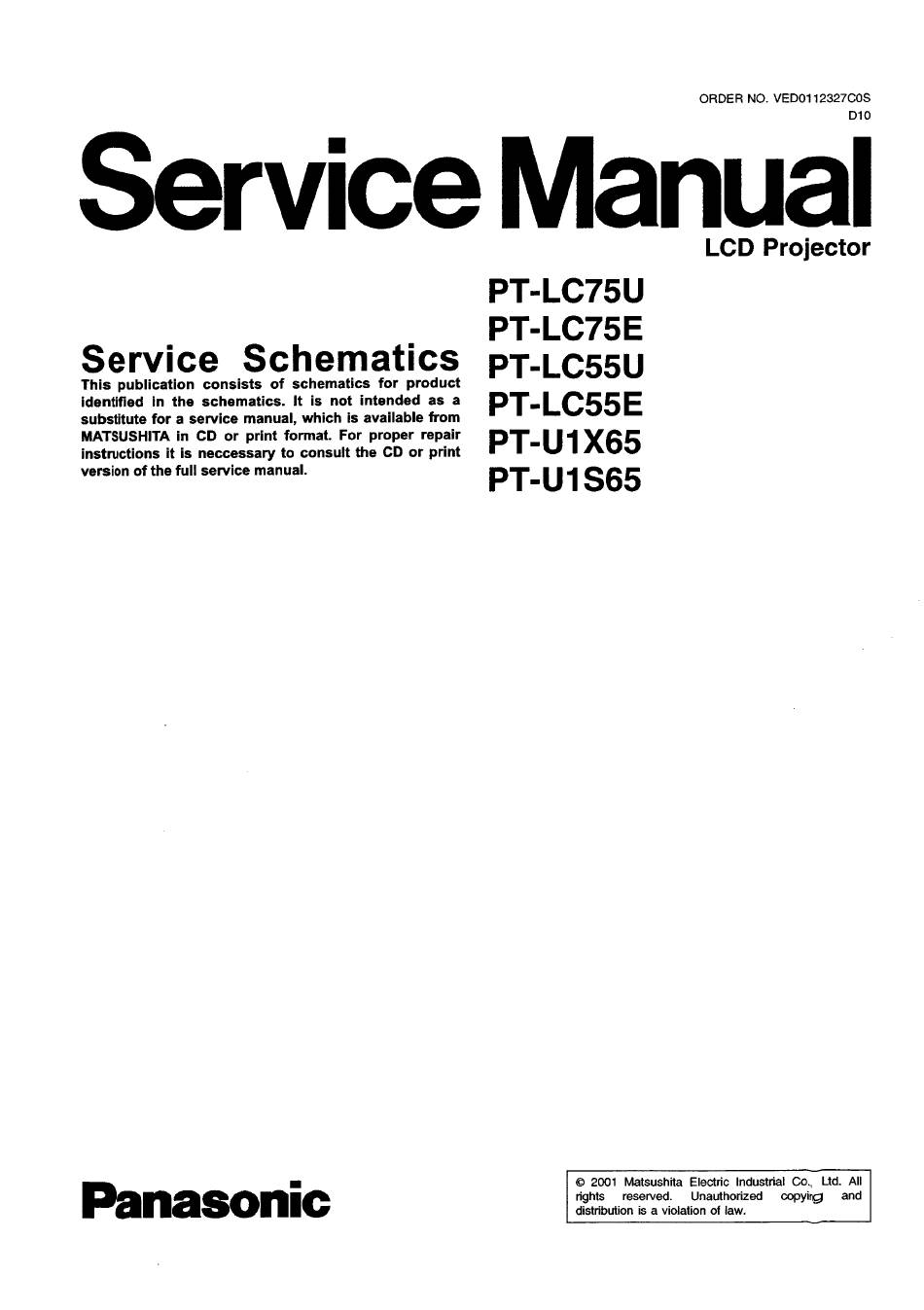

  • Page 16 ORDER NO. VED0112327C0 LCD Projector PT-LC75U / PT-LC75E / PT-LC55U / PT-LC55E / PT-U1X65 / PT-U1S65 SPECIFICATIONS...
  • Page 17 2001 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.

  • Page 18: Safety Precautions

    1. Safety Precautions 1.1. General Guidelines - For continued safety, no modification of any circuit must be attempted. - Unplug the power cord from the power outlet before disassembling this projector. - It is advisable to use an isolation transformer in the AC power line before the service.
  • Page 19 1.2. Leakage Current Check 1. Prepare the measuring circuit as shown in Fig.1. Be sure to use a voltmeter having the performance described in Table 1. Fig. 1 Table 1 Fig. 2 2. Assemble the circuit as shown in Fig. 2. Plug the power cord in a power outlet.

  • Page 20: Ext Option

    - Be sure to unplug the power cord from the power outlet when replacing the lamp. - Because the lamp reaches a very high temperature during its operation, wait until it cools completely when replacing the Lamp Unit. - The lamp emits small amounts of UV-radiation, avoid direct-eye contact with the light.

  • Page 21: Fan Control

    - FREEZE MSG Switching ON/OFF "FREEZE" on-screen display - ANGLE RESET Switching ON/OFF "AUTO KEYSTN (Automatic Keystone)" reference level setting Note: - Normally, do not select. (Angle reset data will be rewritten.) - FAN CONTROL Setting the cooling fan motor rotation mode - STD: Normal setting - HIGH: Highlands mode - FULL: High-speed...

  • Page 22: Self-Check Mode

    To enter the self-check mode - SERVICE MODE To enter the service mode 2.3. Canceling EXT OPTION Press "MENU" button on the main unit or remote control unit. 3. Self-Check Mode This mode is used to narrow down the location of the failure. 3.1.

  • Page 23: Procedure To Enter The Service Mode

    Note: - On the service mode, displays above patterns by each color without test equipment such as PC or SG. Use the service mode for simplified adjustments by your eyes and so on. 4.1. Procedure to enter the service mode Select "SERVICE MODE"...

  • Page 24: Pin Layout And Signal Names For Serial Connector

    5.2. Pin Layout and Signal Names for SERIAL Connector Pin No Signal Name Contents Transmit data Receive data Ground Connected internally 5.3. Communication Settings Signal Level Contents Description Sync. method Asynchronous Synchronizes every 1 character bits) Baud rate Conforms 9 600 bps Data transfer speed Parity RS-232C...
  • Page 25 Notes: - If sending multiple commands, check that a call back has been received from the projector for 1 command before sending the next command. - When a command which does not require parameters is sent, the colon (:) is not required. 5.5.
  • Page 27 Query Commands...

  • Page 28: Communication Cable Specifications

    Parameters [Example] When controls the audio volume to +30 by a PC (Sends commands as the following:) 5.6. Communication Cable Specifications...
  • Page 29 5.7. Signal Selector Connecting Cable Specifications When connecting to a signal selector (ex. TW-SWS62J), use a cable with specifications below. Connecting method: Connects a video signal cable from the signal selector to "VIDEO IN", and an RGB signal cable to "RGB1 IN". Note: Set VP control terminal switch of the signal selector to VP TYPE "B".
  • Page 30 Optical Parts 6.2. Removal of Upper Case 1. Turn the projector upside down. 2. Unscrew the 8 screws fixing the upper case.
  • Page 31 3. Return the projector to the normal position. 4. Remove the upper case. 6.3. Removal of A-P.C.Board 1. Remove the upper case according to the section 6.2. "Removal of Upper Case". 2. Disconnect the connectors from/to the A-P.C.Board. 3. Unscrew the 4 screws and remove the terminal cover. 4.
  • Page 32 6.4. Removal of K-Module 1. Remove the upper case according to the section 6.2. "Removal of Upper Case". 2. Remove the A-P.C.Board according to the section 6.3. "Removal of A-P.C.Board". 3. Disconnect the 1 connector. 4. Unscrew the 2 screws and remove the K-Module. 6.5.
  • Page 33 2. Disconnect the 1 connector. 3. Unscrew the 1 screw and remove the R-P.C.Board. 6.7. Removal of B-Module 1. Remove the upper case according to the section6.2. "Removal of Upper Case". 2. Remove the A-P.C.Board according to the section6.3. "Removal of A-P.C.Board".
  • Page 34 6.8. Removal of P-Module 1. Remove the B-Module according to the section 6.7. "Removal of B- Module". 2. Unscrew the 2 screws and remove the P-Module block. 3. Unscrew the 4 screws, remove the power insulation sheet (2), power insulation sheet (3) and P-Module.
  • Page 35 6.9. Removal of Lamp Unit 1. Turn the projector upside down. 2. Loosen the 2 screws until they idle, lift the lamp unit cover to remove. 3. Loosen the 2 screws fixing the lamp unit until they idle, remove the lamp unit.
  • Page 36 6.10. Removal of Analysis Block, LCD Block and Lens Block 1. Remove the lamp unit according to the section 6.9. "Removal of Lamp Unit". 2. Return the projector to the normal position. 3. Remove the upper case, A-P.C.Board and S-P.C.Board block according to the steps 1 through 4 in the section 6.7.
  • Page 37 7. Unscrew the 4 screws A to separate the lens block and the LCD block, unscrew the 4 screws B to separate the LCD block and the analysis block. 6.11. Replacement of LCD Panel 1. Remove the analysis/LCD/lens block according to the section 6.10. "Removal of Analysis Block, LCD Block and Lens Block".
  • Page 38 panel adjuster and screw them temporarily just until the adjuster can be shifted by your fingers. Note: - Work carefully not to damage the flexible cable. 4. Reassemble the projector in the reverse order of disassembling, but leave the upper case as it is removed. 5.
  • Page 39 7. Remove the analysis/LCD/lens block again. 8. Tighten the 3 screws fixing the LCD panel adjuster. Note: - Work carefully not to damage the flexible cable. 9. Reassemble the projector as it was. 6.12. LCD Panel Discrimination...
  • Page 40 ID-tag seal LCD panel color LCD panel (R) Blue LCD panel (B) (No seal) LCD panel (G) 6.13. LCD Panel Combination - Part number is printed on the FPC of LCD Panel. - When replacing LCD Panel, use a component which has the same part number as the original.
  • Page 41 Model Combination number panel L5BDAXQ00083 / (L3P07X-35G00) PT-LC75U/E L5BDAXQ00084 / PT-U1X65 / (L3P07X-35G00) L5BDAXQ00085 / (L3P07X-35G00) L5BDAXN00037 / (L3P07S-31G00) PT-LC55U/E L5BDAXN00038 / PT-U1S65 / (L3P07S-31G00) L5BDAXN00039 / (L3P07S-31G00) 6.14. Replacement of Polarizer 1. Remove the upper case according to the section 6.2. "Removal of Upper Case".
  • Page 42 6.15. Replacement of PBS Array (Analysis Block) 1. Remove the upper case according to the section 6.2. "Removal of Upper Case". 2. Remove the A-P.C.Board according to the section 6.3. "Removal of A-P.C.Board". 3. Unscrew the 5 screws fixing the analysis case (upper). 4.
  • Page 43 Notes: - While pulling the hook of the analysis case (upper) in the direction of arrow (1), unhook it from the analysis case (lower). - Polarizers (R/G/B) are attached on the analysis case (upper). Handle with care not to apply external force to the polarizers. - Do not touch optical components (lens, mirror, etc.) of the analysis block.

  • Page 44: Measurement And Adjustments

    7. Measurement and Adjustments 7.1. Adjustment Procedure Flowchart 7.2. Cautions for Adjustment - Never turn off the MAIN POWER switch until every fan completely stops. - To maintain and ensure safety, always use the designated components for replacement parts. - If removing any clamps, lead wires or connectors, always place them back in their proper locations.
  • Page 45 1. According to the section 6.11. "Replacement of LCD Panel", loosen the 3 screws fixing the LCD panel adjuster and screw them temporarily just until the adjuster can be shifted by your fingers. 2. Reassemble the projector in the reverse order of disassembling, but leave the upper case as it is removed.
  • Page 46 2. Adjust the LCD panel (G) position to place the center position of the crosshatch pattern to the center on the screen. 3. Correct the tilt of the green crosshatch pattern. 4. Display the white crosshatch pattern. 5. Adjust the LCD panels (R) and (B) to merge the red and blue patterns with the green.
  • Page 47 1. Run software program by the keyboard entry. Note: - Use the software program as below. PT-LC75U/E, U1X65: LC75 Adjustment Ver 1.00 (or later) PT-LC55U/E, U1S65: LC55 Adjustment Ver 1.00 (or later) 2. The first menu is the port selection menu.
  • Page 48 7.5.4.1. Explanation of Buttons Micom Data Send: Reads the microcomputer data from the file and sends it to the projector. Micom Data Receive: Receives the microcomputer data from the projector and writes it in the file. Gamma Data Send: Reads the gamma data from the file and sends it to the projector. Gamma Data Receive: Receives the gamma data from the projector and writes it in the file.
  • Page 49 Exit: Exits this application. 7.5.4.2. Receiving and sending of the data Click a target button and specify a file name. 7.5.5. Adjustment Menu PT-LC75/U1X65 PT-LC55/U1S65...
  • Page 50 7.5.5.1. Explanation of Buttons Waveform Adjustment: This button is not used. Flicker Adjustment: Displays the flicker adjustment menu. Input Level Adjustment (RGB): Displays the PC input level adjustment menu. Input Level Adjustment (YPbPr): Displays the component input level adjustment menu. Input Level Adjustment (VIDEO): Displays the video input level adjustment menu.

  • Page 51: Flicker Adjustment

    NRS Adjustment: This button is not used. Angle Reset: Displays the angle reset menu. Gamma Data Linear: This button is only used for factory. (Do not click this button.) Gamma Data ROM: This button is only used for factory. (Do not click this button.) Exit: Exits this application.
  • Page 52 Ceil: Sets the installation mode to the ceiling setting and receive the current data. R Signal Adj.: Sets the test signal mode to the R-signal and allows the " ", " " and "OK" buttons of the R- signal to becomes active. G Signal Adj.: Sets the test signal mode to the G-signal and allows the "...
  • Page 53 Closes this menu. 7.6.3. Equipment to be used PC, Software for Adjustment 7.6.4. Adjustment Procedure 1. Display the flicker adjustment menu. 2. Set the installation mode to the desk setting. 3. Click "R Signal Adj," and the red flicker adjustment pattern will be displayed.
  • Page 54 7.7.4. Adjustment Procedure 1. Display the input level adjustment menu. 2. Input a window pattern signal to RGB1 IN connector. Note: Use approx. 15 % window pattern as follows. Black background (screen width) : White window width = 2 : 1 Black background (screen height) : White window height = 3 : 1 3.
  • Page 55 7.9.2. Explanation of Buttons Executes automatic sub contrast and sub brightness adjustments, then closes this dialog. Cancel: Cancels this menu. 7.9.3. Equipment to be used PC, Software for Adjustment, Signal Generator 7.9.4. Adjustment Procedure 1. Display the input level adjustment menu. 2.
  • Page 56 7.10.2. Explanation of Buttons Changes the setting value and transmits its data. (The 8 and 2 keys on the keyboard have the same functions.) If releasing the mouse or key after pressing it continuously, the data is transmitted once. The variable setting value is enclosed ina box and using the TAB or SPACE key allows the move of the box.

  • Page 57: Troubleshooting

    7.10.3. Equipment to be used PC, Software for Adjustment, Signal Generator 7.10.4. Adjustment Procedure 1. Display the ghost adjustment menu. 2. Input a checker pattern signal. 3. Minimize the ghost while observing the projected pattern. 4. Set the value to the point being its optimum value minus 1. 7.11.

  • Page 68: Interconnection Block Diagram

    9. Interconnection Block Diagram 9.1. Interconnection Block Diagram (1/2) 9.2. Interconnection Block Diagram (2/2) 10. Block Diagram 10.1. Power Supply 10.2. Signal Processing (1/2)

  • Page 69: Schematic Diagram

    10.3. Signal Processing (2/2) 11. Schematic Diagram 11.1. A-P.C.Board (PT-LC75U/E, PT-U1X65) (1/5) 11.2. A-P.C.Board (PT-LC75U/E, PT-U1X65) (2/5) 11.3. A-P.C.Board (PT-LC75U/E, PT-U1X65) (3/5) 11.4. A-P.C.Board (PT-LC75U/E, PT-U1X65) (4/5) 11.5. A-P.C.Board (PT-LC75U/E, PT-U1X65) (5/5) 11.6. A-P.C.Board (PT-LC55U/E, PT-U1S65) (1/4) 11.7. A-P.C.Board (PT-LC55U/E, PT-U1S65) (2/4) 11.8.

  • Page 70: Terminal Guide Of Ics And Transistors

    12.1. A-P.CBoard (PT-LC75U/E, PT-U1X65) (Foil Side) S-P.C.Board 12.2. A-P.CBoard (PT-LC75U/E, PT-U1X65) (Component Side) R- P.C.Board 12.3. A-P.CBoard (PT-LC55U/E, PT-U1S65) (Foil Side) 12.4. A-P.CBoard (PT-LC55U/E, PT-U1S65) (Component Side) 13. Terminal guide of ICs and transistors...

  • Page 71: Exploded Views

    14. Exploded Views...

  • Page 72: Replacement Parts List

    15. Replacement Parts List 15.1. PT-LC75U/E, PT-U1X65...
  • Page 73 Part No. Part Name & Description Remarks [MECHANICAL PARTS] AJ7241B POWER SWIYCH CR2025/1B BATTERY D4CDH5030001 THERMISTER K2AH3B000016 AC INLET K2CG3FZ00008 POWER CORD PT-LC75U K3-1 K2CT3FZ00001 POWER CORD PT-LC75E K3-2 K2CM3FZ00001 POWER CORD PT-LC75E K3-3 K2CZ3FR00001 POWER CORD PT-U1X65 L0AA04C00002 SPEAKER...
  • Page 74 FAN ADAPTER TMME159 SPACER TMME196 SPACER TMXC017 TEMP FUSE METAL TMZK5011 SPEAKER BOX TMZX5021 FILTER COVER TNQE239 REMOTE CONTROLLER TPCB17103 CARTON PT-LC75U TPCB17105 CARTON PT-LC75E TPCB17107 CARTON PT-U1X65 TPDF0812 TPDF0813 CARRYNG CASE PAD TPDF0818 ACCESSORY CARTON TPEH124 SET COVER TPEP006-1...
  • Page 75 Ref. No. Part No. Part Name & Description Remarks XYN4+J32FZ SCREW TXFTT99PLPZ UPPER COVER ASSY TXFKF99PLPZ BOTTOM COVER ASSY PT-LC75U TXFKF99PLQZ BOTTOM COVER ASSY PT-LC75E TXFKF99PLRZ BOTTOM COVER ASSY PT-U1X65 TXFEC99VJJ8 ANALYSIS BLOCK TXFEN99VJJ8 OPTICAL BASE BLOCK [INTEGRATED CIRCUIT] IC101...
  • Page 76 Ref. No. Part No. Part Name & Description Remarks IC1061 AN78L12M IC1062 AN78L05M IC1070 UPD4721GS C0JBAZ000237 IC1071 C0JBAZ000855 IC1072 AN78L05M IC1073 C2BBCB000013 IC1075 C9ZB00000326 IC1081 C0CBADC00032 IC1082 C1AB00001248 IC1083 C1AB00001226 IC1084 C0CBCBF00001 IC1085 PQ1R33 C0CBABC00037 IC1086 C1AB00001494 IC1087 TVSA0500 C3ABMG000074 IC1088 MN8271AT IC1089...
  • Page 77 Ref. No. Part No. Part Name & Description Remarks Q1030 2SD601AR TRANSISTOR 2SD0601AR Q1031 2SD601AR TRANSISTOR 2SD0601AR Q1032 2SB709A TRANSISTOR 2SB0709A Q1033 2SD601AR TRANSISTOR 2SD0601AR Q1034 2SB709A TRANSISTOR 2SB0709A Q1035 2SD601AR TRANSISTOR 2SD0601AR Q1036 2SB709A TRANSISTOR 2SB0709A Q1037 2SD601AR TRANSISTOR 2SD0601AR Q1038 2SD601AR...
  • Page 78 Ref. No. Part No. Part Name & Description Remarks D1007 MA3033H DIODE D1008 MA3033H DIODE D1009 MA3150M DIODE MAZ31500M D1010 MA3150M DIODE MAZ31500M D1011 MA3150M DIODE MAZ31500M D1012 MA3150M DIODE MAZ31500M D1013 MA3033H DIODE D1014 MA3033H DIODE D1015 MA157A DIODE MA3X157A D1016 MA157A...
  • Page 79 L1007 EXCML16A270 COIL...
  • Page 80 Ref. No. Part No. Part Name & Description Remarks L1008 EXCML16A270 COIL L1009 ELJFA100KF COIL L1010 ELJFA100KF COIL L1011 ELJFA6R8JB CHIP COIL L1012 EXCML16A270 COIL L1013 EXCML16A270 COIL L1015 EXCML16A270 COIL L1016 EXCML16A270 COIL L1018 EXCML16A270 COIL L1019 EXCML16A270 COIL L1020 EXCML16A270 COIL...
  • Page 81 Ref. No. Part No. Part Name & Description Remarks R1024 ERJ1TYJ470 RESISTOR R1025 ERJ1TYJ470 RESISTOR R1026 ERJ3GEYJ102 M 1K OHM,J,1/16W R1027 ERJ3GEYJ105 M 1M OHM,J,1/16W R1028 ERJ3GEYJ332 M 3.3KOHM,J,1/16W R1029 ERJ6ENF75R0 M 75 OHM, 1/10W R1030 ERJ6ENF75R0 M 75 OHM, 1/10W R1031 ERJ6ENF75R0 M 75 OHM, 1/10W...
  • Page 82 Ref. No. Part No. Part Name & Description Remarks R1082 ERJ3GEYJ333 M 33K OHM,J,1/16W R1083 ERJ6GEYJ220 M 22 OHM,J,1/10W R1084 ERJ3GEYJ220 M 22 OHM,J,1/16W R1085 ERJ3GEYJ220 M 22 OHM,J,1/16W R1086 ERJ3GEYJ220 M 22 OHM,J,1/16W R1087 ERJ3GEYJ333 M 33K OHM,J,1/16W R1088 ERJ3GEYJ103 M 10K OHM,J,1/16W R1089...
  • Page 83 Ref. No. Part No. Part Name & Description Remarks R1145 ERJ3GEYJ102 M 1K OHM,J,1/16W R1146 ERJ3GEYJ102 M 1K OHM,J,1/16W R1147 ERJ3GEYJ102 M 1K OHM,J,1/16W R1148 ERJ3GEYJ682 M 6.8KOHM,J,1/16W R1149 ERJ3GEYJ562 M 5.6KOHM,J,1/16W R1150 ERJ3GEYJ473 M 47K OHM,J,1/16W R1151 ERJ3GEYJ682 M 6.8KOHM,J,1/16W R1152 ERJ3GEYJ562 M 5.6KOHM,J,1/16W...
  • Page 84 Ref. No. Part No. Part Name & Description Remarks R1205 ERJ3GEYJ472 M 4.7KOHM,J,1/16W R1206 ERJ3GEYJ472 M 4.7KOHM,J,1/16W R1207 ERJ3GEYJ472 M 4.7KOHM,J,1/16W R1208 ERJ3GEYJ472 M 4.7KOHM,J,1/16W R1210 ERJ6GEYJ3R3 M3.3OHM,J, 1/10W R1211 ERJ6GEYJ3R3 M3.3OHM,J, 1/10W R1212 ERJ6GEYJ3R3 M3.3OHM,J, 1/10W R1213 ERJ6GEYJ3R3 M3.3OHM,J, 1/10W R1214 ERJ3GEYJ101 M 100 OHM,J,1/16W...
  • Page 85 Ref. No. Part No. Part Name & Description Remarks R1262 ERJ3GEYJ560 M 56 OHM,J,1/16W R1263 ERJ3GEYJ103 M 10K OHM,J,1/16W R1264 ERJ3GEYJ103 M 10K OHM,J,1/16W R1265 ERJ3GEYJ220 M 22 OHM,J,1/16W R1267 ERJ3GEYJ101 M 100 OHM,J,1/16W D0GB101JA002 R1268 ERJ3GEYJ680 M 68 OHM,J,1/16W R1269 ERJ3GEYJ101 M 100 OHM,J,1/16W...
  • Page 86 Ref. No. Part No. Part Name & Description Remarks R1353 ERJ6GEYJ331 M 330 OHM,J,1/10W R1354 ERJ3GEYJ220 M 22 OHM,J,1/16W R1356 ERJ3GEYJ220 M 22 OHM,J,1/16W R1359 ERJ3GEYJ102 M 1K OHM,J,1/16W R1360 ERJ3GEYJ105 M 1M OHM,J,1/16W R1361 ERJ3GEY0R00 M 0 OHM, 1/16W R1362 ERJ3GEY0R00 M 0 OHM, 1/16W...
  • Page 87 Ref. No. Part No. Part Name & Description Remarks R1451 ERJ3GEYJ220 M 22 OHM,J,1/16W R1452 ERJ3GEY0R00 M 0 OHM, 1/16W R1453 ERJ3GEYJ103 M 10K OHM,J,1/16W R1454 ERJ3GEYJ471 M 470 OHM,J,1/16W R1455 ERJ3GEY0R00 M 0 OHM, 1/16W R1456 ERJ3GEYJ102 M 1K OHM,J,1/16W R1457 ERJ6GEYJ331 M 330 OHM,J,1/10W...
  • Page 88 Ref. No. Part No. Part Name & Description Remarks R1525 ERJ3GEYJ102 M 1K OHM,J,1/16W R1526 ERJ3GEYJ331 M 330 OHM,J,1/16W R1527 ERJ3GEYJ102 M 1K OHM,J,1/16W R1528 ERJ3GEYJ102 M 1K OHM,J,1/16W R1529 EXB38V220J RESISTOR ARRAY R1531 ERJ3GEYJ103 M 10K OHM,J,1/16W R1532 EXB38V220J RESISTOR ARRAY R1534 ERJ3GEYJ220...
  • Page 89 Ref. No. Part No. Part Name & Description Remarks R1584 ERJ3GEYJ220 M 22 OHM,J,1/16W R1585 ERJ3GEYJ220 M 22 OHM,J,1/16W R1586 ERJ3GEYJ220 M 22 OHM,J,1/16W R1587 ERJ3GEYJ220 M 22 OHM,J,1/16W R1588 ERJ3GEYJ220 M 22 OHM,J,1/16W R1589 ERJ3GEYJ220 M 22 OHM,J,1/16W R1590 ERJ3GEYJ220 M 22 OHM,J,1/16W R1591...
  • Page 90 Ref. No. Part No. Part Name & Description Remarks R1638 ERJ3GEYJ220 M 22 OHM,J,1/16W R1639 ERJ3GEYJ220 M 22 OHM,J,1/16W R1640 ERJ3GEYJ220 M 22 OHM,J,1/16W R1641 ERJ3GEYJ220 M 22 OHM,J,1/16W R1642 ERJ3GEYJ220 M 22 OHM,J,1/16W R1643 ERJ3GEYJ220 M 22 OHM,J,1/16W R1644 ERJ3GEYJ220 M 22 OHM,J,1/16W R1645...
  • Page 91 Ref. No. Part No. Part Name & Description Remarks [CAPACITORS] C1001 ECUX1A105ZF C 1UF, Z, 10V C1002 ECUX1C104ZFV C 0.1UF, Z, 16V C1003 ECUX1A105ZF C 1UF, Z, 10V C1004 ECJ1XB1H472K C 4700PF, K, 50V C1010 EEVHB1C101 E 100UF, 16V C1012 ECUX1C104ZFV C 0.1UF, Z, 16V C1013...
  • Page 92 Ref. No. Part No. Part Name & Description Remarks C1068 ECUX1A105ZF C 1UF, Z, 10V C1070 ECUX1H680JCV C 68PF, J, 50V C1071 ECUX1H330JCV C 33PF, J, 50V ECJ1XC1H330J C1072 ECUX1C104ZFV C 0.1UF, Z, 16V C1073 ECUX1C104ZFV C 0.1UF, Z, 16V C1074 ECUX1C104ZFV C 0.1UF, Z, 16V...
  • Page 93 Ref. No. Part No. Part Name & Description Remarks C1135 ECJ1XB1C103K C 0.01UF, K, 16V C1136 EEVHB0J330 E 33UF, 6.3V C1137 ECJ1XB1C103K C 0.01UF, K, 16V C1138 EEVHB0J330 E 33UF, 6.3V C1139 ECJ1XB1C103K C 0.01UF, K, 16V C1140 EEVHB0J330 E 33UF, 6.3V C1141 ECJ1XB1C103K C 0.01UF, K, 16V...
  • Page 94 Ref. No. Part No. Part Name & Description Remarks C1191 ECUX1C104ZFV C 0.1UF, Z, 16V C1192 ECUX1H102KBV C 1000PF, K, 50V C1193 ECUX1H473ZFV C 0.047UF, K, 50V ECJ1XF1H473Z C1194 ECUX1H102KBV C 1000PF, K, 50V C1195 ECUX1H473ZFV C 0.047UF, K, 50V ECJ1XF1H473Z C1196 ECUX1H473ZFV...
  • Page 95 Ref. No. Part No. Part Name & Description Remarks C1254 ECUX1C104ZFV C 0.1UF, Z, 16V C1255 ECUX1C104ZFV C 0.1UF, Z, 16V C1256 ECUX1C104ZFV C 0.1UF, Z, 16V C1257 ECUX1C104ZFV C 0.1UF, Z, 16V C1258 ECUX1C104ZFV C 0.1UF, Z, 16V C1259 ECUX1C104ZFV C 0.1UF, Z, 16V C1260...
  • Page 96 Ref. No. Part No. Part Name & Description Remarks C1312 EEVHB0G101 E 100UF, 4V C1313 ECJ2XF1C225Z C 2.2UF, Z, 16V C1314 ECUX1C104ZFV C 0.1UF, Z, 16V C1315 ECUX1C104ZFV C 0.1UF, Z, 16V C1316 ECUX1C104ZFV C 0.1UF, Z, 16V C1317 ECUX1C104ZFV C 0.1UF, Z, 16V C1318 ECUX1C104ZFV...
  • Page 97 Ref. No. Part No. Part Name & Description Remarks C1371 EEVHB1E4R7 E 4.7UF, 25V C1372 EEVHB0J101 E 100UF, 6.3V EEVHB0J101P C1373 ECUX1C104ZFV C 0.1UF, Z, 16V C1374 ECUX1C104ZFV C 0.1UF, Z, 16V C1375 ECUX1C104ZFV C 0.1UF, Z, 16V C1376 ECUX1C104ZFV C 0.1UF, Z, 16V C1377 ECJ1XF1E104Z...
  • Page 98 Ref. No. Part No. Part Name & Description Remarks C1427 ECJ1XF1E104Z C 0.1UF, Z, 25V C1428 ECJ1XF1E104Z C 0.1UF, Z, 25V C1429 ECJ1XF1E104Z C 0.1UF, Z, 25V C1430 ECJ1XF1E104Z C 0.1UF, Z, 25V C1431 ECJ1XF1E104Z C 0.1UF, Z, 25V C1432 ECJ1XF1E104Z C 0.1UF, Z, 25V C1433...
  • Page 99 Ref. No. Part No. Part Name & Description Remarks TJSF43706 6P CONNECTOR K1KA06B00096 TJSF43706 6P CONNECTOR K1KA06B00096 JK1001 TJSF42904 CONNECTOR K1CB204B0004 JK1002 K2HA101A0013 CONNECTOR JK1003 K2HA102A0019 CONNECTOR JK1004 K1FB115B0066 D-SUB 15P JK1005 K1FB115B0066 D-SUB 15P JK1006 TJS4A8390 CONNECTOR K1FB109B0058 JS1001 ERJ6GEY0R00 M 0 OHM,J,1/10W JS1002...
  • Page 100 15.2. PT-LC55U/E, PT-U1S65 Ref. No. Part No. Part Name & Description Remarks [MECHANICAL PARTS] AJ7241B POWER SWITCH CR2025/1B BATTERY D4CDH5030001 THERMISTER K2AH3B000016 AC INLET K2CG3FZ00008 POWER CORD PT-LC55U K3-1 K2CT3FZ00001 POWER CORD PT-LC55E K3-2 K2CM3FZ00001 POWER CORD PT-LC55E K3-3 K2CZ3FR00001 POWER CORD PT-U1S65 L0AA04C00002...
  • Page 101 Ref. No. Part No. Part Name & Description Remarks TKZJ5033 FAN INSTAL METAL TKZJ5034 FAN METAL TMKK103 SHEET TMKX100 WASHER TMKX332 SHEET TMKX381 SHEET TMKX349 SHEET TMKX359 SHEET TMMA034 FAN ADAPTER TMME159 SPACER TMME196 SPACER TMXC017 TEMP FUSE METAL TMZK5011 SPEAKER BOX TMZX5021 FILTER COVER...
  • Page 102 Ref. No. Part No. Part Name & Description Remarks XYN3+J8 SCREW XYN4+E8 SCREW XYN4+J22 SCREW XYN4+J30 SCREW XYN4+J32FZ SCREW TXFTT99PLPZ UPPER COVER ASSY TXFKF99PLLZ BOTTOM COVER ASSY PT-LC55U TXFKF99PLMZ BOTTOM COVER ASSY PT-LC55E TXFKF99PLNZ BOTTOM COVER ASSY PT-U1S65 TXFEC99VJJ7 ANALYSIS BLOCK TXFEN99VJJ7 OPTICAL BASE BLOCK [INTEGRATED CIRCUIT]...
  • Page 103 Ref. No. Part No. Part Name & Description Remarks IC1050 C1AB00001516 IC1051 C1AB00001523 IC1052 C1AB00001523 IC1053 C1AB00001523 IC1057 C1AB00001522 IC1058 C1AB00001522 IC1060 M62398FP C0FBBD000087 IC1061 AN78L12M IC1062 AN78L05M IC1070 UPD4721GS C0JBAZ000237 IC1071 C0JBAZ000855 IC1072 AN78L05M IC1073 C2BBCB000013 IC9602 C0ZAZ0000077 IC9603 C0ZAZ0000077 IC9701 C0DBALC00005...
  • Page 104 Ref. No. Part No. Part Name & Description Remarks Q1034 2SB709A TRANSISTOR 2SB0709A Q1035 2SD601AR TRANSISTOR 2SD0601AR Q1036 2SB709A TRANSISTOR 2SB0709A Q1037 2SD601AR TRANSISTOR 2SD0601AR Q1038 2SD601AR TRANSISTOR 2SD0601AR Q1039 2SK620 2SK0620 Q1040 2SK620 2SK0620 Q1041 2SD601AR TRANSISTOR 2SD0601AR Q1042 2SD601AR TRANSISTOR 2SD0601AR...
  • Page 105 Ref. No. Part No. Part Name & Description Remarks D151 S1VBA60 DIODE D1001 MA3056M ZENER DIODE MAZ30560M D1002 MA3056M ZENER DIODE MAZ30560M D1004 MA3056M ZENER DIODE MAZ30560M D1005 MA3033H DIODE D1006 MA3033H DIODE D1007 MA3033H DIODE D1008 MA3033H DIODE D1009 MA3150M DIODE MAZ31500M...
  • Page 106 Ref. No. Part No. Part Name & Description Remarks L101 G0BYYYH00006 COIL L1001 EXCML16A270 COIL L1002 EXCML16A270 COIL L1003 ELJFA470JB COIL L1004 ELJFA470JB COIL L1006 ELJFA270JB CHIP COIL L1007 EXCML16A270 COIL L1008 EXCML16A270 COIL L1009 EXCML16A270 COIL L1010 EXCML16A270 COIL L1011 EXCML16A270 COIL...
  • Page 107 R1002 ERJ3GEYJ223 M 22K OHM,J,1/16W...
  • Page 108 Ref. No. Part No. Part Name & Description Remarks R1003 ERJ3GEYJ183 M 18K OHM,J,1/16W R1004 ERJ3GEYJ100 M 10 OHM,J,1/16W R1005 ERJ6ENF75R0 M 75 OHM, 1/10W R1008 EXB38V220J RESISTOR ARRAY R1009 ERJ3GEYJ102 M 1K OHM,J,1/16W R1010 EXB38V220J RESISTOR ARRAY R1011 EXB38V220J RESISTOR ARRAY R1012 ERJ3GEYJ105...
  • Page 109 Ref. No. Part No. Part Name & Description Remarks R1084 ERJ3GEY0R00 M 0 OHM, 1/16W R1085 ERJ3GEYJ102 M 1K OHM,J,1/16W R1086 ERJ3GEY0R00 M 0 OHM, 1/16W R1087 ERJ3GEYJ182 M 1.8KOHM,J,1/16W R1088 ERJ3GEYJ331 M 330 OHM,J,1/16W R1101 ERJ3GEY0R00 M 0 OHM, 1/16W R1102 ERJ3GEY0R00 M 0 OHM, 1/16W...
  • Page 110 Ref. No. Part No. Part Name & Description Remarks R1152 ERJ3GEYJ562 M 5.6KOHM,J,1/16W R1153 ERJ3GEYJ560 M 56 OHM,J,1/16W R1154 ERJ3GEYJ472 M 4.7KOHM,J,1/16W R1155 ERJ3GEYJ562 M 5.6KOHM,J,1/16W R1156 ERJ3GEYJ560 M 56 OHM,J,1/16W R1157 ERJ3GEYJ473 M 47K OHM,J,1/16W R1158 ERJ3GEYJ102 M 1K OHM,J,1/16W R1159 ERJ3GEYJ560 M 56 OHM,J,1/16W...
  • Page 111 Ref. No. Part No. Part Name & Description Remarks R1213 ERJ6GEYJ3R3 M3.3OHM,J, 1/10W R1214 ERJ3GEYJ101 M 100 OHM,J,1/16W D0GB101JA002 R1215 ERJ3GEYJ101 M 100 OHM,J,1/16W D0GB101JA002 R1216 ERJ3GEYJ222 M 2.2KOHM,J,1/16W R1217 ERJ6ENF1000 M 100 OHM, 1/10W R1218 ERJ3GEYJ333 M 33K OHM,J,1/16W R1220 ERJ3GEYJ333 M 33K OHM,J,1/16W...
  • Page 112 Ref. No. Part No. Part Name & Description Remarks R1274 EXB38V560J RESISTOR ARRAY R1275 ERJ3GEYJ183 M 18K OHM,J,1/16W R1276 ERJ3GEYJ101 M 100 OHM,J,1/16W D0GB101JA002 R1277 ERJ3GEYJ103 M 10K OHM,J,1/16W R1278 ERJ3GEYJ472 M 4.7KOHM,J,1/16W R1279 ERJ3GEYJ103 M 10K OHM,J,1/16W R1280 ERJ3GEYJ183 M 18K OHM,J,1/16W R1281 ERJ3GEYJ182...
  • Page 113 Ref. No. Part No. Part Name & Description Remarks R1367 ERJ3GEY0R00 M 0 OHM, 1/16W R1368 ERJ3GEY0R00 M 0 OHM, 1/16W R1369 ERJ6ENF1243 M 124KOHM, 1/10W R1373 EXB38V220J RESISTOR ARRAY R1374 ERJ3GEYJ220 M 22 OHM,J,1/16W R1375 EXB38V220J RESISTOR ARRAY R1380 ERJ3GEYJ220 M 22 OHM,J,1/16W R1382...
  • Page 114 Ref. No. Part No. Part Name & Description Remarks R1451 ERJ3GEYJ220 M 22 OHM,J,1/16W R1452 ERJ3GEY0R00 M 0 OHM, 1/16W R1453 ERJ3GEYJ103 M 10K OHM,J,1/16W R1454 ERJ3GEYJ471 M 470 OHM,J,1/16W R1455 ERJ3GEY0R00 M 0 OHM, 1/16W R1456 ERJ3GEYJ102 M 1K OHM,J,1/16W R1457 ERJ6GEYJ331 M 330 OHM,J,1/10W...
  • Page 115 Ref. No. Part No. Part Name & Description Remarks R1522 ERJ6GEYJ470 M 47 OHM,J,1/10W R1523 ERJ3GEYJ102 M 1K OHM,J,1/16W R1524 EXB38V220J RESISTOR ARRAY R1525 ERJ3GEYJ102 M 1K OHM,J,1/16W R1526 ERJ3GEYJ331 M 330 OHM,J,1/16W R1527 ERJ3GEYJ102 M 1K OHM,J,1/16W R1528 ERJ3GEYJ102 M 1K OHM,J,1/16W R1529 EXB38V220J...
  • Page 116 Ref. No. Part No. Part Name & Description Remarks R1725 ERJ3GEYJ220 M 22 OHM,J,1/16W R1726 ERJ3GEYJ220 M 22 OHM,J,1/16W R1727 ERJ3GEYJ220 M 22 OHM,J,1/16W R1728 ERJ3GEYJ220 M 22 OHM,J,1/16W R1729 ERJ3GEYJ220 M 22 OHM,J,1/16W R1730 ERJ3GEYJ220 M 22 OHM,J,1/16W R1731 ERJ3GEYJ220 M 22 OHM,J,1/16W R1732...
  • Page 117 Ref. No. Part No. Part Name & Description Remarks R1779 ERJ3GEYJ220 M 22 OHM,J,1/16W R1780 ERJ3GEYJ220 M 22 OHM,J,1/16W R1781 ERJ3GEYJ220 M 22 OHM,J,1/16W R1782 ERJ3GEYJ220 M 22 OHM,J,1/16W R1783 ERJ3GEYJ220 M 22 OHM,J,1/16W R1784 ERJ3GEYJ220 M 22 OHM,J,1/16W R1785 ERJ3GEYJ220 M 22 OHM,J,1/16W R1786...
  • Page 118 Ref. No. Part No. Part Name & Description Remarks C1002 ECUX1C104ZFV C 0.1UF, Z, 16V C1003 ECUX1A105ZF C 1UF, Z, 10V C1004 ECJ1XB1H472K C 0.47UF, 50V C1007 EEVHB0J330 E 33UF, 6.3V C1008 ECJ1XB1C103K C 0.01UF, K, 16V C1009 ECJ1XB1C103K C 0.01UF, K, 16V C1010 EEVHB1C101 E 100UF, 16V...
  • Page 119 Ref. No. Part No. Part Name & Description Remarks C1076 ECJ1XB1C103K C 0.01UF, K, 16V C1077 EEVHB0J330 E 33UF, 6.3V C1078 ECJ1XB1C103K C 0.01UF, K, 16V C1079 EEVHB0J330 E 33UF, 6.3V C1080 ECJ1XB1C103K C 0.01UF, K, 16V C1081 EEVHB0J330 E 33UF, 6.3V C1082 ECJ1XB1C103K C 0.01UF, K, 16V...
  • Page 120 Ref. No. Part No. Part Name & Description Remarks C1171 ECUX1C104ZFV C 0.1UF, Z, 16V C1172 EEVHB1E330 E 33UF, 25V C1173 ECJ2XF1C225Z C 2.2UF, Z, 16V C1174 EEVHB0J101 E 100UF, 6.3V EEVHB0J101P C1175 ECUX1C104ZFV C 0.1UF, Z, 16V C1177 ECUX1C104ZFV C 0.1UF, Z, 16V C1178 EEVHB0J470...
  • Page 121 Ref. No. Part No. Part Name & Description Remarks C1228 ECUX1C104ZFV C 0.1UF, Z, 16V C1229 ECUX1C104ZFV C 0.1UF, Z, 16V C1230 ECJ1XF1E104Z C 0.1UF, Z, 25V C1231 ECJ1XF1A105Z C 1UF, Z, 10V C1232 ECUX1C104ZFV C 0.1UF, Z, 16V C1233 ECUX1H150JCV C 15PF, J, 50V ECJ1XC1H150J...
  • Page 122 Ref. No. Part No. Part Name & Description Remarks C1289 ECUX1C104ZFV C 0.1UF, Z, 16V C1290 ECUX1C104ZFV C 0.1UF, Z, 16V C1291 ECUX1C104ZFV C 0.1UF, Z, 16V C1292 ECUX1C104ZFV C 0.1UF, Z, 16V C1293 ECUX1C104ZFV C 0.1UF, Z, 16V C1294 ECJ1XC1H101J C 100PF, J, 50V C1295...
  • Page 123 Ref. No. Part No. Part Name & Description Remarks C1349 EEVHB0J470 E 47UF, 6.3V C1350 ECUX1C104ZFV C 0.1UF, Z, 16V C1351 ECUX1C104ZFV C 0.1UF, Z, 16V C1352 ECUX1C104ZFV C 0.1UF, Z, 16V C1353 ECUX1C104ZFV C 0.1UF, Z, 16V C1355 ECUX1C104ZFV C 0.1UF, Z, 16V C1356 ECUX1C104ZFV...
  • Page 124 Ref. No. Part No. Part Name & Description Remarks C1729 ECJ1XF1E104Z C 0.1UF, Z, 25V C1730 ECJ1XF1E104Z C 0.1UF, Z, 25V C1731 EEVHB1E4R7 E 4.7UF, 25V C1732 EEVHB1E4R7 E 4.7UF, 25V C1733 EEVHB1E4R7 E 4.7UF, 25V C1734 ECJ2XF1C105Z C 1UF, Z, 16V C1735 ECUX1C104ZFV C 0.1UF, Z, 16V...

  • Page 125: Schematic Diagram For Printing With A4 Size

    Ref. No. Part No. Part Name & Description Remarks TJSF43706 6P CONNECTOR K1KA06B00096 JK1001 TJSF42904 CONNECTOR K1CB204B0004 JK1002 K2HA101A0013 CONNECTOR JK1003 K2HA102A0019 CONNECTOR JK1004 K1FB115B0066 D-SUB 15P JK1005 K1FB115B0066 D-SUB 15P JK1006 TJS4A8390 CONNECTOR K1FB109B0058 JS1001 ERJ6GEY0R00 M 0 OHM,J,1/10W JS1002 ERJ6GEY0R00 M 0 OHM,J,1/10W...
