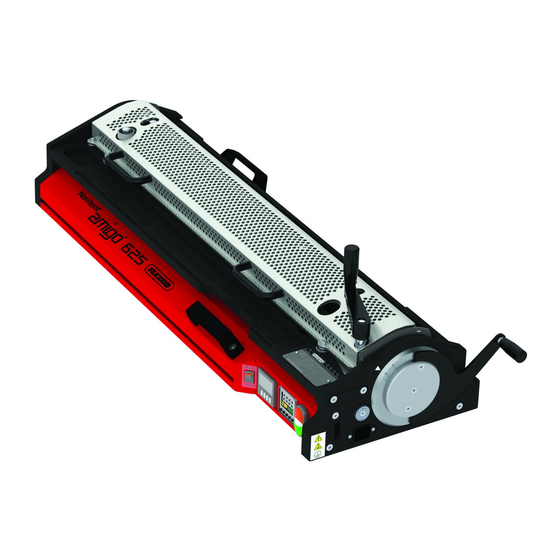

The Amigo™ is designed to cut and splice, thermoplastic homogeneous (monolithic) conveyor belts. Belt ends are
prepared for splicing using the integrated belt cutter. Interchangeable templates ensure accurate cut length and pitch of
positive drive belts. Preheating belt ends inside enclosed guarded heat zone ensures quality repeatable splices at a wide
range of ambient temperatures. The integrated contactless heating allows for controlled melt depth of belt ends.
The Return Side splicing kit includes components to enable splicing with the Amigo splice press on the return side
of a conveyor.
Amigo™ Return Side Kits
ITEM CODE
ORDERING NUMBER
107322
AMIGO-1000-RETURN-SIDE-KIT
107323
AMIGO-625-RETURN-SIDE-KIT
107321
AMIGO-RS-GUARD-ADAPTER-KIT*
*Contact Flexco Customer Service with your Amigo Serial Number
to determine if this kit is required.
Amigo Return Side is not compatible with the following belt templates:
08710, 08776, 08847, 09736, 09737, 09739
IMPORTANT
Initial Setup - Heat Shield Guard Adapter & Magnet Installation
(107321-AMIGO-RS-GUARD-ADAPTER-KIT)
If your Amigo Guard presently possess the magnet extension shown in the Heat Shield Guard Adapter Kit 1,
proceed to " Return Side Operation Instructions", no guard modification is required.
1
4
3
Heat Shield Guard Adapter Kit contents.
1.
Magnet/Extention Plate
2.
2 mm, 2.5 mm, 3 mm hex keys
3.
Tooth lock washers
4.
M3 button head screws
5.
Pivot pin adapters w/ M3 Flush Head screws and
pre-installed Set Screws
Novitool
®
Return Side Splicing
2
5
Amigo
Splice Press
™
Instructions
Replacement Kits
ITEM CODE
107324
AMIGO-1000-RS-FLAT-TMPLT
107325
AMIGO-625-RS-FLAT-TMPLT
107164
AMIGO-625-RS-CLAMPBAR
107183
AMIGO-1000-RS-CLAMPBAR
1a. First, replace the magnet. Using the 2 mm hex key, remove the two
fasteners that secure the magnet to rear of the heat shield guard.
Discard the magnet and fasteners.
–1–
