Flexco Roller Lacer Manual

Installing Clipper
the Roller Lacer
For Roller Lacer Serial Nos. 60000+; Microlacer Serial Nos. 40000+

Belt Preparation:

1. Square belt end off centerline.

Prepare Lacer for Use:

Face Strip Installation

HEX SCREW
LATCH
1. Loosen hex screw to allow Face Strip
Retaining Latch to rotate out of the way.
Insert Face Strip, reposition Latch and
tighten screw.
A
B
4. If using hooks as shown in A or B, remove
carding paper at this time. If using hooks
as shown in C, remove carding paper after
installing hooks.
Fasteners with
®
and Microlacer
®
2. Select the proper size hook for your
application.
ADJUSTING KNOB
2. Position lacer head to the end of the tool.
Turn knob clockwise to open rollers.

Lacer Operation:

C
1. Guide belt through clamp; insert belt end
into hook points and flush against the entire
width of the face strip.
®
3. If belt has an impression cover, skive back
1" (25mm) from the belt end.
CONTINUOUS
LACING SLOTS
3. Insert hooks into the first active slot of the
face strip. Secure with lacer pin.

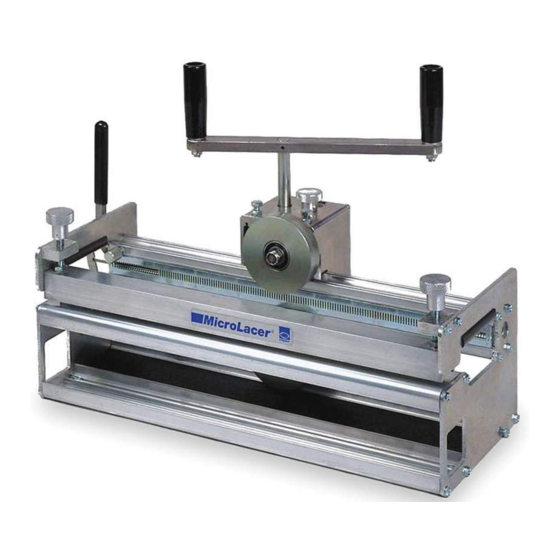

ROLLER LACER
2. Lock belt clamp.
FIRST ACTIVE SLOT
4 3 2
MICROLACER
D
Belt clamp
knob
C
B
