Wire Your Switch

Quick Start Guide

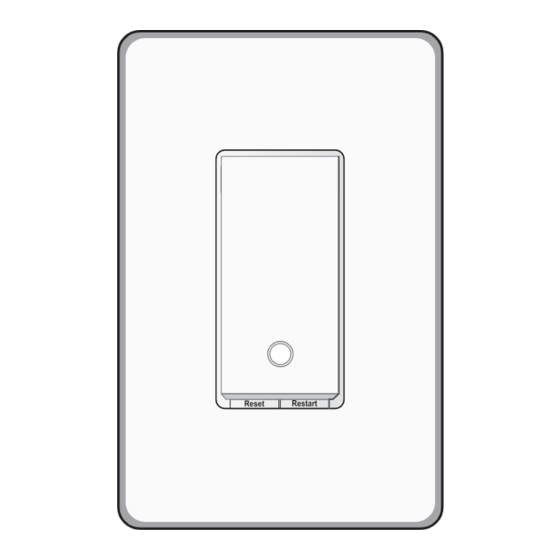

Smart Wi-Fi Light Switch

Ground: Usually green or copper.

Neutral: Usually white, not connected to the dumb switch.

Line/Load: Usually black, and connected to the dumb

switch.

Note: If you are unsure, consult a qualified electrician.

*Images may differ from your actual product.

Turn off the circuit breaker. Then remove

the old wallplate of the wall switch and

label the wires.

Take care to avoid electric shocks.

Note: No need to distinguish between Line and Load wires.

Disconnect wires from the old switch.

Connect the wires to the smart switch as

shown below.

Line up the switch with the mounting

holes. Secure it with screws.

Attach the wallplate and the wiring is

finished. Then turn on the circuit breaker.

Flip the page over to complete setup.

Page 1 Neutral: Usually white, not connected to the dumb switch. Line/Load: Usually black, and connected to the dumb switch. ©2023 TP-Link 7106510022 REV1.0.0 Note: If you are unsure, consult a qualified electrician. *Images may differ from your actual product. Note: No need to distinguish between Line and Load wires.
Page 2 Disconnected from Wi-Fi. • Do not install the Smart Switch with wet hands or when standing on wet or damp surfaces. https://www.tp-link.com/support/faq/3520/ • Install only in a suitable UL Listed outlet box (suitable dimensions: H > 2.95 in./75 mm, W > 1.81 in./46 mm, D > 2 in./51 mm).
