- Page 1 ® USB-C KVM Dock for 2 Computers 201075 User Manual www.cablematters.com...
-
Page 2: Table Of Contents
® USB-C KVM Dock for 2 Computers INTRODUCTION……………………………...…….….…..1 PRODUCT OVERVIEW………………………...…….……2 CONNECTION INSTRUCTIONS…………………..….….4 TECHNICAL SPECIFICATIONS………………………….7 WARRANTY AND SUPPORT……………...……..………8 www.cablematters.com... -
Page 3: Introduction
Please keep this manual for future reference. Contact support@cablematters.com for questions or product support. 1.2 Copyright and Trademarks Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other trademarks are the property of their respective owners. ®... -
Page 4: Product Overview

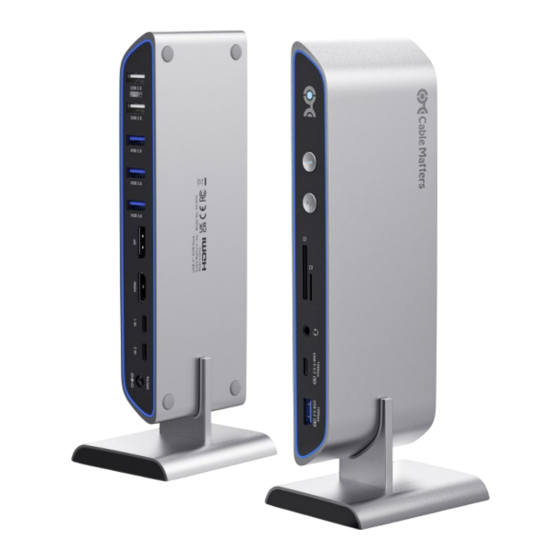

Note: All cables to connect USB devices to the Dock are sold separately 2.2 Product Description ® ® The Cable Matters USB-C KVM Dock is an ideal solution for shar- ing displays and USB peripheral devices between 2 computers that feature DisplayPort Alternate Mode over the USB-C ports. - Page 5 ® USB-C KVM Dock for 2 Computers 2.3 Product Features Share two monitors and multiple USB devices with two computers. • Enjoy instant switching access to the connected USB peripherals, like a printer, scanner, keyboard, mouse, webcams, hard disks, SD cards, TRRS headphones and more.
-
Page 6: Connection Instructions
® USB-C KVM Dock for 2 Computers 3. CONNECTION INSTRUCTIONS 3.1 Panel Diagram 1) DC power port 2) 2x USB-C ports for computers connection 3) 1x HDMI Port 4) 1x DisplayPort Port 5) 3x USB-A 3.0 ports for USB peripherals 6) 2x USB-A 2.0 ports for keyboard and mouse 7) 2 Buttons for source switching(with blue LED light indicating a valid control and white LED light indicating no source computer... - Page 7 ® USB-C KVM Dock for 2 Computers 3.2 Remote Installation Remove the insulating tab from the end of the battery and check that the battery is installed correctly Troubleshooting tips: • Replace the battery • Make sure the dock is powered on •...
- Page 8 ® USB-C KVM Dock for 2 Computers 3.4 Troubleshooting Tips • Verify that the dock is powered on, the blue LED light is lit and all cables are securely connected • Verify that correct cables are connected: - USB-C cable to the source computer - Source computers to the USB-C ports at the rear of the dock - Display cables to HDMI and/or DisplayPort ports on monitor(s) - USB devices to the USB ports on the dock...
-
Page 9: Technical Specifications
® USB-C KVM Dock for 2 Computers 4. Technical Specifications Model 201075 Dock Connections USB-C Input 2x USB-C Female USB-A Output 3x 5Gbps USB-A 3.0 Female 1x 10Gbps USB-A 3.2 Female with 5V1.5A charging 2x 480Mbps USB-A 2.0 Female USB-C Output 1x 10Gbps USB-C 3.2 Female with... -
Page 10: Warranty And Support
