Summary of Contents for HOMCOM 800-070
- Page 1 INcsb007_US 800-070 Fridge READ AND SAVAE THIS INSTRUCTION FOR FUTURE USE ASSEMBLY INSTRUCTION...
-
Page 2: Table Of Contents
CONTENTS Section Page 1. Safety Information…………………………………………………………….. 2. Overview…………………………………………………………………….…….. 3. Door Reversal………………………………………………………………..….. 4. Installation………………………………………………………………….…….. 5. Daily Use………………………………………………………………….……….. 10-13 6. Troubleshooting………………………………………………………….…….. -
Page 3: Safety Information
Safety Information Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. - Page 4 This appliance is intended for domestic use only. Any electrical components (plug, power cord, compressor etc.) must be replaced by a certified service agent or qualified service personnel. The light bulb supplied with this appliance is a “special use bulb” intended only for use with the appliance and should not be used for domestic lighting.
- Page 5 Installation Important! For electrical connection carefully follow the instructions given in specific paragraphs. Unpack the appliance and check for any damages. Do not connect the appliance if it is damaged. Report all damages immediately to the retailer and retain the packing. ...
- Page 6 Packaging Materials The materials with the symbol are recyclable and should be disposed in suitable collection containers for recycling. Disposal of the Appliance. Disconnect the mains plug from the mains socket. Cut off the mains cable and discard it. WARNING! During use, servicing, and disposal of the appliance, please pay attention to the fire warning symbol on the left (in yellow or orange), located at the rear of the appliance (rear panel or compressor).
-
Page 7: Overview

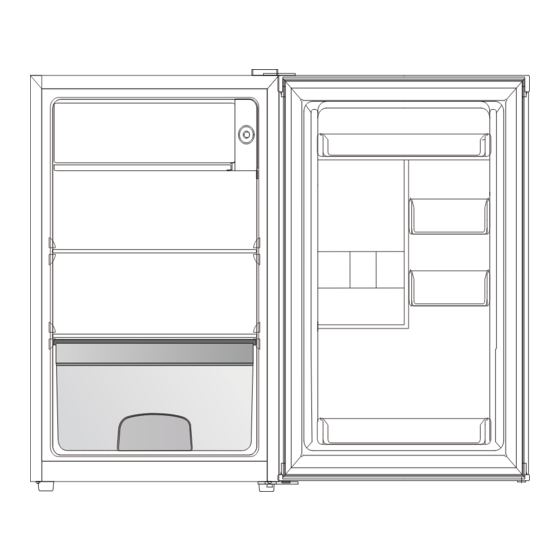

Overview The above diagram is for illustration purposes only and may vary between models. ~ 5 ~... -
Page 8: Door Reversal
Door Reversal Tools required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner. Ensure the unit is unplugged and empty. Remove any loose items/fittings from appliance. To remove the doors, it is necessary to tilt the unit backwards. You should rest the unit on something solid to stop the unit from slipping during the door reversing process. - Page 9 Unscrew and remove the bottom hinge pin with a flat screwdriver, turn the bracket over and replace it. Refit the bracket fitting the bottom hinge pin. Replace the adjustable foot. Place the door back on, ensuring it is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the hinge.
-
Page 10: Installation
Installation Space Requirement Keep enough space of door open. (All measurements are in mm.) Levelling the Unit To do this adjust the two levelling feet at front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly. ~ 8 ~... - Page 11 Positioning Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: For refrigerating appliances with climate class: extended temperate: this refrigerating appliance is intended for use at ambient temperatures ranging from 10 °C to 32 °C;...
-
Page 12: Daily Use
Daily Use Temperature Setting recommendation Temperature Setting Recommendations Environment Temperature Freezer compartment Fridge compartment Summer (Above 38 Set between 2 and 4 Normal Set on 4 Winter (Below 16 Set between 4 and 6 The above settings are for recommended to get the best out of your appliance. Impact on Food Storage ... - Page 13 Daily Use Position different food in different compartments as listed below: Refrigerator Compartment Type of Food Foods with natural preservatives, such as jams, juices, drinks, Door or shelves of fridge condiments. compartment Do not store perishable foods. Fruits, herbs, and vegetables should be placed separately in the crisper bin.
- Page 14 Positioning the door shelves To permit storage of food packages of various sizes, the door shelves can be placed at different heights. To make these adjustments proceed as follows: gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required. Vegetable Drawer This drawer is suitable for storing fresh fruit and vegetables.
- Page 15 Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid. Do not allow such substances to come into contact the appliance parts. Do not use any abrasive cleaners ...
-
Page 16: Troubleshooting
Troubleshooting Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician person must perform any troubleshooting not in this manual. Important! There are some sounds during normal use (compressor, refrigerant circulation). Problem Possible Cause Solution Temperature regulation knob Set the knob at other number is set at number “0”...
