Summary of Contents for HOMCOM 800-073

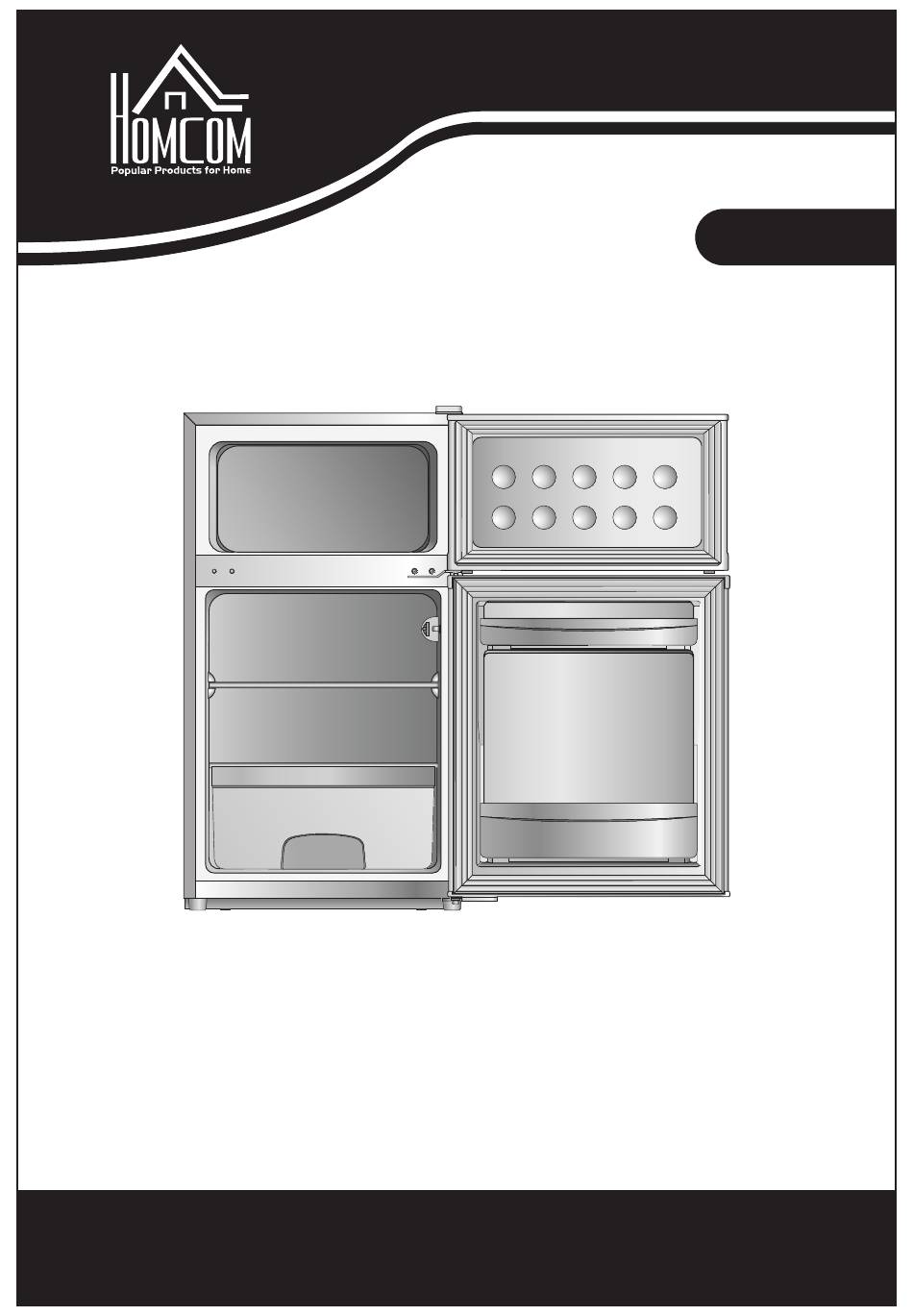

- Page 1 INcsb009_US 800-073 Fridge READ AND SAVAE THIS INSTRUCTION FOR FUTURE USE ASSEMBLY INSTRUCTION...
-
Page 2: Table Of Contents
CONTENTS Section Page 1. Safety Information…………………………………………………………….. 2. Overview…………………………………………………………………….…….. 3. Reverse Door…………………………………………………………………….. 4. Installation……………………………………………………………………….. 10-11 5. Daily Use………………………………………………………………………….. 12-14 6.Troubleshooting……………………………………………………………….. -
Page 3: Safety Information
Safety Information Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. - Page 4 avoid open flames and sources of ignition It is dangerous to alter or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock. This appliance is intended for domestic use only ...
- Page 5 Installation Important! For electrical connection carefully follow the instructions given in specific paragraphs. Unpack the appliance and check for any damages. Do not connect the appliance if it is damaged. Report all damages immediately to the retailer and retain the packing. ...
- Page 6 This symbol on the product or on its packaging indicates this product may not be treated as household waste. It should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service, or the retailer where you purchased the product.
-
Page 7: Overview
Overview The above diagram is for illustration purposes only and may vary between models. ~ 5 ~... - Page 8 Door Reversal Tools required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner. Ensure the unit is unplugged and empty. Remove any loose items/fittings from appliance. To remove the doors, it is necessary to tilt the unit backwards. You should rest the unit on something solid to stop the unit from slipping during the door reversing process.
- Page 9 Move the core cover from the left to the right side. Lift the upper door and place it on a padded surface to prevent scratches. Unscrew the middle hinge and then lift the bottom door and place it on a soft pad to avoid scratches Move the two middle hole covers from the left side to the right side.
- Page 10 Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. Install the hinge at the left-hand side and foot base on the right-hand side. Screw the two levelling feet with their original parts. 10.Move two middle hole covers from left to right. 11.
- Page 11 13. Install the middle hinge 14. Install the upper door with the upper hinge. 15. Clip in the hinge cover and hole cover on the top of the unit. ~ 9 ~...
-
Page 12: Installation
Installation Space Requirement Keep enough space of door open. Keep at least 50mm gap at two sides Levelling the Unit To do this adjust the two levelling feet at front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly. - Page 13 Positioning Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: Climate class Ambient temperature C to +32 C to +32 C to +38 C to +43 Location The appliance should be installed away from sources of heat such as radiators, boilers, direct sunlight etc.
-
Page 14: Daily Use
Daily Use First Use Cleaning the interior Before connecting the appliance, clean the interior, compartments, and accessories well with lukewarm water and a mild soap and dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish. Temperature Setting ... - Page 15 Positioning the door shelves To permit storage of food packages of various sizes, the door shelves can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.
- Page 16 Cleaning For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly. Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch off the appliance from the mains and remove the plug. Never clean the appliance with a steam cleaner.
-
Page 17: Troubleshooting
Troubleshooting Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician person must perform any troubleshooting not in this manual. Important! There are some sounds during normal use (compressor, refrigerant circulation). Problem Possible Cause Solution Temperature regulation knob Set the knob at other number is set at number “0”...
