Shure ADX1M - Bodypack Transmitter Manual

Introduction

ADX series transmitters deliver impeccable audio quality and RF performance, and are equipped with ShowLink^® remote control for real-time parameter adjustments and interference avoidance. This transmitter features wideband tuning, High Density (HD) mode, encryption, and advanced rechargeability. The contoured form factor and lightweight PEI plastic construction offer both comfort and heat resistance. The membrane switches and LEMO connector protect against moisture, while the OLED display provides excellent visibility in low-light environments.

Features

Performance

• 20 Hz to 20 kHz range with flat frequency response
• Automatic input staging optimizes gain setting
• Internal adaptive antenna optimizes signal when ADX1M is worn against the body
• Diversity ShowLink-enabled for remote transmitter control and automatic interference avoidance
• AES 256-bit encryption-enabled for secure transmission
• >120 dB, A-weighted, System Gain @ +10
• Digital output: >125dB, A-weighted (Dante, AES3, AES67)
• 100 meter (300 feet) line-of-sight operating range
• Selectable modulation modes optimize performance for spectral efficiency
• Standard – optimal coverage, low latency
• High density – dramatic increase in max system channel count
• Built-in tone generator and RF markers to facilitate walk-testing
• Switchable power levels = 2/10/20 mW (region dependent)
• Frequency Diversity selection using two bodypacks
• Shure SB910M rechargeable batteries for up to 7 hours of runtime, precision metering, and zero memory effect

Design

• Small and streamlined design for better concealment and wear
• Ultem^® PEI plastic construction for heat resistance and durability
• Sealed buttons and LEMO connection for protection against sweat, spray, and moisture ingress
• Recessed LEMO connector
• High-contrast OLED display
• Detachable belt clip

Included Components

Component	Part number
SB910M Shure Rechargeable Battery	95A24863
Belt clip	44A28563

Optional Accessories

Accessory	Part number
SB910M Shure Rechargeable Battery	95A24863
AD651FOB Talk Switch fob for bodypack transmitters	90A37348
Belt clip	44A28563

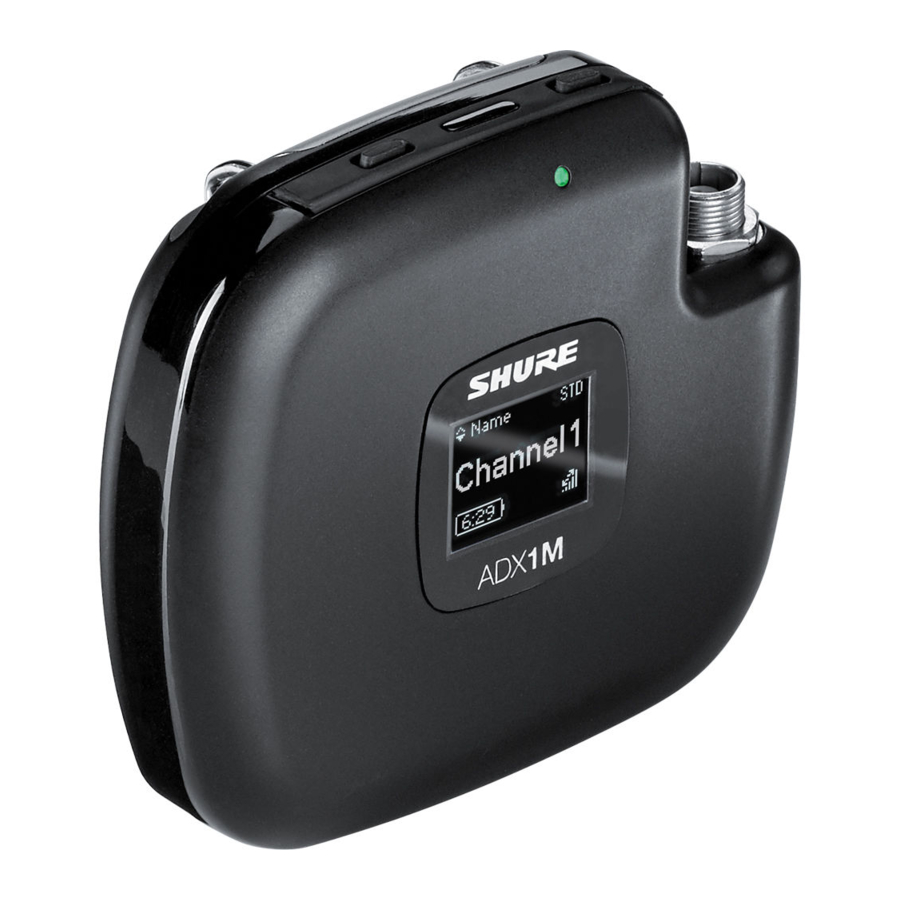

ADX1M Transmitter Overview

1. Input Jack
   Connects to a 3-Pin LEMO connector microphone or instrument cable.
2. Power and Exit Button
   Press and hold to turn transmitter on or off. Acts as a 'back' button to return to previous menus or parameters without confirming a value change.
3. Infrared (IR) Port
   Align with the receiver IR port during an IR Sync for automated transmitter tuning and setup.
4. Up Button
   Use to navigate through parameter menus and to change settings.
5. Down Button
   Use to navigate through parameter menus and to change settings.
6. Enter Button
   Selects menu screens for editing and confirms parameter changes.
7. Display
   View menu screens and settings. Press any button to activate the backlight.
8. Power LED
   • Green = unit is powered on
   • Red = low battery, Mute Mode enabled, input overload, or battery error (see Troubleshooting)
9. Battery Latch
   Latch to secure the battery.
10. Battery
    Shure rechargeable battery.

Home Screen Display

The home screen shows transmitter information and status.

There are four pieces of information that you can choose to see on the home screen. Use the arrow buttons to select one of the following choices:

• Name
• Frequency Setting
• Group (G) and Channel (C)
• Device ID

Icon	Setting
	Battery runtime in hours and minutes or bar display
	Key: Displayed when encryption is enabled
	Lock: Displayed when controls are locked. Icon will flash if access is attempted to a locked control (power or menu).
	ShowLink signal strength displays 0 to 5 bars
	STD: Standard Transmission Mode
	HD: High Density Transmission Mode
	RF Mute Engaged: Displayed when RF output is muted

Transmitter Controls

Use the controls to navigate through parameter menus and change values.

Control	Description
∨∧	Use to scroll through menu screens and to change parameter values.
	Acts as a back button to return to previous menus or parameters without confirming a value change.
O	Enters menu screens and applies parameter changes.

Tip: Hold the ^ and buttons while powering on to activate RF mute mode and enter the safe start menu.

Locking the Interface

Lock transmitter interface controls to prevent accidental or unauthorized changes to parameters. The lock icon appears on the home screen when the interface lock is enabled.

1. From the Utilities menu, navigate to Locks and select one of the following lock options:
   • None: The controls are unlocked
   • Power: The power switch is locked
   • Menu: The menu parameters are locked
   • All: The power switch and menu parameters are locked
2. Press O to save.

To quickly unlock a transmitter: Press O twice, select None, and press O.

Shure Rechargeable Batteries

Shure lithium-ion batteries offer a rechargeable option for powering the transmitters. Batteries quickly charge to 50% capacity in one hour and reach full charge within three hours.

The SB910M Shure rechargeable battery uses the SBC840M and the SBRC Shure chargers.

Only charge Shure rechargeable batteries with a Shure battery charger.

Checking Battery Info

When using a Shure rechargeable battery, the receiver and transmitter home screens display the number of hours and minutes remaining.

Detailed information for the battery is displayed Battery menu of the transmitter: Utilities > Battery

• Battery Life: Runtime reported in bar display and time (hours: minutes)
• Charge: Percentage of charge capacity
• Health: Percentage of current battery health
• Cycle Count: Total of the number of charging cycles for the installed battery
• Temperature: Battery temperature reported in Celsius and Fahrenheit

Important Tips for Care and Storage of Shure Rechargeable Batteries

Proper care and storage of Shure batteries results in reliable performance and ensures a long lifetime.

• Always store batteries and transmitters at room temperature
• Ideally, batteries should be charged to approximately 40% of capacity for long-term storage
• Periodically clean the battery contacts with alcohol to maintain ideal contact
• During storage, check batteries every 6 months and recharge to 40% of capacity as needed

For additional rechargeable battery information, visit www.shure.com.

Battery Installation

Removing the Battery

1. Pull back to disengage the battery latch.
2. Slide the battery out of the transmitter.

Installing the Battery

1. Slide the battery into the transmitter.
2. Fully engage the latch to secure the battery

ADX1M SB910M Battery Runtime

Note: Higher RF power levels decrease battery runtime. Battery runtime varies with battery age and environmental conditions.

2 mW	10 mW	20 mW
6.5 to 8.5 hours	6.0 to 8.0 hours	5.0 to 6.0 hours

Note: A Battery Hot warning indicates that transmitter battery needs to cool off. Otherwise, the transmitter will shut down. Let the device cool down and then consider swapping the transmitter battery to continue operation.

Identify any possible external heat sources to the transmitter and operate the transmitter away from those external heat sources.

All batteries should be stored and operated away from external heat sources in reasonable temperature conditions for best performance.

Menu Parameters

The Main menu organizes the available transmitter parameters into three sub-menus:

• Radio
• Audio
• Utilities

Tip: Use the arrow buttons to scroll between the sub-menus.

Tips for Editing Menu Parameters

• To access the menu options from the home screen, press O. Use the arrow buttons to access additional menus and parameters.
• A menu parameter will blink when editing is enabled
• To increase, decrease or change a parameter, use the arrow buttons
• To save a menu change, press O
• To exit a menu without saving a change, press

Menu Map

Menu Parameter Descriptions

Radio Menu

Freq
Press the O button to enable editing of a group (G:) channel (C:) or frequency (MHz). Use the arrow buttons to adjust the values. To edit the frequency, press the O button once to edit the first 3 digits, or twice to edit the second 3 digits.

Power
Higher RF power settings can extend the range of the transmitter.

Note: Higher RF power settings decrease battery runtime.

Output
Sets the RF output to On or Mute.

• On: RF signal is active
• Mute: RF signal is inactive

Audio Menu

Offset
Adjust Offset level to balance mic levels when using two transmitters or when assigning multiple transmitters to receiver slots. Adjustment range: -12 dB to +21 dB.

Polarity
Selectable polarity assignment for audio input connector:

• Pos: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the TRS output.
• Neg: Positive pressure on microphone diaphragm produces negative voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the TRS output.

Mute
When enabled, the power button is configured as a mute switch for the audio output. Press the power button to mute or un-mute the audio. Exit mute mode to return the power button to its normal functionality.

Tone Gen
Transmitter will generate a continuous test tone:

• Freq: The tone can be set to 400 Hz or 1000 Hz.
• Level: Adjusts of the output level of the test tone.

Utilities Menu

Device ID
Assign a device ID of up to 9 letters or numbers.

Locks
Locks the transmitter controls and power button.

• None: The controls are unlocked
• Power: The power switch is locked
• Menu: The menu parameters are locked
• All: The power button and menu parameters are locked

Link Info
Displays the following information about the link between a transmitter and receiver:

• Not Linked: The transmitter is not linked to a receiver
• Linked: The transmitter is linked to a receiver. Select Unlink? to free the transmitter from the receiver link.
• Unlinked: The transmitter is not linked to a receiver

SL Test
ShowLink test tool to measure the boundaries of ShowLink coverage.

Marker
When enabled, press the enter button to drop a marker in Wireless Workbench.

Battery
Displays battery information:

• Battery Life: Runtime reported in bar display and time (hours: minutes)
• Charge: Percentage of charge capacity
• Health: Percentage of current battery health
• Cycle Count: Total of the number of charging cycles for the installed battery
• Temperature: Battery temperature reported in Celsius and Fahrenheit

Talk Sw
Press ENTER to add control from a talk switch. Press the button on the talk switch twice to complete the link.

Identify
When enabled, Identify flashes the transmitter icon in Wireless Workbench Inventory or Monitor tabs.

Btn Help
A graphic identifying each button appears when the device is turned on. Use the Btn Help menu to turn the graphic On or Off.

About

Displays the following transmitter information:

• Model: Displays the model number
• Band: Displays the tuning band of the transmitter
• FW Version: Installed firmware
• HW Version: Hardware version
• Serial Num: Serial number

Reset All
Restores all transmitter parameters to factory settings.

IR Sync

Use IR Sync to form an audio channel between the transmitter and receiver.

Note: The receiver band must match the band of the transmitter.

1. Select a receiver channel.
2. Tune the channel to an available frequency using group scan or manually turn to an open frequency.
3. Power on the transmitter.
4. Press the SYNC button on the receiver.
5. Align the IR windows between the transmitter and the receiver so that the IR LED illuminates red. When complete, Sync Success! appears. The transmitter and receiver are now tuned to the same frequency.

Note:
Any change to the encryption status on the receiver (enabling/disabling encryption) requires a sync to send the settings to the transmitter. New encryption keys for the transmitter and receiver channel are generated on every IR sync, so to request a new key for a transmitter, perform an IR sync with the desired receiver channel.

Setting the Frequency Manually

The transmitter can be manually tuned to a specific group, channel, or frequency.

1. Navigate to the Radio menu and select Freq.

2. Scroll to select G: and C: to edit the group and channel, or select the frequency parameter (MHz). When editing the frequency, press O once to edit the first 3 digits, or twice to edit the last 3 digits.
3. Use the ∧∨ buttons to adjust the group, channel, or frequency.
4. Press O to save, and then press X when finished.

RF Mute

RF mute prevents transmission of the audio by suppressing the RF signal. The home screen displays RF MUTED in this mode.

1. From the Radio menu, navigate to Output.

2. Choose one of the following options:
   • On: RF signal is active ◦ Mute: RF signal is disabled
3. Press O to save.

When a transmitter is in RF mute mode, the RF will remain muted when the power is cycled and when the battery is replaced. To restore the RF signal, return to the Output menu and select On.

Safe Start

Power on in Safe Start mode to prevent interference with other devices. Hold the ^ button while powering on your device until the Safe Start menu appears.

Safe Start menu options:

• RF: Mute or On
• Locks: None, Pwr, Menu, All

Use the navigation buttons to make changes.

Tip: To exit the Safe Start menu, cycle the power or momentarily remove the battery.

Note: Previous settings for locks and RF will be retained when the transmitter is powered on in Safe Start.

Wearing the Bodypack Transmitter

Remove and Install the Bodypack Clip

Clip the transmitter to a belt or slide a guitar strap through the transmitter clip as shown.

For best results, the belt should be pressed against the base of the clip.

The clip can removed and rotated 180 degrees to increase mounting options.

Input Overload

The OVERLOAD message is displayed when the audio input experiences a high-level input signal. Reduce the input signal or move mic away from the source to remove the overload.

Matching Audio Levels with Mic Offset

When linking two or more transmitters to a receiver, there may be a difference in volume levels between microphones or instruments. If this occurs, use the Offset function to match the audio levels and eliminate audible volume differences between transmitters. If using a single transmitter, set Offset to 0 dB.

1. Turn on the first transmitter and perform a sound check to test the audio level. Turn off the transmitter when finished.
2. Turn on the second transmitter and perform a sound check to test the audio level. Repeat for any additional transmitters.
3. If there is an audible difference in the sound level between the transmitters, navigate to the Offset menu (Audio > Offset) in the transmitter to increase or decrease the Offset in realtime to match the audio levels.

Tone Generator

The transmitter contains an internal tone generator that produces a continuous audio signal. The tone is helpful when conducting a sound check or for troubleshooting the audio signal chain. The level of the tone is adjustable from -60 dB to 0 dB and the frequency can be set to 400 Hz or 1000 Hz.

Always start with the level set to -60 dB to avoid overloading speakers or headphones.

1. From the Audio menu select Tone Gen.

2. Set the frequency to 400 Hz or 1000 Hz.
3. Select Level and use the arrow buttons adjust the value between -60 dB and 0 dB.

Turn off the tone by selecting Off from the menu or by cycling the transmitter power.

ShowLink Test

The ShowLink Test is a tool to find the boundaries of the ShowLink coverage area. When the ShowLink test is activated, a fivebar display indicating the link quality is shown on the screen. As the transmitter moves away from the access point, the number of bars will decrease. ShowLink control is maintained as long as 1 bar is displayed.

If the transmitter is beyond the coverage range, ShowLink control will not be possible. However, the audio signal will not be affected or interrupted as long as the transmitter is within range of the RF signal.

To improve coverage, adjust the location of your access points or place additional access points to extend coverage.

To activate the ShowLink Test:

1. From the Utilities menu, navigate to SL Test.
2. Press the O button to start the test and walk the transmitter around the coverage area. Monitor the number of bars displayed and the state of the ShowLink icon. Coverage boundaries are indicated by 0 bars displayed or the ShowLink icon is empty.
3. Press the X button to exit the ShowLink test.

Tip: During a ShowLink test, press O (enter) to drop a marker in Wireless Workbench.

Updating Firmware

Firmware is embedded software in each component that controls functionality. Periodically, new versions of firmware are developed to incorporate additional features and enhancements. To take advantage of design improvements, you can upload and install new versions of the firmware by using the Shure Update Utility, available on the Shure Update Utility page.

Firmware Versions

When performing an update, first download firmware to the receiver, and then update transmitters to the same firmware version to ensure consistent operation.

The firmware numbering for Shure devices uses the following format: MAJOR.MINOR.PATCH (e.g., 1.2.14). At a minimum, all devices on the network (including transmitters), must have the same MAJOR and MINOR firmware version numbers (e.g., 1.2.x).

Updating the Transmitter

1. Download the firmware to the receiver.
2. Access the following menu from the receiver: Device Configuration > Tx Firmware Update.
3. Align the IR ports between the transmitter and the receiver. IR ports must be aligned for the entire download, which can take 50 seconds or longer.
   Tip: The red alignment LED will turn on when the alignment is correct.
4. Press ENTER on the receiver to begin the download to the transmitter. The receiver will display the progress of the update as a percentage.

Specifications

Mic Offset Range
-12 to 21 dB (in 1 dB steps)

Battery Type
Shure SB910M Rechargeable Li Ion

Battery Runtime
@ 10 mW
Shure SB910M up to 7 hours

Dimensions
60.4 mm x 68.0 mm x 18.0 mm (2.4 in. x 2.7 in. x 0.7in.) H x W x D without clip

Weight
with battery 100 g (3.5 oz.)
without battery 68 g (2.4 oz.),

Housing
Plastic

Operating Temperature Range
-18°C (0°F) to 50°C (122°F)
Note: Battery characteristics may limit this range.

Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)
Note: Battery characteristics may limit this range.

Audio Input

Connector
Lemo Connector

Configuration
Unbalanced

Impedance
8.2 kΩ

Maximum Input Level
1 kHz at 1% THD
8.5 dBV ( 7.5 Vpp)

Preamplifier Equivalent Input Noise (EIN)
System Gain Setting ≥ +20
120 dBV, A weighted, typical

RF Output

Antenna Type
Integrated Helical

Impedance
50 Ω

Occupied Bandwidth
<200 kHz

Channel-to-Channel Spacing
Standard Mode 350 kHz
High Density Mode 125 kHz

Modulation Type
Shure Axient Digital Proprietary

Power
2 mW, 10 mW, 20 mW
See Frequency Range and Output Power table, varies by region

Specific Absorption Rate (SAR)
< 0.24 W/kg

ShowLink

Network Type
IEEE 802.15.4

Antenna Type
Zigbee Dual Conformal

Frequency Range
2.40 to 2.4835 GHz ( 24 Channels)

RF Output Power
10 dBm (ERP)
varies by region

Input Connector Diagram

LEMO

Frequency Range and Transmitter Output Power

Band	Frequency Range ( MHz)	Tx RF Power ( mW)***
G53	470 to 510	2/10/20
G54	479 to 565	2/10/20
G55†	470 to 636	2/10/20
G56	470 to 636	2/10/20
G57△	470 to 616*	2/10/20
G62	510 to 530	2/10/20
H54	520 to 636	2/10/20
K53†	606 to 698	2/10/20
K54△	606 to 663**	2/10/20
K55	606 to 694	2/10/20
K56	606 to 714	2/10/20
K57	606 to 790	2/10/20
K58	622 to 698	2/10/20
L54	630 to 787	2/10/20
L60	630.125 to 697.875	2/10/20
P55	694 to 703, 748 to 758, 803 to 806	2/10/20
R52	794 to 806	10
JB	806 to 810	2/10
X55	941 to 960	2/10/20

*With a gap between 608 to 614 MHz.

**With a gap between 608 to 614 MHz and a gap between 616 to 653 MHz.

***Power delivered to the antenna port.

†Operation mode varies according to region. In Brazil, High Density mode is used. The maximum power level for Peru is 10mW.

△Output power limited to 10 mW above 608 MHz.

• Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat above 140°F (60°C), or incinerate.
• Follow instructions from manufacturer
• Only use Shure charger to recharge Shure rechargeable batteries
•
  Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.
• Never put batteries in mouth. If swallowed, contact your physician or local poison control center
• Do not short circuit; may cause burns or catch fire
• Do not charge or use battery packs other than Shure rechargeable batteries
• Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like
• Do not immerse the battery in liquid such as water, beverages, or other fluids.
• Do not attach or insert battery with polarity reversed.
• Keep away from small children.
• Do not use abnormal batteries.
• Pack the battery securely for transport.

Note: Use only with the included power supply or a Shure-approved equivalent.

Please follow your regional recycling scheme for batteries, packaging, and electronic waste.

Documents / Resources

References

• Shure: Microphones, Wireless microphones, in-ear monitoring, earphones, headphones
• SUU - Shure Update Utility - Shure USA

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Shure ADX1M - Bodypack Transmitter Manual
