- Page 1 ADX1M Bodypack Transmitter ADX1M Micro Bodypack Transmitter User Guide Version: 10 (2020-A)
-
Page 2: Table Of Contents
Tone Generator Locking the Interface ShowLink Test Shure Rechargeable Batteries Updating Firmware Checking Battery Info Firmware Versioning Important Tips for Care and Storage of Shure Recharge able Batteries Updating the Transmitter Battery Installation Specifications ADX1M SB910M Battery Runtime Input Connector Diagram... -
Page 3: Adx1Mbodypack Transmitter
20 Hz to 20 kHz range with flat frequency response • Automatic input staging optimizes gain setting • Internal adaptive antenna optimizes signal when ADX1M is worn against the body • Diversity ShowLink-enabled for remote transmitter control and automatic interference avoidance •... -
Page 4: Included Components
Shure Incorporated • Frequency Diversity selection using two bodypacks • Shure SB910M rechargeable batteries for up to 7 hours of runtime, precision metering, and zero memory effect Design • Small and streamlined design for better concealment and wear ® •... -
Page 5: Home Screen Display

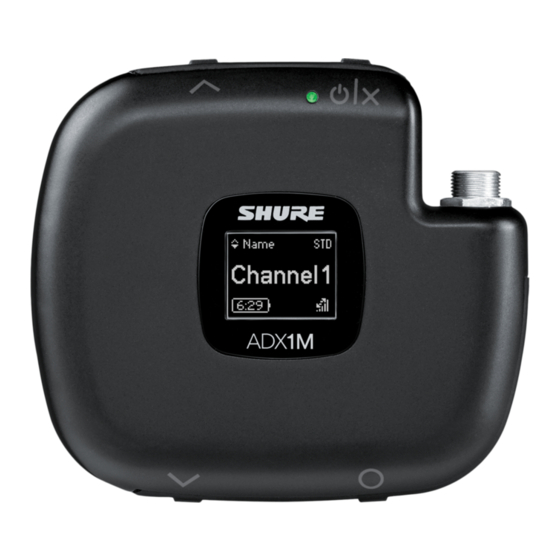

⑨ Battery Latch Latch to secure the battery. ⑩ Battery Shure rechargeable battery. Home Screen Display The home screen shows transmitter information and status. There are four pieces of information that you can choose to see on the home screen. Use the arrow buttons to select one of... -
Page 6: Transmitter Controls
Shure Incorporated The following icons indicate transmitter settings: Battery runtime in hours and minutes or bar display Key: Displayed when encryption is enabled Lock: Displayed when controls are locked. Icon will flash if access is attempted to a locked control (power or menu). -
Page 7: Shure Rechargeable Batteries
Caution: Only charge Shure rechargeable batteries with a Shure battery charger. Checking Battery Info When using a Shure rechargeable battery, the receiver and transmitter home screens display the number of hours and minutes remaining. Detailed information for the battery is displayed Battery menu of the transmitter: Utilities > Battery •... -
Page 8: Battery Installation
Installing the Battery ① Slide the battery into the transmitter. ② Fully engage the latch to secure the battery ADX1M SB910M Battery Runtime Note: Higher RF power levels decrease battery runtime. Battery runtime varies with battery age and environmental conditions. 2 mW... -
Page 9: Tips For Editing Menu Parameters
Shure Incorporated Tips for Editing Menu Parameters • To access the menu options from the home screen, press O . Use the arrow buttons to access additional menus and para meters. • A menu parameter will blink when editing is enabled •... -
Page 10: Audio Menu
Shure Incorporated ◦ Mute: RF signal is inactive Audio Menu Offset Adjust Offset level to balance mic levels when using two transmitters or when assigning multiple transmitters to receiver slots. Adjustment range: -12 dB to +21 dB. Polarity Selectable polarity assignment for audio input connector: ◦... -
Page 11: Ir Sync
Shure Incorporated When enabled, press the enter button to drop a marker in Wireless Workbench. Battery Displays battery information: ◦ Battery Life: Runtime reported in bar display and time (hours:minutes) ◦ Charge: Percentage of charge capacity ◦ Health: Percentage of current battery health ◦... -
Page 12: Setting The Frequency Manually
Shure Incorporated Note: Any change to the encryption status on the receiver (enabling/disabling encryption) requires a sync to send the settings to the transmitter. New encryption keys for the transmitter and receiver channel are generated on every IR sync, so to request a new key for a transmitter, perform an IR sync with the desired receiver channel. -
Page 13: Safe Start
Shure Incorporated From the Radio menu, navigate to Output. Choose one of the following options: ◦ On: RF signal is active ◦ Mute: RF signal is disabled Press O to save. Turning the transmitter off and on, or replacing the battery will restore Output to On. -
Page 14: Input Overload
Shure Incorporated Input Overload The OVERLOAD message is displayed when the audio input experiences a high-level input signal. Reduce the input signal or move mic away from the source to remove the overload. Matching Audio Levels with Mic Offset When linking two or more transmitters to a receiver, there may be a difference in volume levels between microphones or instru... -
Page 15: Tone Generator
To take advantage of design improvements, you can upload and in stall new versions of the firmware by using the Shure Update Utility. The Shure Update Utility is available for download from http://www.shure.com/. -
Page 16: Firmware Versioning
When performing an update, first download firmware to the receiver, and then update transmitters to the same firmware version to ensure consistent operation. The firmware numbering for Shure devices uses the following format: MAJOR.MINOR.PATCH (e.g., 1.2.14). At a minimum, all devices on the network (including transmitters), must have the same MAJOR and MINOR firmware version numbers (e.g., 1.2.x). - Page 17 <200 kHz Channel-to-Channel Spacing Standard Mode 350 kHz High Density Mode 125 kHz varies by region Modulation Type Shure Axient Digital Proprietary Power 2 mW, 10 mW, 20 mW See Frequency Range and Output Power table, varies by region 17/22...
-
Page 18: Input Connector Diagram
Shure Incorporated ShowLink Network Type IEEE 802.15.4 Antenna Type Zigbee Dual Conformal Frequency Range 2.40 to 2.4835 GHz (24 Channels) RF Output Power 10 dBm (ERP) varies by region Input Connector Diagram LEMO Frequency Bands and Transmitter RF Power Band... - Page 19 Shure Incorporated Band Frequency Range (MHz) RF Power (mW)*** 606 to 714 2/10/20 606 to 790 2/10/20 622 to 698 2/10/20 630 to 787 2/10/20 794 to 806 806 to 810 2/10 941 to 960 2/10/20 *with a gap between 608 to 614 MHz.
-
Page 20: Australia Warning For Wireless
Shure Incorporated G56 470-636 MHz Country Code Frequency Range Code de Pays Gamme de frequences Codice di paese Gamme di frequenza Código de país Gama de frequencias Länder-Kürzel Frequenzbereich A, B, BG, CH, CY, CZ, D, DK, EST, F FIN, GB, GR, H, HR, I, IRL, IS, L, LT... -
Page 21: Licensing Information
Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability de pends on the user’s classification and application, and on the selected frequency. Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies. - Page 22 Shure Incorporated Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa...
