Door Removal Instructions
Hinge
J
Hinge
Assembly
SCt'eW5/_
2 Pull to remove tube
TO CONNECT
Fools Necessar i
Phi iD! ]eaa
3/8"
Fixed
Wrench

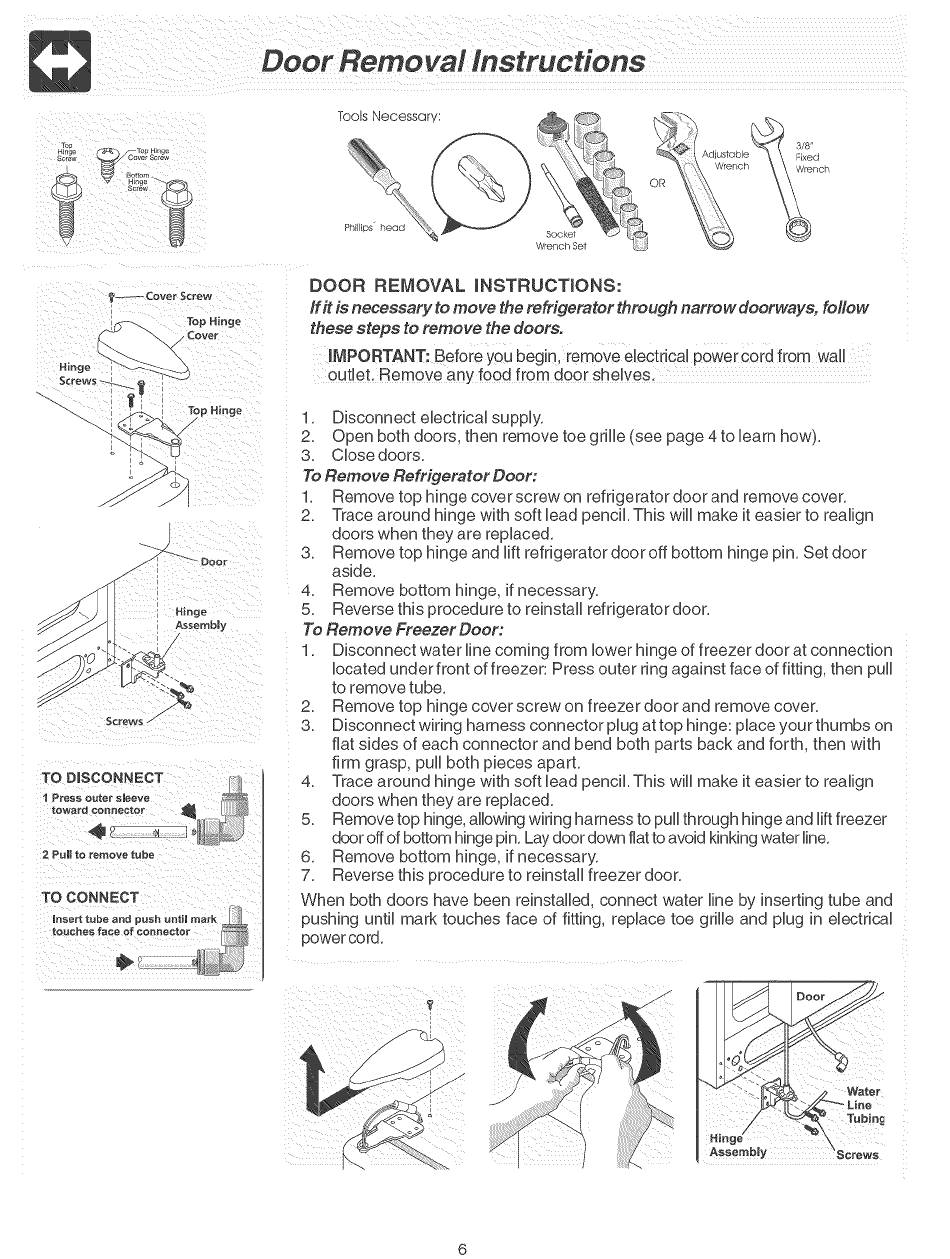

DOOR REMOVAL INSTRUCTIONS:
flit is necessary to move the refrigerator through narrow doorways, follow
these steps to remove the doors.
iMPORTANT: Before you begin, remove ebcl rical power cord from wall
outlet, Remove any food from door shelves,
1. Disconnect electrical supply,
2, 0 pen both doors, then remove toe grille i see page 4 to ieam how),
3, Close doors,
To Remove Refrigerator Door:
1, Remove top hinge cover screw on refrigerator door and remove cover,
2. Trace around hinge with soft lead pencil, This will make it easier to realign
doors when they are replaced
3 Remove top hinge and lift refrigerator door off bottom hinge pin, Set door
aside,
4, Remove bottom hinge, if necessary,
5, Reverse this procedure to reinstall refrigerator door,
To Remove Freezer Door:
1. Disconnect water line coming from lower hinge of freezer door at connection
located under front of freezer: Press outer ring against face of fitting, then pull
to remove tube,
2. Remove top hinge cover screw on freezer door and remove cover,
3. Disconnect wiring harness connector plug at top hinge: place your thumbs on
fiat sides of each connector and bend both parts back and forth, then with
firm grasp, puii both pieces apad
4. Trace around hinge with soft lead pencil, This wiii make it easier to realign
doors when they are replaced
5. Remove top hinge, allowing wiring harness to pull through hinge and lift freezer
door off of bottom hinge pin, Lay door down fiat to avoid kinking water line,
6, Remove bottom hinge, if necessary,
7, Reverse this procedure to reinstall freezer door,
When both doors have been reinstalled, connect water fine by inserting tube and
pushing until mark touches face of fitting, replace toe grille and plug in electrical
powercord.
Assembly
Water
