General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
UTV sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL

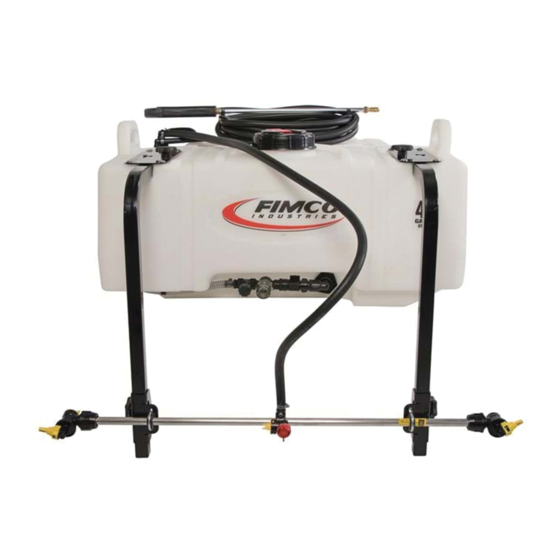

Model: UTV-45-3-GS (5303237)
(45 Gallon Lawn & Garden UTV Sprayer w/3-Nozzle Boom)
WARNING:
Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
WARNING:
To reduce the risk of injury, the
user must read and understand the operator's
manual before using this product.
***IMPORTANT REMINDER***
This sprayer comes with an On/Off valve located on
your intake line. Make sure the valve is in the "open"
position before using this sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195610
(10/22)]
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fimco UTV-45-3-GS
Summary of Contents for Fimco UTV-45-3-GS
- Page 1 Warranted against manufacturer or workmanship defects from date of www.fimcoindustries.com purchase with copy of receipt: 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Homeowner Usage: Sprayer-One Year and Pump-Two Years. Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 [5195610 (10/22)] Commercial Usage: Sprayer and Pump-90 Days.
- Page 2 Tank Care and Winter Storage ..........6 Boom Exploded View/Parts List ........13 Pump Exploded View and Parts List ........7 Warranty ................14 Model: UTV-45-3-GS (5303237) (45 Gallon Lawn & Garden UTV Sprayer w/3-Nozzle Boom) Technical Specifications • 45 Gal. Corrosion-Resistant Polyethylene Tank •...
- Page 3 Assembly Instructions: • The sprayer is partially assembled. • Follow the steps on page 3 to properly assemble the sprayer. Step 2 Step 2 Step 1 Attach the (2) Hose Wraps to the top of the tank with Thread Pressure Gauge into open port on manifold, as shown. (4) Phillips Head Screws Thread lid on to the tank.
- Page 4 IMPORTANT: Remove tank lid and be sure the tank is clean and free of any foreign material. Rinse tank out of any tank residue before filling with water to test. Testing the Sprayer NOTE: It is VERY important to test this sprayer with plain water before actual spraying is attempted. This will enable you to check the sprayer for leaks without the possibility of losing any expensive chemicals.
- Page 5 Drain and then refill half full, add the recommended amount of a good quality tank cleaner, such as FIMCO Tank Neutralizer and Cleaner. (If no tank cleaner is available, you may substi- tute dish soap for this step, about 1-2 oz.
- Page 6 Tank Care & Maintenance Warning: Do not use the tank as a container for fuel oils, kerosene, gasoline or any other petroleum distillate product. All polyole- fins are softened and permeated by such products. In an enclosed area the vaporization of these materials from the outside sur- face of the tank could create a dangerous condition.
- Page 7 #5168833 3/8” Hose Barb Port Kit Fitting #5168836 DON’T • • Clean and rinse your pump after each use with Fimco Tank Use to pump bleach. Neutralizer. • Use to pump petroleum products such as diesel fuel, gaso- • Winterize your pump or sprayer by rinsing, draining and line or kerosene.
- Page 8 Sprayer and Pump FAQs: Why does the pump not run all the time? This is an on-demand pump and only runs when a discharge is open (spray gun, bypass, boom (if applicable) or a leak in system. Why does the pump surge while using the spray gun? Low flow/high pressure may cause the pump to surge (or cycle).
- Page 9 There is a shut-off valve on the intake line, next to the pump. It is at this location so you can shut off the flow of solution to access your system’s screen for cleaning. Checking/Cleaning the sprayer’s filter/screen: Shut the valve to the ‘Closed’ position (lever is perpendicular to the flow of fluid), then shut off the pump.
- Page 10 Exploded View UTV-45-3-GS (5303237) Refer to the parts list previous page for part numbers. Detail A Boom Feeder Hose See Detail A See Detail B Refer to page 13 for boom detail and part numbers Detail B Refer to Page 12 for the UTV intake assembly breakdown.
- Page 11 Parts List: UTV-45-3-GS (5303237) Page 11...
- Page 12 UTV Intake Plumbing Detail Inside Tank Intake Detail Refer to the parts list on Page 11 for part numbers. Manifold Detail Boom Tube Assembly Detail Refer to the parts page 11 Boom Mount for part numbers. Detail Strainer Detail Page 12...
- Page 13 Opposite Side has Typical Hardware Setup See Hinge Detail 3-Nozzle Boom Assembly (with 3/8” Hose, 1” Sq. Tubing & AIXR11002VP Tips) Hinge Detail Clamp Bag of 3: 5281996 Elbow Cross • 110° wide, tapered flat spray angle with air induction technology for better drift management.
- Page 14 WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Ind. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
