Summary of Contents for Würth CLL18
-
Page 1: Table Of Contents
Overview Technical data Instrument Set-up Operations How to use the smart adapters Message Codes Accuracy Check Care Warranty Safety instructions Würth CLL18/CLG18... -
Page 2: Overview

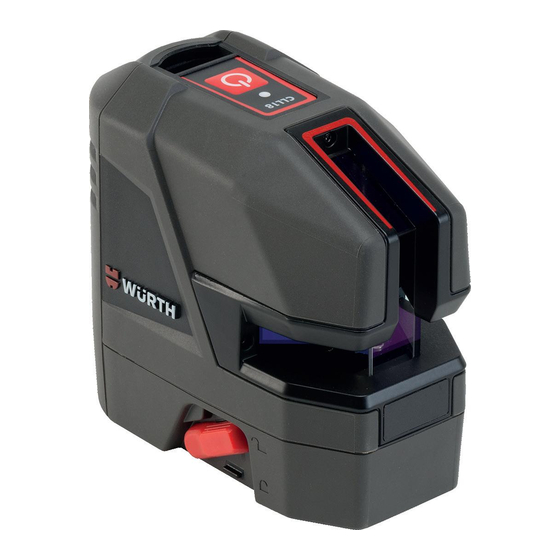

Overview Ov e r v i e w The Würth CLL18/CLG18 is a self-levelling cross- There are 2 different types available: 1 Window of vertical line line laser. It is a reliable precision laser for any kind of tasks like levelling, transfering and setting out CLL18 (red laser) 2 Window of horizontal line... -
Page 3: Technical Data
530/500 g (1.17/1.10 lbs) Operating temperature -10…+50 °C (+14…+122 °F) Storage temperature -25…+70 °C (-13…+158 °F) Laser line width at 5m distance < 2 mm (<0.08 in) Tripod thread 1/4’’ (+ 5/8’’ with adapter) * depending on lighting conditions Würth CLL18/CLG18... -
Page 4: Instrument Set-Up
Important paragraphs which must be adhered to in practice as they enable the product to be used in a technically correct and efficient manner. Würth CLL18/CLG18... - Page 5 At the recom- mended storage temperature of -20°C to +30°C (-4°F to +86°F), batteries containing a 50% to 100% charge can be stored up to 1 year. After this storage period the batteries must be recharged. Würth CLL18/CLG18...
- Page 6 Li-Ion status LED lights green: charging battery Insert Alkaline batteries in the battery-pack. OFF: charging finished / no charging Würth CLL18/CLG18...
-
Page 7: Operations
30 min operation press and hold the On button at start for 5 sec. The status LED blinks 3 times in green colour. To deactivate it again repeat the described steps until the status LED blinks 3 times in red colour. Würth CLL18/CLG18... - Page 8 Operations Functions Check if self-levelling is required and cor- respondingly activated.. (See Levelling lock for details) Horizontal line on Vertical line on Vertical lines and horizontal lines on Würth CLL18/CLG18...
-
Page 9: How To Use The Smart Adapters
Alignment of horizontal laser lines Turn the device 250° to adjust the vertical line. Turn the adjustment knob of the wall mount (optional available) to fine adjust the horizonal line to the desired reference level. Snap the device on the adapter. Würth CLL18/CLG18... - Page 10 How to use the smart adapters Different fixing applications Würth CLL18/CLG18...
-
Page 11: Message Codes
Alkaline batteries blinks every 5 sec lights red Levelling lock is activated but Charge Li-Ion battery or change instrument has low power Alkaline batteries blinks every 5 sec blinks green Levelling lock is activated for work- ing without self-levelling Würth CLL18/CLG18... -
Page 12: Accuracy Check
180° and mark the horizontal laser line or instrument is within tolerance. the laser point in exactly the same way on wall (B1). Should your instrument be outside of the spe- cified tolerance, please contact a local dealer or an authorised Würth distributor. Würth CLL18/CLG18... - Page 13 If the difference does not exceed 3 mm, then the instru- Should your instrument be outside of the spe- ment is within tolerance. cified tolerance, please contact a local dealer or an authorised Würth distributor. Würth CLL18/CLG18...
-
Page 14: Care
Dropping or violent shaking of the instrument may damage it. Check the instrument for any damage before using it. Check the levelling accuracy of the instrument regularly. Würth CLL18/CLG18... -
Page 15: Warranty
Claims can only be accepted if the power tool is sent undisassembled to a Würth branch office, your Würth sales representative or a customer service agent for Würth compressed- air and power tools. Würth CLL18/CLG18... -
Page 16: Safety Instructions
1. To understand the safety instructions on the product and the instructions in the User Manual. 2. To be familiar with local safety regulations relating to accident prevention. 3. Always prevent access to the product by unauthorised personnel. Würth CLL18/CLG18... - Page 17 Changes or modifications not expressively approved by Würth/manufacturer for compliance could void the user´s authority to operate the equipment. WARNING Laser/adapters should not be used in the vicinity of pacemaker because of integrated magnets which can affect the function of the pacemaker. Würth CLL18/CLG18...
- Page 18 When transporting or shipping bat- teries, the person in charge of the product must ensure that the applicable national and inter- national rules are observed. Before transportation or shipping, contact your local passenger or freight transport company. Würth CLL18/CLG18...
- Page 19 4. Consult the dealer or an experienced radi- o/TV technician for help This instrument complies with part 15 of the FCC rules. Operation is subjected to the following two conditions: 1. This instrument may not cause harmful interference, and Würth CLL18/CLG18...
- Page 20 Laser Class 2 products Wavelength Do not stare into the laser beam or direct it CLL18: 630 - 645 nm (red) / towards other people unnecessarily. Eye pro- CLG18: 510 - 530 nm (green) tection is normally afforded by aversion responses including the blink reflex.
- Page 21 Safety instructions Labelling Subject to change (drawings, descriptions and technical data) without prior notice. Würth CLL18/CLG18...
