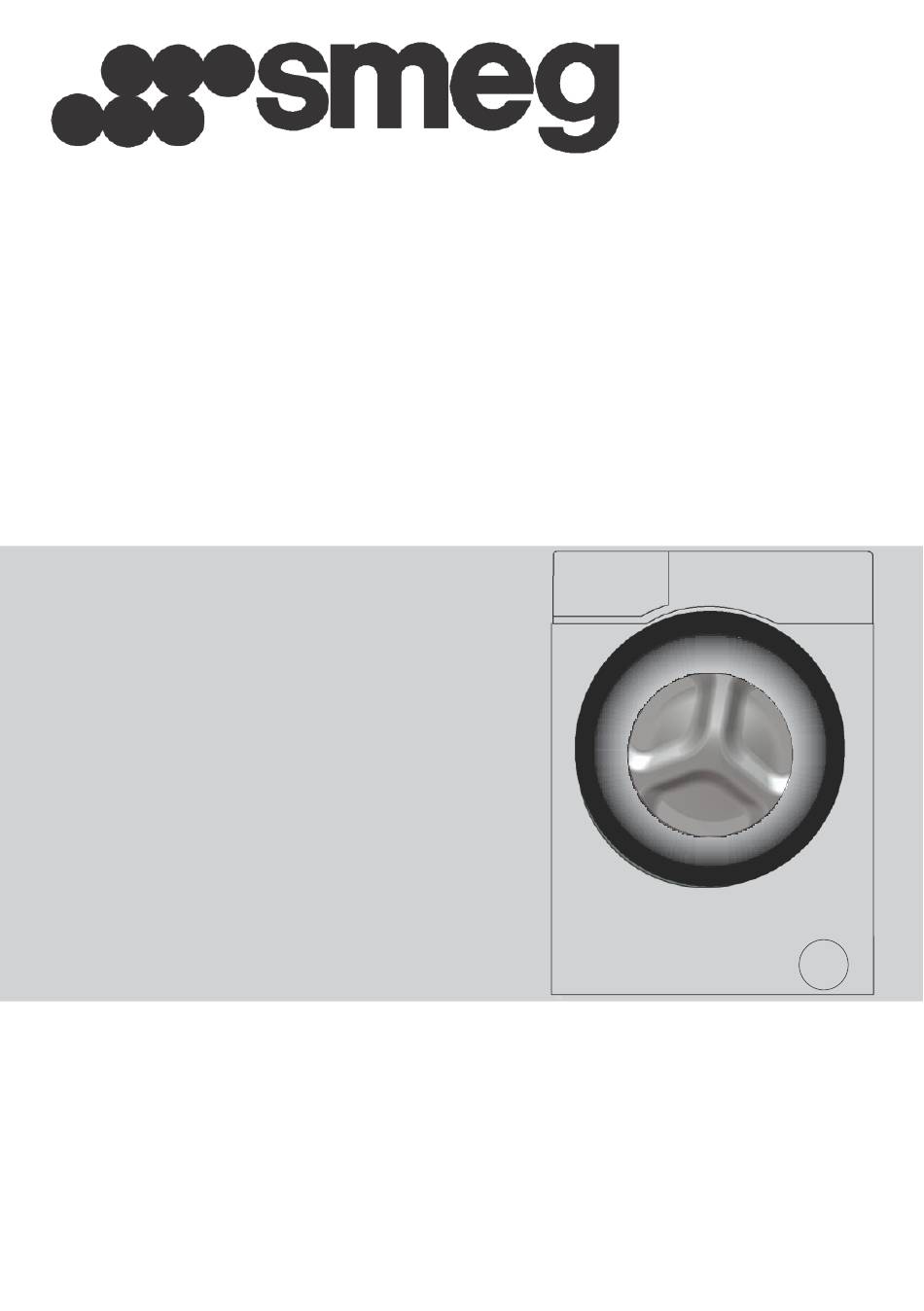

- Page 1 SAWS 8160 Lavatrice Manuale utente Washing Machine User’s Manual Document Number 282052Smeg/ 10-02-15.(13:24)
- Page 2 Please read this user manual first! Dear Customer, Thank you for prefering a Smeg product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 Important instructions for safety and 5 Operating the product environment 5.1 Control panel ..... . . 21 1.1 General safety . - Page 4 3 / EN...
-
Page 5: Important Instructions For Safety And Environment
Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • This product can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. - Page 6 • Never wash the product by spreading or pouring water onto it! There is the risk of electric shock! 5 / EN 5 / EN Washing Machine /User’s Manual Washing Machine /User’s Manual...
-
Page 7: Intended Use
Important instructions for safety and environment • Never touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug. • Use detergents, softeners and supplements suitable for automatic washing machines only. •... -
Page 8: Children's Safety
Important instructions for safety and environment Important instructions for safety and environment 1.3 Children's safety • Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach of the children. • Electrical products are dangerous for the children. Keep children away from the product when it is in use. - Page 9 Important instructions for safety and environment children's safety, cut the power cable and break the locking mechanism of the loading door so that it will be non-functional before disposing of the product. 8 / EN 8 / EN Washing Machine /User’s Manual Washing Machine /User’s Manual...
-
Page 10: Compliance With Weee Directive
Important instructions for safety and environment 1.6 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 11: Your Washing Machine
Your washing machine Your washing machine 2.1 Overview 1- Power cable 5- Loading door 2- Top panel 6- Filter cap 3- Control panel 7- Adjustable feet 4- Drain hose 8- Detergent drawer 10 / EN 10 / EN Washing Machine /User’s Manual Washing Machine /User’s Manual... -
Page 12: Package Contents
Your washing machine 2.2 Package Contents 1- Power cable 2- Drain hose 3- Transportation safety bolts * 4- Mains water inlet hose (One of the following filter types is used for the mains hose connection.) a- Electronic water shut-off b- Mechanical water shut-off c- Standard 5- Liquid detergent container** 6- User Manual... - Page 13 Your washing machine ** This may be supplied with the machine depending on the model of your machine. *** This is supplied if your machine is equipped with double water inlet. 12 / EN 12 / EN Washing Machine /User’s Manual Washing Machine /User’s Manual...
-
Page 14: Technical Specifications
Your washing machine 2.3 Technical specifications Models (EN) SAWS 8160 Maximum dry laundry capacity (kg) Height (cm) Width (cm) Depth (cm) Net weight (±4 kg.) Electrical input (V/Hz) 220-240 V / 50Hz Total current (A) 2000-2350 Total power (W) 1600 Spin speed (rpm/ min., max.) - Page 15 Your washing machine Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with the relevant standards. Depending on operational and environmental conditions of the product, these values may vary. 14 / EN 14 / EN Washing Machine /User’s Manual Washing Machine /User’s Manual...
-
Page 16: Installation
Your washing machine Installation Refer to the nearest Authorised Service Agent for 3.2 Removing packaging installation of the product. To make the product reinforcement ready for use, review the information in the user Tilt the machine backwards to remove the manual and make sure that the electricity, tap packaging reinforcement. -
Page 17: Connecting Water Supply
Installation 3. Attach the plastic covers supplied in the User hose (left) (max. 90 ºC) is for hot water inlet, Manual bag into the holes on the rear panel. (P) blue hose (right) (max. 25 ºC) is for cold water inlet. -
Page 18: Connecting To The Drain
Installation the extension hose and the drain hose of the product Installation must be fitted well with an appropriate clamp as not to come off and leak. 3.5 Connecting to the drain • The end of the drain hose must be directly connected to the wastewater drain or to the washbasin. -
Page 19: Adjusting The Feet
Installation 3.6 Adjusting the feet WARNING: In order to ensure that the product operates more silently and vibration-free, it WARNING: Do not use any tools to must stand level and balanced loosen the lock nuts. Otherwise, they will on its feet. Balance the get damaged. -
Page 20: Electrical Connection
Installation 3.7 Electrical connection Connect the product to a grounded outlet protected by a 16 A fuse. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations. •... -
Page 21: Preparation
Preparation Preparation 4.1 Sorting the laundry • Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. • Always obey the instructions given on the garment tags. LAUNDRY WASH SYMBOLS Machine Wash Symbols WASH Maximum Water Temperatures... - Page 22 Preparation Bleach (sodium Bleach is not Only bleaches without All bleaches are allowed hypochlorite) allowed chlorine are allowed can be used BLEACH 21 / EN 21 / EN Washing Machine /User’s Manual Washing Machine /User’s Manual...
-
Page 23: Preparing Laundry For Washing
Preparation 4.2 Preparing laundry for washing 4.3 Things to be done • Laundry items with metal attachments such as, for energy saving underwired bras, belt buckles or metal buttons Following information will help you use the will damage the machine. Remove the metal product in an ecological and energy-efficient pieces or wash the clothes by putting them in a manner. -
Page 24: Initial Use
Preparation Preparation 4.4 Initial use The loading door is locked while a Before starting to use the product, make sure programme is running. The door can only that all preparations are made in accordance be opened a while after the programme with the instructions in sections “Important safety comes to an end. - Page 25 Preparation Preparation 18 / EN 18 / EN Washing Machine /User’s Manual Washing Machine /User’s Manual...
- Page 26 Preparation Preparation poor rinsing, financial savings and finally, Detergent, softener and other cleaning agents environmental protection. • Add detergent and softener before starting the • Use lesser detergent for small washing programme. amounts or lightly soiled clothes. • Never leave the detergent drawer open while the washing programme is running! •...
- Page 27 Preparation Preparation Using softeners Pour the softener into the softener compartment of the detergent drawer. • Do not exceed the (>max<) level marking in the softener compartment. • If the softener has lost its fluidity, dilute it with water before putting it in the detergent drawer. Using liquid detergents If the product contains a liquid detergent cup: •...
- Page 28 Preparation Preparation • Oxygen based bleaches can be used together with water intake. If your machine contains a liquid detergents; however, if its thickness detergent cup, fill the detergent into this cup is not the same with the detergent, put the before starting the programme.
- Page 29 Preparation Preparation detergent first into the compartment nr. "2" in the detergent drawer and wait until the detergent flows while the machine is taking in water. Add the bleaching agent from the same compartment while the machine is still taking in water. Using limescale remover •...
-
Page 30: Tips For Efficient Washing
Preparation Preparation 4.8 Tips for efficient washing Clothes Light colours and Delicates/ Colours Dark colours whites Woollens/Silks (Recommended (Recommended (Recommended (Recommended temperature range temperature range temperature range temperature range based on soiling level: based on soiling level: based on soiling based on soiling 40-90ºC) cold-40ºC) -
Page 31: Operating The Product
Operating the product Operating the product 5.1 Control panel 1. Programme selection knob 2 - Spin Speed Adjustment button 3 - Temperature adjustment button 4 - Display 5 - Programme follow-up indicator 6 - On / Off button 7 - Start / Pause button 8 - End Time Adjustment button 9 - Auxiliary Function buttons 10 - Programme Selection lights... - Page 32 Operating the product The visuals used for machine description in this section are schematic and may not match exactly will the features of your machine. 25 / EN 25 / EN Washing Machine /User’s Manual Washing Machine /User’s Manual...
-
Page 33: Display Symbols
Operating the product 5.2 Display symbols 88:88 1888 a - Temperature indicator b - Electrical connection c - Steam indicator d - Audio Warning indicator e - No Water indicator f - Detergent indicator g - Start / Pause indicator h - Program Follow-up indicator i - End Time indicator j - Duration Information Line... -
Page 34: Preparing The Machine
Operating the product Operating the product 5.3 Preparing the machine 5.5 Programmes 1 Check if the hoses are connected tightly. Depending on the type of fabric, use the following 2 Plug in your machine. main programmes. • Cottons 3 Turn the tap on completely. 4 Place the laundry in the machine. - Page 35 Operating the product Operating the product • Auto Program Use to wash your frequently washable cotton, synthetic or blended (cotton+synthetic) clothes. Programme detects the type and quantity of the laundry to automatically adjust water consumption and programme time. CAUTION: Do not wash your woolen and delicate clothes in this programme. Select a suitable temperature if the temperature shown on the temperature display is not compatible with the warnings on the garment label.
- Page 36 Operating the product Operating the product Following table includes cloth types to be washed gently and some washing programmes suitable for some special clothes. Recommended washing Special laundry type Laundry content programme Viscose, modal, rayon, tencel, Blouse, dress, skirt, foulard Hand Wash lyocell, angora Knitted, dress...
- Page 37 Operating the product Operating the product • Cottons Eco • Steam Therapy Use to wash your normally soiled, durable cotton Reduces creasing in dry garments and shortens and linen laundry. Although it washes longer than ironing duration with its anti-wrinkle effect. all other programmes, it provides high energy Load only half of the capacity stated for and water savings.
-
Page 38: Temperature Selection
Operating the product Operating the product • Rinse If you scroll to cold wash option and press Use when you want to rinse or starch separately. Temperature Adjustment button again, the recommended maximum temperature for • Spin+Drain the selected programme appears on the Use to drain the water in the machine. - Page 39 Operating the product Operating the product in the machine. This function holds the laundry in the final rinsing water. 88:88 If you want to spin your laundry after the Rinse Hold function: - Adjust the Spin Speed. - Press Start / Pause / Cancel button. The programme resumes.
-
Page 40: Programme And Consumption Table
Operating the product Operating the product 5.10 Programme and consumption table Auxiliary functions Selectable temperature Programme range °C • • • Cottons 2.60 1600 90-Cold • • • Cottons 1.78 1600 90-Cold • • • Cottons 0.97 1600 90-Cold Cottons Eco 40** 1.00 1600... - Page 41 Operating the product Operating the product “Selection patterns for auxiliary functions can be changed by the manufacturer company. New selection patterns can be added or removed.” “The spin speed of your machine may vary according to the programme; this spin speed cannot exceed the max.
-
Page 42: Auxiliary Function Selection
Operating the product Operating the product • Prewash 5.11 Auxiliary function selection A Prewash is only worthwhile for heavily soiled Select the desired auxiliary functions before laundry. Not using the Prewash will save energy, starting the programme. Whenever a programme water, detergent and time. -
Page 43: End Time
Operating the product Operating the product Time display 3 Set the end time of your choice by pressing Remaining time for the completion of the the End Time button. End Time indicator programme while it is running is displayed as illuminates. - Page 44 Operating the product Operating the product 1888 88:88 3 Loading door is locked. The door lock symbol appears on the display after the loading door is locked. 1888 88:88 4 Programme follow-up indicator lights on the display will show the current programme step.
-
Page 45: Loading Door Lock
Operating the product Operating the product Changing the programme selection after 5.14 Loading door lock programme has started: There is a locking system on the loading door of The programme change is not allowed when the the machine that prevents opening of the door in current programme is running. -
Page 46: Canceling The Programme
Operating the product Operating the product To deactivate the childproof lock: 5.18 End of programme Press and hold Auxiliary Function button 2 End symbol appears on the display when the for 3 seconds. After the countdown as “CL 3-2- programme is completed. 1”... -
Page 47: Maintenance And Cleaning
Maintenance and cleaning Maintenance and cleaning Service life of product extends and frequently 6.2 Cleaning the loading experienced problems will be reduced if it is door and the drum cleaned at regular intervals. For products with drum cleaning programme, please see Operating the product - Programmes. 6.1 Cleaning the detergent drawer For products without drum cleaning, follow the Clean the detergent drawer at regular intervals... - Page 48 Maintenance and cleaning steel cleaning agents. Never use steel wool or wire wool. 41 / EN 41 / EN Washing Machine /User’s Manual Washing Machine /User’s Manual...
-
Page 49: Cleaning The Body And Control Panel
Maintenance and cleaning clean thoroughly under running water. CAUTION: Never use sponge or scrub 4. Replace the seals and filters carefully and materials. These will damage the painted tighten their nuts by hand. and plastic surfaces. 6.5 Draining remaining water 6.3 Cleaning the body and cleaning the pump filter and control panel... - Page 50 Maintenance and cleaning 2.Open the filter cover. If the product does not have an emergency water drain hose, in order to drain the water: 3.While some of our products are equipped with an emergency water drain hose, some are not. Follow the below procedures in order to drain water.
- Page 51 Troubleshooting Troubleshooting Problem Reason Solution Š *Press the Start / Pause / Cancel Program does not Start / Pause / Cancel button was not pressed. button. start after closing the door. Š Press and hold Start / Pause / Programme cannot Washing machine has switched to self protection mode due to a supply problem (line Cancel button for 3 seconds to reset...
-
Page 52: Troubleshooting
Troubleshooting Š This is not a failure. No water can be The water level is not visible from outside of the washing machine. seen in the machine during washing. 37 / EN Washing Machine /User’s Manual... - Page 53 Troubleshooting Troubleshooting Problem Reason Solution Š Drain the water by running the Pump Loading door cannot Door lock is activated because of the water level in the machine. or Spin programme. be opened. Š Wait until the programme completes. Machine is heating up the water or it is at the spinning cycle.
- Page 54 Troubleshooting Troubleshooting 38 / EN Washing Machine /User’s Manual...
- Page 55 Troubleshooting Troubleshooting Problem Reason Solution Š Automatic unbalanced load detection Machine does not There might be unbalanced load in the machine. system might be activated due to the switch to spinning unbalanced distribution of the laundry step. (*) in the drum. Š...
- Page 56 Troubleshooting Troubleshooting 39 / EN Washing Machine /User’s Manual...
- Page 57 Troubleshooting Troubleshooting Problem Reason Solution Š Leave the detergent drawer as well as Washing Odours and bacteria layers are formed on the drum as a result of continuous washing the loading door of the machine ajar performance is at lower temperatures and/or in short after each washing.
- Page 58 Troubleshooting Troubleshooting 40 / EN Washing Machine /User’s Manual...
- Page 59 Troubleshooting Troubleshooting Problem Reason Solution Š If detergent is put in the prewash Laundry does Detergent is put in the wrong compartment. compartment although prewash cycle not smell like the is not selected, machine can take this softener. (**) detergent during rinsing or softener step.
- Page 60 Troubleshooting Troubleshooting 41 / EN Washing Machine /User’s Manual...
- Page 61 Troubleshooting Problem Reason Solution Š Mix 1 tablespoonful softener and ½ Foam is overflowing Too much detergent is used. l water and pour into the main wash from the detergent compartment of the detergent drawer. drawer. Š Put detergent into the machine suitable for the programmes and maximum loads indicated in the “Programme and consumption table”.
