Dyness battery and Growatt off grid inverter Setup
Check List:
Dyness Powerbox F-10.0
Power cable
Communication cable

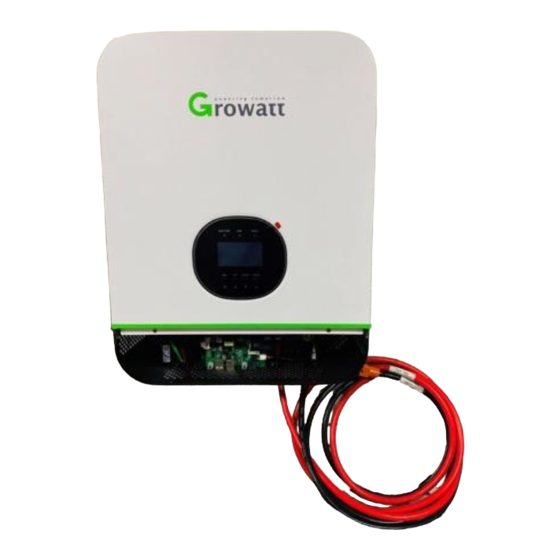

Growatt SPF 5000TL HVM-P
Before start, make sure battery and inverter size match.
Follow Dyness user manual to check details, it is recommended to
use battery in 1: 2 configuration.
In our case now, 5kW inverter connects to 10kWh battery.
Step 1 : Cable connect in inverter
Keep both inverter and battery completely off.
Connect power cable and comm cable to inverter first.
Note: Comm cable has label on, make sure the inverter side goes
to battery side, inverter side to the inverter BMS side ,battery side
left for later on in battery connection.
