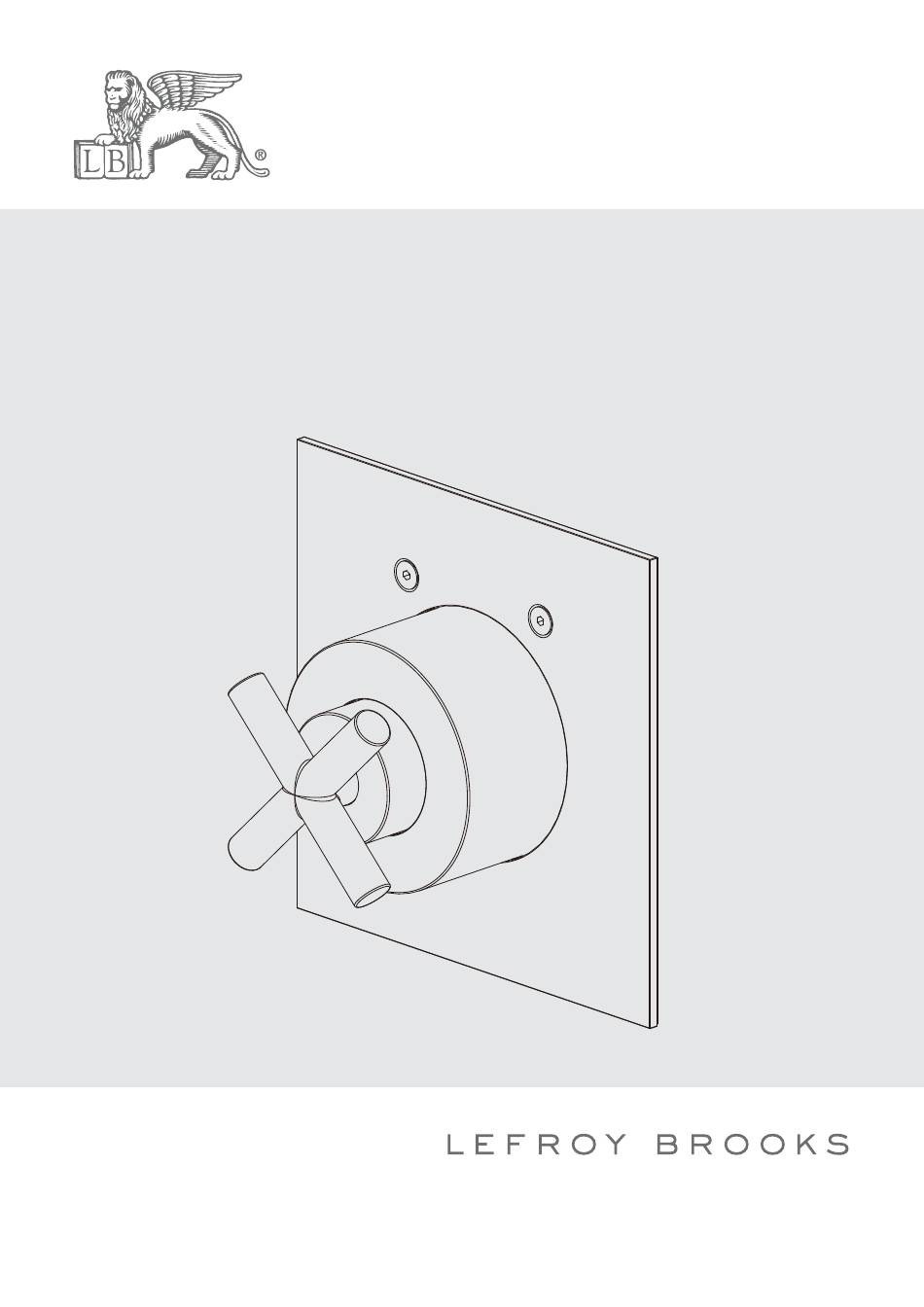

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS X1-1998 SINGLE CROSS HANDLE PRESSURE BALANCE TRIM ONLY, TO SUIT M1- 4100 ROUGH...
-
Page 2: Table Of Contents
Contents Dimensions Installation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee... -
Page 3: Dimensions
Dimensions in Inches (& Millimetres) 2 3/16" (55mm) 1 5/16" (33.5mm) 1/8" (3mm) 1 7/16" ~2 7/8" 5 11/16" (36.5mm~73mm) (144.6mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process. -
Page 4: Installation Procedure
Installation Procedure Steps 1-4 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. For rectangular trim plates: M1-4300, M1-4301, M2-4300, M2-4301, X1-1998, X1-1999 mixed water out 75~100mm HOT WATER - IN... - Page 5 Installation Procedure Steps 5-9 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Notch Dimple on valve stem Stopper A (marked #049000) Stopper B (marked #049001) Washer C Stopper A...
- Page 6 Installation Procedure Steps 9-12 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Install washer. Install canopy. Fix front plate. Install handle.
-
Page 7: Parts List
Parts List Exploded view Handle (069910) Canopy (071437) Screw (008772) Screw (008115) Adjusting ring (104292) Set screw (065086) Extension rod (110389) Screw (008186) Allen key (031003) Canopy (018211) Front plate (006600-50) Allen key (031220) O-ring (048060) Seal (013237) -
Page 8: Fault Finder
Fault Finder Fault Cause Rectification Leaks underneath handle. O-ring on cartridge (H&I) is dirty or Clean or replace O-ring. damaged... -
Page 9: Safety Tips, Care And Maintenance
Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 10: Guarantee
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 11 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
