What You Need - modway EEI-6598 Assembly Instructions Manual

Read through all of
the instructions
before starting
Approx. 45 minutes
assembly time
2 people recommended
for assembly

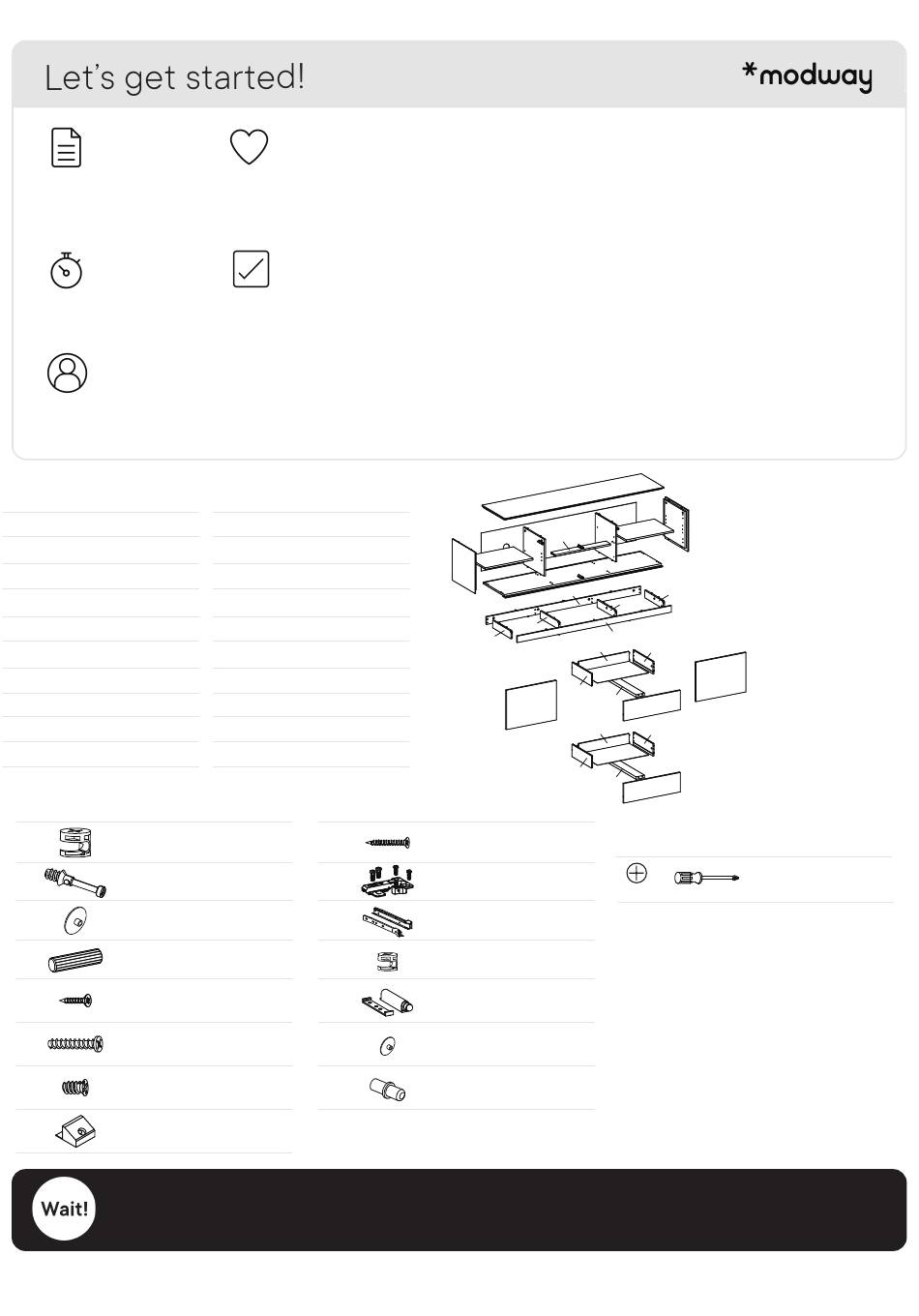

Furniture components:
1 Top Board
2 Bottom Board
3 Left Board
4 Right Board
5 Divider Left Board
6 Divider Right Board
7 Drawer Support
8 Adjustable Shelf
9 Backboard
10 Bottom Front Support
Provided hardware:
A
Cam Lock Ø15 mm
B Cam Bolt Ø7.5 x 32 mm
C
Cam Cover Ø17 mm
D
Plastic Dowel M8 x 32 mm
E Screw M6 x 13 mm
F Screw M10 x 33.5 mm
G Screw M6 x 8 mm
H Backply Stopper
Missing parts or hardware? Need assistance?
Contact us before returning your item. We're here to help!
609.256.9000 • cs@modway.com
Care instructions are
listed in the last step
of this manual
Make sure you have all
parts and components
before discarding any
packing materials
x1 11 Bottom Rear Support
x1 12 Bottom Left Support
x1 13 Bottom Right Support
x1 14 Front Drawer
x1 15 Rear Drawer
x1 16 Left Drawer
x1 17 Right Drawer
x2 18 Bottom Support Drawer
x1 19 Bottom Drawer
x1 20 Door
x26
I
x32 J
x10
K
x60
L
x8
M
x18
N
x16
O
x22
Only use hand tools to assemble this item. Do not use power tools.
Do not tighten bolts or screws completely until all hardware is lined up
and inserted into the holes.
Do not over-tighten screws and bolts to avoid stripping the hardware
or cracking the item.
Assemble your item on a flat, carpeted area, with plenty of space to work.
This will prevent damage and scratches to your floors or the item while
you're assembling the product.
Keep all components and packaging out of reach of children or animals
to avoid risk of choking or suffocation.
x1
7
5
x2
8
3
2
x2
x2
12
x2
12
x2
x2
x2
20
x2
x2
Screw M4 x 19 mm
Door Hinge
Drawer Rail
Cam Lock Ø12 mm
Push To Open
Cam Cover Ø15 mm
Shelf Pin M7 x 16.5 mm
1
4
9
8
6
11
13
13
10
15
17
19
20
16
18
14
15
17
19
16
18
14

What you need:

x22
x4
Phillips
x2
x6
x4
x4
x8
Phillips Head Screwdriver
PAGE 2 OF 13
