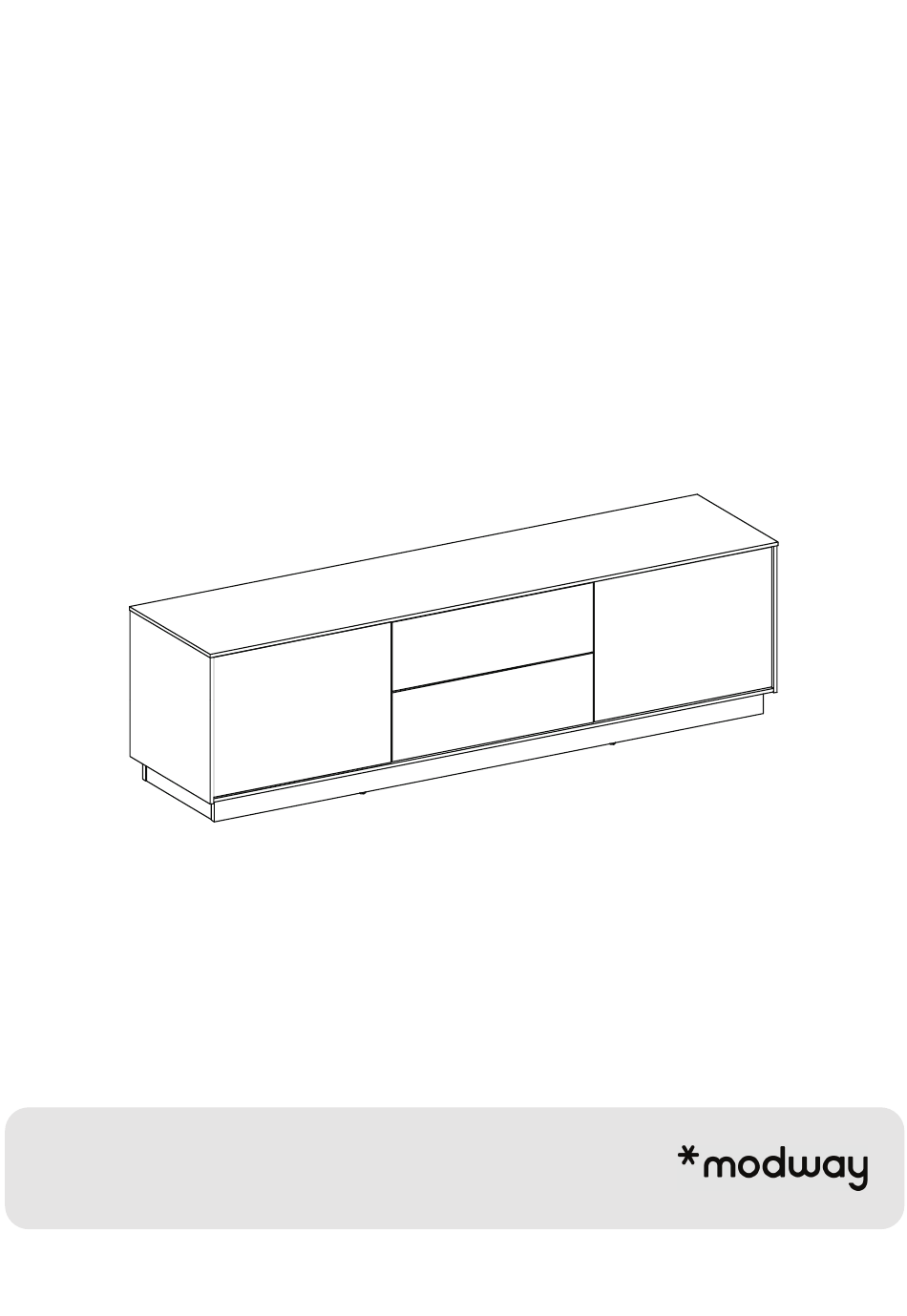

- Page 1 A S S E M B LY I N S T R U C T I O N S EEI-6598 V1.10.10.23 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com...
-
Page 2: What You Need
Cam Cover Ø15 mm Screw M6 x 8 mm Shelf Pin M7 x 16.5 mm Backply Stopper Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 2 OF 13... - Page 3 Cam Bolt Ø7.5 x 32 mm Plastic Dowel M8 x 32 mm Left Board Right Board Cam Bolt Ø7.5 x 32 mm Screw M6 x 8 mm Push To Open Front Front PAGE 3 OF 13...
- Page 4 FRONT Cam Bolt Ø7.5 x 32 mm Plastic Dowel M8 x 32 mm Screw M6 x 8 mm Finished Egde Drawer Rail FRONT Push To open FRONT FRONT Cam Bolt Ø7.5 x 32 mm Plastic Dowel M8 x 32 mm Screw M6 x 8 mm Drawer Rail Push To open...
- Page 5 Cam Bolt Ø7.5 x 32 mm Plastic Dowel M8 x 32 mm Bottom Rear Support Bottom Left Support Bottom Right Support Cam Lock Ø15 mm Screw M10 x 33.5 mm Bottom Rear Support Bottom Left Support Bottom Right Support PAGE 5 OF 13...
- Page 6 Cam Lock Ø15 mm Cam Cover Ø17 mm Divider Right Board Drawer Support Screw M10 x 33.5 mm Left Board Right Board Divider Left Board Divider Right Board PAGE 6 OF 13...
- Page 7 Cam Lock Ø15 mm Bottom Front Support Left Board PAGE 7 OF 13...
- Page 8 Cam Lock Ø15 mm Cam Cover Ø17 mm Screw M4 x 19 mm Bottom Board Right Board Backboard PAGE 8 OF 13...
- Page 9 Shelf Pin M7 x 16.5 mm Plastic Dowel M8 x 32 mm Rear Drawer Right Drawer PAGE 9 OF 13...
- Page 10 Screw M10 x 33.5 mm Screw M4 x 19 mm Cam Cover Ø15 mm Left Drawer Bottom Support Drawer PAGE 10 OF 13...
- Page 11 Screw M6 x 13 mm Drawer Rail Divider Right Board Front Drawer PAGE 11 OF 13...
- Page 12 Door Hinge Right Board PAGE 12 OF 13...
-
Page 13: Connect With Us
Never use harsh chemicals, as they could damage the finish or integrity of the item. Max 7Kgs Max 7Kgs Max 7Kgs CONNECT WITH US! Max 7Kgs Tag us @modway_furniture #modway for a chance to be featured. PAGE 13 OF 13...
