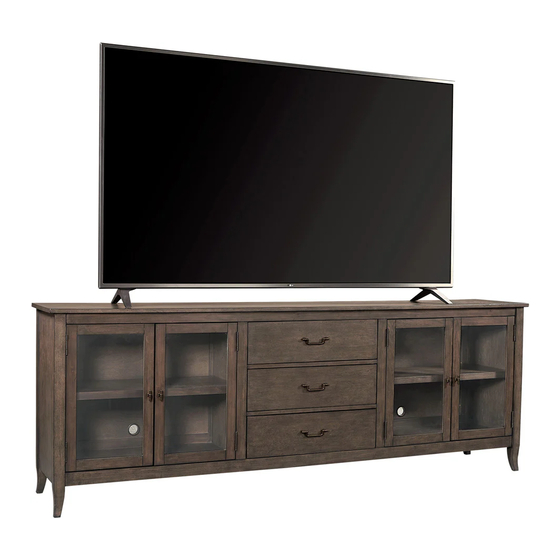

95" console

Table of Contents

Download this manual

aspenhome

ITEM NO: I540-297

Thank you for purchasing this quality product. Be sure to check all packing material carefully for

small parts that may come loose inside the carton during shipment.

BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.

Save these instructions for future reference.

Page 1/1

95" Console

Leveler on legs

Adjust the leveler

when necessary

FOR INDOOR USE ONLY

MADE IN VIETNAM

ASSEMBLY INSTRUCTIONS

TOOLS REQUIRED (NOT PROVIDED)

PHILLIPS SCREWDRIVER

If you prefer to adjust the shelf

location, remove the screws and

move shelf brackets to the desired

location. Then secure the brackets

to shelf with screws.

08-20-2021

Table of Contents

Do you have a question about the I540-297 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS ITEM NO: I540-297 95" Console Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. TOOLS REQUIRED (NOT PROVIDED) PHILLIPS SCREWDRIVER...
Page 2 2 PCS Central Back Panel 1 PC FUNCTIONALITY INSTRUCTION I540-297H Adjust the leveler I540-297 when necessary Leveler on legs BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS. Save these instructions for future reference. FOR INDOOR USE ONLY...
Page 3 ASSEMBLY INSTRUCTIONS ITEM NO: I540-297H 95" Hutch Central Strip STEP 1: Start with the bottom end strip. Attach one side strip and one central strip to bottom end Side Back Panel strip using 2 bolts(A), lock washers(C) and flat Side Strip washers(E).
Page 4 Then re-secure the large metal plate with screws (G) to both hutch and console. I540-297H Hutch I540-297H Large metal plate I540-297 Console I540-297 Page 3/3 MADE IN VIETNAM 08-20-2021...
