Soldron 385D Operation Instruction Manual

Lead-free soldering station

Advertisement

Quick Links

LEAD-FREE SOLDERING STATION
Operation instruction
Thank you for purchasing LEAD-FREE SOLDERING STATION.
Please read this manual before use, and keep
it after reading it for future reference.
Applicable product model: 385D

Advertisement

loading
Need help?

Need help?

Do you have a question about the 385D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Soldron 385D

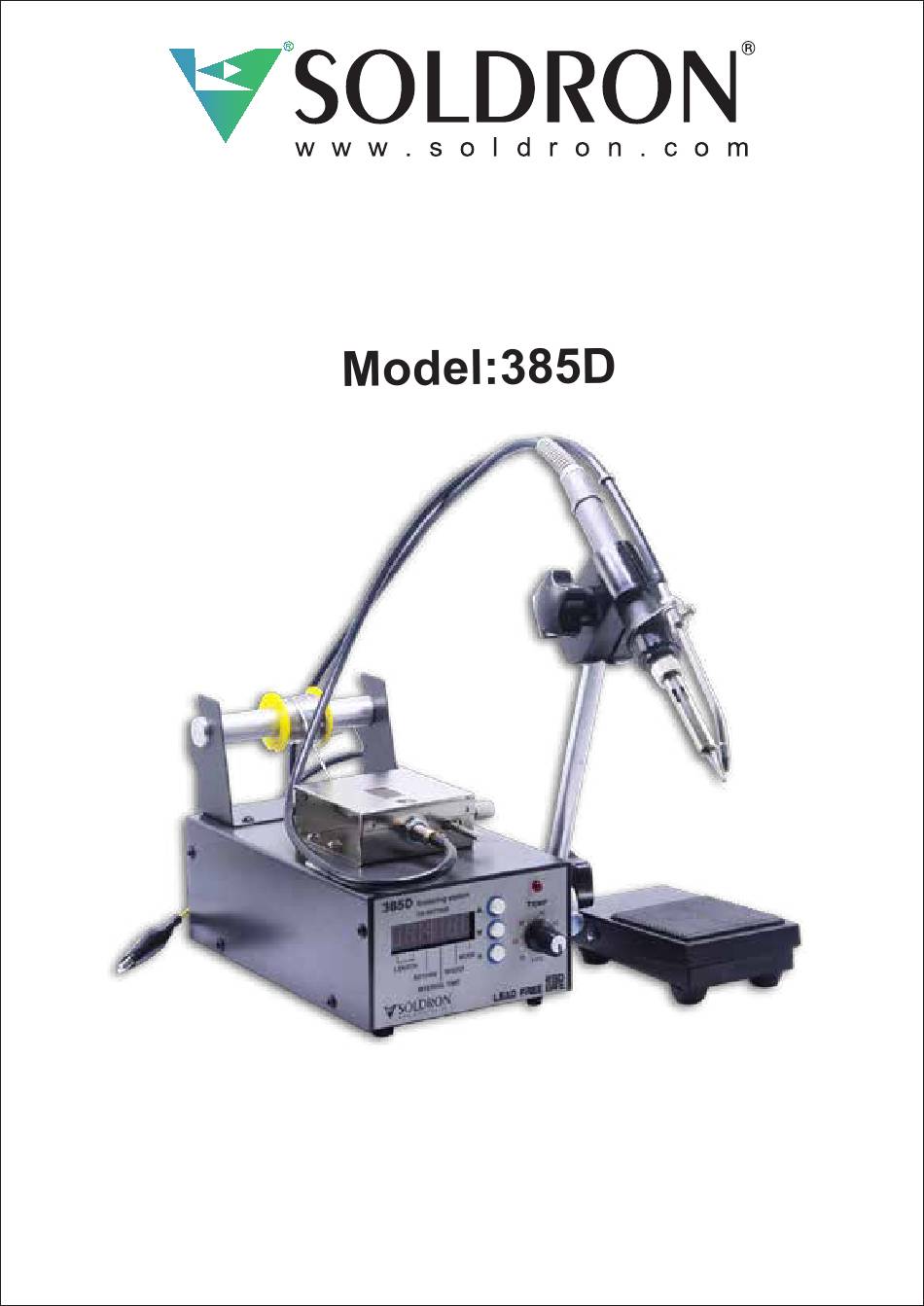

  • Page 1 LEAD-FREE SOLDERING STATION Operation instruction Thank you for purchasing LEAD-FREE SOLDERING STATION. Please read this manual before use, and keep it after reading it for future reference. Applicable product model: 385D...
  • Page 2: Product Overview

    WARN The definitions of "Warning" and "Caution" in this manual are as follows: WARNING: Misuse can result in death or serious injury to the user. ATTENTION: Abuse may result in injury to the user or substantial damage to the objects involved. NOTICE ●...
  • Page 3 output is precisely and flexibly controlled. The length, speed and amount of tin returning can be adjusted. All parameters are digitally displayed, which is clear at a glance. The welding effect of the product is stable, the work efficiency is significantly improved, and the combined structure is optimized.
  • Page 4 17.Ground 14. Handle interface 18.Power 15. Foot pedal interface 16.Power switch Figure (2) Rear panel 1. Out of the tin nozzle 8.Soldering iron tip 2. Stainless steel guide tube 9. Stainless Steel Sheath 3. Lock nut 10. Socket + Nut 11.
  • Page 5 Set up and use the soldering station Note: Before installing and electrifying, check whether the power supply voltage is consistent with the working voltage on the nameplate of the machine ,After the power is turned on, the heating indicator (1)-12 will light up, and the heat pipe of the handle will heat up.
  • Page 6: Troubleshooting

    4) It is recommended to re-calibrate the temperature every time a new tip or handle is replaced. Troubleshooting When the following problems occur with the welding station 1) The indicator light is on, but the heating core is damaged, replace the handle or heating core 2) No power supply, the tin feeding indicator window is not on, check the fuse, power cord and power socket...
  • Page 7 3. Press "*" to confirm and enter the fourth parameter adjustment, enter the interval time setting of multiple welding, the adjustment parameter flashes (as shown in the figure below), the value is 0-9 4. Press "*" to confirm and enter the 5th parameter adjustment, enter the tin feeding speed setting, the adjustment parameter flashes (as shown in the figure below), and the value 0-9 valid.
  • Page 8 2. A soldering iron tip that has a good path to transmit heat to the solder joints should be selected. A soldering iron tip with a shorter length can be controlled more precisely. For the soldering of densely assembled circuit boards, a longer or angled soldering iron tip may be selected.
  • Page 9 3. Use a foam block or 100# emery paper to remove the dirt and oxides on the tinned surface of the soldering iron tip. 4. Put the soldering iron tip into the handle, wrap the newly exposed soldering iron tip with tin wire (above Φ0.8mm) containing rosin, and turn on the power of the soldering station.
  • Page 10 900M-D 1.2D 1.6D 2.4D 3.2D 900M-K SK K LK Schedule 3 Optional accessories 385C with manual switch handle Advanced Aluminum Alloy Soldering Iron Stand Universal metal tin hose (type A)
