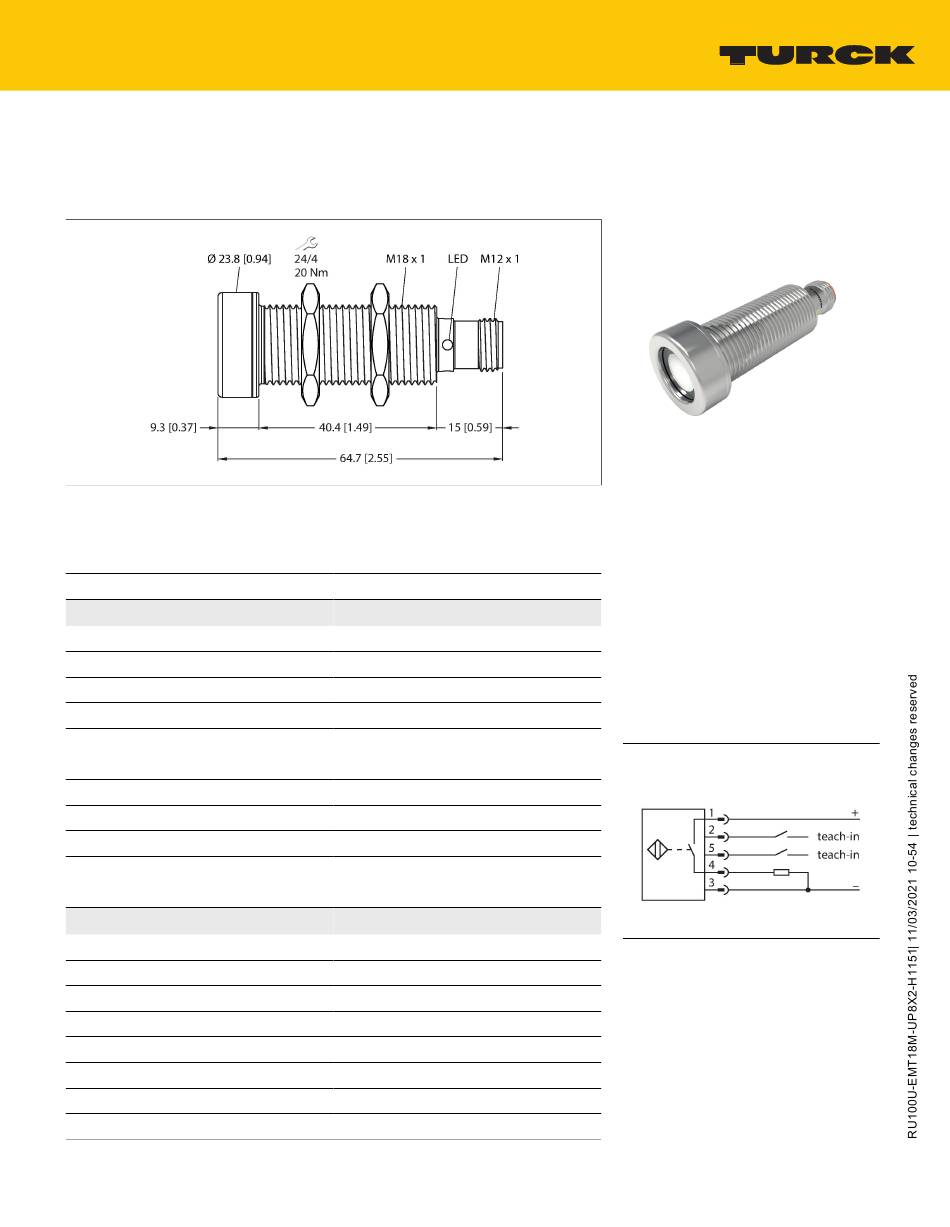

turck RU100U-EMT18M-UP8X2-H1151 Quick Start Manual

RU100U-EMT18M-UP8X2-H1151
Ultrasonic Sensor – Diffuse Mode Sensor
Technical data
Type
ID no.
Ultrasonic data
Function
Range
Resolution
Minimum switching range
Ultrasound frequency
Repeat accuracy
Temperature drift
Linearity error
Edge lengths of the nominal actuator
Approach speed
Pass speed
Electrical data
Operating voltage
Residual ripple
DC rated operational current
No-load current
Load resistance
Residual current
Response time typical
Readiness delay
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com
RU100U-EMT18M-UP8X2-H1151
1610115
Proximity
150...1000 mm
1 mm
10 mm
200 kHz
≤ 0.15 % of full scale
± 1.5 % of full scale
≤ ± 0.5 %
100 mm
≤ 8 m/s
≤ 2 m/s
15...30 VDC
10 % U
ss
≤ 150 mA
≤ 50 mA
≤ 1000 Ω
≤ 0.1 mA
< 90 ms
≤ 300 ms
Features
■
Sonic transducer face with PTFE layer
■
• Stainless steel front attachment
■
Cylindrical housing M18, potted
■
Connection via M12 × 1 male connector
■
Temperature compensation
■
Blind zone: 15 cm
■
Range: 100 cm
■
Resolution: 1 mm
■
Aperture angle of sonic cone: ±16 °
■
1 × switching output, PNP
■
Teachable settings
■
NO/NC programmable
Wiring diagram
Functional principle
Ultrasonic sensors capture a multitude of
objects contactlessly and wear-free with
ultrasonic waves. It does not matter whether
the object is transparent or opaque, metallic
or non-metallic, firm, liquid or powdery. Even
environmental conditions such as spray, dust
or rain hardly affect their function.
The sonic cone diagram indicates the
detection range of the sensor. In accordance
with standard EN 60947-5-2, quadratic targets
in a range of sizes (20 × 20 mm, 100 × 100
1|4
