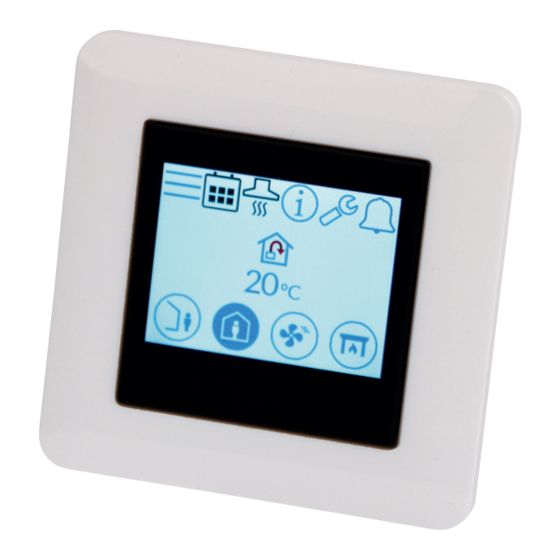

Flexit NordicPanel User Manual
  1. Manuals
  2. Brands
  3. Flexit Manuals
  4. Control Panel
  5. NordicPanel
  6. User manual

Flexit NordicPanel User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

120426EN-01
2022-09
NordicPanel
ART. NO. 119772
USER GUIDE
Control panel

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NordicPanel and is the answer not in the manual?

Questions and answers

Related Manuals for Flexit NordicPanel

Summary of Contents for Flexit NordicPanel

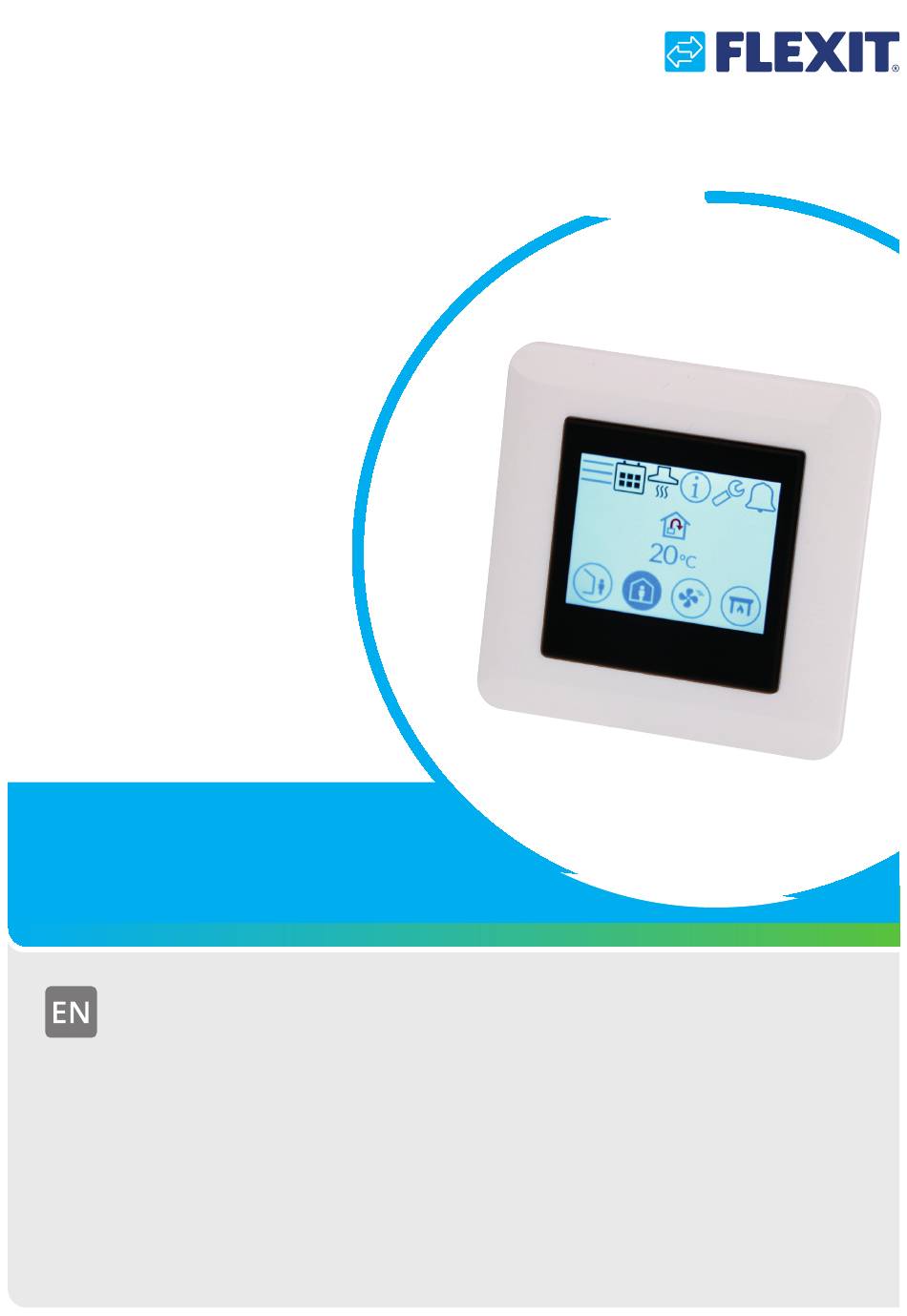

  • Page 1 120426EN-01 2022-09 NordicPanel ART. NO. 119772 USER GUIDE Control panel...
  • Page 2 N O R D I C P A N E L...
  • Page 3 All electrical connections must be made by a professional. Our products are in continuous development, and we therefore reserve the right to make changes. We accept no liability for printing errors. N O R D I C P A N E L...

  • Page 4: Ventilation Speeds

    WIFI. Then you can use after 1 October 2022. the Flexit GO app on a mobile phone or tablet. The app is free, and you can download it from the App Store Just check for a cable on top of the unit marked A blue symbol indicates that the symbol is linked to a “NordicPanel”.
  • Page 5 The default setting is to regulate the supply air temperature. You change the type of regulation via the Flexit GO app. For an explanation of supply and exhaust air regulation, see section 4.2 “Air temperature” in the Flexit GO user manual HOME: This mode sets the temperature for the HOME speed mode and other temperature modes (HIGH, FIREPLACE etc.).
  • Page 6 Home screen 1 STOP Ventilation Temperature regulation is set to supply air. To change the regulation type, use the Flexit GO app. 0 °C Temperature regulation is set to extract air. To change the regulation type, use the Flexit GO app.
  • Page 7 FIREPLACE speed mode. Press to change speed. Temperature regulation is set to supply air. To change the regulation type, use the Flexit GO app. FIREPLACE speed mode is active. Temperature regulation is set to extract air. FIREPLACE speed mode is inactive. The speeds are To change the regulation type, use the Flexit GO app.

  • Page 8: Hot Water

    Symbol indicating the BOOST hot water mode is selected and active. Temperature regulation is set to supply air. To change the regulation type, use the Flexit GO app. Symbol indicating the temporary BOOST hot water mode is selected but on standby.
  • Page 9 Hot water AWAY speed mode. Press to change speed. AWAY speed mode is active Symbol indicating the hot water element in the panel. AWAY speed mode is inactive. The speeds are controlled Symbol indicating the ECO hot water mode is selected via digital input and cannot be changed via the panel.
  • Page 10 Free cooling is active. A digital input (moisture sensor, forcing switch etc.) Humidity regulation active The calendar function has been activated. You do this via the Flexit GO app. A digital input (moisture sensor, forcing switch etc.) Stop is activated. STOP The calendar function has been activated.
  • Page 11 Temperature regulation is set to supply air. Temperature regulation is set to supply air. To change the regulation type, use the Flexit GO app. To change the regulation type, use the Flexit GO app. Temperature regulation is set to extract air.

  • Page 12: Maintenance Alarm

    N O R D I C P A N E L 2.5. MAINTENANCE ALARM 2.7. INFO SCREEN Link to the manual on Flexit’s website. Scan the QR code If there is a maintenance alarm while the panel is in to open the manual.

  • Page 13: Overview Screen

    /h 50 L/s accessory connector). /h 50 L/s You can read the status of inputs here. The inputs can be 100% via the Flexit GO app. STOP STOP 100% STOP STOP ON/OFF ON/OFF...
  • Page 14 N O R D I C P A N E L Icons for overview screen 1 Open the Home screen. Go to Overview screen 2. Scroll up the menu. Scroll down the menu. Current outside air temperature. Current supply air temperature. Current extract air temperature.
  • Page 15 Function Icon Status HIGH HOME and activated. AWAY but is not activated. STOP and activated. STOP STOP but is not activated. and activated. FIREPLACE but is not activated. and activated. KITCHEN HOOD and not activated. STOP and activated. EMERGENCY STOP STOP but is not activated.
  • Page 16 N O R D I C P A N E L Fire damper activated. Status: 1. The damper regulates 2. The damper is closed FIRE DAMPER 1–6 3. The damper is open 4. The damper is stationary 5. The damper is not closed 6.
  • Page 17 Flow temperature for the heat output. Return temperature for the heat output. Current peak temperature in the tank (hot water temp.). Current status of the tank. Legionella running active. (electric). Current status of the heat pump. The heat pump is in service mode. ON/OFF The heat pump is in operation/stopped.

  • Page 18: Alarm Screen

    N O R D I C P A N E L 2.13. ALARM SCREEN RMC – Rotary heat exchanger motor stuck All active alarms are listed here. For the most common alarms, in addition to the error Code 1007 code, symbols are also displayed that explain what the RMC –...

  • Page 19: Login Screen

    Code # A/B-alarm Name/text 1000–1999 Code range for – Hardware 1001 B1 – Supply air temperature sensor fault 1002 B6 – Exhaust air temperature sensor fault 1003 B3 – Extract air temperature sensor fault 1004 B4 – Outside air temperature sensor fault 1005 B5 –...

  • Page 20: Startup Screen

    3.2. FAN AND TEMPERATURE SETTINGS SCREEN – NORDIC Set the desired value for all speeds and temperatures. regulation on the unit is set to supply air by default but can be changed to extract air via the Flexit GO app. 100% 18.0 °C 20.0...
  • Page 21 Fan and temperature settings screen icons AWAY speed mode – Supply air fan AWAY speed mode – Extract air fan HOME speed mode – Supply air fan HOME speed mode – Extract air fan HIGH speed mode – Supply air fan HIGH speed mode –...
  • Page 22 /hrs L/s”. Set the desired value for all speeds and temperatures. regulation on the unit is set to supply air by default but can be changed to extract air via the Flexit GO app. 39 L/s 39 L/s 67 L/s...
  • Page 23 Fan and temperature settings screen icons AWAY speed mode – Supply air fan AWAY speed mode – Extract air fan HOME speed mode – Supply air fan HOME speed mode – Extract air fan HIGH speed mode – Supply air fan HIGH speed mode –...

  • Page 24: Timer Screen

    3.4. TIMER SCREEN This is where you set various operating and countdown timers. To change a value, highlight the line you want to change and then press – or +. When you reach is written to the unit and the fan changes speed. 240m (EcoNordic only) Timer screen icons...
  • Page 25 3.5. SELECTING A HOME SCREEN (NORDIC ONLY) This is where you set which home screen should be use of the unit. Alarms and status messages are displayed Below, you can see home screen 1 has been selected. Home screen 1 Shows all four speed modes, temperature 0 °C regulation type and the set temperature.

  • Page 26: Settings Screen

    N O R D I C P A N E L 3.6. SELECT SCREENSAVER 3.7. SETTINGS SCREEN Here, you can choose the brightness of the screensaver. heating coil as well as the internal humidity sensor. Below, you can see that screensaver 1 has been selected. there is no sensor installed on the unit.
  • Page 27 3.8. HARDWARE/SOFTWARE INFO SCREEN Shows the type of hardware and software in the panel and unit. Flexit serial no. 800210–01140 For info only. Shows hardware and software version Press HOME to go to the selected home screen. Hardware/software info screen icons Scroll up the menu.

  • Page 28: Alarm Handling

    N O R D I C P A N E L Alarm handling There are two types of alarm. A-alarm: Important and urgent situations that stop and lock the ventilation unit immediately. The alarm must be B-Maintenance: Allows the ventilation unit to run, but the unit’s components or functions (such as heat recovery) are function will be available again.
  • Page 29 A-alarm B-maintenance Status Situation Alarm, not A problems has been detected by the control unit and an alarm has been acknowledged. activated (e.g. new alarm). Alarm, acknowledged. The problem persists, but the alarm has been acknowledged. Normal, Not a maintenance status. acknowledged.

  • Page 30: Alarm Menu

    N O R D I C P A N E L Alarm menu appearance depending on the status of the alarm. Status: B-maintenance screensavers A problem has been detected by the Code 1011 control unit and an alarm has been activated (e.g.
  • Page 31 Required action: Acknowledge the alarm by pressing the Code 1011 alarm symbol with Required action: Fix the error. Required Status: action: The alarm has Reset the alarm been reset. The by pressing unit restarts. Code 1011 symbol and N O R D I C P A N E L...

  • Page 32: Speed Setting

    N O R D I C P A N E L Speed setting AWAY: This is a constant mode and is intended for when the building is not in use for extended periods. You can also set a delayed start, which can be useful if you have just is displayed together with the symbol, it means that there is a time delay before the unit switches from the current speed to AWAY.
  • Page 33 Nordic 0 °C 0 °C EcoNordic W4 EcoNordic WH4 0 °C +0.0 0 °C N O R D I C P A N E L...

  • Page 34: Temperature Settings

    You change the regulation type via the Flexit GO app. HOME: This mode sets the temperature for the HOME speed mode and other temperature modes (HIGH, FIREPLACE etc.). Can be both for supply extract air regulation. You change the regulation type via the Flexit GO app.
  • Page 35 Nordic 0 °C 0 °C 0 °C 0 °C EcoNordic W4 EcoNordic WH4 0 °C +0.0 0 °C 0 °C You change the temperature from the home screen. There you press the symbol for temperature or degrees. A new screen will open. Press – or + to decrease or increase the temperature. .
  • Page 36 N O R D I C P A N E L Menu overview – Nordic 0 °C Adjusting the temperature 0 °C Home screen 1 Link to the manual Home screen 2 v0.57 Home screen 3 -1.9 °C 21.0 °C 22.0 °C Overview screen Alarm overview...
  • Page 37 Modbus 20.0 °C 20.0 °C Screensaver Communication fault Alarm overview Code 2010 Code 2010 Code 1010 Code 1010 Screen saver – active Maintenance alarm Fan/temperature settings Timer settings Home screen settings FW=03.39.03.32 BL=00.05.02.0003 SVS=300.4 SBC=13.24 Screensaver settings Hardware/software info Settings...
  • Page 38 N O R D I C P A N E L Menu overview – EcoNordic 8.1. MENU OVERVIEW – W4 °C Home screen Link to the manual Select water heater mode 0 °C Adjusting the temperature v0.57 Select speed mode -1.9 °C 21.0 °C 18.1 °C...
  • Page 39 Modbus Code 1010 Code 1010 Alarm overview Screen saver – active Maintenance alarm Communication fault Code 2010 Code 2010 20.0 °C 20.0 °C Screensaver 39 L/s 39 L/s Login PW:1000 Fan/temperature settings Timer settings FW=03.39.03.32 BL=00.05.02.0003 SVS=300.4 SBC=13.24 Screensaver settings Hardware/software info N O R D I C P A N E L...
  • Page 40 N O R D I C P A N E L 8.2. MENU OVERVIEW – WH4 °C Link to the manual 0 °C Adjusting the temperature Select speed mode +1.0 Setting the heat output Select water heater mode v0.57 -1.9 °C 21.0 °C 18.1 °C 22.0 °C...
  • Page 41 Modbus Code 1010 Code 1010 Screen saver – active Maintenance alarm Communication fault Alarm overview Code 2010 Code 2010 20.0 °C 20.0 °C Screensaver 39 L/s 39 L/s Login PW:1000 Fan/temperature settings Timer settings FW=03.39.03.32 BL=00.05.02.0003 SVS=300.4 SBC=13.24 Screensaver settings Hardware/software info N O R D I C P A N E L...
  • Page 42 Flexit AS, Televeien 15, 1870 Ørje, Norway www.flexit.com...
