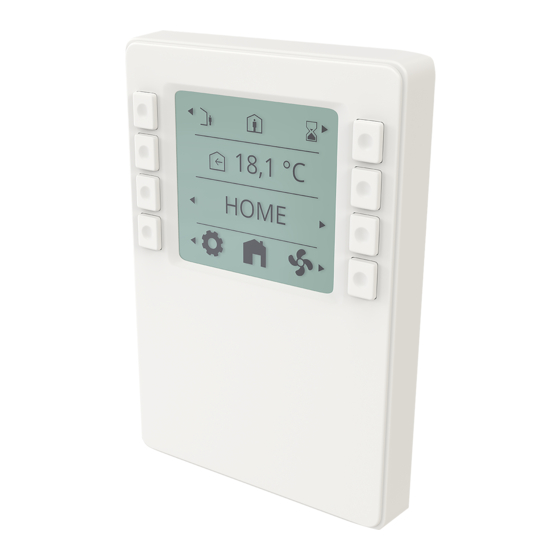

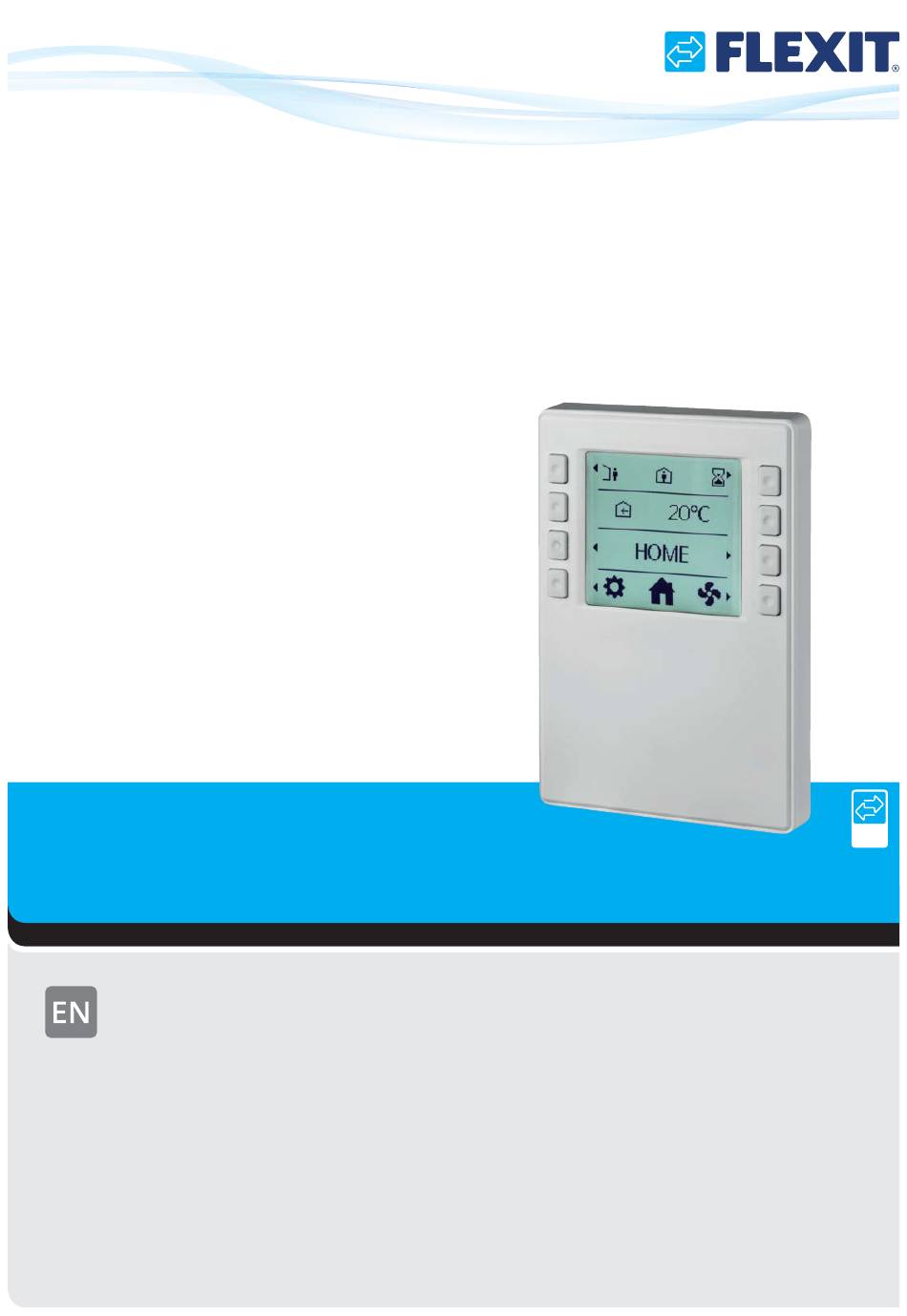

- Page 1 116081EN-01 2018-01 CI 70 Flexit ART.NR. 116402 ASSEMBLY AND USER INSTRUCTIONS Control panel...
- Page 2 C I 7 0 Our products are subject to continuous development and we therefore reserve the right to make changes. We also disclaim liability for any printing errors that may occur.
-
Page 3: Table Of Contents
Contents Scope ..........................4 Mechanical design ......................4 2.1. Mounting .......................... 5 Icon description ......................9 3.1. Status icon description: ....................10 Sleep page & home page description ..............11 4.1. Layer consept .......................12 Settings ........................12 5.1. General description ....................12 5.2. Adjust time date & scheduler ...................13 5.3. -
Page 4: Scope
C I 7 0 1. Scope • The CI 70 operates control functions, such as fan and temperature control • The CI 70 communicates with 2-wire interface to the controller through KNX PL-Link 2. Mechanical design The subsections include important... -
Page 5: Mounting
2.1. MOUNTING • The devices are suitable for wall mounting and panel mounting. • • Do not mount the devices in recesses, shelves, behind curtains or doors, or above or near heat sources. • Avoid direct solar radiation and drafts. •... - Page 6 C I 7 0 Min. 3 mm screwdriver SEAL...
- Page 7 h>20 mm A6V10733771M05 2- 52 81.4 [mm] Connector Pin Description KNX PL-Link (positive) KNX PL-Link (negative) + brown cord - white cord NOTICE! Installer can choose either pair of the pins to connect. Wires are NOT interchangeable! A6V10733771M07 The device is protected against faulty wiring, but communications does not work on interchanged wires.
- Page 8 C I 7 0 CI 70 control panel must be connected to the ventilation unit before powered ON. After power ON it takes approx. 3 min before the control panel is in operation.
-
Page 9: Icon Description
3. Icon description AUTO MODE TIMER MODE HOME PAGE ELECTRICAL HEATER ENABLED ELECTRICAL HEATER DISABLED AWAY MODE HOME MODE GO BACK HIGH MODE ALARM FIRE PLACE MODE ALARM – NOT ACKNOWLEDGED COOKER HOOD MODE ALARM – ACKNOWLEDGED SUPPLY AIR NORMAL - ACKNOWLEDGED EXHAUST AIR SERVICE REQUEST FAN SPEED SETTINGS... -
Page 10: Status Icon Description
C I 7 0 3.1. STATUS ICON DESCRIPTION: Status icons max 3 icons at one time Position 1 Icon position ALARM ALARM – NOT ACKNOWLEDGED ALARM – ACKNOWLEDGED NORMAL - ACKNOWLEDGED BUT NOT RESETED SERVICE REQUEST SERVICE – NOT ACKNOWLEDGED 20°C SERVICE –... -
Page 11: Sleep Page & Home
4. Sleep page & home page description 20.1°C Display extract (average room) temperature. 16:25 Display actual time. Sleep page Display returns to sleep page after no usage in 4,0 min. 18.1°C Display supply air temperature setpoint according to operating mode. HOME Display actual W mode. -
Page 12: Layer Consept
C I 7 0 4.1. LAYER CONSEPT Screens/views are prioritized according to use cases. When screen with higher prio is called/activated it will be the dominant one. 1234 27 MIN A-alarm layer – high prio HIGH COOKER 18.1°C Special operation layer – medium prio HOME Basic layer –... -
Page 13: Adjust Time Date & Scheduler
5.2. ADJUST TIME DATE & SCHEDULER 16:25 16:25 18.1°C HOME 31.01.1900 01.01.2000 Home page General Adjust time Adjusting hours: Adjusting year: Keep Keep highlighted. highlighted. Adjust with: Press button twice more and hold for more than 1 sec Reduce hours on each step. -
Page 14: Fan Speeds
C I 7 0 5.3. FAN SPEEDS mode selection supply fan adjustment exhaust fan adjustment Fan speed 5.3.1. Fan speed setting page Press of button 5 will change the views in loop towards right. Press of button 1 will change the views in reverse order - loop towards left. -
Page 15: Supply Air Temperatures
5.4. SUPPLY AIR TEMPERATURES mode selection 18.1°C supply air temperature adjustment electrical heater ENABLE/DISABLE Supply air HOME/AWAY adjustments 18.1°C 16.1°C Time delay setting when switching to 30 min AWAY mode with button 1. Supply air Supply air Home Away 5.4.1. Home page – mode selection 18.1°C HOME 18.1°C... -
Page 16: Home Page - Home/Away Selection
C I 7 0 5.4.2. Home page – home/away selection 18.1°C HOME 16.1°C 18.1°C AWAY HOME Away mode Home mode 5.4.3. Home page – in scheduler mode scheduler mode (time program) 18.1°C HOME 18.1°C 18.1°C 16.1°C HOME HIGH AWAY Home speed mode High speed mode Away mode... -
Page 17: Timer Functions
5.4.4. Timer functions 18.1°C 30 min 30 min HOME HIGH FIRE Home page High Fire place returns to HOME PAGE after 27 min prolongation time is elapsed HIGH returns to HOME PAGE if function is canceled If activated 5.5. INFORMATION Activation of cooker hood function via Digital input or wireless accesorie. -
Page 18: Alarm
C I 7 0 5.6. ALARM 5.6.1. Alarm mode 18.1°C HOME keep both buttons pressed until new page is entered Home page No active alarms No active service ---- ----... -
Page 19: Acknowledge And Reset A-Alarm
5.6.2. Acknowledge and reset A-Alarm 5.6.3. Acknowledge B-Alarm In case of critical A-alarms, application operation is Application is still operational (as much as possible), locked until alarm is acknowledged and reset. alarm has to be acknowledged. 18.1°C 18.1°C No alarms No alarms HOME HOME... -
Page 20: Alarm Codes
C I 7 0 5.6.4. Alarm codes Error code Error source 1000…1999 Hardware related errors 2000…2999 Application related errors 3000…3999 Communication errors 9000…9999 3rd party related errors 5.6.5. Alarm codes – Hardware related errors Code # A/B-Alarm Name/Text 1000...1999 Code range for - Hardware 1001 B1 - Supply air temparature sensor fault 1002... -
Page 21: Alarm Codes - Application Related Errors
5.6.6. Alarm codes – Application related errors 2000...2999 2001 2002 X8 - Smoke detector (D12) 2003 X8 - CO detector (D12) 2004 Fire alarm - B1 or B3 over maximum temperature 2005 Supply air temperature (min) alarm 2008 Heat pump reheating coil over temperature detection (F15) 2009 Zone 2 electric heater over temperature detection (F20) 2010... -
Page 22: Alarm Codes - 3Rd Party Related Errors
C I 7 0 5.6.8. Alarm codes – 3rd party related errors 9000...9999 Code range for - Costumer/Non Siemens 9000 Normal operation 9001 B31 - Inlet water temperature sensor 9002 B30 - Outlet water temperature sensor 9003 B32 - Inlet air temperature sensor 9004 Heat pump - Defrosting temperature sensor 9005... -
Page 23: Expert Mode
5.7. EXPERT MODE 5.7.1. Read parameter mode 18.1°C HOME Home page No active alarms No active service ---- ---- value [unit] F l e x i t G O... -
Page 24: Parameter List
C I 7 0 5.7.2. Parameter list Parameter Description Unit Actual value Used in application Temperature sensor B4 °C Temperature sensor B8 °C Temperature sensor B5 °C Temperature sensor B1 °C Temperature sensor B3 °C Temperature sensor B6 °C Humidity sensor B6 Supply fan M1 Tacho TM1 Flow sensor P1... -
Page 25: Technical Data
6. Technical data 6.1. MECHANICAL DIMENSIONS 21 mm 89 mm 14.4 mm 6.2. SPECIFICATION General data Color Signal white (RAL9003) Weight 150g Power supply Operating voltage KNX / PL-Link DC 21...30 V Max power consumption 7...10 mA Interfaces Type of port between room automation KNX / PL-Link station and room operator unit Baud rate... - Page 26 C I 7 0 Protection standard as per EN 60529 IP33 for surface part Insulation protection class Class III Climatic ambient conditions: Normal operation Environmental Conditions: Class 3K5 Temperature 0...50 °C (0... 122 °F) Air humidity <85% rh. Transport Environmental Conditions: Class 2K3 Temperature -25...70 °C (-4...
-
Page 27: Maintenance
6.3. MAINTENANCE cleaning agents. Do not use mechanical aids (rough sponge or similar materials) – only a soft, damp cloth. 6.4. DISPOSAL The device is considered an electronics device for disposal in terms of European Directive 2012/19/EU and may not be disposed of as domestic garbage. - Page 28 Flexit AS, Televeien 15, N-1870 Ørje www.flexit.no...
