No: 27366 – 4/24 rev. 9
Catalog Numbers • Numéros de Catalogue • Números de Catálogo: LMPX-600, LMPX-600-1, LMPX-600-4
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
Once paired to an LMRC-611 wireless room
controller or LMBC-650 wireless bridge,
this unit is set for Plug n' Go operation,
adjustment via the DLM Configuration App
is recommended to meet the local energy
code where installed.

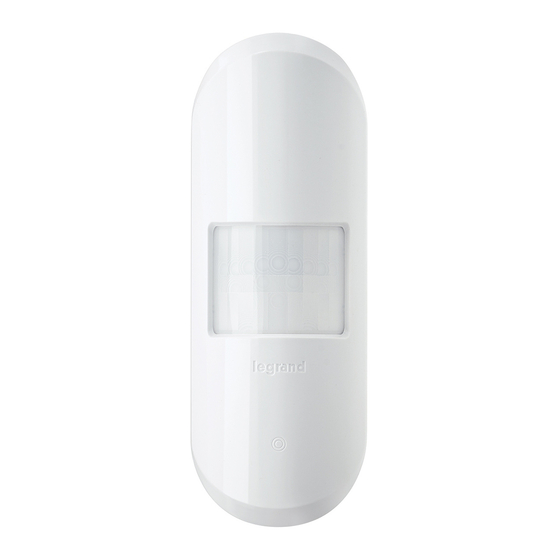

The DLM Wireless corner mount sensor is a wireless
battery powered PIR occupancy sensor intended for
operation with wireless room controllers or bridges.
Once paired to a wireless room controller or bridge,
it detects and monitors the presence of motion to
determine if lights should be on or off.

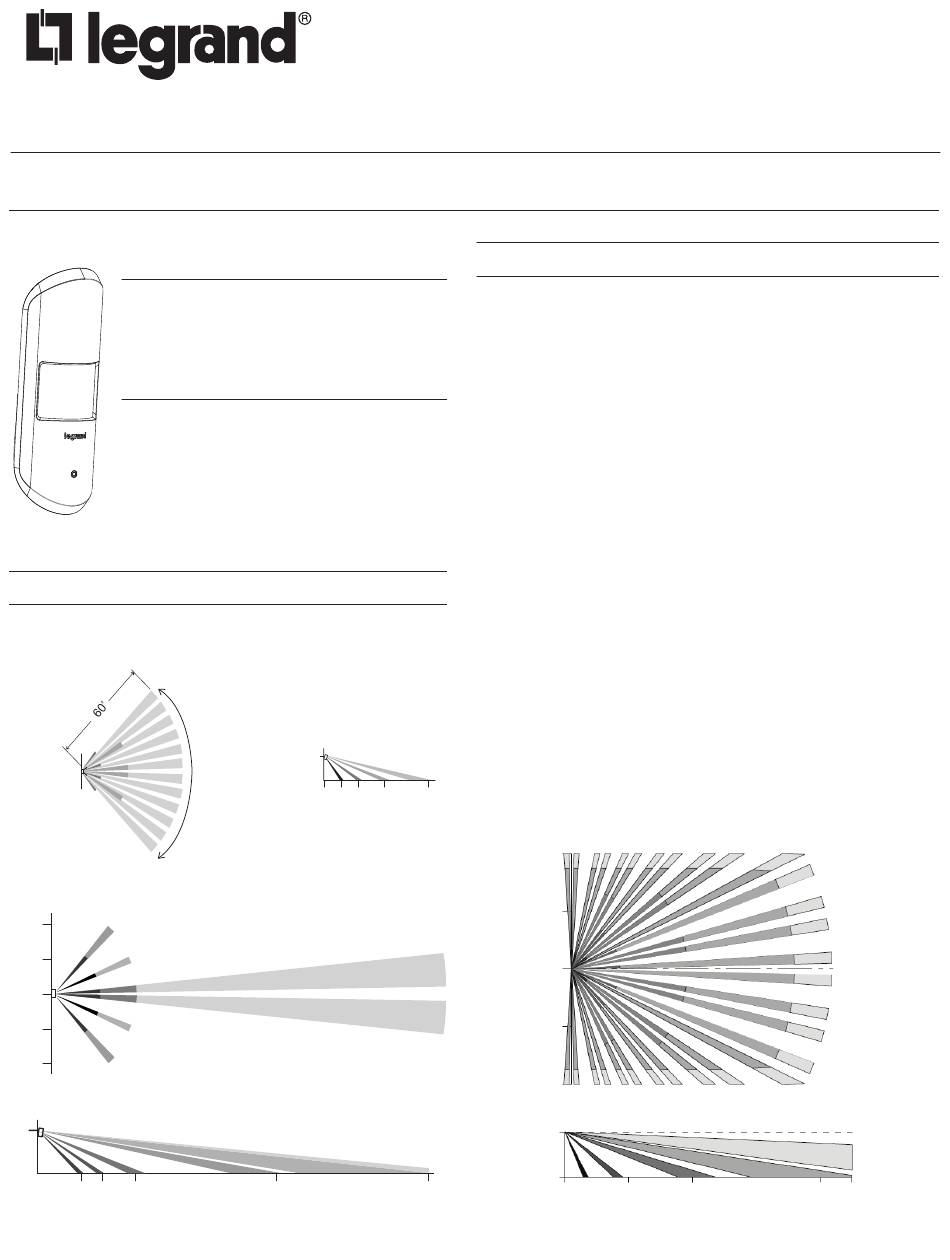

COVERAGE PATTERNS
Coverages shown are maximum and represent half-step walking
motion.
Top view
LMPX-600, wide angle lens
Top View
16ft
8ft
0
8ft
16ft
8ft
0
6' 10ft
16ft
LMPX-600-1, long range lens
8'
100°
Side view
0 7' 12'
Side View
27ft
Wattstopper
DLM Wireless PIR Corner Mount Occupancy Sensor
Quick Start Guide • Guide de démarrage rapide • Guía de inicio rápido
Power Supply .......................... Battery powered, CR123A Lithium Ion, 3 VDC
Connection to DLM Network ... Wireless via LMRC-611MCC room controllers
Lens Types
LMPX-600 .........................................................................Wide Angle
LMPX-600-1 .................................................................... Long Range
LMPX-600-4 ............................................................ Extra Wide Angle
Connection to DLM Network ............Wireless via LMRC-611 room controllers
...................................................................................... or LMBC-650
Wireless Radio ........................................ Single, Concurrent 802.15.4 and
....................................................Bluetooth Low Energy, 2.4GHz
Wireless Communication
IPv6 Mesh (6LoWPAN) Range ........................................... up to 60 ft.
Bluetooth low energy Range .............................................. up to 30 ft.
60' max. between LMPX-600 and room controller or bridge
Wireless Encryption ..........................................AES-128 bit symmetric key
Environment ............................................................... For Indoor Use Only
Operating Temperature ...............................32° to 104°F (0° to 40°C)
Storage Temperature .................................23° to 140°F (-5° to 60°C)
Relative Humidity .....................................5 to 95% (non condensing)
Compliance/Regulatory
FCC, RoHS,
Bluetooth certified
UL and cUL listed (E101196)
Patent Pending
25'
60'
Top View:
20ft
10ft
0
10ft
16ft
20ft
8ft
Side View
0
8ft
8ft
0
16ft
60ft
LMPX-600-4, extra wide angle lens
®
SPECIFICATIONS
Top View
10ft
20ft
30ft
40ft 45ft
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND Wattstopper LMPX-600
Summary of Contents for LEGRAND Wattstopper LMPX-600
- Page 1 Wattstopper ® DLM Wireless PIR Corner Mount Occupancy Sensor No: 27366 – 4/24 rev. 9 Quick Start Guide • Guide de démarrage rapide • Guía de inicio rápido Catalog Numbers • Numéros de Catalogue • Números de Catálogo: LMPX-600, LMPX-600-1, LMPX-600-4 Country of Origin: Made in China •...
-
Page 2: Sensor Placement
SENSOR PLACEMENT Ceiling Sensor Sensor MOUNTING The LMPX-600 can be mounted using one of these methods: • Mounted to a wall or corner using the included mounting wedge. • Mounted directly to a wall, using the included ball mount • Mounted to a j-box within a wall, using the included ball mount and ball mount plate •... - Page 3 Ball Mount to J-Box Mounting 1. Attach the mounting plate to the J-Box with the two included screws. Bracket 2. Attach the stem to the back of the swivel bracket by rotating the stem Stem Swivel until secure. Snug Bracket Mounting Ring 3.
-
Page 4: Important Installation Information
IMPORTANT INSTALLATION INFORMATION To ensure a successful installation and startup of a wireless system, the following steps must be taken by the installing contractor. Failure to document all device address and locations may delay completion of startup and result in additional startup charges. Key Requirement: Document every Device’s MAC Address (at least the last 4 alphanumeric characters). -
Page 5: Led Indicators
For details on the features and operation, download the DLM Config App User Guide from the wattstopper web site at : https://www.legrand.us/wattstopper/software RESETTING THE LMPX-600 When you reset the LMPX-600, the Channel and Network ID will return to their default values, and if the sensor was previously paired, it will no longer be connected to that room network. -
Page 6: Fcc Regulatory Statements
The Apple logo, iPhone, iPod touch, and iTunes are trademarks © Copyright 2024 Tous droits réservés Legrand. Google Play and the Google Play www.legrand.us/wattstopper of Apple Inc., registered in the U.S. and other countries. © Copyright 2024 Legrand Todos los derechos reservados. logo are trademarks of Google Inc.
