CONTENTS Your oven Introduction Description of the appliance Guide rails/Telescopic guide rails Accessories Door Cooling fan Control panel First use Before using the appliance for the first time Switching on and settings Choosing the cooking system Description of the mains functions Description of the sub functions Choosing the settings Selecting additional functions...
YOUR OVEN Introduction Congratulations on choosing this oven. This product is designed with simple operation and optimum comfort in mind. This manual shows how you can best use this oven. In addition to information about operating the appliance, you will also find background information that may be useful when using the appliance.

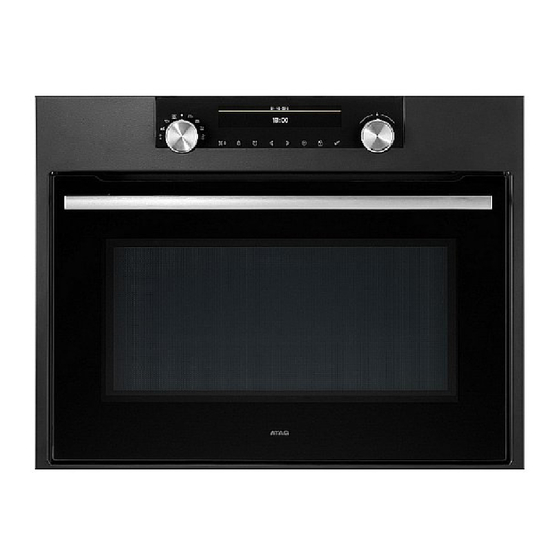

YOUR OVEN Description of the appliance 1. Control panel 2. Oven levels 3. Oven door 4. Door handle Guide rails/Telescopic guide rails • The oven has four or five guide rails (Level 1 to 4/5), depending on the model. Level 1 is mainly used in combination with bottom heat.
YOUR OVEN Accessories Your appliance is accompanied by a range of accessories, depending on the model. Only use original accessories; they are specially suited to your appliance. Be sure that all the accessories that are being used are able to withstand the temperature settings of the chosen oven function. Note: not all accessories are suitable/available for every appliance (it may also differ by country).
YOUR OVEN Control panel 1. Function knob (in ‘Off’ position) 2. Fast preheat 3. Upper and bottom heater 4. Grill 5. Grill with fan 6. Hot air and bottom heater 7. Hot air 8. Eco cooking 9. Cleaning 10. Defrosting 11.
FIRST USE Before using the appliance for the first time • Upon receiving the appliance, remove all parts, including any transport equipment, from the oven. Clean all accessories and utensils with warm water and regular detergent. Do not use any abrasive cleaners. •...
Switching on and settings After connecting your appliance or after an extended power outage, 12:00 will flash on the display and the symbol will light up. All the settings as follows: SETTING THE CLOCK Rotate the SETTINGS KNOB (-/+) and first set the minutes; then, the cursor will switch to hours. After three seconds, the settings will be saved.
Page 10
SETTINGS To change the settings, rotate the setting knob to the right and hold it for three seconds. Press the start/sop icon to scroll through respective settings or parameters. To change a parameter, rotate the setting knob to the right or to the left. BRIGHTNESS LEVEL Select between three different options of brightness levels.
Page 11
By pressing the start/stop icon, user can go out of settings menu back to standby mode. You can go out of settings manu also if you hold selection knob on the left for 3 sec, or it you turn the system knob.
Choosing the cooking system Rotate the knob (left and right) to select 0 COOKING SYSTEM (see program table). The selected icon will appear on the display. Settings can also be changed during operation. Description of the mains functions Consult the tables to select the preferred function. Also consult the instructions for preparation on the dish packaging.
Funkcija Opis Combi microwave • Use one of the functions for (fast) cooking of meals. • Sub functions are available (consult Combi microwave functions table). Cleaning • Grease and grime can easily be removed from the oven walls with a damp cloth. Hot air •...
Page 14
Funkcija Opis Grill • Heating by means of the grill element. • This mode can be used for grilling a smaller amount of open sandwiches, beer sausages, and for toasting bread. • Place the oven rack in the upper part of the oven and the baking tray in the middle of the oven.
Page 15
Combi microwave functions (to select with the selection knob) Function Description Hot air + Microwave • This system employs a combination of microwaves and hot air; therefore, the cooking time is shorter. • Use this for all types of meat, stews, vegetables, pies, cakes, bread and dishes au gratin (i.e.
Choosing the settings Each cooking system features basic or default settings which can be adjusted. Adjust the settings by pressing the relevant key (before pressing the START/STOP key). Some settings are not available with some programs; an acoustic signal will remind you of such cases. CHANGING THE COOKING TEMPERATURE AND MICROWAVE POWER Only set the power (W) in combined systems and systems with microwaves.
Page 17
Microwave power setting Power 1000 W • For quick heating of drinks, water and dishes containing a lot of moisture. • For cooking fresh or frozen vegetables. 750 W • For prepairing and heating of drinks and dishes. 600 W •...
Setting the delayed start In this mode, you may specify the duration of the cooking process (cooking time) and the time when you wish the cooking process to stop (end time). Make sure the clock is accurately set to current time. Example: Current time: noon Cooking time: 2 hours...
Page 19
If the child lock is activated with no timer function engaged (only clock is displayed), then the oven will not operate. If the child lock is activated after a timer function has been set, then the oven will operate normally; however, it will not be possible to change the settings. When the child lock is activated, systems (cooking modes) or additional functions cannot be changed.
Starting the cooking process Start the cooking process by pressing the START/STOP key. Switching off the oven Turn the COOKING SYSTEM SELECTOR KNOB to position »0«. After the end of the cooking process and after the oven has been switched off, declining temperature is displayed down to 50 °C.
OPERATION Microwaves Microwaves are high-frequency electromagnetic waves. The energy makes it possible to cook or warm up a dish without affecting the form or colour. Cooking principle • The microwaves the microwave generates are spread evenly by a distribution system. This cooks the dish evenly. •...
OPERATION Guidelines for cookware Cookware that you use for the microwave function should not block the microwaves. Metals such as stainless steel, aluminium and copper reflect microwaves. For that reason, do not use metal cookware. Cookware which is designated as microwave-safe can be used safely. For more information about suitable cookware, consult the following guidelines and always use the glass baking tray on level one if you use the microwave function.
OPERATION Using the appliance cooking functions Consult ‘Control panel general use’ to get information about the general operation of the appliance. 1. Touch the ‘On/off key to switch on the appliance. 2. Turn the function knob to select a main function. ▷...
Page 24
OPERATION Changing settings during the progress • During progress, touching the navigation keys will show the active area. The selected setting can now be changed. After confirmation with the confirm key the progress screen will be shown with the changed settings. •...
MAINTENANCE Cleaning the appliance Clean the oven regularly to prevent fat and food particles from accumulating, especially on the surfaces of the interior and the exterior, the door and the seal. • Activate the child lock (to prevent that the appliance is switched on accidentally). •...
MAINTENANCE Removing and cleaning the guide rails Use conventional cleaning products to clean the guide rails. 1. Remove the screw using a screwdriver. 2. Remove the guide rails from the holes in the back wall. Save the guide rail spacers carefully. Return the spacers after cleaning. This prevents sparks being created during use.
MALFUNCTIONS General If you have problems with your oven, consult the error overview below. Should the problems persist, please contact the Customer Services Department. The food stays raw • Check whether the timer has been set and you have touched the confirm key. •...
Page 28
Storing and repairing the oven • Repairs should only be performed by a qualified service technician. If maintenance is required, take the plug from the socket and contact the ATAG customer service. Have the following information to hand when you call: •...
ENVIRONMENTAL ASPECTS Disposal of the appliance and packaging This product is made from sustainable materials. However, the appliance must be disposed of responsibly at the end of its useful life. The government can provide you with information about this. The appliance packaging can be recycled. The following materials have been used: •...
Page 32
The appliance rating label is located on the inside of the appliance. When contacting the service department, have the complete type number to hand. You will find the addresses and phone numbers of the service organisation on the guarantee card. en (11-21)
