SMA LG-30-S Owner's Manual

SMA LG-30-S Owner's Manual

30 gallon lawn & garden spot sprayers

Advertisement

Technical Specifications
30 Gal. Corrosion-Resistant Polyethylene
Tank
12 Volt Diaphragm Pump,
2.4 GPM, 60 PSI
Deluxe Pistol Grip Handgun
15 Ft. Handgun Hose (3/8" I.D.)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Spot sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.

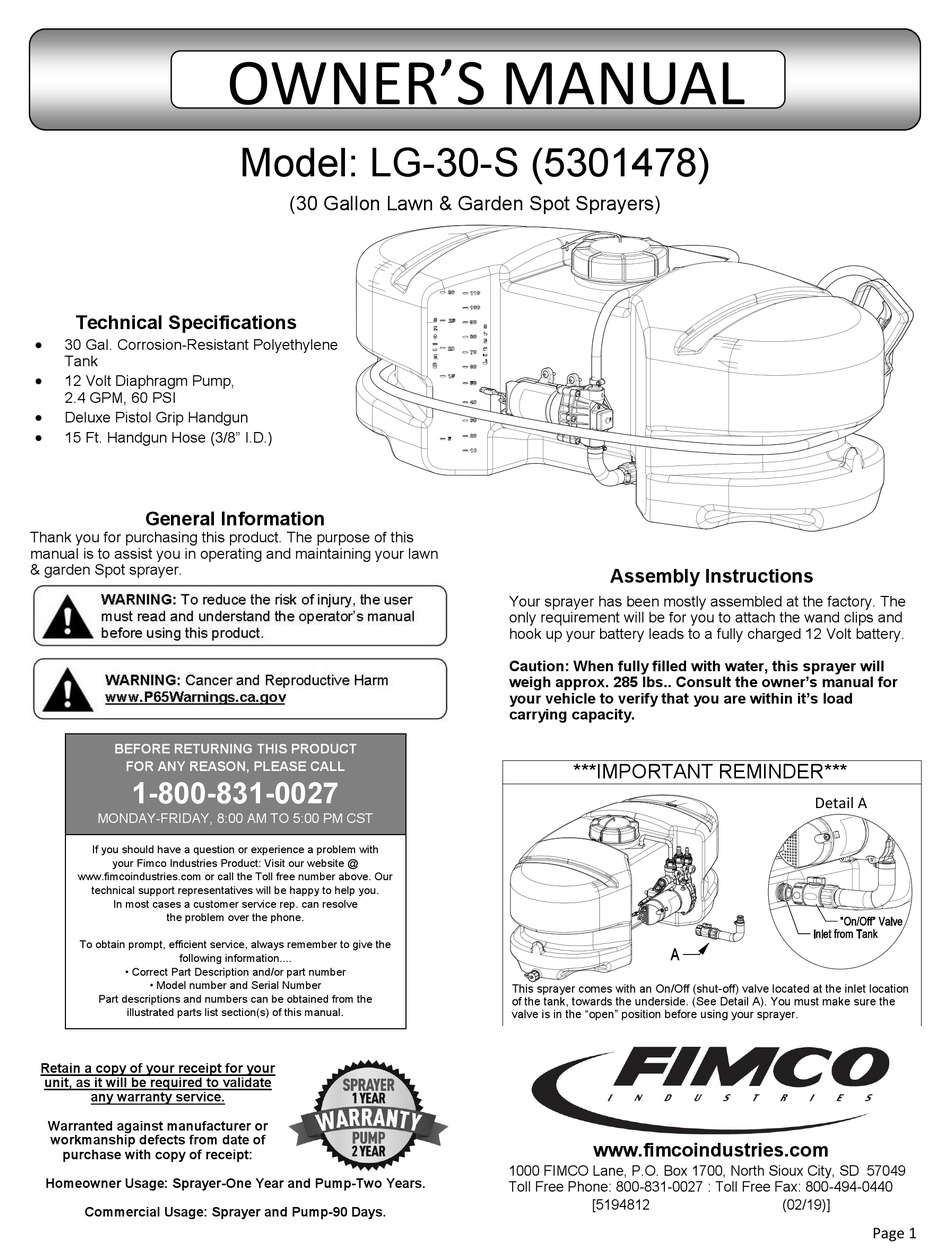

OWNER'S MANUAL
Model: LG-30-S (5301478)
(30 Gallon Lawn & Garden Spot Sprayers)
Assembly Instructions
Your sprayer has been mostly assembled at the factory. The
only requirement will be for you to attach the wand clips and
hook up your battery leads to a fully charged 12 Volt battery.
Caution: When fully filled with water, this sprayer will
weigh approx. 285 lbs.. Consult the owner's manual for
your vehicle to verify that you are within it's load
carrying capacity.
***IMPORTANT REMINDER***
This sprayer comes with an On/Off (shut-off) valve located at the inlet location
of the tank, towards the underside. (See Detail A). You must make sure the
valve is in the "open" position before using your sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5194812
Detail A
(02/19)]
Page 1
