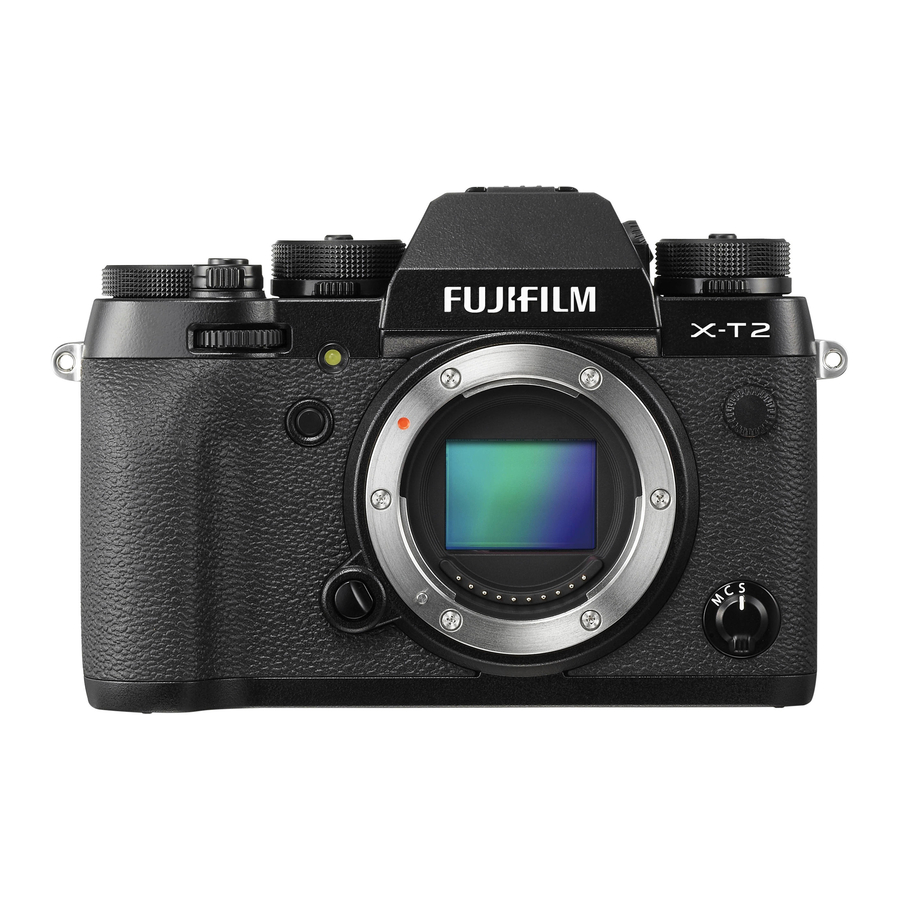

FujiFilm X-T2 - Digital Camera Manual

Customizing the Standard Display

Histograms

Histograms show the distribution of tones in the image. Brightness is shown by the horizontal axis, the number of pixels by the vertical axis.

• Optimal exposure: Pixels are distributed in an even curve throughout the tone range.

• Overexposed: Pixels are clustered on the right side of the graph.

• Underexposed: Pixels are clustered on the left side of the graph.


To view separate RGB histograms and a display showing areas of the frame that will be overexposed at current settings superimposed on the view through the lens, press the function button to which HISTOGRAM is assigned.

1. Overexposed areas blink
2. RGB histograms

The Focus-Point Display

Checking Focus

To zoom in on the current focus area for precise focus, press the control to which focus zoom has been assigned (at default settings, the center of the rear command dial). Press the control again to cancel zoom.

In focus mode S, zoom can be adjusted by rotating the rear command dial when STANDARD or FOCUS PEAK HIGHLIGHT is selected for AF/MF SETTING > MF ASSIST. Focus area selection using the focus stick is available during focus zoom. Focus zoom is not available in focus mode C or when AF/MF SETTING > PRE-AF is on or an option other than SINGLE POINT is selected for AF MODE.
Use BUTTON/DIAL SETTING > Fn/AE-L/AF-L BUTTON SETTING to change the function performed by the center of the command dial or assign its default function to other controls.

Bracketing

Navigate to DRIVE SETTING in the SHOOTING SETTING menu and select AE BKT, ISO BKT, FILM SIMULATION BKT, WHITE BALANCE BKT, DYNAMIC RANGE BKT, or FOCUS BKT.

FOCUS BKT

Each time the shutter button is pressed, the camera takes a series of photos, varying focus with each shot. The number of shots, the amount focus changes with each shot, and the interval between shots can be selected using SHOOTING SETTING > DRIVE SETTING > BKT SETTING > FOCUS BKT.

Option	Description
FOCUS BKT	The following settings are available when BKT SELECT is chosen for FOCUS BKT.
	Option	Description
	FRAMES	Choose the number of shots.
	STEP	Choose the amount focus changes with each shot.
	INTERVAL	Choose the interval between shots.
	Do not adjust zoom during shooting. The supplied flash does not fire.

BKT SETTING

Option	Description
BKT SELECT	Choose from AE BKT, ISO BKT, FILM SIMULATION BKT, WHITE BALANCE BKT, DYNAMIC RANGE BKT, and FOCUS BKT.

Focus and FRAMES/STEP

The relation between focus and the options chosen for FRAMES and STEP is shown in the illustration.

• Focus proceeds from the starting position toward infinity.
• Small STEP values translate to small changes in focus, larger values to larger changes.
• Regardless of the option chosen for FRAMES, shooting ends when focus reaches infi nity.

FLICKER REDUCTION

Select ON to reduce flicker in pictures and the display when shooting under fluorescent lighting and other similar light sources.

Enabling flicker reduction disables the electronic shutter and increases the time needed to record pictures.

FULL HD HIGH SPEED REC

Record high-frame-rate Full HD movies that play back in slow motion, giving you time to view fast-moving subjects or details too fleeting for the naked eye: a batter's swing, darting insects, or swiftly-flowing waters.

Option	Description
2x 59.94P 120P	Record Full HD footage at 2×, 4×, or 5× speed and frame rates of 120 or 100 fps. The movies play back at ½, ¼, or 1⁄5 speed. Maximum recording length is 6 minutes.
2x 50P 100P
4x 29.97P 120P
4x 25P 100P
5x 24P 120P
5x 23.98P 120P
OFF	High-speed recording off.

High-speed movies are recorded with no sound.

PERIPHERAL LIGHT CORRECTION (MOVIE)

Select ON to enable peripheral illumination correction during movie recording.

Select OFF if you notice banding in movies recorded using this option. If ON is selected when a lens that does not transmit data to the camera is attached using a FUJIFILM M MOUNT ADAPTER (available separately), peripheral illumination will be adjusted according to the option selected for SHOOTING SETTING > MOUNT ADAPTER SETTING > PERIPHERAL ILLUMINATION CORRECTION in the shooting menu.

4K MOVIE OUTPUT

Choose the destination for 4K movies shot while the camera is connected to an HDMI recorder or other device that supports 4K.

Option	Description
4K FHD	4K movies are recorded to a camera memory card in 4K and output to the HDMI device in Full HD.
FHD 4K	4K movies are output to the HDMI device in 4K and recorded to the camera memory card in Full HD.
− 4K	4K movies are output to the HDMI device in 4K. The camera does not record 4K movies to a memory card.
F-Log 4K − *	4K movies are recorded to a camera memory card in 4K but are not output to the HDMI device.
F-Log FHD 4K *	4K movies are output to the HDMI device in 4K and are recorded to the camera memory card in Full HD.
F-Log − 4K *	4K movies are output to the HDMI device in 4K. The camera does not record 4K movies to a memory card.

* Movies shot with an F-Log option are recorded using a gentle gamma curve with a wide gamut, suitable for footage intended for post-production processing. The minimum value for sensitivity is ISO 800.
This option is only available when is selected for MOVIE SETTING > MOVIE MODE in the shooting menu.

FULL HD MOVIE OUTPUT

Choose the destination for Full HD movies shot while the camera is connected to an HDMI device.

Option	Description
FHD FHD	Full HD movies are output to the HDMI device and recorded to the camera memory card.
− FHD	Full HD movies are not recorded to the camera memory card but are output to the HDMI device.
F-Log FHD − *	Full HD movies are recorded to a camera memory card in Full HD but are not output to the HDMI device.

* Movies shot with an F-Log option are recorded using a gentle gamma curve with a wide gamut, suitable for footage intended for post-production processing. The minimum value for sensitivity is ISO 800.
This option is only available when is selected for MOVIE SETTING > MOVIE MODE in the shooting menu.

The DISP/BACK Button

Viewing Photo Information

The photo information display changes each time the selector is pressed up.

APERTURE UNIT FOR CINEMA LENS

Choose whether the camera displays aperture as a T-number (used for movie camera lenses) or an f/-number (used for still camera lenses) when an optional FUJINON MKX-series lens is attached. For information on using cinema lenses, see the documentation provided with the lens.

LARGE INDICATORS MODE(EVF)

Select ON to display large indicators in the electronic viewfinder. The indicators displayed can be selected using SCREEN SETTING > LARGE INDICATORS DISP. SETTING.

Some icons are not displayed when ON is selected for LARGE INDICATORS MODE(EVF), including:

• Focus indicator
• Focus mode
• Distance indicator
• Recording level
• IS mode
• AF+MF indicator
• Control lock

If LARGE INDICATORS MODE is assigned to a function button, the button can be used to toggle LARGE INDICATORS MODE on (ON) and off (OFF).

LARGE INDICATORS DISP. SETTING

Choose the indicators displayed when ON is selected for SCREEN SETTING > LARGE INDICATORS MODE(EVF) or LARGE INDICATORS MODE(LCD).

Option	Description
Expo. DISP.	Choose the items listed at the bottom of the display. Selected items are indicated by check marks (); to deselect, highlight the check marks and press MENU/OK.
Scale	Select ON to display the exposure indicator.
L1, L2, L3, L4	Choose up to four large icons for display on the left side of the screen.
R1, R2, R3, R4	Choose up to four large icons for display on the right side of the screen.

SELECT FOLDER

Create folders and choose the folder used to store subsequent pictures.

PC CONNECTION MODE

Adjust settings for connection to a computer.

Option	Description
USB CARD READER	Connecting the camera to a computer via USB automatically enables data transfer mode, allowing data to be copied to the computer. The camera functions normally when not connected.
USB TETHER SHOOTING AUTO	Connecting the camera to a computer via USB automatically enables tethered shooting mode. You can also use FUJIFILM X Acquire to save and load camera settings, allowing you to reconfigure the camera in an instant or share settings with other cameras of the same type. The camera functions normally when not connected.
USB TETHER SHOOTING FIXED	The camera functions in tethered shooting mode even when not connected to a computer. At default settings, pictures are not saved to the memory card, but pictures taken while the camera is not connected will be transferred to the computer when it is connected.
WIRELESS TETHER SHOOTING FIXED	Choose this option for wireless remote photography. Select a network using CONNECTION SETTING > WIRELESS SETTINGS.
USB RAW CONV./ BACKUP RESTORE	Connecting the camera to a computer via USB automatically enables USB RAW conversion/ backup restore mode. The camera functions normally when not connected. USB RAW CONV. (requires FUJIFILM X RAW STUDIO): Use the camera's image processing engine to rapidly convert RAW files to high-quality JPEG images. BACKUP RESTORE (requires FUJIFILM X Acquire): Save and load camera settings. Reconfi gure the camera in an instant or share settings with other cameras of the same type.

POWER MANAGEMENT > AUTO POWER OFF also apply during tethered shooting. Select OFF to prevent the camera turning off automatically.
Tethered shooting is available with software such as Hyper-Utility Software HS-V5 (available separately) or FUJIFILM X Acquire (available for free download from the FUJIFILM website) or when the FUJIFILM Tether Shooting Plug-in PRO or Tether Shooting Plug-in (both available separately) is used with Adobe® Photoshop® Lightroom®.

Flash Settings

Third-party studio flash commanders compatible with the FUJIFILM flash system can now be used. For more information, see the documentation provided your studio flash unit.

Accessories from FUJIFILM

instax SHARE printers
SP-1/SP-2/SP-3: Connect via wireless LAN to print pictures on instax film.

Features added or changed as a result of fi rmware updates may no longer match the descriptions in the documentation supplied with this product. Visit our website for information on the updates available for diff erent products:
http://www.fujifilm.com/support/digital_cameras/software/fw_table.html
