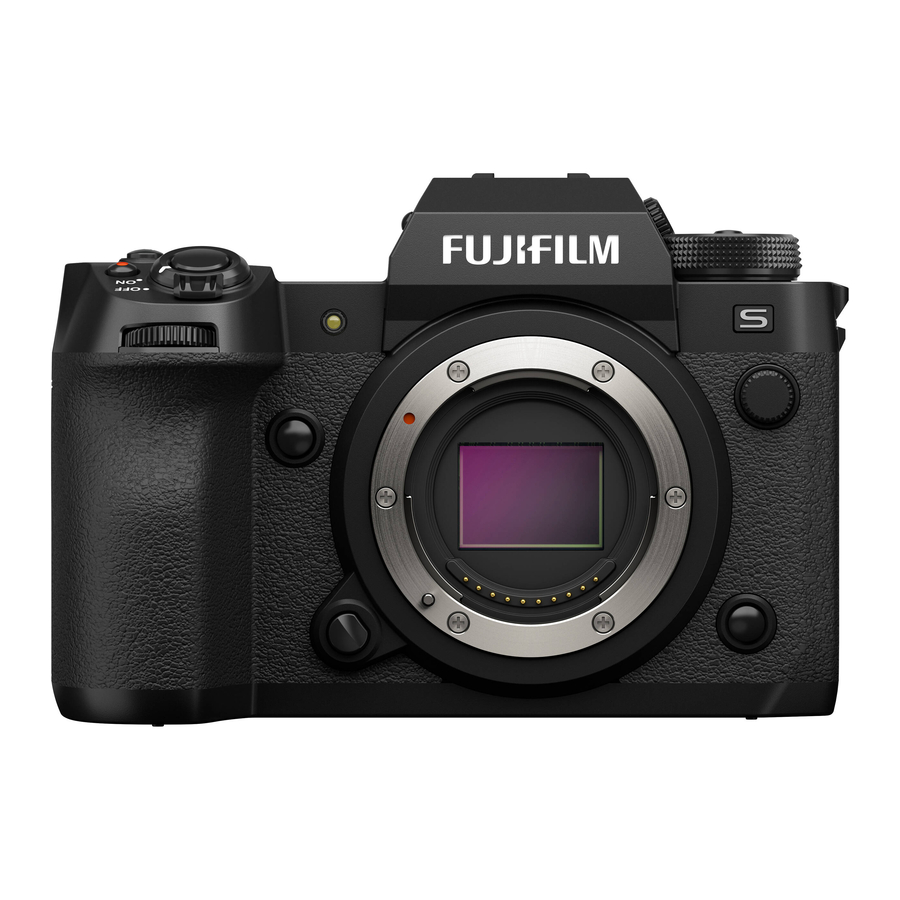

FujiFilm X-H2S - Digital Camera Manual
  1. Manuals
  2. Brands
  3. FujiFilm Manuals
  4. Digital Camera
  5. X-H2S
  6. User manual

FujiFilm X-H2S - Digital Camera Manual

Also See for X-H2S:

Advertisement

Table of Contents
Contents
FujiFilm X-H2S - Digital Camera Manual

Contents

X-H2S firmware version 5.00 adds or updates the features listed below.

No. Description X-H2S Ver.
1 Command dial settings can now be configured for each of the P, S, A, and M shooting modes. FRONT COMMAND DIAL 1, FRONT COMMAND DIAL 2, FRONT COMMAND DIAL 3, and REAR COMMAND DIAL can now be configured as command dial settings. In addition, FRONT COMMAND DIAL SWITCH has been added as a function that can be assigned to a function button. 10
298
305		 5.00
2 Connection and upload status icons for Frame.io have been added to the electronic viewfinder and LCD monitor shooting displays. 14 4.00
3 SCREEN SET-UP > DISP. CUSTOM SETTING > IMAGE TRANSFER ORDER has been renamed COMMUNICATION STATUS and can now be used to toggle the image transfer order and connected device displays on or off simultaneously. 23 3.00
4 FOCUS METER and FOCUS METER + PEAK HIGHLIGHT have been added to the focus check options available during movie recording. 103
204		 2.00
5 Connection and upload status icons for Frame.io have been added to the electronic viewfinder and LCD monitor playback displays. 214 4.00
6 Items for use when an optional FT-XH file transmitter is attached to the camera have been added to the network/USB setting menu. 242 2.00
7 ISO sensitivity can now be changed using a command dial. 270 5.00
8 Changes have been made to BUTTON/DIAL SETTING > ISO BUTTON SETTING > SMARTPHONE TRANSFER ORDER, and SELECT & SMARTPHONE TRANSFER ORDER and Frame.io TRANSFER ORDER options have been added.option has been added. 275 4.00
9 The TG-BT1 tripod grip has been added to the optional accessory list. 338 3.00
10 Photos and movies can now be uploaded to Frame.io 343 4.00

information Adobe, the Adobe logo, Camera to Cloud, Frame.io, Lightroom and Photoshop are either registered trademarks or trademarks of Adobe in the United States and/or other countries.

The command Dials

The rear and front command dials are used for the operations below.

Front command dial Rear command dial

Shooting 1


 P Choose the desired combination of shutter speed and aperture (program shift). Adjust exposure compensation.
S Choose a shutter speed.
A Adjust aperture.2
M Adjust aperture.2 Choose a shutter speed.
FILTER Program shift. Adjust exposure compensation.
Menus Select menu tabs or page through menus. Highlight menu items.
Q Men Select items in the quick menu. Adjust settings in the quick menu.
Playback View other pictures.
  • Zoom in or out (full-frame playback).
  • Zoom in or out (multi-frame playback).
  1. Settings for FRONT COMMAND DIAL 1, FRONT COMMAND DIAL 2, FRONT COMMAND DIAL 3, and REAR COMMAND DIAL can be changed using BUTTON/DIAL SETTING > COMMAND DIAL SETTING.
  2. Applies if the lens has no aperture ring or if an aperture ring with an "A" position is in the A position.

information The rotation direction for the command dials can be selected using BUTTON/DIAL SETTING > COMMAND DIAL DIRECTION.

The Electronic Viewfinder

The Electronic Viewfinder Interface
The camera displays icons showing the status of files selected for or currently undergoing upload to Frame.io.
The camera displays an icon showing the status of the connection to Frame.io.

The LCD Monitor

The LCD Monitor Description
The camera displays icons showing the status of files selected for or currently undergoing upload to Frame.io.
The camera displays an icon showing the status of the connection to Frame.io.

Customizing the Standard Display

Choose items.
Highlight items and press MENU/OK to select or deselect.

  • FRAMING GUIDELINE
  • FOCUS FRAME
  • AF DISTANCE INDICATOR
  • MF DISTANCE INDICATOR
  • HISTOGRAM
  • LIVE VIEW HIGHLIGHT ALERT
  • SHOOTING MODE
  • APERTURE/S-SPEED/ISO
  • INFORMATION BACKGROUND
  • Expo. Comp. (Digit)
  • Expo. Comp. (Scale)
  • FOCUS MODE
  • PHOTOMETRY
  • SHUTTER TYPE
  • FLASH
  • CONTINUOUS MODE
  • DUAL IS MODE
  • TOUCH SCREEN MODE
  • WHITE BALANCE
  • FILM SIMULATION
  • DYNAMIC RANGE
  • BOOST MODE
  • COOLING FAN SETTING
  • FRAMES REMAINING
  • IMAGE SIZE/QUALITY
  • MOVIE MODE & REC. TIME
  • COMMUNICATION STATUS
  • MIC LEVEL
  • GUIDANCE MESSAGE
  • BATTERY LEVEL
  • FRAMING OUTLINE

Checking Focus

Focus Zoom

If ON is selected for AF/MF SETTING > FOCUS CHECK, the camera will automatically zoom in on the selected focus area when the focus ring is rotated. Press the center of the focus stick (focus lever) to exit zoom.

information

  • Use the focus stick (focus lever) to choose another focus area.
  • Zoom can be adjusted by rotating the rear command dial. Zoom cannot, however, be adjusted when DIGITAL SPLIT IMAGE or DIGITAL MICROPRISM is selected for MF assist.

MF Assist

Use AF/MF SETTING > MF ASSIST in the photo menus or AF/MF SETTING > MF ASSIST in the movie menus to choose a focus check option.

information The focus check options for movies differ from those for still photography.


DIGITAL SPLIT IMAGE: Displays a split image in the center of the frame. Frame the subject in the split-image area and rotate the focus ring until the four parts of the split image are correctly aligned.

  • DIGITAL MICROPRISM: A grid pattern that emphasizes blur is displayed when the subject is out of focus, disappearing to be replaced by a sharp image when the subject is in focus.
  • FOCUS PEAK HIGHLIGHT: Highlights high-contrast outlines. Rotate the focus ring until the subject is highlighted.
  • FOCUS METER: A meter is displayed below the focus point indicating whether focus is in front of or behind the subject. The needle swings left when focus is in front of the subject and right when it is behind the subject. Adjust focus so the needle is pointing straight up.

information The display reverses when CCW is selected for BUTTON/DIAL SETTING > LENS ZOOM/FOCUS SETTING > FOCUS RING ROTATE.

MF ASSIST

Choose how focus is displayed when MANUAL FOCUS is selected for FOCUS MODE.

Option Description
FOCUS PEAK HIGHLIGHT The camera heightens high-contrast outlines. Choose a color and peaking level.
FOCUS METER A needle indicates whether focus is in front of or behind the subject.
FOCUS METER + PEAK HIGHLIGHT Focus is indicated by both a meter and peak highlights.
OFF Focus is displayed normally (focus peaking and the focus meter are not available).

The Playback Display

The Playback Display
The camera displays icons showing the status of files selected for or currently undergoing upload to Frame.io.
The camera displays an icon showing the status of the connection to Frame.io.

Network/USB Setting Menus

Adjust camera network and USB settings.
information The features available when an optional FT-XH file transmitter is attached to the camera are also described.

COMMAND DIAL SETTING

The functions of the front command dials and the rear command dial can be configured for each shooting mode.

  1. Select BUTTON/DIAL SETTING > COMMAND DIAL SETTING.
  2. Select a shooting mode.
  3. Select the command dial to configure.
Option
1 FRONT COMMAND DIAL 1
2 FRONT COMMAND DIAL 2
3 FRONT COMMAND DIAL 3
REAR COMMAND DIAL

information Front command dial settings can be saved to FRONT COMMAND DIAL 1, FRONT COMMAND DIAL 2, and FRONT COMMAND DIAL 3. You can switch the settings by pressing the function button to which FRONT COMMAND DIAL SWITCH is assigned.

  1. Select the function to assign.
    Assignable functions vary depending on the shooting mode.
Shooting Mode Function
P
  • PROGRAM SHIFT
  • ISO
  • EXPOSURE COMPENSATION
  • NONE
S
  • S.S.
  • ISO
  • EXPOSURE COMPENSATION
  • NONE
A
  • APERTURE
  • ISO
  • EXPOSURE COMPENSATION
  • NONE
M
  • S.S.
  • APERTURE
  • EXPOSURE COMPENSATION
  • ISO
  • NONE

information

  • APERTURE applies if the lens has no aperture ring or if an aperture ring with an "A" position is in the A position.
  • When the shooting mode is M, EXPOSURE COMPENSATION only applies if the ISO sensitivity is set to AUTO.

ISO BUTTON SETTING

Choose the role performed by the ISO button during playback.

Option Description
SMARTPHONE TRANSFER ORDER Pressing the button marks the current picture for transfer. If the camera is not currently paired with a smartphone, Bluetooth/SMARTPHONE SETTING options will be displayed.
SELECT & SMARTPHONE TRANSFER ORDER Pressing the button displays a dialog where pictures can be selected for upload to a smartphone with which the camera is paired. If the camera is not currently paired with a smartphone, Bluetooth/SMARTPHONE SETTING options will be displayed instead.
FTP TRANSFER ORDER Pressing the button marks the current picture for upload to an FTP server.
FTP PRIORITY TRANSFER ORDER Pressing the button marks the current picture for priority upload to an FTP server. The picture will be moved to the head of the upload queue.
Frame.io TRANSFER ORDER Pressing the button marks the current picture for upload to Frame.io.
WIRELESS COMMUNICATION The button can be used for wireless connections.

information FTP TRANSFER ORDER, FTP PRIORITY TRANSFER ORDER, and Frame.io TRANSFER ORDER can only be used when an op- tional FT-XH file transmitter is connected.

Assigning Roles to the Function Buttons

The roles played by the function buttons can be selected using the BUTTON/DIAL SETTING > FUNCTION (Fn) SETTING option in the setup menu.

  • WHEN SET TO M (ON/OFF SWITCH)
  • IMAGE SIZE
  • IMAGE QUALITY
  • RAW
  • FILM SIMULATION
  • GRAIN EFFECT
  • COLOR CHROME EFFECT
  • COLOR CHROME FX BLUE
  • DYNAMIC RANGE
  • D RANGE PRIORITY
  • WHITE BALANCE
  • CLARITY
  • RECALL CUSTOM 1 SETTING
  • FOCUS AREA
  • FOCUS CHECK
  • FOCUS MODE
  • AF MODE
  • AF-C CUSTOM SETTINGS
  • FACE DETECTION ON/OFF
  • RIGHT/LEFT EYE SWITCH
  • SUBJECT DETECTION ON/OFF
  • AF RANGE LIMITER
  • FOCUS CHECK LOCK
  • SPORTS FINDER MODE
  • PRE-SHOT
  • SELF-TIMER
  • AE BKT SETTING
  • FOCUS BKT SETTING
  • PHOTOMETRY
  • SHUTTER TYPE
  • FLICKER REDUCTION
  • FLICKERLESS S.S. SETTING
  • ISO
  • IS MODE
  • WIRELESS COMMUNICATION
  • FLASH FUNCTION SETTING
  • TTL-LOCK
  • MODELING FLASH
  • MOVIE RECORDING RELEASE
  • HIGH SPEED REC
  • FIX MOVIE CROP MAGNIFICATION
  • IS MODE BOOST
  • ZEBRA SETTING
  • COOLING FAN SETTING
  • INTERNAL/EXTERNAL MIC LEVEL ADJUSTMENT
  • 4ch AUDIO PLAYBACK
  • MOVIE OPTIMIZED CONTROL
  • VIEW MODE SETTING
  • EVF/LCD SWITCH
  • PREVIEW DEPTH OF FIELD
  • PREVIEW EXP./WB IN MANUAL MODE
  • NATURAL LIVE VIEW
  • HISTOGRAM
  • ELECTRONIC LEVEL SWITCH
  • LARGE INDICATORS MODE
  • F-Log VIEW ASSIST
  • FRONT COMMAND DIAL SWITCH
  • COMMAND DIAL LOCk
  • ZOOM/FOCUS CONTROL RING
  • CONSTANT SPEED ZOOM (T)
  • CONSTANT SPEED ZOOM (W)
  • CONSTANT SPEED FOCUS (N)
  • CONSTANT SPEED FOCUS (F)
  • AE LOCK ONLY
  • AF LOCK ONLY
  • AE/AF LOCK
  • AF-ON
  • AWB LOCK ONLY
  • LOCK SETTING
  • PERFORMANCE
  • AUTO IMAGE TRANSFER ORDER
  • Bluetooth ON/OFF
  • QUICK MENU
  • PLAYBACK
  • NONE

information To disable the function button, choose NONE.

Assigning Roles to the Lens Function Buttons

The roles played by the lens function buttons can be selected using the BUTTON/DIAL SETTING > POWER ZOOM LENS FUNCTION (Fn) SETTING option in the setup menu.

  • WHEN SET TO M (ON/OFF SWITCH)
  • IMAGE SIZE
  • IMAGE QUALITY
  • RAW
  • FILM SIMULATION
  • GRAIN EFFECT
  • COLOR CHROME EFFECT
  • COLOR CHROME FX BLUE
  • DYNAMIC RANGE
  • D RANGE PRIORITY
  • WHITE BALANCE
  • CLARITY
  • RECALL CUSTOM 1 SETTING
  • FOCUS AREA
  • FOCUS CHECK
  • FOCUS MODE
  • AF MODE
  • AF-C CUSTOM SETTINGS
  • FACE DETECTION ON/OFF
  • RIGHT/LEFT EYE SWITCH
  • SUBJECT DETECTION ON/OFF
  • AF RANGE LIMITER
  • FOCUS CHECK LOCK
  • SPORTS FINDER MODE
  • PRE-SHOT
  • SELF-TIMER
  • AE BKT SETTING
  • FOCUS BKT SETTING
  • PHOTOMETRY
  • SHUTTER TYPE
  • FLICKER REDUCTION
  • FLICKERLESS S.S. SETTING
  • ISO
  • IS MODE
  • WIRELESS COMMUNICATION
  • FLASH FUNCTION SETTING
  • TTL-LOCK
  • MODELING FLASH
  • MOVIE RECORDING RELEASE
  • HIGH SPEED REC
  • FIX MOVIE CROP MAGNIFICATION
  • IS MODE BOOST
  • ZEBRA SETTING
  • COOLING FAN SETTING
  • INTERNAL/EXTERNAL MIC LEVEL ADJUSTMENT
  • 4ch AUDIO PLAYBACK
  • MOVIE OPTIMIZED CONTROL
  • VIEW MODE SETTING
  • EVF/LCD SWITCH
  • PREVIEW DEPTH OF FIELD
  • PREVIEW EXP./WB IN MANUAL MODE
  • NATURAL LIVE VIEW
  • HISTOGRAM
  • ELECTRONIC LEVEL SWITCH
  • LARGE INDICATORS MODE
  • F-Log VIEW ASSIST
  • FRONT COMMAND DIAL SWITCH
  • COMMAND DIAL LOCK
  • ZOOM/FOCUS CONTROL RING
  • CONSTANT SPEED ZOOM (T)
  • CONSTANT SPEED ZOOM (W)
  • CONSTANT SPEED FOCUS (N)
  • CONSTANT SPEED FOCUS (F)
  • AE LOCK ONLY
  • AF LOCK ONLY
  • AE/AF LOCK
  • AF-ON
  • AWB LOCK ONLY
  • LOCK SETTING
  • PERFORMANCE
  • AUTO IMAGE TRANSFER ORDER
  • Bluetooth ON/OFF
  • QUICK MENU
  • PLAYBACK
  • NONE

information

  • To disable the function button, choose NONE.
  • Selected function lock is not available when CONSTANT SPEED ZOOM (T) or CONSTANT SPEED ZOOM (W) is assigned to a lens function button.

Accessories from Fujifilm

The following optional accessories are available from Fujifilm. For the latest information on the accessories available in your region, check with your local Fujifilm representative or visit https://fujifilm-x.com/support/compatibility/cameras/.

Rechargeable Li-ion batteries
NP-W235: Additional high-capacity NP-W235 rechargeable batteries can be purchased as required.

Dual battery chargers
BC-W235: The BC-W235 can charge up to two NP-W235 batteries at a time. At +25°C/+77°F, the batteries will charge in about 200 minutes. Using a device that supplies power with an outputs of 30 W or above reduces charging times to as little as 150 minutes.

Eye cups
EC-XH W/EC-XT L/EC-XT M/EC-XT S/EC-GFX: Attach viewfinder eyecups to prevent light leaking into the viewfinder window.

Remote releases
RR-100: Use to reduce camera shake or keep the shutter open during a time exposure ( ⌀ 2.5 mm).

Stereo microphones
MIC-ST1: An external microphone for movie recording.

FUJINON lenses
XF-/XC-series lenses: Interchargeable lenses for use exclusively with the FUJIFILM X-mount.
FUJINON MKX-series lenses: Cinema lenses for the FUJIFILM X-mount.

Macro extension tubes
MCEX-11/16: Attach between the camera and the lens to shoot at high reproduction ratios.

Teleconverters
XF1.4X TC WR: Increases the focal length of the compatible lenses by about 1.4x.
XF2X TC WR: Increases the focal length of the compatible lenses by about 2.0x.

Mount adapters
FUJIFILM M MOUNT ADAPTER: Allows the camera to be used with a wide selection of M-mount lenses.

Body caps
BCP-001: Cover the camera lens mount when no lens is attached.

Shoe-mounted flash units
EF-X500: In addition to manual and TTL flash control, this clip-on flash unit has a Guide Number of 50/164 (ISO 100, m/ft.) and supports FP (high-speed sync), allowing it to be used at shutter speeds that exceed the flash sync speed. Featuring support for the optional EF-BP1 battery pack and Fujifilm optical wireless flash control, it can be used as a commander or remote flash unit for remote wireless flash photography.
EF-BP1: A battery pack for EF-X500 flash units. Takes up to 8 AA batteries.
EF-60:In addition to manual and TTL flash control, this clip-on flash unit has a Guide Number of 60/197 (ISO 100, m/ft.) and supports FP (high-speed sync), allowing it to be used at shutter speeds that exceed the flash sync speed. It can also be used as remote flash under the control of an optional EF-W1 wireless commander.
EF-W1: With support for the NAS* wireless communication standard developed by Nissin Japan, this wireless flash commander can be used with optional EF-60 clip-on flash units and other NAS-compliant units.
* NAS is a registered trademark of Nissin Japan Ltd.
EF-X8: This compact, clip-pn flash unit draws power from the camera has a Guide Number of approximately 8/26 (ISO 100, m/ft.) and can cover the angle of view of a 16 mm lens (equivalent to 24 mm in 35 mm format).
EF-42: This clip-on flash unit has a Guide Number of 42/137 (ISO 100, m/ft.) and supports manual and TTL flash control.
EF-X20: This clip-on flash unit has a Guide Number of 20/65 (ISO 100, m/ft.) and supports manual and TTL flash control.
EF-20: This clip-on flash unit has a Guide Number of 20/65 (ISO 100, m/ft.) and supports TTL flash control (manual flash control is not supported).

Vertical battery grips
VG-XH: See "Vertical battery grips".

File transmitters
FT-XH: See "File Transmitters".

Cooling fans
FAN-001: See "Cooling Fans"

Tripod grips
TG-BT1: Record movies, take photographs, or adjust zoom on compatible power zoom lenses while holding this Bluetooth tripod grip.

Grip belts
GB-001: Improves grip. Combine with a hand grip for more secure handling.

Cover kits
CVR-XH: A set of covers for the X-H2S. Contains a sync terminal cap, a hot-shoe cover, and a memory card slot cover, as well as two file transmitter/vertical battery grip connector covers.

instax SHARE printers
SP-1/SP-2/SP-3: Connect via wireless LAN to print pictures on instax film.

Frame.io Device to Cloud

Photos and movies can be uploaded directly to the Frame.io platform over a network when the camera is connected to an optional FT-XH file transmitter.

Features added or changed as a result of firmware updates may no longer match the descriptions in the documentation supplied with this product. Visit our website for information on the updates available for different products:
https://fujifilm-x.com/support/download/firmware/cameras/

FUJIFILM Corporation
7-3, AKASAKA 9-CHOME, MINATO-KU, TOKYO 107-0052, JAPAN
https://fujifilm-x.com

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download FujiFilm X-H2S - Digital Camera Manual

Advertisement

Need help?

Need help?

Do you have a question about the X-H2S and is the answer not in the manual?

Questions and answers

Related Manuals for FujiFilm X-H2S

Save Article as PDF

Table of Contents
