TOA INSTITUTIONAL COMMUNICATION SYSTEM
IC-100 Series

System Specifications

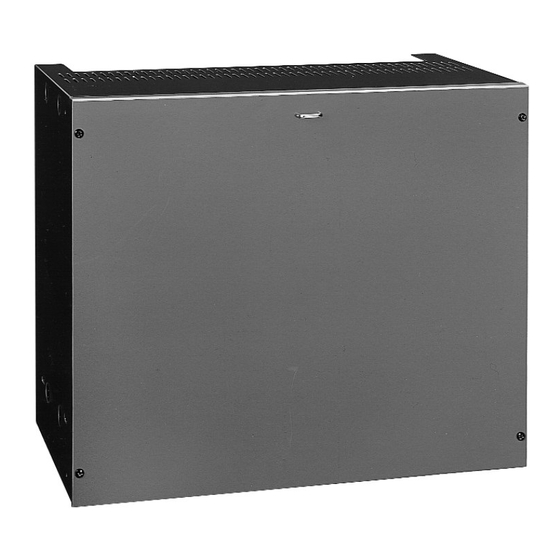

CK-100B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa IC-100 Series

Summary of Contents for Toa IC-100 Series

  • Page 1: System Specifications

    TOA INSTITUTIONAL COMMUNICATION SYSTEM IC-100 Series System Specifications CK-100B...

  • Page 2: System Description

    9 tie-lined exchanges per multi-exchange system. Using the optional CT-100, each exchange can have 2 outside lines, or a C/O line and a PBX extension. The IC-100 can also be connected to an external computer with the RS-232C port included on the MU-110 main control unit.

  • Page 3: Call Forwarding

    FUNCTIONS 1. Conversation Call from a Sub-Station Pressing the RS-100 switch panel CALL switch or picking up the sub-station handset initiates a call-in to the control station, indicated by a flashing LED on the switch panel. Pressing the PUSH-TO-TALK switch or picking up the AS-100A or AS-110 control station handset enables conversation, with the LED indicator fully on.
  • Page 4 CK-100B Card Case PU-200 Power Transformer Unit MU-110 LU-100 Main Control Unit Line Unit CT-100 Telephone & Tie Line Unit Main System Equipment YC-300 (optional) Wall Mounting Kit for CK-100B PN-100 (optional) Rack Mounting Panel for PU-200 LU-200 Line Unit DI-100 Interface Board PS-100...
  • Page 5 AS-100A AS-110 Control Station Control Station RS-150 RS-160 Economy Sub-Station Indoor Sub-Station " " " " " " SYSTEM CONSTRUCTION TABLE Sample System No. of Sub-Stations 1-15 max. (N)*1 No. of Control Stations C/O Lines Equipment: CK-100B YC-300 PU-200 PN-100B MU-110 LU-100 PS-100...

  • Page 6: Specifications

    Weight 35.3 lbs (16kg) Case Material Zinc-plated steel Finish Front panel: Noland Gray Enamel Case: Dark Gray Enamel *Specifications are subject to change without notice. SAMPLE SYSTEM CONFIGURATION IC-100 (1) CK-100B/YC-300 MU-110 PN-100B camera CT-100 controller or graphic panel PU-200...
