Summary of Contents for Finlux FL4023SMART

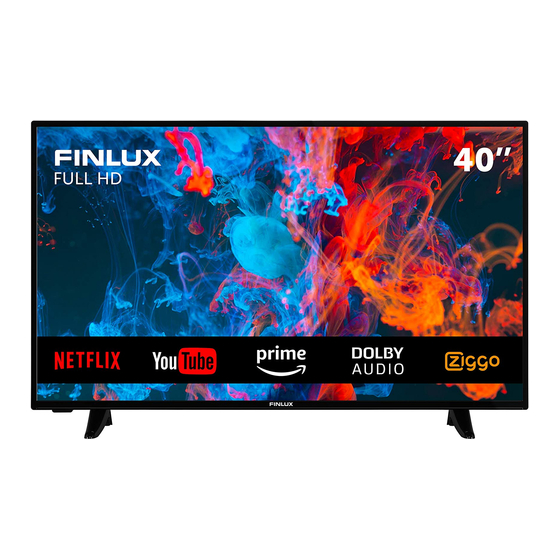

- Page 1 Kleurentelevisie Colour television Télévision en couleur Farve-tv Farbfernseher FL4023SMART Televisión en color De handleiding Owner’s manual Manuel d'utilisateur Brugervejledning Bedienungsanleitung Manual del propietario...
-
Page 2: Table Of Contents
Connectivity ............25 Contents Wired Connectivity..........25 Safety Information ........... 2 Wireless Connectivity ..........25 Markings on the Product.......... 2 Wake ON ............... 26 Environmental Information........4 Wireless Display ............ 26 Features ..............4 Connectivity Troubleshooting ........ 27 Accessories Included..........4 Using Audio Video Sharing Network Service .. -
Page 3: Safety Information
• Do not place any heat sources such as electric Safety Information heaters, radiators, etc. near the TV set. • Do not place the TV on the floor and inclined CAUTION surfaces. • To avoid danger of suffocation, keep plastic bags RISK OF ELECTRIC SHOCK out of the reach of the babies, children and domestic DO NOT OPEN... - Page 4 WARNING WARNING Do not ingest the battery, Chemical Burn Hazard Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the This product or the accessories supplied with the product may contain a coin/button cell battery. If the product may contain a coin/button cell battery.
-
Page 5: Environmental Information
• OSD menu system WALL MOUNTING WARNINGS • Stereo sound system • Read the instructions before mounting your TV • Teletext on the wall. • Headphone connection • The wall mount kit is optional. You can obtain from • Automatic programming system your local dealer, if not supplied with your TV. -
Page 6: Tv Control Button & Operation
If you highlight No and press OK, the TV will remain colour of the option changes when activated. Then on. You can also choose to cancel the Auto TV OFF press the button to increase or decrease the volume. function from this dialogue. Highlight Disable and To change channel: Press the control button to press OK, the TV will remain on and the function will display the function options menu and then press the... - Page 7 you can add it to the Home menu. Same way you Start early: You can set recording timer’s starting can delete or change the position of any item in the time to start earlier by using this setting. Home menu. Press the Down direction button and End late: You can set recording timer’s end time to select Delete or Move option and press OK.
-
Page 8: Inserting The Batteries Into The Remote
distribution of this technology outside of this product Inserting the Batteries into the Remote is prohibited without the appropriate license(s) from Remove the back cover to reveal the battery compart- Microsoft. ment. You need to do the followings in order to do that: Content owners use Microsoft PlayReady™... -
Page 9: Specification
The product and packaging should be taken to your Wireless LAN Transmitter Specifications local collection point for recycling. Frequency Ranges Max Output Power Some collection points accept products free of charge. 2400 - 2483,5 MHz (CH1-CH13) < 100 mW Note: The sign Pb below the symbol for batteries indicates that this battery contains lead. -
Page 10: Remote Control
Remote Control Standby: Switches On / Off the TV Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen. Language: Switches among sound modes (an- alogue TV), displays and changes audio/subtitle language and turns subtitles on or off (digital TV, where available) Mute: Completely turns off the volume of the TV Volume +/-... -
Page 11: Connections
Connections See the illustrations on the left Connector Type Cables Device side. You can use YPbPr to VGA cable to enable YPbPr signal via VGA input. You cannot use VGA and YPbPr at the same time. To Connection enable PC/YPbPr audio, you will (back) need to use the back audio inputs with a YPbPr/PC audio cable for... -
Page 12: Switching On/Off
be able to change your preferences at any time Switching On/Off later from the Settings>System>Privacy Settings To Switch the TV On menu. If the Internet Connection option is disabled Connect the power cord to a power source such as a Network/Internet Settings screen will be skipped wall socket (220-240V AC, 50 Hz). -
Page 13: Media Playback Via Usb Input
While the search continues current scan results will To record long duration programmes such as movies, it be displayed at the bottom of the screen. After all the is recommended to use USB Hard disk drives (HDD’s). available stations are stored, Channels menu will be Recorded programmes are saved into the connected displayed. -
Page 14: Media Browser
timeshifting, a warning message appears on the screen file. Press the Info button, highlight the gear wheel if your USB device speed is not sufficient. symbol positioned on the right side of the information bar and press OK. Picture Settings, Sound Settings, Watching Recorded Programmes Media Browser Settings and Options menus will be Select Recordings from the TV menu. -
Page 15: E-Manual
You can disable the CEC functionality by setting the related option under the Settings>System>More menu accordingly. The TV supports ARC (Audio Return Channel). This feature is an audio link meant to replace other cables between the TV and an audio system (A/V receiver or speaker system). -
Page 16: Settings Menu Contents
Settings Menu Contents Picture Menu Contents You can change the picture mode to suit your preference or requirements. Picture mode can Mode be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural. Contrast Adjusts the light and dark values on the screen. Brightness Adjusts the brightness values on the screen. - Page 17 Sound Menu Contents Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode. Balance Adjusts whether the sound comes from the left or right speaker. Sets headphone volume. Headphone Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
- Page 18 Network Menu Contents Network Type Disable the network connection or change the connection type. Scan Wireless Start a search for wireless networks. This option will be available if the Network Type Networks is set as Wireless Device. If your modem/router device has WPS, you can directly connect to it using this option. Press WPS on your Highlight this option and press OK.
- Page 19 System Menu Contents Conditional Access Controls conditional access modules when available. Language You may set a different language depending on the broadcaster and the country. Manage your privacy privileges for smart TV related applications. Press OK to enter Privacy Settings (*) the menu and set according to your preferences.
- Page 20 With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature. This function allows the connected HDMI-CEC compatible device to turn on the TV CEC Auto Power and switch to its input source automatically. Press Left or Right button to enable or disable the feature.
-
Page 21: General Tv Operation
Internet Lock: If this option is set to ON, the internet General TV Operation using applications will be disabled. Set to OFF to Using the Channel List release these applications again. The TV sorts all stored stations in the channel list. You Set PIN: Defines a new PIN number. -
Page 22: Teletext Services
Zoom: Highlight and press OK to see events in a the instructions displayed on the digital teletext screen. wider time interval. When the Text button is pressed again, the TV returns to television broadcast. Now/Next Schedule Software Upgrade In this layout option, only the current and next events of the listed channels will be displayed. -
Page 23: Pc Input Typical Display Modes
Remote control - no operation 1280x960 60Hz • The batteries may be exhausted. Replace the 1280x1024 60Hz batteries. 1280x1024 75Hz • The batteries maybe inserted incorrectly. Refer to 1400x1050 60Hz the section “Inserting the Batteries into the Remote”. 1440x900 60Hz No signal on an input source 1440x900 75Hz... -
Page 24: Supported File Formats For Usb Mode
Supported File Formats for USB Mode Video File Formats Extension Video Codec Max. Resolution & Frame Rate & Bit Rate .mpg, .mpeg, .dat, .vob MPEG1/2, H.264, VC1 .ts, .trp, .m2ts .avi MPEG1/2, MPEG4, H.264, MJPEG .mp4, .m4a, .m4v, .mov, .qt, MPEG1/2, H.263, MPEG4, H.264 .3gp, .3g2, .3gpp .mkv... -
Page 25: Subtitle File Formats
Subtitle File Formats External Subtitles Extension Specification .ssa SubStation Alpha .ass Advanced SubStation Alpha .srt Subripper .sub Micro DVD / SubViewer .sub + .idx VOBSub .txt Micro DVD / TMPlayer / MPL2 .mpl MPL2 .smi Sami .jss JACOSUB .ttml TTML .txt / .sub DVDSUBTITLE .lrc... -
Page 26: Connectivity
Internet Speed Test Connectivity Highlight Internet Speed Test and press the OK Wired Connectivity button. TV will check the internet connection bandwidth To Connect to a Wired Network and display the result when complete. • You must have a modem/router connected to an Advanced Settings active broadband connection. -
Page 27: Wake On
• The location where the transmission is most effective Connect your TV to your router following the steps differs depending on the usage environment. mentioned in the sections above. Afterwards, connect your mobile device to the router • The Wireless feature of the TV supports 802.11 a,b,g and then activate the sharing software on your mobile & n type modems. It is highly recommended that device. Then, select files that you want to share with you should use the IEEE 802.11n communication your TV. protocol in order to avoid any possible problems while watching videos. If the connection is established correctly, you will be able to access the shared files installed on your • You must change your modem’s SSID when there mobile device via the AVS(audio video sharing) -
Page 28: Connectivity Troubleshooting
Using with mobile devices each time when you connect to the internet. This is a precaution against unauthorized access. Since your There are different standards which enable sharing of TV has its own MAC address, your internet service screens including graphical, video and audio content provider cannot validate the MAC address of your TV. between your mobile device and TV. For this reason, your TV cannot connect to the internet. Plug the wireless USB dongle to TV first, if the TV Contact your internet service provider and request doesn’t have internal WLAN feature. -
Page 29: Apps
PC/HDD/Media Player or any other devices that are Name and Address, highlight OK and press the OK compatible should be used with a wired connection for button to add. Whilst you are on the site you wish to higher playback quality. add to the Speed Dial list, highlight the Vewd button and press the OK button. -
Page 30: Dvb Functionality Information
button to open the application page. After the page is DVB functionality information displayed you can go back to the initial red button icon This DVB receiver is only suitable for use in the country state by pressing the red button again. You can toggle which it was designed to be used in. - Page 31 www.elmarc.eu 50538905...
