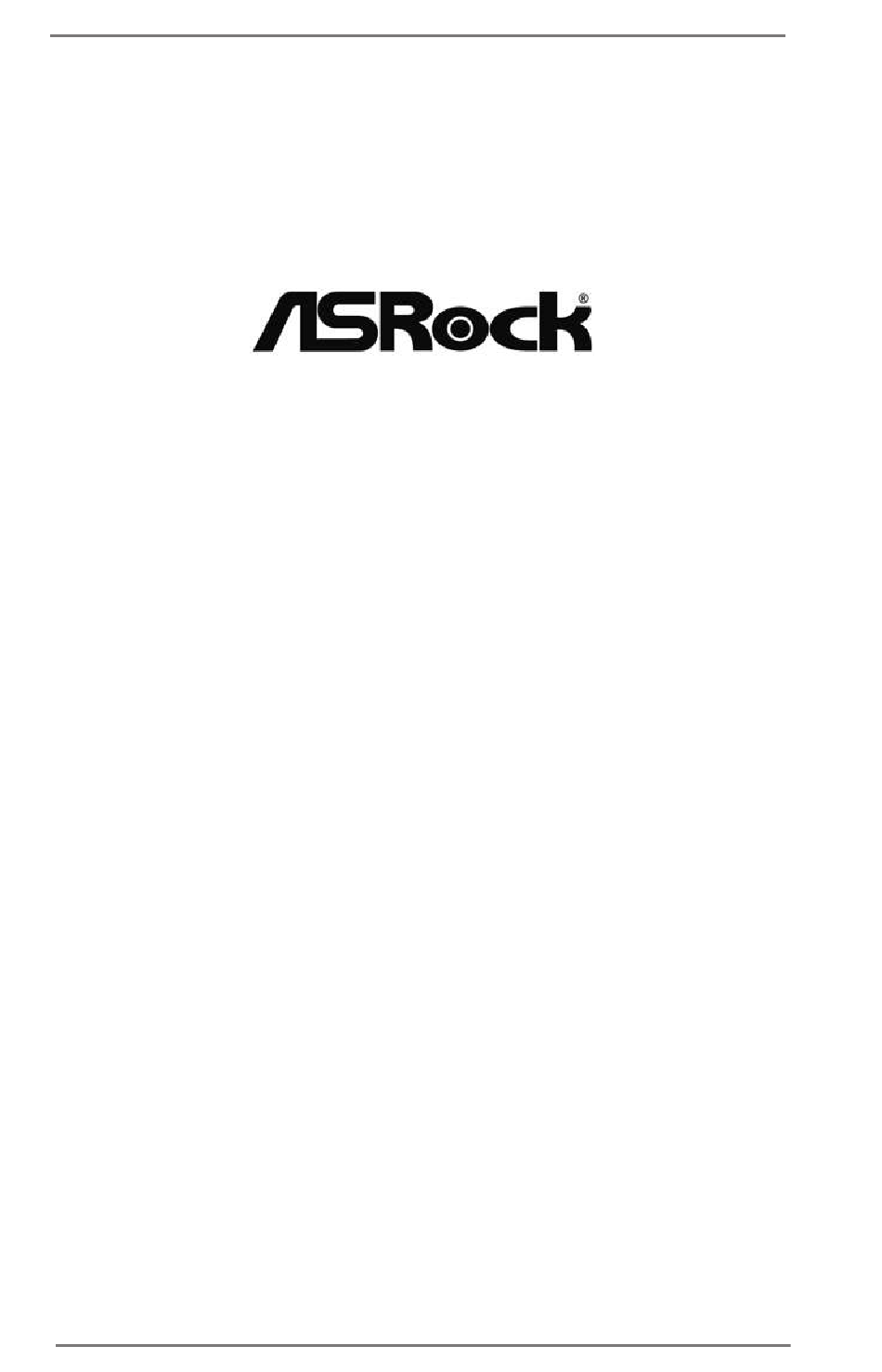

- Page 1 SBC-330 User Manual Version 1.0 Published May 2017 Copyright©2017 ASRock INC. All rights reserved.
- Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
-
Page 3: Table Of Contents
Contents 1 Introduction ............5 1.1 Package Contents ............5 1.2 Specifications ..............6 1.3 Motherboard Layout ............8 1.4 I/O Panel ................ 10 2 Installation ............11 2.1 Screw Holes ..............11 2.2 Pre-installation Precautions ........... 11 2.3 Installation of Memory Modules (SO-DIMM) ....12 2.4 Expansion Slots (mini-PCIe and mini-PCIe/mini-SATA Slots) ................ - Page 4 4 Software Support ..........40 4.1 Install Operating System ..........40 4.2 Support CD Information ..........40 4.2.1 Running Support CD ............ 40 4.2.2 Drivers Menu ............... 40 4.2.3 Utilities Menu ............... 40 4.2.4 Contact Information ............. 40...
-
Page 5: Introduction
In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. -
Page 6: Specifications
1.2 Specifications Form Dimensions 3.5” SBC (5.8-in x 4.0-in) / (146 x 102 mm) Factor ® BGA1356 for Intel Skylake-U SoC Core (By CPU, Max 4) Number Processor Max Speed (By CPU) System L3 Cache (By CPU) Chipset (By CPU) BIOS UEFI 1 x mini-PCIe (half/full/ size, PCIex1 + USB2.0),... - Page 7 HDMI DisplayPort 2 x DP1.2 Rear I/O Ethernet 4 x USB3.0 Audio Serial PS/2 4 x USB 2.0 (2 x 2.54 pitch header) LVDS/ Inverter 4 x 2.0 pitch header RS-232 (COM1 support Serial RS-232/422/485) SATA 2 x SATA3 (6.0Gb/s) Internal mPCIe Connector...
-
Page 8: Motherboard Layout
1.3 Motherboard Layout BIOS DDR4_B1 (Support DDR4L Only) Chip DDR4_A1 (Support DDR4L Only) USB 3.0 CLRMOS1 T: USB2 B: USB1 MSATA_SEL1 USB 3.0 T: USB4 B: USB3 USB2_7_8 USB2_5_6 BLT_PWM1 SATA3_2 LAN1 SATA3_1 LAN2 BLT_PWR1 SATA_PWR1 HD_AUDIO1 BLT_VOL1 LPC1 PWR_COM1 PWR_COM4 SPEAKER1 PWR_COM2... - Page 9 1 : 2-Pin Buzzer Header 2 : Clear CMOS Header 3 : mSATA Select 4 : 4-Pin CPU FAN Connector (+12V) 5 : USB2.0 Headers (USB2_5_6, USB2_7_8) 6 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1) 7 : Panel Power Selection (LCD_VCC) (PNL_PWR1) 8 : BL1, BL2 9 : Backlight Control Level (BLT_PWM1) 10 : SATA3 Connectors (SATA3_1, SATA3_2)
-
Page 10: I/O Panel
1.4 I/O Panel USB 3.0 Ports (USB12) DisplayPort 1.2 (DP1) USB 3.0 Ports (USB34) LAN RJ-45 Port (LAN1)* DisplayPort 1.2 (DP2) LAN RJ-45 Port (LAN2)* * There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications. -
Page 11: Installation
Chapter 2: Installation This is a 3.5” SBC (5.8-in x 4.0-in) form factor (146 x 102 mm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Make sure to unplug the power cord before installing or removing the motherboard. -
Page 12: Installation Of Memory Modules (So-Dimm)
2.3 Installation of Memory Modules (SO-DIMM) SBC-330 provides two 204-pin DDR4 (Double Data Rate 4) SO-DIMM slots. Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM matches the break on the slot. 1. The SO-DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at incorrect orientation. -
Page 13: Expansion Slots (Mini-Pcie And Mini-Pcie/Mini-Sata Slots)
2.4 Expansion Slots (mini-PCIe and mini-PCIe/mini-SATA Slots) There is 1 mini-PCIe slot and 1 mini-PCIe/mini-SATA slot on this motherboard. mini-PCIe slot: MINI_PCIE1 (mini-PCIe slot; full size) is used for PCI Express mini cards. mini-PCIe/mini-SATA slot: MINI_SATA1 (mini-PCIe/mini-SATA slot; full size) is used for PCI Ex- press mini cards or mSATA cards. -
Page 14: Jumpers Setup
2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”... - Page 15 Backlight Power Select Use this to set up the backlight (LCD_BLT_VCC) power of the LVDS connector. 1-2: +5V (5-pin BKT_PWR1) 2-3: +12V (see p.8 No. 6) 3-4: +12V 4-5: DC_IN Power Backlight Control Level 1-2: +3V 2-3: +5V (3-pin BLT_PWM1) (see p.8 No.
-
Page 16: Onboard Headers And Connectors
2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! SATA3 Connectors These two Serial ATA3 SATA3_2 (SATA3) connectors support (SATA3_1, SATA3_2: see p.8, No. - Page 17 HDLED (Hard Drive Activity LED): Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data. The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc.
- Page 18 COM Port Headers (10-pin COM1) (see p.8 No. 22) (10-pin COM2) (see p.8 No. 20) (10-pin COM3) Signal Signal Signal Signal Signal Name Name Name Name Name (see p.8 No. 18) DUMMY CCTS# DDSR# DDTR# RRXD (10-pin COM4) DUMMY RRTS# TTXD DDCD# (see p.8 No.
- Page 19 LVDS Connector Signal Name Signal Name LCD_VCC LCD_VCC (40-pin LVDS1) LDDC_CLK +3.3V (see p.8 No. 29) LVDS_A_DATA0# LDDC_DATA LVDS_A_DATA0 LVDS_A_DATA1 LVDS_A_DATA1# LVDS_A_DATA2# LVDS_A_DATA2 LVDS_A_DATA3 LVDS_A_DATA3# LVDS_A_CLK# LVDS_A_CLK LVDS_B_DATA0 LVDS_B_DATA0# LVDS_B_DATA1# LVDS_B_DATA1 LVDS_B_DATA2 LVDS_B_DATA2# LVDS_B_DATA3# DPLVDD_EN LVDS_B_DATA3 LVDS_B_CLK LVDS_B_CLK# CON_LBKLT_EN LCD_BLT_VCC CON_LBKLT_CTL LCD_BLT_VCC LCD_BLT_VCC...
- Page 20 LPC Header This connector supports Trusted Platform Module (TPM) (19-pin LPC1) system, which can securely (see p.8 No. 16) store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity. BL1, BL2 Headers (2-pin BL1, BL2) (see p.8 No.
-
Page 21: Uefi Setup Utility
Chapter 3: UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>... -
Page 22: Navigation Keys
3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Enter>... -
Page 23: Advanced Screen
3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configu- ration, Chipset Configuration, Storage Configuration, AMT Configuration, Super IO Configuration, ACPI Configuration, USB Configuration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction. -
Page 24: Cpu Configuration
3.3.1 CPU Configuration Intel Hyper Threading Technology To enable this feature, a computer system with an Intel processor that sup- ports Hyper-Threading technology and an operating system that includes ® ® optimization for this technology, such as Microsoft Windows 7 / 8 / 8.1 / ®... - Page 25 ® [Enabled] and [Disabled]. If you install Windows 7 / 8 / 8.1 / 10 and want to enable this function, please set this item to [Enabled]. This item will be hidden if the current CPU does not support Intel SpeedStep technology. Please note that enabling this function may reduce CPU voltage and lead to system stability or compatibility issues with some power supplies.
-
Page 26: Chipset Configuration
3.3.2 Chipset Configuration Top of Lower usable DRAM Set the maximum value of TOLUD. Set this item to Dynamic to allow TOLUD to adjust automatically based on the largest MMIO length of the installed graphic controller. VT-d ® ® Use this to enable or disable Intel VT-d technology (Intel Virtualization Technology for Directed I/O). - Page 27 Active LVDS Use this to enable or disable the LVDS. The default value is [Disabled]. Set the item to [enable]. Then press <F10> to save the setting and restart the system. Now the default value of Active LVDS is changed to ENABLE (F9 load default is also set to ENABLE) Change the setting from [Enable] to [Disable], and then press <F10>...
-
Page 28: Storage Configuration
3.3.3 Storage Configuration SATA Controller(s) Use this item to enable or disable the SATA Controller feature. SATA Mode Selection Use this to select SATA mode. The default value is [AHCI Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk perfor- mance but IDE mode does not have these advantages. -
Page 29: Amt Configuration
3.3.4 AMT Technology Intel AMT Use this to enable or disable Intel(R) Active Management Technology BIOS Extension. The default is [Enabled]. BIOS Hotkey Pressed Use this to enable or disable BIOS hotkey press. The default is [Disabled]. MEBx Selection Screen Use this to enable or disable MEBx Selection Screen. - Page 30 PET Progress User can enable or disable PET Events progress to receive PET events or not. The default is [Enabled].
-
Page 31: Super Io Configuration
3.3.5 Super IO Configuration COM1 Configuration Use this to set parameters of COM1. Select COM1 port type: [RS232], [RS422] or [RS485]. COM2 Configuration Use this to set parameters of COM2. COM3 Configuration Use this to set parameters of COM3. COM4 Configuration Use this to set parameters of COM4. -
Page 32: Acpi Configuration
3.3.6 ACPI Configuration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. ACPI HPET Table Use this item to enable or disable ACPI HPET Table. The default value is [Enabled]. -
Page 33: Usb Configuration
3.3.7 USB Configuration Legacy USB Support Use this option to select legacy support for USB devices. There are four configuration options: [Enabled], [Auto] and [UEFI Setup Only]. The default value is [Enabled]. Please refer to below descriptions for the details of these four options: [Enabled] - Enables support for legacy USB. -
Page 34: Trusted Computing
3.3.8 Trusted Computing Security Device Support Enable or disable BIOS support for security device. -
Page 35: Hardware Health Event Monitoring Screen
3.4 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CPU_FAN1 Setting This allows you to set CPU fan 1’s speed. -
Page 36: Security Screen
3.5 Security Screen In this section, you may set, change or clear the supervisor/user password for the system. Supervisor Password Set or change the password for the administrator account. Only the ad- ministrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password. -
Page 37: Boot Screen
3.6 Boot Screen In this section, it will display the available devices on your system for you to config- ure the boot settings and the boot priority. Boot From Onboard LAN Use this item to enable or disable the Boot From Onboard LAN feature. Setup Prompt Timeout This shows the number of seconds to wait for setup activation key. - Page 38 CSM (Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable ® unless you’re running a WHCK test. If you are using Windows 8.1 / 8 64- bit and all of your devices support UEFI, you may also disable CSM for faster boot speed.
-
Page 39: Exit Screen
3.7 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”... - Page 40 Click on a specific item then follow the installation wizard to install it. 4.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may con-...
