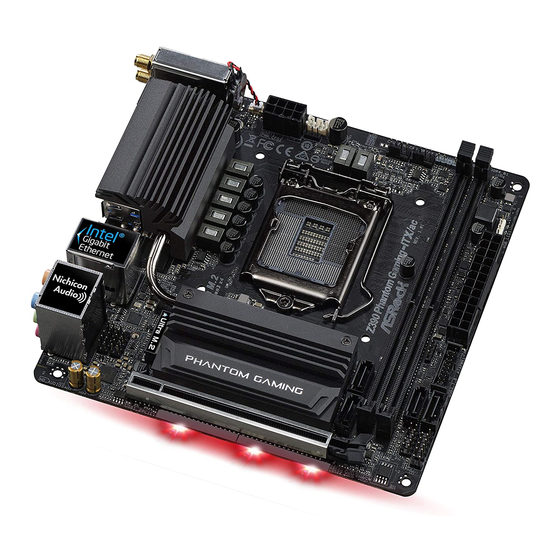

ASROCK Z390 Phantom Gaming-ITX/AC User Manual
  1. Manuals
  2. Brands
  3. ASROCK Manuals
  4. Motherboard
  5. Z390 Phantom Gaming 9
  6. User manual

ASROCK Z390 Phantom Gaming-ITX/AC User Manual

Hide thumbs Also See for Z390 Phantom Gaming-ITX/AC:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z390 Phantom Gaming-ITX/AC and is the answer not in the manual?

Questions and answers

Related Manuals for ASROCK Z390 Phantom Gaming-ITX/AC

Summary of Contents for ASROCK Z390 Phantom Gaming-ITX/AC

  • Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) The terms HDMI®...
  • Page 4 CE Warning This device complies with directive 2014/53/EU issued by the Commision of the European Community. This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator &...

  • Page 5: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Motherboard Layout I/O Panel WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz Antenna Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Modules (DIMM) Expansion Slots (PCI Express Slot)
  • Page 6 3.3.2 Apps 3.3.3 BIOS & Drivers 3.3.4 Setting Creative SoundBlaster Cinema5 ASRock Polychrome RGB Chapter 4 UEFI SETUP UTILITY Introduction EZ Mode Advanced Mode 4.3.1 UEFI Menu Bar 4.3.2 Navigation Keys Main Screen OC Tweaker Screen Advanced Screen 4.6.1 CPU Configuration 4.6.2 Chipset Configuration...
  • Page 7 Security Screen 4.10 Boot Screen 4.11 Exit Screen...

  • Page 8: Chapter 1 Introduction

    ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 9: Specifications

    • Supports DDR4 4500+(OC)*/4333(OC)/4266(OC)/ 4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/ 3600(OC)/3200(OC)/2933(OC)/2800(OC)/2666/2400/2133 non-ECC, un-buffered memory * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) • Supports ECC UDIMM memory modules (operate in non- ECC mode) • Max. capacity of system memory: 32GB • Supports Intel®...
  • Page 10 Z390 Phantom Gaming-ITX/ac Graphics * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. • Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel®...
  • Page 11 • Impedance Sensing on Rear Out port • Individual PCB Layers for R/L Audio Channel • Gold Audio Jacks • 15μ Gold Audio Connector • Supports Creative SoundBlaster Cinema5 • Gigabit LAN 10/100/1000 Mb/s • Giga PHY Intel® I219V • Supports Wake-On-LAN • Supports Lightning/ESD Protection • Supports Energy Efficient Ethernet 802.3az • Supports PXE...
  • Page 12 Z390 Phantom Gaming-ITX/ac Storage • 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI and Hot Plug* * If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
  • Page 13 • ErP/EuP ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.

  • Page 14: Motherboard Layout

    Z390 Phantom Gaming-ITX/ac 1.3 Motherboard Layout Top Side View RoHS CHA_FAN1 BAT1 BTN1 ADDR_LED1 CPU_FAN1 CPU_OPT/W_PUMP M2_WIFI ATX12V1 RGB_LED1 USB 3.1 Gen2 T: USB3 B: USB4 USB 3.1 Gen2 Top: T: USB5 RJ-45 B: USB6 Intel Z390 HD_AUDIO1 USB1_2 SUPER...
  • Page 15 Back Side View...
  • Page 16 Z390 Phantom Gaming-ITX/ac No. Description Chassis Fan Connector (CHA_FAN1) ATX 12V Power Connector (ATX12V1) CPU Fan Connector (CPU_FAN1) CPU/Water Pump Fan Connector (CPU_OPT/W_PUMP) Addressable LED Header (ADDR_LED1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) RGB LED Header (RGB_LED1) ATX Power Connector (ATXPWR1) Chassis Speaker Header (SPEAKER1) USB 3.1 Gen1 Header (USB3_7_8)

  • Page 17: I/O Panel

    1.4 I/O Panel No. Description No. Description Antenna Ports Optical SPDIF Out Port PS/2 Mouse/Keyboard Port USB 3.1 Gen2 Ports (USB3_5_6) LAN RJ-45 Port* Intel® Thunderbolt 3 (TB_1) Central / Bass (Orange) USB 3.1 Gen2 Ports (USB3_3_4) Rear Speaker (Black) DisplayPort 1.2 Line In (Light Blue) HDMI Port...
  • Page 18 Z390 Phantom Gaming-ITX/ac * There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port Activity / Link LED Speed LED Status Description Status Description...

  • Page 19: Wifi-802.11Ac Module And Asrock Wifi 2.4/5 Ghz Antenna

    1.5 WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz Antenna WiFi-802.11ac + BT Module This motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v5.0 module (pre-installed on the rear I/O panel) that offers support for WiFi 802.11 a/b/ g/n/ac connectivity standards and Bluetooth v5.0. WiFi + BT module is an easy-to- use wireless local area network (WLAN) adapter to support WiFi + BT.

  • Page 20: Chapter 2 Installation

    Z390 Phantom Gaming-ITX/ac Chapter 2 Installation This is a Mini-ITX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 21: Installing The Cpu

    2.1 Installing the CPU 1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
  • Page 22 Z390 Phantom Gaming-ITX/ac...
  • Page 23 Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

  • Page 24: Installing The Cpu Fan And Heatsink

    Z390 Phantom Gaming-ITX/ac 2.2 Installing the CPU Fan and Heatsink...

  • Page 25: Installing Memory Modules (Dimm)

    2.3 Installing Memory Modules (DIMM) This motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs. 2.
  • Page 26 Z390 Phantom Gaming-ITX/ac...

  • Page 27: Expansion Slots (Pci Express Slot)

    2.4 Expansion Slots (PCI Express Slot) There is 1 PCI Express slot slot on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 28: Onboard Headers And Connectors

    Z390 Phantom Gaming-ITX/ac 2.5 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
  • Page 29 Serial ATA3 Connectors These four SATA3 (SATA3_0: connectors support SATA see p.7, No. 15) data cables for internal (SATA3_1: storage devices with up to see p.7, No. 16) 6.0 Gb/s data transfer rate. (SATA3_2: * If M2_1 is occupied by see p.7, No.
  • Page 30 Z390 Phantom Gaming-ITX/ac Front Panel Audio Header This header is for OUT_RET OUT2_L (9-pin HD_AUDIO1) connecting audio devices J_SENSE MIC_RET OUT2_R (see p.7, No. 18) to the front audio panel. PRESENCE# MIC2_R GN D MIC2_L 1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly.
  • Page 31 CPU/Water Pump Fan This motherboard FAN_SPEED FAN_VOLTAGE_CONTROL Connector provides a 4-Pin water FAN_SPEED_CONTROL (4-pin CPU_OPT/W_ cooling CPU fan PUMP) connector. If you plan (see p.7, No. 4) to connect a 3-Pin CPU water cooler fan, please connect it to Pin 1-3. ATX Power Connector This motherboard pro- (24-pin ATXPWR1)
  • Page 32 Z390 Phantom Gaming-ITX/ac RGB LED Header RGB header is used to connect (4-pin RGB_LED1) RGB LED extension cable which (see p.7, No. 7) allows users to choose from various LED lighting effects. Caution: Never install the RGB LED cable in the wrong orientation;...

  • Page 33: Smart Button

    2.6 Smart Button The motherboard has one smart button: Clear CMOS Button, allowing users to clear the CMOS values. Clear CMOS Button Clear CMOS Button (CLRCBTN) allows users to quickly (see p.10, No. 16) clear the CMOS values. This function is workable only when you power off your computer and unplug the power supply.
  • Page 34 Z390 Phantom Gaming-ITX/ac 2.7 M.2_SSD (NGFF) Module Installation Guide (M2_1) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Sockets (M2_1) support M.2 SATA3 6.0 Gb/s modules and M.2 PCI Express modules up to...
  • Page 35 M.2_SSD (NGFF) Module Support List Vendor Interface ADATA SATA3 AXNS381E-128GM-B ADATA SATA3 AXNS381E-256GM-B ADATA SATA3 ASU800NS38-256GT-C ADATA SATA3 ASU800NS38-512GT-C ADATA PCIe3 x4 ASX7000NP-128GT-C ADATA PCIe3 x4 ASX8000NP-256GM-C ADATA PCIe3 x4 ASX7000NP-256GT-C ADATA PCIe3 x4 ASX8000NP-512GM-C ADATA PCIe3 x4 ASX7000NP-512GT-C Apacer PCIe3 x4 AP240GZ280 Corsair...
  • Page 36 Z390 Phantom Gaming-ITX/ac V-Color SATA3 VSM100-240G-2280 V-Color SATA3 VLM100-240G-2280B-RD SATA3 WDS100T1B0B-00AS40 SATA3 WDS240G1G0B-00RC30 PCIe3 x4 WDS256G1X0C-00ENX0 (NVME) PCIe3 x4 WDS512G1X0C-00ENX0 (NVME) For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com...
  • Page 37 2.8 M.2_SSD (NGFF) Module Installation Guide (M2_2) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Sockets (M2_2) support M.2 SATA3 6.0 Gb/s modules and M.2 PCI Express modules up to Gen3 x4 (32 Gb/s).
  • Page 38 Z390 Phantom Gaming-ITX/ac Step 3 Before installing a M.2 (NGFF) SSD module, please loosen the screws to remove the M.2 heatsink. Step 4 Move the standoff based on the module type and length. The standoff is placed at the nut location B by default.
  • Page 39 Step 6 Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation. Step 7 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
  • Page 40 Z390 Phantom Gaming-ITX/ac M.2_SSD (NGFF) Module Support List Vendor Interface ADATA SATA3 AXNS381E-128GM-B ADATA SATA3 AXNS381E-256GM-B ADATA SATA3 ASU800NS38-256GT-C ADATA SATA3 ASU800NS38-512GT-C ADATA PCIe3 x4 ASX7000NP-128GT-C ADATA PCIe3 x4 ASX8000NP-256GM-C ADATA PCIe3 x4 ASX7000NP-256GT-C ADATA PCIe3 x4 ASX8000NP-512GM-C ADATA PCIe3 x4...
  • Page 41 SATA3 VLM100-120G-2280B-RD V-Color SATA3 VLM100-240G-2280RGB V-Color SATA3 VSM100-240G-2280 V-Color SATA3 VLM100-240G-2280B-RD SATA3 WDS100T1B0B-00AS40 SATA3 WDS240G1G0B-00RC30 PCIe3 x4 WDS256G1X0C-00ENX0 (NVME) PCIe3 x4 WDS512G1X0C-00ENX0 (NVME) For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com...

  • Page 42: Chapter 3 Software And Utilities Operation

    Z390 Phantom Gaming-ITX/ac Chapter 3 Software and Utilities Operation 3.1 Installing Drivers The Support CD that comes with the motherboard contains necessary drivers and useful utilities that enhance the motherboard’s features. Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if “AUTORUN”...

  • Page 43: Phantom Gaming Tuning

    3.2 Phantom Gaming Tuning Phantom Gaming Tuning is ASRock’s multi purpose software suite with a new interface, more new features and improved utilities. 3.2.1 Installing Phantom Gaming Tuning Phantom Gaming Tuning can be downloaded from ASRock Live Update & APP Shop.
  • Page 44 Z390 Phantom Gaming-ITX/ac OC Tweaker Configurations for overclocking the system. System Info View information about the system. *The System Browser tab may not appear for certain models.
  • Page 45 Settings Configure ASRock Phantom Gaming Tuning. Click to select "Auto run at Windows Startup" if you want Phantom Gaming Tuning to be launched when you start up the Windows operating system.

  • Page 46: Asrock Live Update & App Shop

    Double-click on your desktop to access ASRock Live Update & APP Shop utility. *You need to be connected to the Internet to download apps from the ASRock Live Update & APP Shop. 3.3.1 UI Overview Category Panel Hot News...

  • Page 47: Apps

    3.3.2 Apps When the "Apps" tab is selected, you will see all the available apps on screen for you to download. Installing an App Step 1 Find the app you want to install. Th e most recommended app appears on the left side of the screen. Th e other various apps are shown on the right.
  • Page 48 Z390 Phantom Gaming-ITX/ac Step 3 If you want to install the app, click on the red icon to start downloading. Step 4 When installation completes, you can fi nd the green "Installed" icon appears on the upper right corner. To uninstall it, simply click on the trash can icon...
  • Page 49 Upgrading an App You can only upgrade the apps you have already installed. When there is an available new version for your app, you will fi nd the mark of "New Version" appears below the installed app icon. Step 1 Click on the app icon to see more details.

  • Page 50: Bios & Drivers

    Z390 Phantom Gaming-ITX/ac 3.3.3 BIOS & Drivers Installing BIOS or Drivers When the "BIOS & Drivers" tab is selected, you will see a list of recommended or critical updates for the BIOS or drivers. Please update them all soon. Step 1 Please check the item information before update.

  • Page 51: Setting

    3.3.4 Setting In the "Setting" page, you can change the language, select the server location, and determine if you want to automatically run the ASRock Live Update & APP Shop on Windows startup.

  • Page 52: Creative Soundblaster Cinema5

    Z390 Phantom Gaming-ITX/ac 3.4 Creative SoundBlaster Cinema5 The SoundBlaster Cinema5, powered by the SBX Pro Studio technologies, is designed to bring the same great audio experience found in live performances, films, and recording studios to the PC. With this utility, you can easily enhance your audio environment in five modes, including Headphones, Speakers, Music, Movie, Game, Voice and Custom.

  • Page 53: Asrock Polychrome Rgb

    3.5 ASRock Polychrome RGB ASRock RGB LED is a lighting control utility specifically designed for unique individuals with sophisticated tastes to build their own stylish colorful lighting system. Simply by connecting the LED strip, you can customize various lighting schemes and patterns, including Static, Breathing, Strobe, Cycling, Music, Wave and more.
  • Page 54 Z390 Phantom Gaming-ITX/ac Connecting the Addressable RGB LED Strip Connect your Addressable RGB LED strip to the Addressable LED Header (ADDR_LED1) on the motherboard. ADDR_LED1 DO_ADDR VOUT 1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
  • Page 55 ASRock Polychrome LED Utility Now you can adjust the RGB LED color through the ASRock Polychrome LED utility. Download this utility from the ASRock Live Update & APP Shop and start coloring your PC style your way! Drag the tab to customize your preference.

  • Page 56: Chapter 4 Uefi Setup Utility

    Z390 Phantom Gaming-ITX/ac Chapter 4 UEFI SETUP UTILITY 4.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right after you power on the computer, otherwise, the Power-On-Self-Test (POST) will continue with its test routines.

  • Page 57: Ez Mode

    4.2 EZ Mode The EZ Mode screen appears when you enter the BIOS setup program by default. EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.

  • Page 58: Advanced Mode

    Z390 Phantom Gaming-ITX/ac 4.3 Advanced Mode The Advanced Mode provides more options to configure the BIOS settings. Refer to the following sections for the detailed configurations. To access the EZ Mode, press <F6> or click the "EZ Mode" button at the upper right corner of the screen.

  • Page 59: Navigation Keys

    4.3.2 Navigation Keys Use < Use < Use < > key or < > key or < > key or < > key to choose among the selections on the menu bar, and > key to choose among the selections on the menu bar, and >...

  • Page 60: Main Screen

    Z390 Phantom Gaming-ITX/ac 4.4 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. My Favorite Display your collection of BIOS items. Press F5 to add/remove your favorite items.

  • Page 61: Oc Tweaker Screen

    4.5 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. Because the UEFI software is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.
  • Page 62 Z390 Phantom Gaming-ITX/ac CPU Configuration Multi Core Enhancement Improve the system's performance by forcing the CPU to perform the highest frequency on all CPU cores simultaneously. Disable to reduce power consumption . CPU Ratio The CPU speed is determined by the CPU Ratio multiplied with the BCLK.
  • Page 63 BCLK Aware Adaptive Voltage Enable or disable BCLK Aware Adaptive Voltage. When enabled, pcode will be aware of the BCLK frequency when calculating the CPU V/F curves. This is ideal for BCLK OC to avoid high voltage overrides. Ring to Core Ratio Offset Disable Ring to Core Ratio Offset so the ring and core can run at the same fre- quency.
  • Page 64 Z390 Phantom Gaming-ITX/ac Short Duration Power Limit Configure Package Power Limit 2 in watts. When the limit is exceeded, the CPU ratio will be lowered immediately. A lower limit can protect the CPU and save power, while a higher limit may improve performance.
  • Page 65 Command Rate (CR) The delay between when a memory chip is selected and when the first active command can be issued. Secondary Timing Write Recovery Time (tWR) The amount of delay that must elapse after the completion of a valid write operation, before an active bank can be precharged.
  • Page 66 Z390 Phantom Gaming-ITX/ac Third Timing tREFI Configure refresh cycles at an average periodic interval. tCKE Configure the period of time the DDR4 initiates a minimum of one refresh command internally once it enters Self-Refresh mode. Turn Around Timing tRDRD_sg Configure between module read to read delay.
  • Page 67 tWRRD_dr Configure between module write to read delay. tWRRD_dd Configure between module write to read delay. tWRWR_sg Configure between module write to write delay. tWRWR_dg Configure between module write to write delay. tWRWR_dr Configure between module write to write delay. tWRWR_dd Configure between module write to write delay.
  • Page 68 Z390 Phantom Gaming-ITX/ac IOL Offset (CH B) Configure IO latency offset for channel B. RFR Delay (CH A) Configure RFR Delay for Channel A. RFR Delay (CH B) Configure RFR Delay for Channel B. ODT Setting ODT WR (A1) Configure the memory on die termination resistors' WR.
  • Page 69 DQ ODT Driving Adjust ODT Driving for better signal. Default is 60. DQ Driving Adjust DQ Driving for better signal. Default is 26. Command Driving Adjust Command Driving for better signal. Default is 20. Control Driving Adjust Control Driving for better signal. Default is 20. Clock Driving Adjust Clock Driving for better signal.
  • Page 70 MRS tCCD_L Configure the tCL for Memory MRS MR6. Advanced Setting ASRock Timing Optimization Enable/Disable ASRock Timing Optimization. When enabled, the memory timing will use ASRock optimized value. Realtime Memory Timing Enable/Disable realtime memory timings. When enabled, the system will allow performing realtime memory timing changes after MRC_DONE.
  • Page 71 Voltage Configuration Voltage Mode [Extreme]: Larger range voltage for extreme system. [Normal]: Smaller range voltage for normal system. CPU Core/Cache Voltage Input voltage for the processor by the external voltage refulator. CPU Load-Line Calibration CPU Load-Line Calibration helps prevent CPU voltage droop when the system is under heavy load.
  • Page 72 Z390 Phantom Gaming-ITX/ac VCCSA Voltage Configure the voltage for the VCCSA. VCCPLL Voltage Configure the voltage for the VCCPLL. VCCPLL_V4 Recommended to set 2.200V-2.400V for Ln2 benching. It will solve most of CPU cold bug. V_PEGRCOMP Configure the voltage for CPU PLL Standby.
  • Page 73 Save User Default Type a profile name and press enter to save your settings as user default. Load User Default Load previously saved user defaults. Save User UEFI Setup Profile to Disk Save current UEFI settings as an user default profile to disk. Load User UEFI Setup Profile to Disk Load previously saved user defaults from the disk.

  • Page 74: Advanced Screen

    Z390 Phantom Gaming-ITX/ac 4.6 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, Chipset Configuration, Storage Configuration, Intel(R) Thunder- bolt, Super IO Configuration, ACPI Configuration, USB Configuration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction.

  • Page 75: Cpu Configuration

    4.6.1 CPU Configuration Intel Hyper Threading Technology Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved. Active Processor Cores Select the number of cores to enable in each processor package. CPU C States Support Enable CPU C States Support for power saving.
  • Page 76 Z390 Phantom Gaming-ITX/ac CPU C10 State Support Enable C10 sleep state for lower power consumption. Package C State Support Enable CPU, PCIe, Memory, Graphics C State Support for power saving. CFG Lock This item allows you to disable or enable the CFG Lock.

  • Page 77: Chipset Configuration

    4.6.2 Chipset Configuration Primary Graphics Adapter Select a primary VGA. Above 4G Decoding Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if the system supports 64 bit PCI decoding). VT-d Intel® Virtualization Technology for Directed I/O helps your virtual machine monitor better utilize hardware by improving application compatibility and reliability, and providing additional levels of manageability, security, isolation, and I/O performance.
  • Page 78 Z390 Phantom Gaming-ITX/ac PCH PCIE ASPM Support This option enables/disables the ASPM support for all PCH PCIE devices. DMI ASPM Support This option enables/disables the control of ASPM on CPU side of the DMI Link. PCH DMI ASPM Support This option enables/disables the ASPM support for all PCH DMI devices.
  • Page 79 Riser Card Support Riser Card: Enable x8/x8 to x8/x8 Eneble x8/x4/x4 to x8/x4/x4 Disable to x16 Deep Sleep Configure deep sleep mode for power saving when the computer is shut down. Restore on AC/Power Loss Select the power state after a power failure. If [Power Off] is selected, the power will remain off when the power recovers.

  • Page 80: Storage Configuration

    Z390 Phantom Gaming-ITX/ac 4.6.3 Storage Configuration SATA Controller(s) Enable/disable the SATA controllers. SATA Mode Selection AHCI: Supports new features that improve performance. Intel RST Premium (RAID): Combine multiple disk drives into a logical unit. SATA Aggressive Link Power Management SATA Aggressive Link Power Management allows SATA devices to enter a low power state during periods of inactivity to save power.

  • Page 81: Intel® Thunderbolt

    4.6.4 Intel® Thunderbolt Discrete Thunderbolt(TM) Support Enable or disable the Discrete Thunderbolt(TM) Support. Thunderbolt Boot Support Enabled to allow booting from Bootable devices which are present behind Thunderbolt. Thunderbolt Usb Support Enabled to allow booting from Usb devices which are present behind Thunderbolt. Titan Ridge Workaround for OSUP Enable or disable Titan Ridge Workaround for OSUP.
  • Page 82 Z390 Phantom Gaming-ITX/ac Windows 10 Thunderbolt support Specify Windows 10 Thunderbolt support level. Disabled: No OS native support. Enabled: OS Native support only. no RTD3.

  • Page 83: Super Io Configuration

    4.6.5 Super IO Configuration PS2 Y-Cable Enable the PS2 Y-Cable or set this option to Auto.

  • Page 84: Acpi Configuration

    Z390 Phantom Gaming-ITX/ac 4.6.6 ACPI Configuration Suspend to RAM Select disable for ACPI suspend type S1. It is recommended to select auto for ACPI S3 power saving. PS/2 Keyboard S4/S5 Wakeup Support Allow the system to be waked up by a PS/2 Keyboard in S4/S5.

  • Page 85: Usb Configuration

    4.6.7 USB Configuration Legacy USB Support Enable or disable Legacy OS Support for USB 2.0 devices. If you encounter USB compatibility issues it is recommended to disable legacy USB support. Select UEFI Setup Only to support USB devices under the UEFI setup and Windows/Linux operating systems only.

  • Page 86: Trusted Computing

    Z390 Phantom Gaming-ITX/ac 4.6.8 Trusted Computing Security Device Support Enable or disable BIOS support for security device.

  • Page 87: Tools

    4.7 Tools UEFI Tech Service Contact ASRock Tech Service if you are having trouble with your PC. Please setup network configuration before using UEFI Tech Service. Easy RAID Installer Easy RAID Installer helps you to copy the RAID driver from the support CD to your USB storage device.
  • Page 88 Z390 Phantom Gaming-ITX/ac Network Configuration Use this to configure internet connection settings for Internet Flash. Internet Setting Enable or disable sound effects in the setup utility. UEFI Download Server Select a server to download the UEFI firmware.

  • Page 89: Hardware Health Event Monitoring Screen

    4.8 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed and voltage. Fan Tuning Measure Fan Min Duty Cycle. Fan-Tastic Tuning Select a fan mode for CPU Fans 1&2, or choose Customize to set 5 CPU temperatures and assign a respective fan speed for each temperature.
  • Page 90 Z390 Phantom Gaming-ITX/ac CPU Optional Fan Control Mode Select DC/PWM mode for CPU Optional Fan. CPU Optional Fan Setting Select a fan mode for Fan, or choose Customize to set 5 CPU temperatures and assign a respective fan speed for each temperature.
  • Page 91 4.9 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.
  • Page 92 Z390 Phantom Gaming-ITX/ac 4.10 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer's boot time. In fast mode you may not boot from an USB storage device.
  • Page 93 Full Screen Logo Enable to display the boot logo or disable to show normal POST messages. AddOn ROM Display Enable AddOn ROM Display to see the AddOn ROM messages or configure the AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed. Boot Failure Guard Message If the computer fails to boot for a number of times the system automatically restores the default settings.
  • Page 94 Z390 Phantom Gaming-ITX/ac Launch Storage OpROM Policy Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to run those that support legacy option ROM only. Select Do not launch to not execute both legacy and UEFI option ROM.
  • Page 95 4.11 Exit Screen Save Changes and Exit When you select this option the following message, “Save configuration changes and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option the following message, “Discard changes and exit setup?”...
  • Page 96 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp...
  • Page 97 13848 Magnolia Ave, Chino, CA91710 Phone/Fax No: +1-909-590-8308/+1-909-590-1026 hereby declares that the product Product Name : Motherboard Z390 Phantom Gaming-ITX/ac Model Number : Conforms to the following speci cations: FCC Part 15, Subpart B, Unintentional Radiators Supplementary Information: is device complies with part 15 of the FCC Rules. Operation is subject to the...
  • Page 98 EU Declaration of Conformity For the following equipment: Motherboard (Product Name) Z390 Phantom Gaming-ITX/ac / ASRock (Model Designation / Trade Name) ASRock Incorporation (Manufacturer Name) 2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) (Manufacturer Address) EMC —Directive 2014/30/EU (from April 20th, 2016)
