Page 1: Max40V

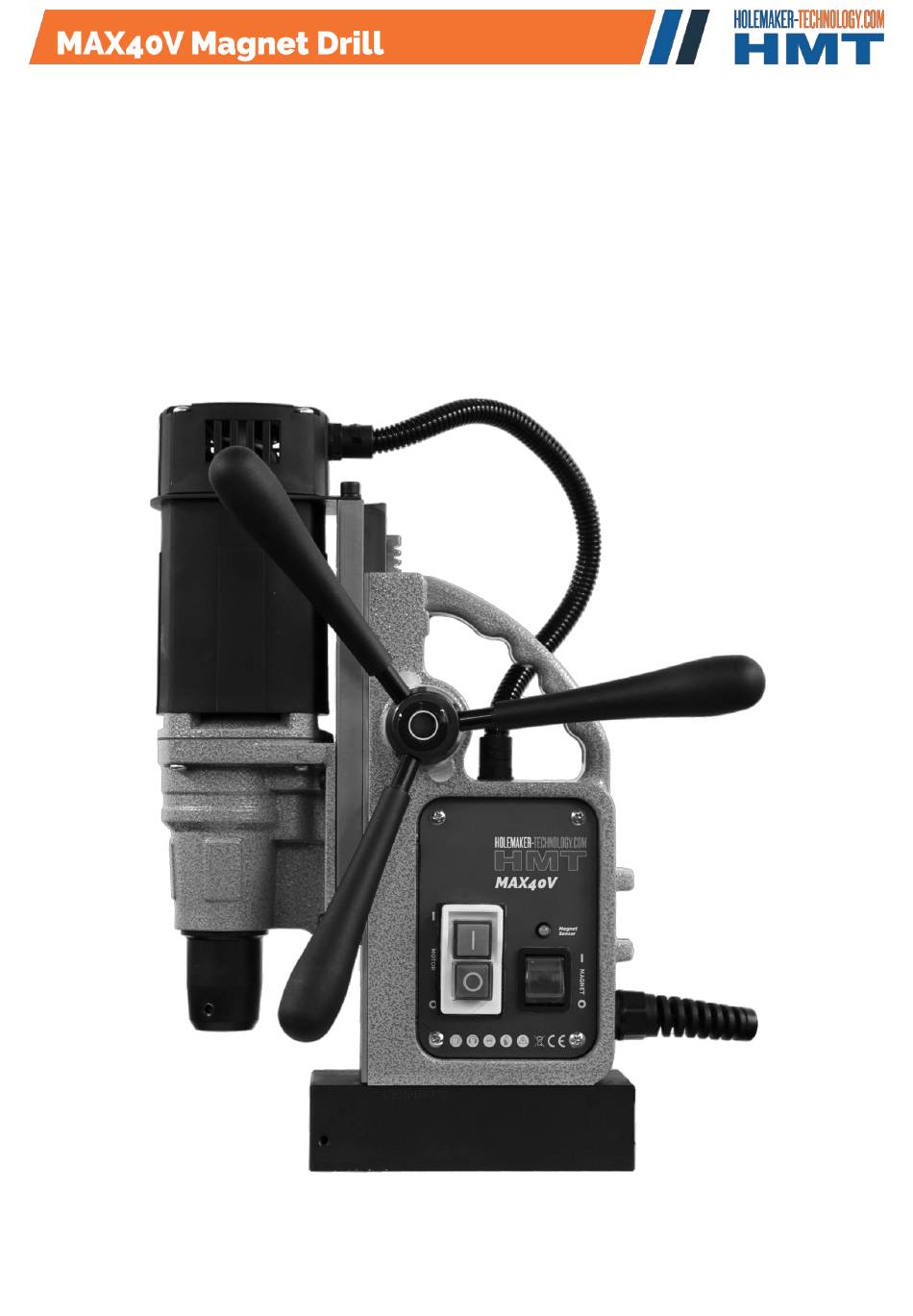

Magnetic drilling machine with external motor cable and standard electromagnet MAX40V... -
Page 2: Table Of Contents
Table of contents MAX40V ............................... 1 Table of contents............................ 2 1. Safety ..............................4 1.1 General safety instructions ......................4 1.2 Specific safety information ......................6 2. Description ............................8 2.1 Intended use..........................8 2.2 Description and features ......................8 2.3 Box contents .......................... - Page 3 Congratulations on purchasing this premium magnetic drilling machine. At Holemaker Technology we strive to exceed our customers’ expectations by developing and providing premium and innovative portable drilling and cutting solutions. We believe that a professional like you must be able to rely on a professional supplier.
-
Page 4: Safety
1. Safety 1.1 General safety instructions Do not use this magnetic drilling machine before you have thoroughly read and completely understood this manual, specifically the “General safety instructions” and ‘’Specific safety information’’, including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. - Page 5 If you detect damage have the machine serviced before use. Many accidents are caused by poorly maintained tools; 10. Only use accessories that are recommended by Holemaker Technology for your machine model. Accessories that are suitable for one machine may become hazardous when used on...
-
Page 6: Specific Safety Information
• Do not use the machine on the same workpiece on which electric welders are working; • Only use an appropriate cutting lubricant. Holemaker Technology offers a wide range of well- considered cooling and lubrication products to match your requirements;... - Page 7 Residual risk In spite of following the relevant safety regulations and their implementation, certain residual risks cannot be avoided. These are: • Impairment of hearing ; • Risk of personal injury from flying particles; • Risk of burns due to accessories becoming hot during operation; •...
-
Page 8: Description
Holemaker Technology. The magnetic drilling machine can be used horizontally, vertically or overhead. 2.2 Description and features... -
Page 9: Box Contents
2.3 Box contents 1 x MAX40V Magnetic drilling machine 1 x safety guard 3 x handles 1 x hex key 2.5 mm 1 x hex key 3 mm 1 x hex key 4 mm 1 x hex key 5 mm... -
Page 10: Symbols
2.6 Symbols Symbol Term, meaning Explanation Be sure to read the enclosed documentation such as the Instruction Manual and the General Read documentation Safety Instructions Use ear protection during operation Wear ear protection Use eye-protection during operation Wear eye protection Observe the information in the adjacent text! Danger/warning/caution Confirms the conformity of the power tool with... -
Page 11: Environmental
2.7 Environmental Separate collection. This product must not be disposed of with normal household waste. Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. -
Page 12: Preparation & Adjustment
3. Preparation & adjustment 3.1 Assembly WARNING: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. Be sure all switches are in the OFF position. An accidental start-up can cause injury. -
Page 13: Prior To Use
Fitting the safety chain Pass the safety chain through the frame grip opening 1. Wrap the chain around the work piece 2. Securely close the chain using the lock WARNING: Always use the safety chain when using machine vertically and/or up-side-down. 3.2 Prior to use Please make sure that the contacting surface for the magnet is level, clean and rust free. - Page 14 Useful tips – Try a few simple projects using scrap material until you develop a ‘’feel’’ for the magnetic drilling machine; – Let the machine run in for a period of eight to ten hours before starting with big operations. Do not load the machine too much during this run-in period;...
-
Page 15: Using The Machine
4. Using the machine WARNING: Always observe the safety instructions and applicable regulations. WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. 4.1 Control panel The control panel on your magnetic drilling machine is designed for maximum operating facility and safety. -
Page 16: Electromagnet
4.2 Electromagnet Make sure the magnetic drilling machine is placed on a smooth, clean, level and solid surface without any objects or debris in between to guarantee maximum adhesion. The workpiece must be at least 5 mm thick for the magnet to stick, but minimal 3 mm thick to hold the weight of the machine and to drill safely. -
Page 17: Switching Motor On And Off
WARNING: Do not use this machine when LED indicator is RED. Magnet may not generate sufficient attachment force We need to point out that this is only an indication and not a certainly that the magnet will not release from the material. HMT accepts no liability ensuring from the magnet indicator not functioning or functioning poorly. -
Page 18: Working With Operation Tools
5 Working with operation tools 5.1 Annular cutters Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole. - Page 19 2. Precisely mark the centre of the hole 3. Use the pilot pin to position the machine and in the correct position, with the tip of the pilot pin to meet the marked center of the hole. 4. Switch on the magnet and verify that the drill is in the right position and that the machine is pushed tight against the work piece.
-
Page 20: Twist Drills
5.2 Twist drills 1. Fit the twist drill a. Straight shank twist drills Use a Weldon to drill chuck adapter (such as HMT Weldon to ½”x20 UNF) to fit a drill chuck and straight shank twist drill accordingly. [image 5-2]... -
Page 21: Countersinks
b. Weldon shank twist drills Directly fit a Weldon shank twist drill (such as HMT Weldon Silvermax Drill Bits) directly to the machine [image 5-3] 2. Precisely mark the center of the hole, and use the tip of the twist drill to position the machine and in the correct position, with the tip of the twist drill to meet the marked center of the hole. -
Page 22: Maintenance
6. Maintenance Your HMT magnetic drilling machine has been designed to operate over a long period of time. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn the machine off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. - Page 23 Check armature This should be checked at least once a month to check if there are visual signs of damage to the body or to the commutator. Some signs of wear will be seen on the commutator over a period of time this is normal as this is the part that comes in contact with the brushes but any signs of abnormal damage means the part should be replaced.
-
Page 24: Trouble Shooting
7. Trouble shooting Magnet and motor do not - The magnet switch is not connected to the power supply function - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective Control Unit - Defective power supply Magnet does function, the motor - Damaged or defective wiring does not work... - Page 25 Insufficient magnetic force - Damaged or defective wiring - Bottom of magnet not clean and dry - Bottom of magnet not flat - Work piece is not bare metal - Work piece is not clean or flat - Work piece is less than 10 mm (too thin) - Defective Control Unit - Defective magnet Frame under voltage...
-
Page 26: Exploded Views & Spare Parts List
8. Exploded views & spare parts list 8.1 Exploded views HMT MAX40V... -
Page 29: Spare Parts List
030E.5033 Sealant 040S.1010 Magnet 220V 030.0009 Bearing 6004DDU 040S.1010A Magnet 110V 032.0216 Screw CAS.40S Case MAX40V (black with inlay) 030E.5035 Spindle inc. spring set 036.2019 Coolant tank 030E.5037 Spring set KSP.P Pin and knob for cooling tank 37-41 020.0471 Screw IBO.0.2L... -
Page 30: Wiring Diagram
8.3 Wiring diagram... -
Page 31: Warranty And Service
8.4 Warranty and service Warranty Holemaker Technology Ltd warrants this magnetic drilling machine to be free of material defects and workmanship errors under normal use for a period of 12 months after date of purchase. The HMT warranty statement can be found on the website product support page...
