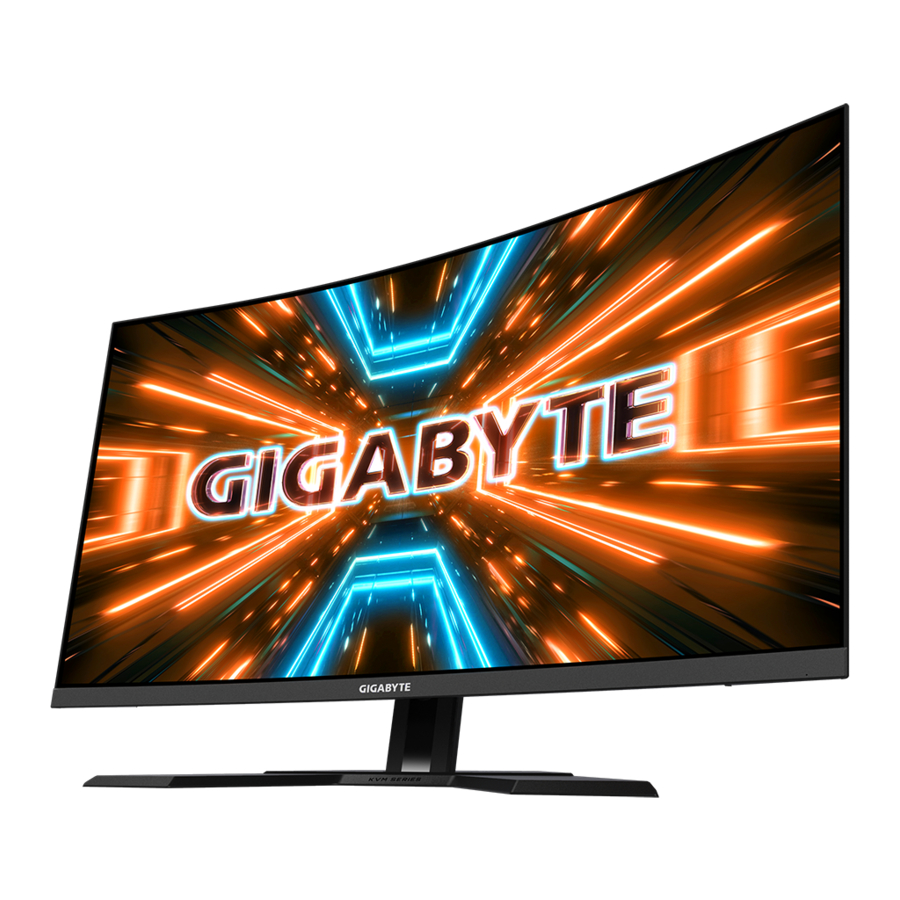

GIGABYTE M32UC - Gaming Monitor Manual

Also See for M32UC:

User manual (48 pages)

Table of Contents

Contents

1 INTRODUCTION
2 GETTING STARTED
3 USING THE DEVICE
4 OPERATIONS
- 4.1 Quick Menu
- 4.2 Configure the Device Settings
5 Specifications
6 Supported Timing List
7 Troubleshooting
8 Basic Care
9 Notes on USB Charging
10 GIGABYTE Service Information
11 SAFETY INFORMATION
- 11.1 Safety Precautions
- 11.2 Stability Hazard Precautions
12 Documents / Resources
- 12.1 References
- 12.2 Download manual

GIGABYTE M32UC - Gaming Monitor Manual

INTRODUCTION

Unpacking

Open the upper cover of the packaging box.
Remove the items from the upper EPS foam.
Remove the upper EPS foam. Then you can remove the monitor from the lower EPS foam.

Package Contents

The following items come with your packaging box. If any of them is missing, please contact your local dealer.

Note: Please keep the packaging box and packing materials for future transportation of the monitor.

Product Overview

Front View

Power LED

Rear View

Control button
KVM button
Kensington lock
Headphone jack
HDMI ports (x2)
DisplayPort
USB Type-C port
USB upstream port
USB 3.2 ports (x3)
DC IN jack

Note:

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registrered trademakrs of HDMI Licensing LLC.

GETTING STARTED

Installing the Monitor Base

Place the monitor on the lower EPS foam, with the screen facing down.
Align and slide the upper hooks on the stand into the mounting slots on the rear of the monitor. Push the locking latch forward and then release to secure the lower hooks on the stand into the mounting slots on the rear of the monitor.
Align the monitor base with the standoff underneath the stand. Then attach the base onto the stand.
Lift the screw ring and turn it clockwise to secure the monitor base in place.
Lift the monitor to an upright position and place it on a table.

Adjusting the Viewing Angle

Note: Hold the monitor base so that the screen does not topple when you make the adjustment.

Adjusting the Tilt Angle

Tilt the screen forward or backward to the desired viewing angle (-5˚ to 20˚).

Adjusting the Screen Height

Lower or raise the screen to the desired height (0 to 100mm).

Installing a Wall-Mount Bracket (Optional)

Use only a 100 x 100 mm VESA compatible wall mount kit.

Place the monitor on the lower EPS foam, with the screen facing down.
While pushing the locking latch forward, slide the stand backward to release the upper hooks from the mounting slots on the rear of the monitor. Then remove the stand.
Attach the mounting bracket to the mounting holes at the rear of the monitor. Then use the screws to secure the bracket in place.

Note: To mount the monitor on the wall, refer to the installation guide that is included in the wall-mount bracket kit. VESA mounting screw size: M4 x 15mm minimum.

Making Connections

Headphone cable
HDMI cable
DisplayPort cable
USB Type-C cable
USB (A-Male to B-Male) cable
USB cable
Power adapter and power cable

USING THE DEVICE

Turning the Power On/Off

Power On

Connect the power cable to the power adapter.
Connect the power adapter to the DC IN jack at the rear of the monitor.
Connect the power cable to a power outlet.
Press the Control button to turn on the monitor. The Power LED will light in white, indicating the monitor is ready to use.

Note: If no signal, the monitor will show No Signal notification for a while. Then, the monitor will go to power saving mode and the Power LED lights white and starts blinking with a period of one second.

Power Off

Press the Control button for 2 seconds to turn off the monitor. Note: When the Main menu appears on the screen, you can also turn off the monitor by moving the Control button down ( ).

User Comfort Recommendations

The Monitor adopts Flicker-Free technology which clears the eye visible monitor flicker and prevents users from suffering eye strain and fatigue. The following are some tips for comfortable viewing of your monitor:

Optimal viewing distances for monitors range from approximately 510 mm to 760 mm (20 in to 30 in).
A general guideline is to position the monitor such that the top of the screen is at or slightly below your eye-height when you are comfortably seated.
Use adequate lighting for the type of work you are performing.
Take regular and frequent breaks (at least for 10 minutes) every 30 minutes.
Be sure to periodically look away from your monitor screen and focus on a far object for at least 20 seconds during the breaks.
Eye exercise can help reduce eye strain. Repeat these exercises frequently:

look up and down
slowly roll your eye
move your eyes diagonally.

Selecting the Input Source

Move the Control button right () to enter the Input menu.
Move the Control button up/ down () to select the desired input source. Then press the Control button to confirm.

OPERATIONS

Hot Key

By default, the Control button has been assigned with the specific function.
Note: To change the preset hot key function, refer to the "Quick Switch".

To access the hot key function, do the following:

Move the Control button up () to enter the Black Equalizer menu.
Move the Control button up/down () to adjust the setting and press the Control button to confirm.
Move the Control button down () to enter the Picture Mode menu.
Move the Control button up/down () to select the desired option and press the Control button to confirm.
Move the Control button left ( Move the Control button up/down () to adjust the headphone volume level and press the Control button to confirm.
Move the Control button right () enter the Input menu. Refer to the "Selecting the Input Source" section.

Note: To close the menu, move the Control button left ().

Function Key Guide

Press the Control button to display the Main menu.
Function Key Guide

Then use the Control button to select the desired function and configure the related settings.

KVM

When the Main menu appears on the screen, move the Control button left () to enter the KVM menu.
KVM - Step 1

KVM Switch: Switch the input source that has been assigned to USB-B or Type-C connection in the KVM Wizard settings.
When there are several input signals connected to the device, a message box will appear on the screen once the system detected USB Type-C input signal.

To switch to USB Type-C input source, simply press the KVM button or the Control button.
However, when there is no input signal from currently selected input source, the system will return to the previous connected input source.
Note: This option will be disabled if the KVM button function is disabled (KVM OFF).

KVM Wizard: Configure the KVM related settings.
Set the input source to be bound with USB Type-B connection first, and then following with USB Type-C connection.

Note: If you set the USB-B Display setting to TYPE-C, the TYPE-C Display menu option will automatically be disabled. You will then see the KVM status in the KVM Wizard page as below.
KVM - Step 4

KVM ON/OFF: Enable/Disable the KVM button function.
- Select ON to enable the KVM button function. Once the system detected USB Type-C input signal, a message box will appear on the screen.

  Press the KVM button or the Control button to switch to USB Type-C input source.
  Note: When the KVM button function is enabled, the KVM ON will be displayed on the left panel.
Select OFF to disable the KVM button function.
Note: When the KVM button function is disabled, the KVM OFF will be displayed on the left panel.
KVM Reset: Restore the KVM default settings.
- HDMI 1 input source is bound with USB Type-B connection.
- USB Type-C input source is bound with USB Type-C connection.
- The KVM ON/OFF function is set to ON.

Game Assist

When the Main menu appears on the screen, move the Control button right () to enter the Game Assist menu.
Game Assist - Step 1

GAME INFO: Configure the FPS (First Person Shooting) game related settings.
- Select Gaming Timer to select countdown timer mode. To disable this function, set the setting to OFF.
- Select Gaming Counter or Refresh Rate to enable/disable the gaming counter or real-time refresh rate setting.
- Select Info Location to specify the location of the information to be shown on the screen.
Crosshair: Select the desired crosshair type to suit your gaming environment. It makes aiming much easier.
Dashboard: Configure the dashboard settings.
- ON: Enable the function. Then select the desired option(s) to be shown on the screen.
- OFF: Disable the function.
- Dashboard Location: Specify the location of the Dashboard information to be shown on the screen. Once the Dashboard configuration is complete, it will transfer the system data to the SOC through the USB port and display the value of the selected function(s) on the screen.

Note: Make sure the USB cable is properly connected to the USB upstream port of the monitor and the USB port of your computer.

Display Alignment: When the function is enabled, it displays the alignment lines on the four sides of the screen, providing handy tool for you to line up multiple monitors perfectly.

Configure the Device Settings

When the Main menu appears on the screen, move the Control button up () to enter the Settings menu.
Note: Use the Control button to navigate through the menu and make adjustments.

Gaming

Configure the game related settings.
Gaming

Item	Description
Aim Stabilizer sync	When this function is enabled, it reduces the motion blur in a fast moving games. Note: This function is not available under the following conditions: when the frequency setting is lower than 100Hz. when the current source is HDR.
Black Equalizer	Adjust the brightness of the black areas.
Super Resolution	Sharpen the low resolution images.
Display Mode Select the aspect ratio of the screen.	Full: Scale the input image to fill the screen. Ideal for 16:9 aspect images. Aspect: Display the input image without geometric distortion filling as much of the screen as possible. 1:1: Display the input image in its native resolution without scaling. 22"W(16:10): Display the input image as if on a 22"W monitor of 16:10 aspect ratio. 23"W(16:9): Display the input image as if on a 23"W monitor of 16:9 aspect ratio. 23.6"W(16:9): Display the input image as if on a 23.6"W monitor of 16:9 aspect ratio. 24"W(16:9): Display the input image as if on a 24"W monitor of 16:9 aspect ratio. 27"W(16:9): Display the input image as if on a 27"W monitor of 16:9 aspect ratio. Note: 1:1, 22"W(16:10), 23"W(16:9), 23.6W"(16:9), and 24"W(16:9) options will be disabled when the FreeSync Premium function is activated.
Overdrive	Improve the response time of the LCD monitor.
AMD FreeSync Premium Pro	When this function is enabled, it eliminates the screen lag and tearing while playing games. Note: If you turn on the FreeSync function while playing a game, the screen may flicker depending on the type of graphics card, the game option settings, or the video being played. Try the following actions: decrease the game setting values, change the current FreeSync mode to Off, or visit the AMD website to check your graphics driver's version and update it with the latest one.


Configure the image related settings.

Select the one of the preset picture mode.

Standard: For editing documents or browsing websites.
FPS: For playing FPS (First Person Shooting) games.
RTS/RPG: For playing RTS (Real-Time Strategy) or RPG (Role-Playing Game) games.
Movie: For watching movies.
Reader: For viewing documents.
sRGB: For viewing photos and graphics on the computer.
Green: For Saving the power consumption for the monitor.
Custom 1: Customized picture mode settings.
Custom 2: Customized picture mode settings.
Custom 3: Customized picture mode settings.

Then you can configure the following image settings.

Item	Description
Brightness	Adjust the brightness of the image.
Contrast	Adjust the contrast of the image.
6 axis Color	Adjust the hue and saturation of red, green, and blue.
Color Vibrance	Adjust the intensity of the more muted colors.
Sharpness	Adjust the sharpness of the image.
Gamma	Adjust the middle level of luminance.
Color Temperature	Select the color temperature. Note: Select User Define to customize the color temperature by adjusting the red (R), green (G), or blue (B) level according to your preference.
Low Blue Light	Reduce the amount of blue light exposure from the screen. Level 0: No change. Level 1~10: The higher the level, the more blue light will be reduced. Note: Level 10 is optimized setting. It is compliance with TUV Low Blue Light Certification.
DCR	Adjust the black level of the image to achieve the optimum contrast.
Reset Picture	Reset all Picture settings to the default settings.

Display

Configure the display screen related settings.
Display

Item	Description
Input	Select the input source.
Over Clock	Enable the monitor to apply higher refresh rate.
RGB Range	Select an appropriate RGB range setting or let the monitor to detect it automatically. Note: This option is only available for HDMI input.
Overscan	When this function is enabled, it slightly enlarges the input image to hide the outermost edges of the image.
Apply Picture Model	When this function is selected, if change any one of the settings related Picture options such as Brightness, Contrast etc., could be applied to all of Input sources or specific one.

PIP/PBP

Configure the multi-picture related settings.
PIP/PBP

Item	Description
OFF	Disable the PIP/PBP function.
PIP	Split the screen into 2 parts (main window and inset window). Source: Change the input source for the inset window. PIP Size: Adjust the inset window size. Location: Move the inset window position. Display Switch: Swap the two windows. Audio Switch: Select which audio source you want to hear the sound from.
PBP	Display 1x1 split screen (left and right windows). Source: Change the input source for the right window. PBP Mode: Adjust the aspect ratio of window. Display Switch: Swap the two windows. Audio Switch: Select which audio source you want to hear the sound from.

Note: PIP/PBP is not compatible with HDR and FreeSync Premium Pro functions.

System

Configure the system related settings.
System - Step 1

Item	Description
Audio	Configure the audio settings. Volume: Adjust the volume level. Mute: Enable/Disable the mute function.
OSD Settings	Configure the on-screen display (OSD) menu related settings. Display Time: Set the length of time the OSD menu remains on the screen. OSD Transparency: Adjust the OSD menu transparency. OSD Lock: When this function is enabled, no OSD adjustment is allowed. Note: To disable the OSD lock function, press the Control key. When the message appears on the screen, select Yes to confirm. OSD Size: Set the screen size to be enlarged.
Quick Switch	Assign the function of the hot keys. Available options: Aim Stabilizer sync, Black Equalizer, Volume, Input, Contrast, Brightness, Picture Mode, and KVM Switch. The default setting of the hot keys as below: Up (): Black Equalizer Down (): Picture Mode Right (): Input Left (): Volume
Other Settings	Resolution Notice: When this function is enabled, the recommended resolution message will appear on the screen when the monitor switches to another input source. Input Auto Switch: When this function is enabled, it automatically switches to an available input source. Auto Power OFF: When this function is enabled, the monitor will automatically turn off after a certain amount of time. LED Indicator: By default, the LED indicator is set to Always ON. LED Indicator Always OFF: Turn off the Power LED. LED Indicator Always ON: The Power LED lights white during operation and lights interval every 1 sec in standby mode. LED Indicator Standby ON: The Power LED turns off during operation and lights interval every 1 sec in standby mode. When the power supply is switched off, the Power LED will remain off. Type-C Compatibility: Turn this option on to improve mobile devices compatibility. HDMI-CEC: When enable this function, CEC device (support Sony, Microsoft XBOX and Nintendo) could turn on the monitor when they are waken up and switch off the display when they enter either Standby or off mode. HDMI Version: Select the HDMI version. USB(A/C) Charge: Select the USB Type-C fast charge voltage and current specifications in standby mode. Auto (default): 5V/3A, 9V/3A, 12V/3A, 15V/3A (in standby mode) Off
USB 3.2 Support	Support USB 3.2 when this option is ON.

Language

Select an available language for the OSD menu.

Save Settings

Set the personalized OSD configurations for Setting1, Setting2, or Setting3.
Save Settings

Item	Description
Save	Save the customized settings.
Load	Load the saved settings.

Reset All
Restore the monitor to its factory default settings.

Specifications

Item	Specifications
Panel Size	31.5-inch
Aspect Ratio	16:9
Resolution	UHD (3840 x 2160)
LED Life	30,000 hours
Pixel Pitch	0.18159 (H) x 0.18159 (V)
Brightness	350nits (typ.)
Contrast Ratio	3000:1
Color Depth	16.7M
Active Display Area	697.306 (H) x 392.234 (V)
Viewing Angle	178°(H) / 178°(V)
Input/Output Terminals	2x HDMI 2.1 1x DP 1.4 1x Headphone 1x USB upstream 3x USB3.2 (downstream 5V/0.9A) 1x USB Type-C (5V/3A, 9V/2A, 12V/1.5A, 15V/1A)
Power Supply	AC 100~240V at 50/60Hz
AC Adapter Model	Asian Power Devices Inc. DA-150E19
Power Consumptions	On: 47W Standby: 0.5W Off: 0.3W Note: The test condition follows CEC standards.
Dimensions (W x H x D)	710.5 (W) x 555 (H) x 183.9 (D) mm (with stand)
Weight	7.8 kgs (Net, with stand) 5.5 kgs (Net, without stand)
Temperature Range (operation)	0°C to 40°C

Note: Specifications subject to change without notice.

Supported Timing List

Timing List	Normal, PIP
Timing List	HDMI 1	HDMI 2	DP	Type C
720x400 / 70Hz	V	V	V	V
720x400 / 88Hz	V	V	V	V
640x480 / 60Hz	V	V	V	V
640x480 / 67Hz	V	V	V	V
640x480 / 72Hz	V	V	V	V
640x480 / 75Hz	V	V	V	V
800x600 / 56Hz	V	V	V	V
800x600 / 60Hz	V	V	V	V
800x600 / 72Hz	V	V	V	V
800xX600 / 75Hz	V	V	V	V
832x624 / 75Hz	V	V	V	V
1024x768 / 87Hz	V	V	V	V
1024x768 / 60Hz	V	V	V	V
1024x768 / 70Hz	V	V	V	V
1024x768 / 75Hz	V	V	V	V
1280x1024 / 75Hz	V	V	V	V
1152x870 / 75Hz	V	V	V	V
1152x864 / 75Hz	V	V	V	V
1280x720 / 60Hz	V	V	V	V
1280x800 / 60Hz	V	V	V	V
1280x960 / 60Hz	V	V	V	V
1280x1024 / 60Hz	V	V	V	V
1440x900 / 60Hz	V	V	V	V
1600x900 / 60Hz	V	V	V	V
1680x1050 / 60Hz	V	V	V	V
1024x768 / 120Hz	X	X	X	X
1280x1024 / 120Hz	X	X	X	X
1440x900 / 120Hz	X	X	X	X
1680x1050 / 120Hz	X	X	X	X
720x480 / 60Hz	V	V	V	V
720x480 / 120Hz	X	X	X	X
1280x720 / 50Hz	X	X	X	X
1280x720 / 60Hz	V	V	V	V
1280x720 / 100Hz	X	X	X	X
1280x720 / 120Hz	X	X	X	X
1440x480 / 60Hz	X	X	X	X
1920x1080 / 24Hz	V	V	X	X
1920x1080 / 50Hz	V	V	V	V
1920x1080 / 60Hz	V	V	V	V
1920x1080 / 100Hz	V	V	V	V
1920x1080 / 120Hz	V	V	V	V
3840x2160 / 24Hz	V	V	X	X
3840x2160 / 25Hz	X	X	X	X
3840x2160 / 30Hz	V	V	V	V
3840x2160 / 50Hz	V	V	V	V
3840x2160 / 60Hz	V	V	V	V
3840x2160 / 100Hz	V	V	V	V
3840x2160 / 120Hz	V	V	V	V
1280x720 / 144Hz	X	X	X	X
1920x1080 / 144Hz	V	V	V	V
1920x1080 / 165Hz	X	X	X	X
2560x1440 / 60Hz	V	V	V	V
2560x1440 / 100Hz	X	X	X	X
2560x1440 / 120Hz	V	V	V	V
2560x1440 / 144Hz	V	V	V	V
2560X1440 / 165Hz	X	X	X	X
3440x1440 / 50Hz	X	X	X	X
3440x1440 / 60Hz	X	X	X	X
3440x1440 / 85Hz	X	X	X	X
3440x1440 / 100Hz	X	X	X	X
3840x2160 / 144Hz	V	V	V	V
960x1080 / 60Hz (PBP)	X	X	X	X
1280x1440 / 60Hz (PBP)	V	V	V	V
1720x1440 / 60Hz (PBP)	X	X	X	X
1920x2160 / 60Hz (PBP)	V	V	V	V

Troubleshooting

Problem	Possible Solution(s)
No power	Make sure the power cable is properly connected to the power source and the monitor. Check the cable and plug to make sure they are not broken. Make sure the monitor is turned on.
No image appears on the screen	Make sure the monitor and the computer are properly connected and both devices are turned on. Make sure you have selected the correct input source. Adjust the Brightness and Contrast settings.
The image does not fill the entire screen	Try different Display Mode (aspect ratio) setting.
The colors are distorted	Make sure the input signal cable is properly connected. Configure the image related settings. Refer to the "Picture" section.
No sound or volume is low	Make sure the headphone cable is properly connected. Adjust the volume level. Adjust your computer sound related settings.

Note: If the problem persists, please contact our customer service for further assistance.

Basic Care

When the screen becomes dirty, do the following to clean the screen:

Wipe the screen with your soft, lint-free cloth to remove any residual dust.
Spray or apply the cleaning fluid onto a soft cloth. Then wipe the screen gently with the damp cloth.

Note:

Make sure that the cloth is damp, but not wet.
When wiping, avoid applying excessive pressure on the screen.
Acidic or abrasive cleaners can damage the screen.

Notes on USB Charging

The following devices are not compatible with BC 1.2 of CDP mode. When the Hub is connected to a PC, these devices cannot be charged using the USB cable.

Vendor	Device	PID/VID
Apple	iPad	PID_129A/VID_05AC
Samsung	GALAXY Tab2 10.1	PID_6860/VID_04E8
Samsung	GALAXY TabPro	PID_6860/VID_04E8

GIGABYTE Service Information

More service information, please visit GIGABYTE official website: https://www.gigabyte.com/

SAFETY INFORMATION

Safety Precautions

Read through the following Safety Precautions before using the monitor.

Only use the accessories that are provided with the monitor or that which are recommended by the manufacturer.
Keep the plastic packaging bag for the product in a place that cannot be reached by children.
Before connecting the monitor to the power outlet, make sure that the voltage rating of the power cable is compatible with the power specification in the country where you are located.
The power cord plug must be connected to a properly wired and grounded power outlet.
Do not touch the plug with wet hands, otherwise easily cause electric shock.
Place the monitor in a stable and well-ventilated place.
Do not place the monitor near any heat sources such as electric radiators or direct sunlight.
The holes or openings on the monitor are for ventilation. Do not cover or block the ventilation holes with any objects.
Do not use the monitor near water, drinks, or all types of liquids. Failure to do so may result in electric shock or damage to the monitor.
Make sure to unplug the monitor from the power outlet before cleaning.
As the screen surface is easy to be scratched, avoid touching the surface with any hard or sharp object.
Use a soft lint-free cloth instead of a tissue to wipe the screen. You may use a glass cleaner to clean the monitor if required. However, never spray the cleaner directly onto the screen.
Disconnect the power cable if the monitor is not being used for a long period of time.
Do not attempt to disassemble or repair the monitor yourself.

Stability Hazard Precautions

The product may fall, causing serious personal injury or death. To prevent injury, this product must be securely attached to the floor/wall in accordance with the installation instructions.
Many injuries, particularly to children, can be avoided by taking simple precautions such as:

ALWAYS use stands or installation methods recommended by the manufacturer of the product set.
ALWAYS use furniture that can safely support the product.
ALWAYS ensure the product is not overhanging the edge of the supporting furniture.
ALWAYS educate children about the dangers of climbing on furniture to reach the product or its controls.
ALWAYS route cords and cables connected to your product so they cannot be tripped over, pulled or grabbed.
NEVER place the product on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the product to a suitable support.
NEVER place the product on cloth or other materials that may be located between the product and supporting furniture.
NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the product or furniture on which the product is placed.
If the existing product is going to be retained and relocated, the same considerations as above should be applied.
To prevent personal injury or damage to the product caused by tipping over due to earthquakes or other shocks, make sure to install the product in a stable location and take measures to prevent falling.
