Summary of Contents for Gigabyte M32UC

  • Page 2 GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE’s prior written permission.

  • Page 3: Safety Precautions

    Safety Precautions Read through the following Safety Precautions before using the monitor. • Only use the accessories that are provided with the monitor or that which are recommended by the manufacturer. • Keep the plastic packaging bag for the product in a place that cannot be reached by children.

  • Page 4: Stability Hazard Precautions

    Stability Hazard Precautions The product may fall, causing serious personal injury or death. To prevent injury, this product must be securely attached to the floor/wall in accordance with the installation instructions. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • ALWAYS use stands or installation methods recommended by the manufacturer of the product set.

  • Page 5: Table Of Contents

    Appendices ..........................37 Specifications ........................37 Supported Timing List ....................38 Troubleshooting ......................40 Basic Care .......................... 41 Notes on USB Charging ....................41 GIGABYTE Service Information ................. 41 Safety Information ........................42 Regulatory Notices ......................42 - 5 -...

  • Page 6: Introduction

    INTRODUCTION Unpacking Open the upper cover of the packaging box. Remove the items from the upper EPS foam. - 6 -...
  • Page 7 Remove the upper EPS foam. Then you can remove the monitor from the lower EPS foam. - 7 -...

  • Page 8: Package Contents

    Package Contents The following items come with your packaging box. If any of them is missing, please contact your local dealer. Monitor Monitor Base Stand Power Cable Power Adapter HDMI Cable Multilingual Installation Guide USB Cable DP Cable Quick Start Guide Warranty Card Note: Please keep the packaging box and packing materials for future transportation of the monitor.

  • Page 9: Product Overview

    Product Overview Front View Power LED - 9 -...

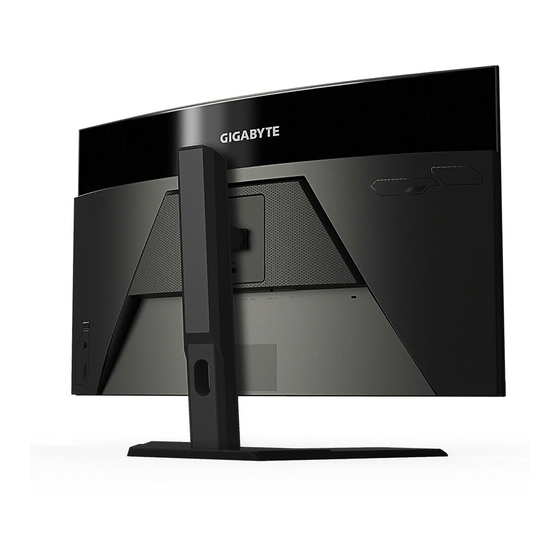

  • Page 10 Rear View HDMI-1 HDMI-2 TYPE-C USB 3.2 Control button DisplayPort KVM button USB Type-C port Kensington lock USB upstream port Headphone jack USB 3.2 ports (x3) HDMI ports (x2) DC IN jack Note: HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registrered trademakrs of HDMI Licensing LLC.

  • Page 11: Getting Started

    GETTING STARTED Installing the Monitor Base Place the monitor on the lower EPS foam, with the screen facing down. Align and slide the upper hooks on the stand into the mounting slots on the rear of the monitor. Push the locking latch forward and then release to secure the lower hooks on the stand into the mounting slots on the rear of the monitor.
  • Page 12 Align the monitor base with the standoff underneath the stand. Then attach the base onto the stand. Lift the screw ring and turn it clockwise to secure the monitor base in place. Lift the monitor to an upright position and place it on a table. - 12 -...

  • Page 13: Adjusting The Viewing Angle

    Adjusting the Viewing Angle Note: Hold the monitor base so that the screen does not topple when you make the adjustment. Adjusting the Tilt Angle Tilt the screen forward or backward to the desired viewing angle (-5˚ to 20˚). 20° 5°...

  • Page 14: Installing A Wall-Mount Bracket (Optional)

    Installing a Wall-Mount Bracket (Optional) Use only a 100 x 100 mm VESA compatible wall mount kit. Place the monitor on the lower EPS foam, with the screen facing down. While pushing the locking latch forward, slide the stand backward to release the upper hooks from the mounting slots on the rear of the monitor.

  • Page 15: Making Connections

    Making Connections HDMI-1 HDMI-2 TYPE-C USB 3.2 Headphone cable USB (A-Male to B-Male) cable HDMI cable USB cable DisplayPort cable Power adapter and power cable USB Type-C cable - 15 -...

  • Page 16: Using The Device

    USING THE DEVICE Turning the Power On/Off Power On Connect the power cable to the power adapter. Connect the power adapter to the DC IN jack at the rear of the monitor. Connect the power cable to a power outlet. Control Press the button to turn on the monitor.

  • Page 17: User Comfort Recommendations

    User Comfort Recommendations The Monitor adopts Flicker-Free technology which clears the eye visible monitor flicker and prevents users from suffering eye strain and fatigue. The following are some tips for comfortable viewing of your monitor: • Optimal viewing distances for monitors range from approximately 510 mm to 760 mm (20 in to 30 in).

  • Page 18: Operations

    OPERATIONS Quick Menu Hot Key Control By default, the button has been assigned with the specific function. Note: To change the preset hot key function, refer to the “Quick Switch” section on page 33. To access the hot key function, do the following: Control ) to enter the Black Equalizer • Move the...
  • Page 19 Control ) to enter the Picture Mode • Move the button down ( menu. Control Move the button up/down ( ) to select the Picture Mode desired option and press the Control button to confirm. Standard RTS/RPG Movie Reader sRGB Select Exit Control...
  • Page 20 Function Key Guide Control button to display the Main menu. Press the Settings SETTING Game Assist (Multi Task) MULTI TASK EXIT GAME ASSIST Exit Power Off POWER OFF Control Then use the button to select the desired function and configure the related settings. When the Main menu appears on the screen, move the Control button...
  • Page 21 Press to switch device. To switch to USB Type-C input source, simply press the KVM button Control or the button. However, when there is no input signal from currently selected input source, the system will return to the previous connected input source.
  • Page 22 STATUS KVM SWITCH CONTROL 1 CONTROL 2 KVM WIZARD KVM ON TYPE-C TYPE-C KVM RESET Select Exit • KVM ON/OFF: Enable/Disable the KVM button function. √ Select ON to enable the KVM button function. Once the system detected USB Type-C input signal, a message box will appear on the screen.
  • Page 23 Game Assist When the Main menu appears on the screen, move the Control button ) to enter the Game Assist menu. right ( GameAssist Gaming Timer GAME INFO Gaming Counter Count Up Crosshair Refresh Rate Count Down Dashboard Info Location Display Alignment Select...
  • Page 24 : 0 0 • Crosshair: Select the desired crosshair type to suit your gaming environment. It makes aiming much easier. • Dashboard: Configure the dashboard settings. GameAssist GAME INFO CPU Temperature CPU Frequency Crosshair CPU Fan Speed Dashboard Location CPU Usage Rate Dashboard GPU Temperature GPU Frequency...
  • Page 25 √ Dashboard Location: Specify the location of the Dashboard information to be shown on the screen. Once the Dashboard configuration is complete, it will transfer the system data to the SOC through the USB port and display the value of the selected function(s) on the screen.

  • Page 26: Configure The Device Settings

    Premium Pro Balance 60 HZ Picture Mode Standard Configure the Device Settings When the Main menu appears on the screen, move the Control button ) to enter the Settings menu. up ( Note: Use the Control button to navigate through the menu and make adjustments.
  • Page 27 Item Description Super Sharpen the low resolution images. Resolution Display Mode Select the aspect ratio of the screen. • Full: Scale the input image to fill the screen. Ideal for 16:9 aspect images. • Aspect: Display the input image without geometric distortion filling as much of the screen as possible.
  • Page 28 Picture Configure the image related settings. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode Standard Gaming Standard Brightness Picture Contrast Display RTS/RPG 6 axis Color PIP/PBP Movie Color Vibrance System Reader Sharpness Language Gamma sRGB Save Settings Custom 1 Color Temperature Exit Reset All...
  • Page 29 Item Description Color Select the color temperature. Temperature Note: Select User Define to customize the color temperature by adjusting the red (R), green (G), or blue (B) level according to your preference. Low Blue Light Reduce the amount of blue light exposure from the screen.
  • Page 30 Display Configure the display screen related settings. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode Standard Gaming Input HDMI 1 Picture Over Clock HDMI 2 Display RGB Range DisplayPort PIP/PBP Overscan Type-C System Apply Picture Model Language Save Settings Exit Reset All Move/Adjust...
  • Page 31 PIP/PBP Configure the multi-picture related settings. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode Standard Gaming Picture Display PIP/PBP System Language Save Settings Exit Reset All Move/Adjust Enter/Confirm Item Description Disable the PIP/PBP function. Split the screen into 2 parts (main window and inset window).
  • Page 32 System Configure the system related settings. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode Standard Gaming Audio Volume Picture Mute OSD Settings Display Quick Switch PIP/PBP Other Settings System Language Save Settings Exit Reset All Move/Adjust Enter/Confirm Item Description Audio Configure the audio settings.
  • Page 33 Item Description Quick Switch Assign the function of the hot keys. Available options: Aim Stabilizer sync, Black Equalizer, Volume, Input, Contrast, Brightness, Picture Mode, and KVM Switch. The default setting of the hot keys as below: D Up ( ): Black Equalizer D Down ( ): Picture Mode D Right (...
  • Page 34 Item Description Other Settings • HDMI Version: Select the HDMI version. (continue) • USB(A/C) Charge: Select the USB Type-C fast charge voltage and current specifications in standby mode. - Auto (default): 5V/3A, 9V/3A, 12V/3A, 15V/3A (in standby mode) - Off USB 3.2 • Support USB 3.2 when this option is ON.
  • Page 35 Language Select an available language for the OSD menu. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode Standard Gaming English Picture 繁中 Display 简中 PIP/PBP Deutsch System Русский Language Français Save Settings 日本語 Exit Reset All Move/Adjust Enter/Confirm Save Settings Set the personalized OSD configurations for Setting1, Setting2, or Setting3.
  • Page 36 Reset All Restore the monitor to its factory default settings. Brightness Contrast Sharpness Gamma Color Temperature Normal Picture Mode Standard Gaming Picture Display PIP/PBP System Language Save Settings Exit Reset All Move/Adjust Enter/Confirm - 36 -...

  • Page 37: Appendices

    APPENDICES Specifications Item Specifications Panel Size 31.5-inch Aspect Ratio 16:9 Resolution UHD (3840 x 2160) LED Life 30,000 hours Pixel Pitch 0.18159 (H) x 0.18159 (V) Brightness 350nits (typ.) Contrast Ratio 3000:1 Color Depth 16.7M Active Display Area 697.306 (H) x 392.234 (V) Viewing Angle 178°(H) / 178°(V) Input/Output Terminals • 2x HDMI 2.1...

  • Page 38: Supported Timing List

    Supported Timing List Timing List Normal, PIP HDMI 1 HDMI 2 Type C 720x400 / 70Hz 720x400 / 88Hz 640x480 / 60Hz 640x480 / 67Hz 640x480 / 72Hz 640x480 / 75Hz 800x600 / 56Hz 800x600 / 60Hz 800x600 / 72Hz 800xX600 / 75Hz 832x624 / 75Hz 1024x768 / 87Hz...
  • Page 39 Timing List Normal, PIP HDMI 1 HDMI 2 Type C 1280x720 / 100Hz 1280x720 / 120Hz 1440x480 / 60Hz 1920x1080 / 24Hz 1920x1080 / 50Hz 1920x1080 / 60Hz 1920x1080 / 100Hz 1920x1080 / 120Hz 3840x2160 / 24Hz 3840x2160 / 25Hz 3840x2160 / 30Hz 3840x2160 / 50Hz 3840x2160 / 60Hz...

  • Page 40: Troubleshooting

    Troubleshooting Problem Possible Solution(s) No power • Make sure the power cable is properly connected to the power source and the monitor. • Check the cable and plug to make sure they are not broken. • Make sure the monitor is turned on. No image appears • Make sure the monitor and the computer on the screen...

  • Page 41: Basic Care

    When the Hub is connected to a PC, these devices cannot be charged using the USB cable. Vendor Device PID/VID Apple iPad PID_129A/VID_05AC Samsung GALAXY Tab2 10.1 PID_6860/VID_04E8 Samsung GALAXY TabPro PID_6860/VID_04E8 GIGABYTE Service Information More service information, please visit GIGABYTE official website: https://www.gigabyte.com/ - 41 -...

  • Page 42: Safety Information

    Model Number: Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com FCC Compliance Statement: This device complies with Part 15 of the FCC Rules, Subpart B, Unintentional Radiators.
  • Page 43 European Union (EU) RoHS (recast) Directive 2011/65/EU & the European Commission Delegated Directive (EU) 2015/863 Statement GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr , PBDE, PBB, DEHP, BBP, DBP and DIBP). The parts and components have been carefully selected to meet RoHS requirement.
  • Page 44 WEEE Symbol Statement The symbol shown below is on the product or on its packaging, which indicates that this product must not be disposed of with other waste. Instead, the device should be taken to the waste collection centers for activation of the treatment, collection, recycling and disposal procedure.
  • Page 45 CE declaração de conformidade Este produto com a marcação CE estão em conformidade com das seguintes Diretivas UE: Diretiva Baixa Tensão 2014/35/EU; Diretiva CEM 2014/30/EU; Diretiva Conceção Ecológica 2009/125/CE; Diretiva RSP 2011/65/UE e a declaração 2015/863. A conformidade com estas diretivas é...
  • Page 46 EK megfelelőségi nyilatkozata A termék megfelelnek az alábbi irányelvek és szabványok követelményeinek, azok a kiállításidőpontjában érvényes, aktuális változatában: EMC irányelv 2014/30/EU, Kisfeszültségű villamos berendezésekre vonatkozó irányelv2014/35/EU, Környezetbarát tervezésről szóló irányelv 2009/125/EK, RoHS irányelv 2011/65/EU és 2015/863. Δήλωση συμμόρφωσης ΕΕ Είναι σε συμμόρφωση με τις διατάξεις των παρακάτω Οδηγιών της...
  • Page 47 环保使用期限 Environment-friendly Use Period 此标识指期限（十年），电子电气产品中含有的有害物质不会 发生外泄或突变、电子电气产品用户正常使用该电子电气产品 不会对环境造成严重 污染或对其人身、财产造成严重损害的 期限。 产品中有害物质的名称及含量: 有害物质 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 部件名称 (Pb) (Hg) (Cd) (PBB) (PBDE) 印刷电路板及其电 ○ ○ ○ ○ ○ 子组件 液晶面板 ○ ○ ○ ○ ○ 外壳 ○ ○ ○ ○...
  • Page 48 限用物質含有情況標示聲明書 Declaration of the Presence Condition of the Restricted Substances Marking 液晶顯示器 設備名稱: ，型號 (型式): Equipment name: Type designation (Type): 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 鉛 汞 多溴聯苯 多溴二苯醚 鎘 六價鉻 Unit Mercury Lead Polybrominated Polybrominated Cadmium Hexavalent (Hg) (Pb)
