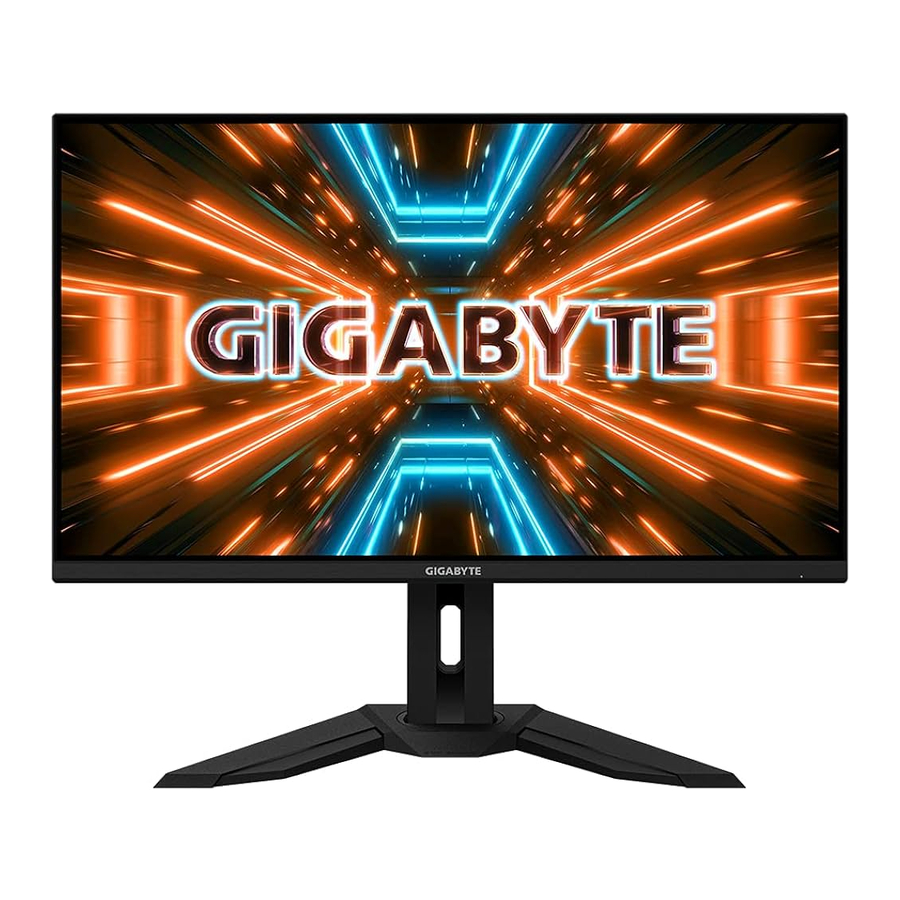

GIGABYTE M32Q - Gaming Monitor Manual

INTRODUCTION

Unpacking

Open the upper cover of the packaging box. Then observe the unpacking instruction attached on the inner cover. Making sure the box is in the correct orientation, carefully lay the box on the stable surfacepen.
Open the inner cover. Grab the EPS foam assembly (through the openings) to pull it out of the box.
Remove the items from the upper EPS foam.
Remove the upper EPS foam. Then you can remove the stand from the lower EPS foam.

Package Contents

The following items come with your packaging box. If any of them is missing, please contact your local dealer.

Note: Please keep the packaging box and packing materials for future transportation of the monitor.

Product Overview

Front View

Control button

Rear View

AC IN jack
AC power switch
Kengsington lock
HDMI ports (x2)
DisplayPort
Type-C
USB upstream port
USB 3.0 ports (x3)
Headphone jack

GETTING STARTED

Installing the Stand Base

Align the Stand base with the stand off underneath the stand. Then attach the base onto the stand. Tighten the screw to secure the monitor base in place.

Note: You can either use a coin or a small flathead screwdriver to tighten the screw.
Place the monitor on the package cushion or a flat surface, with screen facing down. Tear apart the EPE bag, install the stand on the rear side of the monitor. Then you can take the monitor from the lower EPS foam by holding the stand arm. Carefully lift the monitor. Place it upright on a table.

Lift the monitor

Take the monitor out of the box by holding the stand arm. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface. Remove the foam wrap from the monitor.

Note: Consider keeping the box and packaging in storage for use in the future when you may need to transport the monitor. The fitted foam packing is ideal for protecting the monitor during transport.

Adjusting the Viewing Angle
Note: Hold the monitor base so that the screen does not topple when you make the adjustment.

Adjusting the Tilt Angle

Tilt the screen forward or backward to the desired viewing angle (-5˚ to 20˚).

Changing the Screen Orientation

Raise the screen to the highest position (130mm).

Note: Before making the height adjustment, make sure you have removed the safety plate from the stand.

Installing a Wall-Mount Bracket (Optional)

Use only the 100 x 100 mm VESA compatible wall mount kit.

Place the monitor on a flat surface, with the screen facing down.
Note: We recommend that you cover the table surface with soft cloth to prevent damage to the monitor.
Push the locking clips inward to detach the stand from the monitor.
Remove the stand.
Attach the mounting bracket to the mounting holes at the rear of the monitor. Then use the screws provided with the wall mount kit to secure the bracket in place.

Note: To mount the monitor on the wall, refer to the installation guide that is included in the wall-mount bracket kit. VESA mounting screw size: M4 x 15mm minimum.

Making Connections

Power cable
HDMI cable
DisplayPort cable
Type-C cable
USB (A-Male to B-Male) cable
USB cable
Headphone cable

USING THE DEVICE

Turning the Power On/Off

Make sure the power switch next to the AC power input jack is switched to ON.

Power On

Connect one end of the power cable to the AC IN jack at the rear of the monitor.
Connect other end of the the power cable to a power outlet.
Press the Control button to turn on the monitor. The Power LED will light in white, indicating the monitor is ready to use.

Power Off

Press the Control button for 2 seconds to turn off the monitor.
Note: When the Main menu appears on the screen, you can also turn off the monitor by moving the Control button down ( ).

User Comfort Recommendations

The following are some tips for comfortable viewing of your monitor:

Optimal viewing distances for monitors range from approximately 510 mm to 760 mm (20" to 30").
A general guideline is to position the monitor such that the top of the screen is at or slightly below your eye-height when you are comfortably seated.
Use adequate lighting for the type of work you are performing.
Take regular and frequent breaks (at least for 10 minutes) every half- hour.
Be sure to periodically look away from your monitor screen and focus on a far object for at least 20 seconds during the breaks.
Eye exercise can help reduce eye strain. Repeat these exercises frequently:

look up and down
slowly roll your eye
move your eyes diagonally.

Selecting the Input Source

Move the Control button right () to enter the Input menu.
Move the Control button center () to select the desired input source. Then press the Control button to confirm.

OPERATIONS

Hot Key

By default, the Control button has been assigned with the specific function.
Note: To change the preset hot key function, refer to the "Quick Switch".

To access the hot key function, do the following:

Move the Control button up () to enter the Black Equalizer menu.
Move the Control button up/down () to adjust the setting and press the Control button to confirm.
Move the Control button down () to enter the Picture Mode menu.
Move the Control button center () to select the desired option and press the Control button to confirm.
Move the Control button left () to enter the Volume menu. Move the Control button up/down ( ) to adjust the headphone volume level and press the Control button to confirm.
Move the Control button right () to enter the the Input menu. Refer to the "Selecting the Input Source" section.

Note: To close the menu, move the Control button left ( ).

Function Key Guide

Press the Control button to display the Main menu.

Then use the Control button to select the desired function and configure the related settings.

KVM

When the Main menu appears on the screen, move the Control button left ( ) to enter the KVM menu.
KVM

KVM Switch: Switch the input source that has been assigned to USB-B or Type-C connection in the KVM Wizard settings.
When there are several input signals connected to the device, a message box will appear on the screen once the system detected USB Type-C input signal.

To switch to USB Type-C input source, simply press the KVM button or the Control button.
However, when there is no input signal from currently selected input source, the system will return to the previous connected input source.

Note: This option will be disabled if the KVM button function is disabled (KVM OFF).

KVM Wizard: Configure the KVM related settings.
Set the input source to be bound with USB Type-B connection first, and then following with USB Type-C connection.

USB-B Display Selection

TYPE-C Display Selection

Note: If you set the USB-B Display setting to Type-C, the TYPE-C Display menu option will automatically be disabled. You will then see the KVM status in the KVM Wizard page as below.

KVM ON/OFF: Enable/Disable the KVM button function.
- Select ON to enable the KVM button function. Once the system detected USB Type-C input signal, a message box will appear on the screen.

  Press the KVM button or the Control button to switch to USB Type-C input source.
  Note: When the KVM button function is enabled, the KVM ON will be displayed on the left panel.
- Select OFF to disable the KVM button function.
  Note: When the KVM button function is disabled, the KVM OFF will be displayed on the left panel.
KVM Reset: Restore the KVM default settings.
- HDMI 1 input source is bound with USB Type-B connection.
- USB Type-C input source is bound with USB Type-C connection.
- The KVM ON/OFF function is set to ON.

Game Assist

When the Main menu appears on the screen, move the Control button right ( ) to enter the Game Assist menu.
Game INFO: Configure the FPS (First Person Shooting) game related settings.
- Select Gaming Timer to select countdown timer mode. To disable this function, set the setting to OFF.
- Select Gaming Counter or Refresh Rate to enable/disable the gaming counter or real-time refresh rate setting.
- Select Info Location to specify the location of the information to be shown on the screen.
Crosshair: Select the desired crosshair type to suit your gaming environment. It makes aiming much easier.
Eagle Eye: Enlarge certain area of the screen.
Dashboard: Configure the dashboard settings.
- ON: Enable the function. Then select the desired option(s) to be shown on the screen.
- OFF: Disable the function.
- Dashboard Location: Specify the location of the Dashboard information to be shown on the screen. Once the Dashboard configuration is complete, it will transfer the system data to the SOC through the USB port and display the value of the selected function(s) on the screen.

Note: Make sure the USB cable is properly connected to the USB upstream port of the monitor and the USB port of your computer.

Display Alignment: When the function is enabled, it displays the alignment lines on the four sides of the screen, providing handy tool for you to line up multiple monitors perfectly.

Configure the Device Settings

When the Main menu appears on the screen, move the Control button up () to enter the Settings menu.
Note: Use the Control button to navigate through the menu and make adjustments.
Configure the Device Settings

Gaming

Configure the game related settings.
Gaming

Item	Description
Aim Stabilizer	When this function is enabled, it reduces the motion blur in a fast moving games. Note: This function is not available under the following conditions: when the frequency setting is lower than 100Hz. when the FreeSync function is activated.
Black Equalizer	Adjust the brightness of the black areas.
Super Resolution	Sharpen the low resolution images.
Display Mode	Select the aspect ratio of the screen. Full: Scale the input image to fill the screen. Ideal for 16:9 aspect images. Aspect: Display the input image without geometric distortion filling as much of the screen as possible. Note: This option is not compatible with FreeSync and PIP/ PBP functions.
Overdrive	Improve the response time of the LCD monitor.
AMD FreeSync Premium	When this function is enabled, it eliminates the screen lag and tearing while playing games.


Configure the image related settings.

Item	Description
Standard	For editing documents or browsing websites.
FPS	For playing FPS (First Person Shooting) games.
RTS/RPG	For playing RTS (Real-Time Strategy) or RPG (Role-Playing Game) games.
Movie	For watching movies.
Reader	For viewing documents.
sRGB	For viewing photos and graphics on the computer.
Custom 1	Customized picture mode settings.
Custom 2	Customized picture mode settings.
Custom 3	Customized picture mode settings.

Note: The Monitor use low blue light panel and compliance with TÜV Rheinland Low Blue Light Hardware Solution at factory reset/default setting mode (Brightness: 70, Contrast: 50, CCT: 6500, Preset mode: Standard mode).

Display

Configure the display screen related settings.
Display

Item	Description
Input	Select the input source.
OverClock	Enable to apply higher refresh rate. Note: When Overclocking is enabled. The monitor may result in flicker or other adverse effects that may derive from the total configuration of the system and possibly the display's panel specifications. It is possible to reduce such effects by setting a lower refresh rate.
RGB PC Range	Select an appropriate RGB range setting or let the monitor to detect it automatically.
OverScan	When this function is enabled, it slightly enlarges the input image to hide the outermost edges of the image.

PIP/PBP

Configure the multi-picture related settings.
PIP/PBP

Item	Description
OFF	Disable the PIP/PBP function.
PIP	Split the screen into 2 parts (main window and inset window). Source: Change the input source for the inset window. PIP Size: Adjust the inset window size. Location: Move the inset window position. Display Switch: Swap the two windows. Audio Switch: Select which audio source you want to hear the sound from.
PBP	Display 1x1 split screen (left and right windows). Source: Change the input source for the right window. Display Switch: Swap the two windows. Audio Switch: Select which audio source you want to hear the sound from.

System
Configure the system related settings.
System

Item	Description
Audio	Configure the headphone settings. Volume: Adjust the volume level. Mute: Enable/Disable the mute function.
OSD Settings OSD Settings (continue)	Configure the on-screen display (OSD) menu related settings. Display Time: Set the length of time the OSD menu remains on the screen. OSD Transparency: Adjust the OSD menu transparency. OSD Lock: When this function is enabled, no OSD adjustment is allowed. Note: To disable the OSD lock function, press the Control key. When the message appears on the screen, select Yes to confirm.
OSD Settings OSD Settings (continue)		Quick Switch	Assign the function of the hot keys. Available options: Aim Stabilizer, Black Equalizer, Low Blue Light, Volume, Input, Contrast, Brightness, and Picture Mode. The default setting of the hot keys as below: Up (): Black Equalizer Down (): Picture Mode Right (): Input Left (): Volume
Other Settings	Resolution Notice: When this function is enabled, the current resolution message will appear on the screen when the monitor switches to another input source. Input Auto Switch: When this function is enabled, it automatically switches to an available input source. Auto Power Off: When this function is enabled, the monitor will automatically turn off after a certain amount of time.

Language

Item	Description
Language	Select an available language for the OSD menu.

Save Settings
Save all data.

Item	Description
Setting1	After selecting, the Save and Load menu will appear for the player to choose.
Setting2	After selecting, the Save and Load menu will appear for the player to choose.
Setting3	After selecting, the Save and Load menu will appear for the player to choose.

Reset All
Restore the monitor to its factory default settings.

Specifications

Item	Specifications
Panel Size	32-inch
Aspect Ratio	16:9
Resolution	2560 x 1440
Refresh Rate	165Hz
LED Life	30000 hours (min.)
Pixel Pitch	0.273(H) x 0.273(V)
Brightness	350 nits (typ.) / 400 nits (peak)
Contrast Ratio	1000:1 (typ.)
Color Depth	16.7M ( 8Bit)
Active Display area	698.112(H) x 392.688(V)
Viewing Angle	178°(H)/178°(V)
Frequency	48~165Hz
Input/Output Terminals	2x HDMI 2.0 1x DP 1x Headphone 1x USB upstream 3x USB3.0 (downstream 1.4 5V/1.5A) 1xUSB Type- C(5V/3A,9V/2A, 12V/1.5A,15V/1A)
Power Supply	AC 100 ~ 240V at 50/60Hz
Power Consumptions	On: 120W (Max.) Standby: 0.5W Off: 0.3W
Dimensions (W x H x D)	715 x 584 x 244mm(with stand)
Weight	10.2 kg (Net)
Temperature Range (operation)	0°C to 40°C

Note: Specifications subject to change without notice.

Supported Timing List

Port	QHD	Port	QHD
HDMI	640x480@60Hz	DP	640x480@60Hz
	640x480@75Hz		640x480@75Hz
	720x480@60Hz		720x480@60Hz
	800x600@60Hz		800x600@60Hz
	800x600@75Hz		800x600@75Hz
	1024x768@60Hz		1024x768@60Hz
	1024x768@75Hz		1024x768@75Hz
	1280x720@60Hz		1280x720@60Hz
	1280x720@120Hz		1280x720@120Hz
	1920x1080@60Hz		1920x1080@60Hz
	1920x1080@120Hz		1920x1080@120Hz
	1920x1080@144Hz		1920x1080@144Hz
	2560x1440@60Hz		2560x1440@60Hz
	2560x1440@120Hz		2560x1440@120Hz
	2560x1440@144Hz		2560x1440@144Hz
			2560x1440@165Hz

Troubleshooting

Problem	Possible Solution(s)
No power	Make sure the power cable is properly connected to the power source and the monitor. Check the cable and plug to make sure they are not broken. Make sure the monitor is turned on.
No image appears on the screen	Make sure the monitor and the computer are properly connected and both devices are turned on. Make sure you have selected the correct input source.
The image does not fill the entire screen	Try different Display Mode (aspect ratio) setting.
The colors are distorted	Make sure the input signal cable is properly connected. Configure the image related settings. Refer to the "Picture" section.
No sound or volume is low	Make sure the headphone cable is properly connected. Adjust the volume level. Check the Audio Source setting. Adjust your computer sound related settings.

Note: If the problem persists, please contact our customer service for further assistance.

Basic Care

When the screen becomes dirty, do the following to clean the screen:

Wipe the screen with your soft, lint-free cloth to remove any residual dust.
Spray or apply the cleaning fluid onto a soft cloth. Then wipe the screen gently with the damp cloth.

Note:

Make sure that the cloth is damp, but not wet.
When wiping, avoid applying excessive pressure on the screen.
Acidic or abrasive cleaners can damage the screen.

Notes on USB Charging

The following devices are not compatible with BC 1.2 of CDP mode. When the Hub is connected to a PC, these devices cannot be charged using the USB cable.

GIGABYTE Service Information

More service information, please visit GIGABYTE official website: https://www.gigabyte.com/

Safety Precautions

Read through the following Safety Precautions before using the monitor.

Only use the accessories that are provided with the monitor or that which are recommended by the manufacturer.
Keep the plastic packaging bag for the product in a place that cannot be reached by children.
Before connecting the monitor to the power outlet, make sure that the voltage rating of the power cable is compatible with the power specification in the country where you are located.
The power cord plug must be connected to a properly wired and grounded power outlet.
Do not touch the plug with wet hands, otherwise easily cause electric shock.
Place the monitor in a stable and well-ventilated place.
Do not place the monitor near any heat sources such as electric radiators or direct sunlight.
The holes or openings on the monitor are for ventilation. Do not cover or block the ventilation holes with any objects.
Do not use the monitor near water, drinks, or all types of liquids. Failure to do so may result in electric shock or damage to the monitor.
Make sure to unplug the monitor from the power outlet before cleaning.
As the screen surface is easy to be scratched, avoid touching the surface with any hard or sharp object.
Use a soft lint-free cloth instead of a tissue to wipe the screen. You may use a glass cleaner to clean the monitor if required. However, never spray the cleaner directly onto the screen.
Disconnect the power cable if the monitor is not being used for a long period of time.
Do not attempt to disassemble or repair the monitor yourself.
