Toa CS-64U Instruction Manual

WIDE RANGE SPEAKER
Thank you for purchasing TOA's Wide Range Speaker.
Please carefully follow the instructions in this manual in order to ensure long, trouble-free use of
your equipment.

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future reference.
WARNING
• Install the speaker only in a location that can structurally support the weight of the speaker and the mounting
bracket. Doing otherwise may result in the speaker falling down and causing personal injury and/or property
damage.
• Do not stand or sit on, nor hang down from the speaker as this may cause it to drop, resulting in personal
injury and/or property damage.
CAUTION
• Do not operate the speaker for an extended period of time with the sound distorting. This is an indication of a
malfunction, which in turn can cause heat to generate and result in a fire.

2. GENERAL DESCRIPTION AND FEATURES

TOA's CS-64U outdoor speaker features a resin enclosure and stainless steel hardware for all-weather
durability. It is designed to offer the weather resistance and high efficiency of horn speakers combined with
the high sound quality of cone speakers.

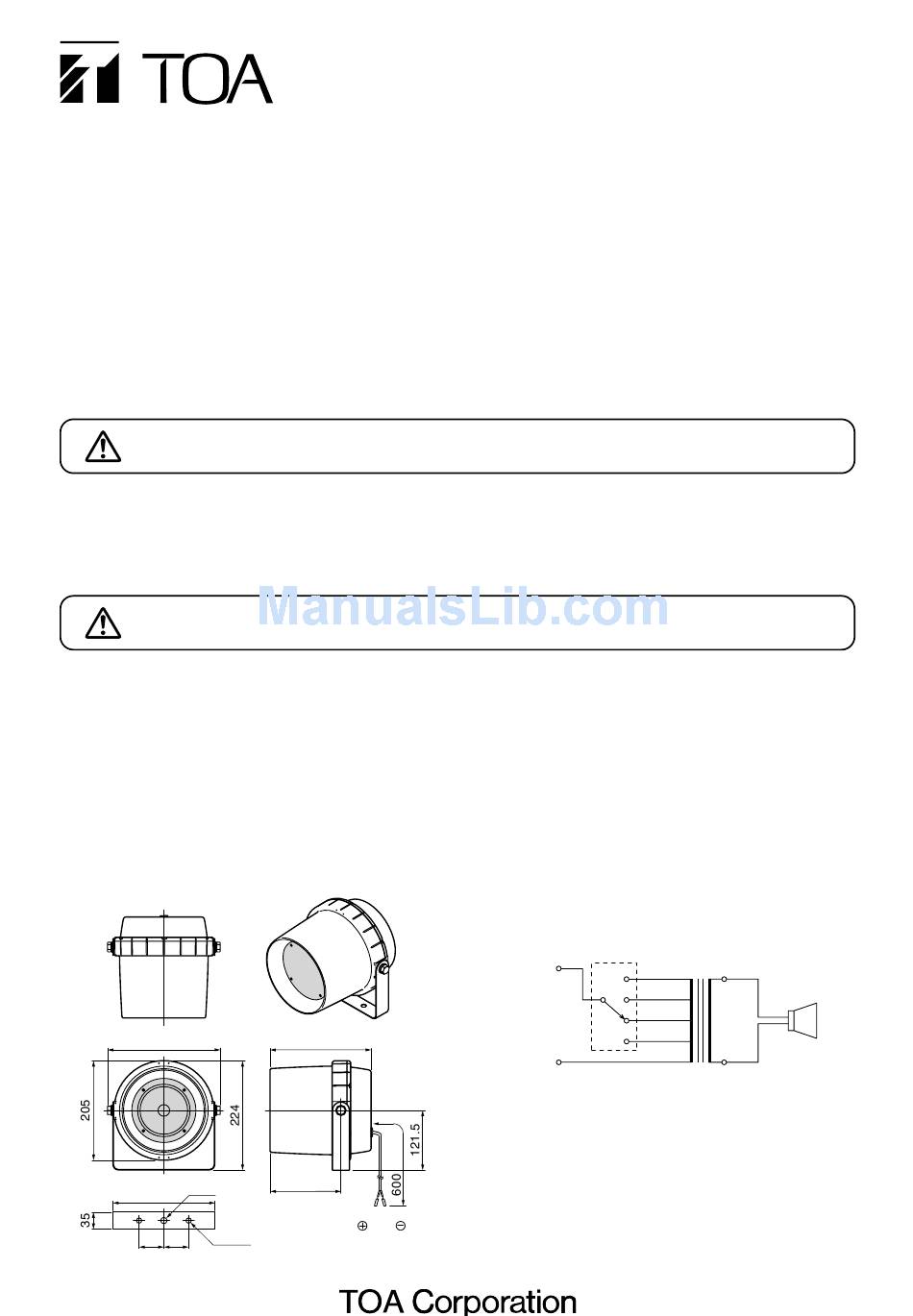

3. APPEARANCE AND DIMENSIONS

233
ø13
210
2-ø11
51 51
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
208
146
Black White
Unit: mm
INSTRUCTION MANUAL

4. WIRING DIAGRAM

Rotary switch
Black (+)
White (–)
Note: The rotary switch is factory-preset to 1.7 kΩ.
CS-64U
Matching Speaker
transformer component
MT-511 BST-232
8 Ω
10 kΩ
3.3 kΩ
1.7 kΩ
830 Ω
0
