Toa CS-530BS-AS Instruction Manual

MUSIC-HORN SPEAKER
■ TABLE OF CONTENTS

1. GENERAL DESCRIPTION

2. SAFETY PRECAUTIONS
3. IMPEDANCE CHANGE
4. INSTALLATION
Thank you for purchasing TOA's Music-Horn Speaker.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your
equipment.
1. GENERAL DESCRIPTION

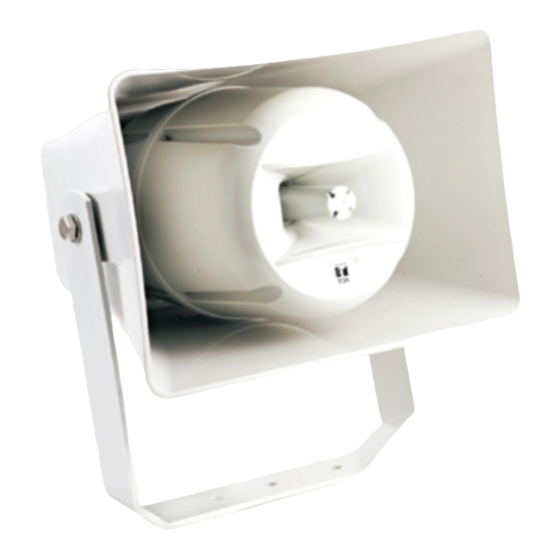

TOA's CS-530BS/CS-660BS Music-Horn speakers feature ABS resin enclosure and steel with coating
bracket for all weather durability.
These are comprised of a high-efficiency weather-resistant horn and a high quality sound cone speaker,
providing excellent speech and BGM clarity.
TOA's CS-530BS/CS-660BS are certified to the European Standard EN 54-24: 2008 and International
Standard ISO 7240-24: 2010, and are compliant with the British Standard BS 5839-8: 2008.
・Highly intelligible speakers suited to voice alarm, public address and BGM application by two way
system.
・Certified to EN 54-24, and ISO 7240-24, and compliant with BS 5839-8.
・All weather durability, water and dust protection to IP 66.
・Impedance change available by tapping changing located inside the terminal cover.
Traceability Information for EU (EMC directive 2004/108/EC); manufacturer:
Tel.: +49-(0)40-25 17 19-0 ♦ Fax: +49-(0)40-25 17 19-98 ♦ URL:
CS-530BS/CS-660BS Instruction Manual
TOA Electronics Europe GmbH
Süderstraße 282 ♦ 20537 Hamburg ♦ Germany
TOA Corporation
Instruction Manual
CS-530BS-EB/CS-660BS-EB
CS-530BS-AS/CS-660BS-AS
5. DIMENSIONAL DIAGRAM
6. SPECIFICATIONS
‫ﺘﺘﻌﻠق ﺒﻨ و اﺤﻰ اﻟﺴﻼﻤﺔ‬ ‫ت‬ ‫اﺤﺘﻴﺎطﺎ‬
www.toa.eu
1
