SUPPLEMENT
SERVICE MANUAL
This service manual shows only the differences between
the model EWD2004 and the original model EWD2204.
All other information is described in the service manual
of the model EWD2204.

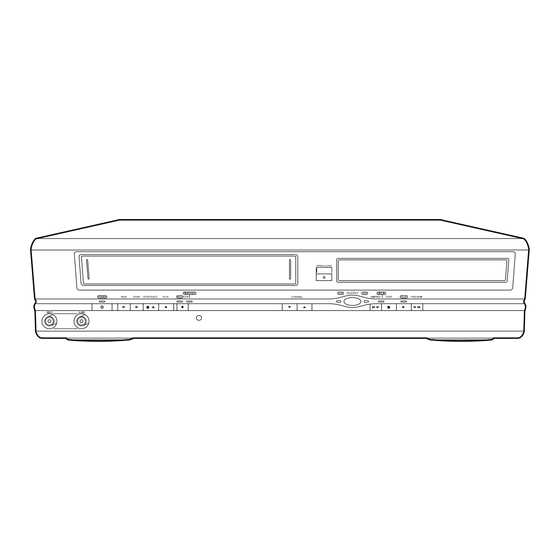

DVD PLAYER &
VIDEO CASSETTE RECORDER
EWD2004

Advertisement

Table of Contents
loading

Related Manuals for Emerson EWD2004

Summary of Contents for Emerson EWD2004

  • Page 1 SUPPLEMENT SERVICE MANUAL This service manual shows only the differences between the model EWD2004 and the original model EWD2204. All other information is described in the service manual of the model EWD2204. DVD PLAYER & VIDEO CASSETTE RECORDER EWD2004...
  • Page 2 RATING LABEL(2 FACTORY) H9612UD or ---------- RATING LABEL(3 FACTORY) H9612UD ---------- LABEL, BAR CODE HB400UD or ---------- BARCODE LABEL H9612UD ---------- GIFT BOX H9612UD 1VM320381 X20# OWNER'S MANUAL H9612UD 1VMN20189 Electrical Parts DVD MAIN CBA UNIT N79FSHUP EWD2004 H9612UD 2004-06-28...
  • Page 3 SERVICE MANUAL Main Section When servicing the deck I Specifications mechanism, refer to MK12.5 Deck I Preparation for Servicing Mechanism Section. I Adjustment Procedures I Schematic Diagrams I CBA’s Deck Mechanism Part No.: I Exploded Views N2260FL, N2240FL I Parts List DVD PLAYER &...
  • Page 4 IMPORTANT SAFETY NOTICE Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

  • Page 5: Table Of Contents

    MAIN SECTION DVD PLAYER & VIDEO CASSETTE RECORDER DVC860E/DVC840E/DVC845E/ EWD2204 Main Section I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded Views I Parts List TABLE OF CONTENTS Specifications................1-1-1 Laser Beam Safety Precautions.

  • Page 6: Specifications

    SPECIFICATIONS < VCR Section > Description Unit Minimum Nominal Maximum Remark 1. Video 1-1. Video Output (PB) Vp-p SP Mode 1-2. Video Output (R/P) Vp-p SP Mode, 1-3. Video S/N Y (R/P) W/O Burst 1-4. Video Color S/N AM (R/P) SP Mode 1-5.
  • Page 7 < DVD Section > ITEM CONDITIONS UNIT NOMINAL LIMIT 1. Video Output 75 ohm load ± 0.1 2. Coaxial Digital Out 75 ohm load mVpp ± 50 3. Audio (PCM) 3-1. Output Level 1 kHz 0 dB Vrms 3-2. S/N 3-3.

  • Page 8: Laser Beam Safety Precautions

    LASER BEAM SAFETY PRECAUTIONS This DVD player uses a pickup that emits a laser beam. Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin. The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30cm away from the pickup lens when the diode is turned on.

  • Page 9: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS Product Safety Notice I. Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder Some electrical and mechanical parts have special droplets, etc.) do not remain inside the set. safety-related characteristics which are often not evi- K.
  • Page 10 Safety Check after Servicing Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, Chassis or Secondary Conductor and wires have been returned to their original posi- tions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety Primary Circuit Terminals standards.

  • Page 11: Standard Notes For Servicing

    STANDARD NOTES FOR SERVICING Circuit Board Indications Pb (Lead) Free Solder When soldering, be sure to use the Pb free solder. 1. The output pin of the 3 pin Regulator ICs is indi- cated as shown. How to Remove / Install Flat Pack-IC Top View Bottom View 1.
  • Page 12 3. The flat pack-IC on the CBA is affixed with glue, so With Soldering Iron: be careful not to break or damage the foil of each (1) Using desoldering braid, remove the solder from all pin or the solder lands under the IC when removing pins of the flat pack-IC.
  • Page 13 2. Installation With Iron Wire: (1) Using desoldering braid, remove the solder from all (1) Using desoldering braid, remove the solder from pins of the flat pack-IC. When you use solder flux the foil of each pin of the flat pack-IC on the CBA so which is applied to all pins of the flat pack-IC, you you can install a replacement flat pack-IC more can remove it easily.
  • Page 14 Instructions for Handling Semi-conductors Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electro- static charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1MΩ) that is prop- erly grounded to remove any static electricity that may be charged on the body.

  • Page 15: Preparation For Servicing

    PREPARATION FOR SERVICING How to Enter the Service Mode About Optical Sensors Caution: An optical sensor system is used for the Tape Start and End Sensors on this equipment. Carefully read and follow the instructions below. Otherwise the unit may operate erratically. What to do for preparation Insert a tape into the Deck Mechanism Assembly and press the PLAY button.

  • Page 16: Cabinet Disassembly Instructions

    CABINET DISASSEMBLY INSTRUCTIONS 1. Disassembly Flowchart REMOVAL This flowchart indicates the disassembly steps to gain REMOVE/*UNHOOK/ LOC. PART Fig. access to item(s) to be serviced. When reassembling, UNLOCK/RELEASE/ Note follow the steps in reverse order. Bend, route, and UNPLUG/DESOLDER dress the cables as they were originally. DVD Main (S-6), *CN201, [1] Top Case...
  • Page 17 Reference Notes CAUTION 1: Locking Tabs (L-1) and (L-2) are fragile. Be careful not to break them. (S-1) [1] Top Case 1-1. Release three Locking Tabs (L-1). 1-2. Release three Locking Tabs (L-2), then remove the Front Assembly. CAUTION 2: Electrostatic breakdown of the laser diode in the optical system block may occur as a potential difference caused by electrostatic charge accumulated on cloth, human body etc, during...
  • Page 18 CN401 (S-3) (S-7) CN601 (S-7) (S-3) [4] DVD Mecha Assembly (S-3) (S-5) (S-4) (S-7) [6] Loader Holder (S-8) [8] VCR Chassis Unit [5] Partition Plate Fig. D3 Fig. D5 (S-6) [7] DVD Main CBA Unit CN301 CN201 DVD Mecha Short the three short lands by soldering. (Either of two places.) Connector View for A...
  • Page 19 Cylinder Assembly FE Head ACE Head Assembly [9] Deck Assembly SW512 LD-SW (S-11) [11] Main CBA [9] Deck Assembly Cam Gear (S-9) [11] Main CBA Hole [10] DVD Shaft (S-10) Open/Close CBA Hole Desolder LD-SW Lead with [11] Main CBA blue stripe From From...
  • Page 20 HOW TO EJECT MANUALLY 1. Remove the Top Case. 2. Rotate the roulette in the direction of the arrow as shown below. 3. Pull the tray slowly with a hand. View for A Rotate this roulette in the direction of the arrow DVD Mecha 1-6-5 H9600DC...

  • Page 21: Electrical Adjustment Instructions

    ELECTRICAL ADJUSTMENT INSTRUCTIONS General Note: "CBA" is an abbreviation for "Circuit Board Assembly." NOTE: Figure 1 1.Electrical adjustments are required after replacing circuit components and certain mechanical parts. It is important to do these adjustments only after EXT. Syncronize Trigger Point all repairs and replacements have been com- pleted.

  • Page 22: Firmware Renewal Mode

    FIRMWARE RENEWAL MODE [ DVC860E ] 1. Turn the power on and remove the disc on the tray. 5. After programming is finished, the tray opens auto- 2. To put the DVD player into version up mode, press matically. Fig. e appears on the screen and the [9], [8], [7], [6], and [SEARCH MODE] buttons on checksum in (*3) of Fig.
  • Page 23 [ DVC840E/DVC845E/EWD2204] 1. Turn the power on and remove the disc on the tray. 5. After programming is finished, the tray opens auto- 2. To put the DVD player into version up mode, press matically. Fig. e appears on the screen and the [9], [8], [7], [6], and [SEARCH MODE] buttons on checksum in (*3) of Fig.

  • Page 24: Block Diagrams

    BLOCK DIAGRAMS <VCR SECTION> Servo / System Control Block Diagram 1-9-1 H9600BLS...
  • Page 25 Video Block Diagram 1-9-2 H9600BLV...
  • Page 26 Audio Block Diagram ( DVC860E ) H9600BLA 1-9-3...
  • Page 27 Audio Block Diagram ( DVC840E, DVC845E, EWD2204 ) 1-9-4 H9601BLA...
  • Page 28 Hi-Fi Audio Block Diagram ( DVC860E ) H9600BLH 1-9-5...
  • Page 29 Power Supply Block Diagram 1-9-6 H9600BLP...
  • Page 30 BLOCK DIAGRAMS <DVD SECTION> DVD System Control / Servo Block Diagram 1-9-7 H9600BLSD...
  • Page 31 Digital Signal Process Block Diagram ( DVC860E ) 1-9-8 H9600BLD...
  • Page 32 Digital Signal Process Block Diagram ( DVC840E, DVC845E, EWD2204 ) 1-9-9 H9601BLD...
  • Page 33 DVD Video / Audio Block Diagram 1-9-10 H9600BLVD...

  • Page 34: Function Indicator Symbols

    FUNCTION INDICATOR SYMBOLS Note: The following symbols will appear on the indicator panel to indicate the current mode or operation of the VCR. On-screen modes will also be momentarily displayed on the tv screen when you press the operation buttons. Led Mode Indicator Active When reel and capstan mechanism is not...

  • Page 35: Schematic Diagrams / Cba's And Test Points

    SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS Standard Notes WARNING Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replace- ment components rated for higher voltage, wattage, etc.
  • Page 36 LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES: 1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER QUE DES FUSIBLE DE MEMO TYPE.
  • Page 37 Main 1/8 Schematic Diagram < VCR Section > MAIN 1/8 REC VIDEO SIGNAL PB VIDEO SIGNAL Ref No. Position REC AUDIO SIGNAL PB AUDIO SIGNAL IC501 TRANSISTORS Q501 Q506 CONNECTORS CN501 CN502 CN504 VARIABLE RESISTOR VR501 TEST POINTS TP505 TP513 H9600SCM1 1-10-3 1-10-4...
  • Page 38 Main 2/8 & Sensor Schematic Diagram < VCR Section > REC VIDEO SIGNAL DVD VIDEO + PB VIDEO SIGANL FIP502 MATRIX CHART REC AUDIO SIGNAL PB AUDIO SIGNAL SACD PSCAN REPEAT DVD AUDIO SIGNAL GROUP TITLE SACD REPEAT TITLE GROUP PSCAN MAIN 2/8 Ref No.
  • Page 39 Main 3/8 Schematic Diagram < VCR Section > REC VIDEO SIGNAL PB VIDEO SIGNAL MAIN 3/8 DVD VIDEO + PB VIDEO SIGNAL REC AUDIO SIGNAL Ref No. Position PB AUDIO SIGNAL IC301 TRANSISTORS Q301 Q302 Q303 Q421 Q422 Q425 Q426 CONNECTOR CN253 TEST POINTS...
  • Page 40 Main 4/8 Schematic Diagram < VCR Section > ( DVC860E ) REC Audio Signal PB Audio Signal DVD AUDIO SIGNAL 1-10-9 1-10-10 H9600SCM4...
  • Page 41 Main 5/8 Schematic Diagram < VCR Section > MAIN 5/8 Ref No. Position IC1201 IC1402 TRANSISTORS DVD VIDEO SIGNAL DVD AUDIO SIGNAL DATA (AUDIO) SIGNAL Q1201 Q1202 Q1204 Q1351 AA-1 Q1385 CONNECTOR CN1601 1-10-11 1-10-12 H9600SCM5...
  • Page 42 Main 6/8 Schematic Diagram < VCR Section > MAIN 6/8 DVD VIDEO SIGNAL Ref No. Position REC VIDEO SIGNAL PB VIDEO SIGNAL REC AUDIO SIGNAL IC751 AE-3 DVD VIDEO + PB VIDEO SIGANL TRANSISTORS PB AUDIO SIGNAL Q391 AF-3 Q762 AE-2 DVD AUDIO SIGNAL Q763...
  • Page 43 Main 7/8 & DVD Open/Close Schematic Diagram < VCR Section > PIN NAME (*1～*4) CHART DVC840E, MODEL DVC860E DVC845E, MARK EWD2204 FP-CLK PLAY FP-DIN SKIP-DOWN FP-STB DISCIN-L SKIP-UP PIN NAME MAY DIFFER BY MODELS. MAIN 7/8 Ref No. Position IC1002 AI-4 IC1004 AJ-3...
  • Page 44 Main 8/8 Schematic Diagram < VCR Section > MAIN 8/8 CAUTION Ref No. Position CAUTION ! NOTE : FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. The voltage for parts in hot circuit is measured using REPLACE ONLY WITH THE SAME TYPE FUSE.
  • Page 45 Main CBA Top View CAUTION ! CAUTION BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED. If Main Fuse (F1001) is blown, check to see that all components in the power supply REPLACE ONLY WITH THE SAME TYPE FUSE.
  • Page 46 Main CBA Bottom View MAIN CBA CAUTION Ref No. Position CAUTION ! FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. IC301 REPLACE ONLY WITH THE SAME TYPE FUSE. If Main Fuse (F1001) is blown, check to see that all components in the power supply IC451 ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES...
  • Page 47 DVD Main 1/3 Schematic Diagram < DVD Section > DVD MAIN 1/3 DATA(VIDEO+AUDIO) SIGNAL Ref No. Position IC201 IC202 IC301 IC461 IC462 TRANSISTORS Q251 Q252 Q253 Q254 CONNECTORS CN201 CN301 CN401 1-10-23 1-10-24 H9600SCD1...
  • Page 48 DVD Main 2/3 Schematic Diagram < DVD Section > PIN NAME (*1～*4) CHART DVC840E, MODEL DATA(VIDEO+AUDIO) SIGNAL VIDEO SIGNAL DATA(AUDIO) SIGNAL DVC860E DVC845E, MARK EWD2204 FP-CLK PLAY FP-DIN SKIP-DOWN FP-STB DISCIN-L SKIP-UP PIN NAME MAY DIFFER BY MODELS. 1-10-25 1-10-26 H9600SCD2...
  • Page 49 IC101 VOLTAGE CHART PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP DVC840E,DVC845E,EWD2204 ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----...
  • Page 50 DVD Main 3/3 Schematic Diagram < DVD Section > ( DVC860E ) DVD MAIN 3/3 Ref No. Position VIDEO SIGNAL DVD AUDIO SIGNAL DATA(AUDIO) SIGNAL IC103 IC503 IC601 CONNECTOR CN601 H9600SCD3 1-10-29 1-10-30...
  • Page 51 DVD Main 3/3 Schematic Diagram < DVD Section > ( DVC840E, DVC845E, EWD2204 ) DVD MAIN 3/3 Ref No. Position VIDEO SIGNAL DVD AUDIO SIGNAL DATA(AUDIO) SIGNAL IC103 IC501 IC502 IC601 CONNECTOR CN601 H96001SCD3 1-10-31 1-10-32...

  • Page 52: Waveforms

    WAVEFORMS NOTE: Input VCR: COLOR BAR SIGNAL (WITH 1KHz AUDIO SIGNAL) (WF1~WF3, WF10, WF11, WF14, WF15) DVD: POWER ON (STOP) MODE (WF4~WF6) CD: 1kHz PLAY (WF7~WF9) TP751 Pin 8 of CN1601 Pin 14 of CN1601 WF 1 V-OUT E-E VIDEO-Y VIDEO-Y 0.2V 0.2V...
  • Page 53 Pin 12 of TU701 WF13 WF10 Pin 2 of TU701 MOD-A 20mV x 10 0.2ms PLL-DATA 0.1V x 10 WF14 Pin 14 of TU701 Pin 6 of TU701 WF11 TU AUDIO 20mV x 10 0.2ms MOD-V 20mV x 10 Pin 18 of TU701 WF15 WF12 Pin 11 of TU701...

  • Page 54: Wiring Diagram < Vcr Section

    WIRING DIAGRAM < VCR SECTION > 1-12-1 H9600WI...

  • Page 55: Wiring Diagram < Dvd Section

    WIRING DIAGRAM < DVD SECTION > H9600WID 1-12-2...

  • Page 56: System Control Timing Charts

    SYSTEM CONTROL TIMING CHARTS [ VCR Section ] Mode SW : LD-SW LD-SW Position detection A/D Input voltage Limit Symbol (Calculated voltage) 3.76V~4.50V (4.12V) 4.51V~5.00V (5.00V) 0.00V~0.25V (0.00V) 1.06V~1.50V (1.21V) 0.66V~1.05V (0.91V) 1.99V~2.60V (2.17V) 1.51V~1.98V (1.80V) 3.20V~3.75V (3.40V) 0.26V~0.65V (0.44V) 4.51V~5.00V (5.00V) 2.61V~3.19V...
  • Page 57 Still/Slow Control Frame Advance Timing Chart 1) SP Mode 18 RF-SW The first rise of RF-SW after a rise in F-AD signal F-AD (Internal Signal) "H" "H" "Z" C-DRIVE "L" "L" Stop detection (T2) Acceleration Detection (T1) Slow Tracking Value PB CTL Reversal Limit Value 20ms...
  • Page 58 2) LP/SLP Mode 18 RF-SW The first rise of RF-SW after a rise in F-AD signal F-AD (Internal Signal) "H" "H" "Z" C-DRIVE "L" "L" Stop detection (T2) Acceleration Detection (T1) Slow Tracking Value PB CTL Reversal Limit Value 20ms 27 C-F/R 79 H-A-SW 78 ROTA...
  • Page 59 EJECT ST-S/ END-S "OFF" CASS.LOAD LD-FWD 0.2S LD-REV 0.7S LD-FWD 0.4S LD-FWD 0.2S LD-REV 0.2S LD-FWD 0.5S LD-REV STOP(A) PLAY LD-FWD PLAY LD-FWD LD-REV 0.2S LD-FWD PLAY PLAY PAUSE (SLOW) LD-FWD STILL(SLOW) PLAY LD-REV 0.2S LD-FWD PLAY STOP /EJECT LD-REV STOP(A) Fig.
  • Page 60 STOP(A) STOP STOP(A) STOP LD-REV LD-REV 0.2S 0.2S LD-FWD LD-FWD STOP STOP /EJECT /EJECT 1.0S 1.0S LD-FWD LD-FWD 0.5S 0.5S LD-REV LD-REV STOP(A) STOP(A) LD-REV LD-REV 0.2S 0.2S LD-FWD LD-FWD STOP STOP /EJECT LD-REV /EJECT LD-REV 1.0S 1.0S LD-FWD LD-FWD 0.5S 0.5S LD-REV...
  • Page 61 [ DVD Section ] Tray Close ~ Play / Play ~ Tray Open Tray Disc Disc Tray Play Close Rotation Stop Open 3.3V Tray IN (TL221) Sled Drive 1.65V (TP303) 1.65V Disc Drive (TP301) 1.65V Focus Drive (TP304) Tracking Drive 1.65V (TP302) 1-13-6...

  • Page 62: Ic Pin Function Descriptions

    IC PIN FUNCTION DESCRIPTIONS [ VCR Section ] Signal Active Mark Function Name Level Comparison Chart of Models and Marks IIC BUS OUT IIC-BUS- Control Clock Model Mark YCA IC DVC860E OUT YCA-SCL Control Clock DVC840E OUT YCA-SDA YCA IC DVC845E Control Data EWD2204...
  • Page 63 Signal Active Signal Active Mark Function Mark Function Name Level Name Level Main Clock AVDD AVDD IN OSCI Input Playback/ 14.31818MHz Record Control CTL (+) Signal (+) Playback/ Sub Clock Record Control CTL (-) IN XI Input 32.768 Signal (-) Amp.
  • Page 64 [ DVD Section ] Signal Active Mark Function Name Level DVC860E DVD Mode DVD-H- LED Signal IC571 [ PT6313-S-TP ] Output N.U. Not Used Signal In/Out Name Function Name REC Mode LED Signal B,C,D OUT REC-IND FP-CLK Clock Input Output FP-STB Serial Interface Strobe N.U.

  • Page 65: Lead Identifications

    LEAD IDENTIFICATIONS 2SA1175(J,H,F) 2SA1015-GR(TPE2) KIA4558P 2SC2785(J,H,F,K) 2SC1815-BL(TPE2) NJM4558D BA1F4M-T 2SC1815-GR(TPE2) BN1F4M-T 2SC1815-Y(TPE2) KRA103M 2SC2120-Y(TPE2) KRC103M KTC3198(Y,GR) KTA1266(GR) KTC3203(Y) KTA1267(GR,Y) KTC3193(Y) KTC3199(Y,GR,BL) E C B E C B EL817A EL817B EL817C 2SC536NF-NPA-AT PT6313-S-TP LTV-817B-F 2SC536NG-NPA-AT LTV-817C-F PS2561A-1(Q,W) BU4053BCF FMG4A T148 CD4053BCSJX PQ070XZ5MZP RN1511(TE85R) TC4053BF(N)

  • Page 66: Exploded Views

    EXPLODED VIEWS Cabinet 2L071 2L071 2L071 2L021 2L021 2L071 2L021 2L082 L0-9 W004 [ A,B ] W006 [ C,D ] Sensor CBA 2L021 2L062 2L051 DVD Main Main CBA 2B11 CBA Unit 2L012 CN3001 [ A ] Sensor CBA 2B15 CN3002 2B16 2B15...
  • Page 67 Packing Unit 1-16-3 H9600PEX...

  • Page 68: Mechanical Parts List

    ---------- LABEL, BAR CODE H9604UD ---------- LABEL, BAR CODE H9610UD ---------- A,B,C LABEL, TELEPHONE NUMBER ---------- H5730UD(SYLVANIA) LABEL, TELEPHONE NUMBER ---------- H7931UD(EMERSON) HOLDER, EAS(H9410UD) MAKER 0VM415877 NO.EM150DR CHASSIS FOOT H79P9JD 0VM412315 DECK ASSEMBLY CZD013/VM2260 N2260FL B,C,D DECK ASSEMBLY CZD013/VM2240 N2240FL...

  • Page 69: Electrical Parts List

    ELECTRICAL PARTS LIST PRODUCT SAFETY NOTE: Products marked with a Ref. No. Mark Description Part No. # have special characteristics important to safety. C030 CERAMIC CAP .(AX) B K 0.033µF/50V CA1J333TU011 Before replacing any of these components, read care- C051 ELECTROLYTIC CAP .
  • Page 70 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. C320 CHIP CERAMIC CAP .(MELF) F Z 0.01µF/ CZM1CZB0F103 ELECTROLYTIC CAP . 470µF/6.3V M CE0KMASTL471 16V or C401 CHIP CERAMIC CAP . F Z 0.1µF/50V or CHD1JZB0F104 CHIP CERAMIC CAP .(MELF) F Z 0.01µF/ CZM1CZ30F103 CHIP CERAMIC CAP .
  • Page 71 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. CHIP CERAMIC CAP .(1608) B K 0.01µF/ CHD1JK30B103 C493 ELECTROLYTIC CAP . 4.7µF/25V M H7 CE1EMAVSL4R7 C494 ELECTROLYTIC CAP . 22µF/16V M H7 CE1CMAVSL220 C459 ELECTROLYTIC CAP . 22µF/6.3V M H7 CE0KMAVSL220 C495 CHIP CERAMIC CAP .(MELF) F Z 0.01µF/...
  • Page 72 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. C530 ELECTROLYTIC CAP . 1µF/50V M H7 CE1JMAVSL1R0 CHIP CERAMIC CAP .(MELF) F Z 0.01µF/ CZM1CZ30F103 C531 ELECTROLYTIC CAP . 10µF/16V M H7 CE1CMAVSL100 C772 ELECTROLYTIC CAP . 4.7µF/50V M H7 CE1JMASSL4R7 C532 ELECTROLYTIC CAP .
  • Page 73 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. CHIP CERAMIC CAP .(1608) CH J 47pF/50V CHD1JJ3CH470 CHIP CERAMIC CAP .(1608) F Z 0.1µF/25V CHD1EZ30F104 CHIP CERAMIC CAP . CG J 47pF/50V CHD1JJ3CG470 CHIP CERAMIC CAP . FZ Z 0.1µF/50V CHD1JZ3FZ104 C1221 ELECTROLYTIC CAP .
  • Page 74 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. ZENER DIODE MTZJT-7733D QDTD00MTZJ33 PHOTOCOUPLER PS2561A-1(W) or QPEWPS2561A1 D1001 RECTIFIER DIODE 1N4005 or NDQZ001N4005 PHOTOCOUPLER LTV-817C-F NPEC0LTV817F RECTIFIER DIODE 1N4005 NDWZ001N4005 IC1002 VOLTAGE REGULATOR PQ070XZ5MZP QSZBA0TSH034 D1002 RECTIFIER DIODE 1N4005 or NDQZ001N4005 IC1004 VOLTAGE REGULATOR BA3948FP-E2...
  • Page 75 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. TRANSISTOR 2SC536NF-NPA-AT or QQSFC536NNPA Q1003 TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 TRANSISTOR 2SC536NG-NPA-AT QQSGC536NNPA Q1004 TRANSISTOR KTC3203(Y) or NQSY0KTC3203 Q056 TRANSISTOR KTC3203(Y) or NQSY0KTC3203 TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120 TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120 Q1005 TRANSISTOR KTC3199(Y) or NQSY0KTC3199 Q057...
  • Page 76 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. CHIP RES.(1608) 1/10W F 2.2k Ω or CHIP RES.(1608) 1/10W J 2.2k Ω or R034 RRXAFB5H2201 R316 RRXAJB5Z0222 CHIP RES.(1608) 1/10W F 2.2k Ω or CHIP RES.(1608) 1/10W J 2.2k Ω RRXAFB5Z2201 RRXAJR5Z0222 CHIP RES.(1608) 1/10W F 2.2k Ω...
  • Page 77 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. CHIP RES.(1608) 1/10W J 10k Ω or CHIP RES.(1608) 1/10W J 15k Ω R416 RRXAJB5Z0103 RRXAJR5Z0153 CHIP RES.(1608) 1/10W J 10k Ω CHIP RES.(1608) 1/10W J 2.2k Ω or RRXAJR5Z0103 R502 RRXAJB5Z0222...
  • Page 78 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. B,C,D CARBON RES. 1/4W J 220 Ω CHIP RES.(1608) 1/10W J 330 Ω RCX4JATZ0221 RRXAJR5Z0331 B,C,D CHIP RES.(1608) 1/10W J 3.9k Ω or CARBON RES. 1/4W J 1.8k Ω R567 RRXAJB5Z0392 R702...
  • Page 79 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. CHIP RES.(1608) 1/10W J 10k Ω or CHIP RES.(1608) 1/10W J 470 Ω R1037 RRXAJB5Z0103 RRXAJR5Z0471 CHIP RES.(1608) 1/10W J 10k Ω CHIP RES.(1608) 1/10W J 1k Ω or RRXAJR5Z0103 R1225 RRXAJB5Z0102...
  • Page 80 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222 SW512 ROTARY MODE SWITCH SSS-53MD SSR0106KB003 CHIP RES.(1608) 1/10W J 10k Ω or R2001 RRXAJB5Z0103 SW513 TACT SWITCH KSM0614B or SST0101HH013 CHIP RES.(1608) 1/10W J 10k Ω...
  • Page 81 Ref. No. Mark Description Part No. TP753 PCB JUMPER D0.6-P25.5 JW25.5T TP754 PCB JUMPER D0.6-P22.5 JW22.5T TU701 TUNER UNIT VH025AFE or UTUNNTUSP026 TUNER UNIT TMZH2X022A UTUNNTUAL039 CARBON P .O.T. 100k Ω B VR501 VRCB104HH014 W001 FFC CABLE, 27P FFC/P1.00/230 WX1H9600-001 W002 B,C,D FFC CABLE, 26P FFC/P1.00/230 WX1H9600-002...
  • Page 82 DVC860E/DVC840E/DVC845E/EWD2204 H9600UD/H9601UD/H9604UD/9610UD 2004-03-22...
