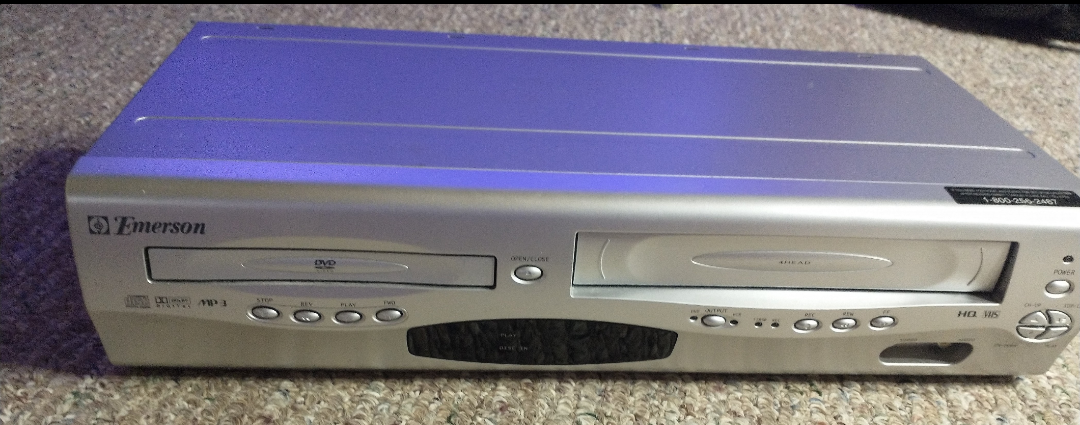

Emerson EWD2203 Owner's Manual

Emerson owner's manual dvd player with video cassette recorder ewd2203.
Hide thumbs
OWNER'S
MANUAL
DVD PLAYER with VIDEO CASSETTE RECORDER
EWD2203
EMERSON AND THE G-CLEF LOGO ARE REGISTERED
TRADEMARKS OF EMERSON RADIO CORP., PARSIPPANY,
NEW JERSEY, U.S.A.
ReWritable
STOP
FWD
REV
PLAY
PLAY
DISC IN
INSTRUCCIONES EN ESPAÑOL INCLUIDAS.
If you need additional assistance for set-up or operating
after reading owner's manual, please call TOLL FREE : 1 - 800 - 256-2487
or visit our web site at http://www.funai-corp.com
Please read before using this equipment.
Recordable
OPEN/CLOSE
OUTPUT
DVD
VCR
FF
REW
REC
TIMER
REC
VIDEO
AUDIO
POWER
CH-UP
STOP/EJECT
CH-DOWN
PLAY

   Also See for Emerson EWD2203

Emerson Emerson EWD2203 Owner's Manual
Emerson Emerson EWD2203 Owner's Manual 44 pages

   Related Manuals for Emerson EWD2203

   Summary of Contents for Emerson EWD2203

  • Page 1

    OWNER’S MANUAL DVD PLAYER with VIDEO CASSETTE RECORDER EWD2203 STOP PLAY EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS OF EMERSON RADIO CORP., PARSIPPANY, NEW JERSEY, U.S.A. ReWritable Recordable OPEN/CLOSE OUTPUT PLAY DISC IN INSTRUCCIONES EN ESPAÑOL INCLUIDAS. If you need additional assistance for set-up or operating after reading owner’s manual, please call TOLL FREE : 1 - 800 - 256-2487...

  • Page 2: Laser Safety

    WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SER- VICEABLE PARTS INSIDE.

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions- The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

  • Page 4: About Copyright, Supplied Accessories

    A NOTE ABOUT RECYCLING This product’s packaging materials are recyclable and can be reused. Please dispose of all materials in accordance with your local recycling regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

  • Page 5: Table Of Contents

    I LASER SAFETY ........2 I IMPORTANT SAFEGUARDS ......3 ABOUT COPYRIGHT .

  • Page 6

    Mode ¡ Dolby Digital sound This DVD/VCR COMBINATION UNITS can handle Dolby Digital surround sound with 5.1 channels when con- nected to a Dolby Digital decoder. ¡ Still/fast/slow/step playback ¡ Random playback for audio CD and MP3 ¡ Program playback for audio CD and MP3 ¡...

  • Page 7: Playable Discs, Disc Types

    PLAYABLE DISCS The following discs can be played back on this DVD/VCR COMBINATION UNITS. ¡ ¡ DVD video DVD-R/RW* ¡ ¡ DVD+R/RW* Audio CD ¡ ¡ CD-R/RW* MP3* * Depending on the types or the writing method of the medium some discs can not be played. •...

  • Page 8: Operating Controls And Functions, Front Panel, Remote Control

    OPERATING CONTROLS AND FUNCTIONS FRONT PANEL STOP PLAY REMOTE CONTROL POWER SPEED AUDIO SKIP/CH. VCR/TV SLOW DISPLAY PAUSE PLAY STOP RECORD MENU ENTER SETUP TITLE RETURN SEARCH CLEAR/ MODE ZOOM MODE C.RESET SUBTITLE ANGLE REPEAT T-SET 1. Disc loading tray 2.

  • Page 9

    18. OUTPUT Button [page 12] Press to select DVD mode or VCR mode. You can switch the output mode either by pressing OUTPUT on the front panel, or by pressing DVD or VCR on the remote control. However, if you press OUTPUT on the front panel first, you need to re-select the corresponding mode by pressing DVD or VCR on the remote control.

  • Page 10

    bers during channel preset. s Button Press to cancel a setting of timer program. Press to correct digits when setting program (For example: setting clock or timer program). Press to add or delete channel numbers during channel preset. 47. ENTER Button DVD mode [page 22] Press to accept a setting.

  • Page 11: Loading The Batteries

    REAR VIEW DVD/VCR AUDIO OUT ANT-IN AUDIO IN ANT-OUT VIDEO OUT VIDEO IN 66 65 64 56. ANT-IN (Antenna In) Jack Connect your antenna, Cable Box, or Direct Broadcast System. 57. DVD/VCR AUDIO OUT Jacks Connect the supplied audio cables here and to the Audio In jacks of a television or other audio equip- ment.

  • Page 12

    VCR/DVD SWITCHING Since this product comprises VCR and DVD players, it is necessary to select the correct output mode. SWITCHING TO VCR MODE Press VCR on the remote control. (Verify that the VCR OUTPUT Light is lit.) Notes ¡ Pressing only OUTPUT on the front panel does not switch the mode of the remote control. You always need to select the correct mode on the remote control too.

  • Page 13: Dvd/vcr To Tv Connection, Rf Output Channel, Connecting To A Tv

    CAUTION: ¡ Be sure to turn off the DVD/VCR COMBINATION UNITS and equipment to be connected before connecting. ¡ Read through the operation manual for the equipment to be connected. ¡ Be sure that the colors of the jacks and plugs match up when using VIDEO/AUDIO cables. ¡...

  • Page 14: Deck

    CONNECTING TO A TV THAT HAS AN S-VIDEO INPUT JACK OR COMPONENT VIDEO IN JACKS FOR TVs WITH S-VIDEO INPUT JACK Use an S-Video cable (commercially available) in place of the yellow video cable to enjoy higher quality pic- tures. The S-Video connection only supplies video (picture) in the DVD mode of the DVD/VCR COMBINATION UNITS.

  • Page 15: Connecting To A Dolby Digital Decoder, Connecting To An Analog Audio

    CONNECTING TO A DOLBY DIGITAL DECODER If using this DVD/VCR COMBINATION UNITS to play a DVD disc in 5.1 channel Dolby Digital surround, the DVD/VCR COMBINATION UNITS outputs a Dolby Digital data stream from its COAXIAL DIGITAL AUDIO OUT jack. By hooking the DVD/VCR COMBINATION UNITS up to a Dolby Digital decorder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound of a professional standard such as can be heard in movie theaters.

  • Page 16: Automatic Channel Set Up

    AUTOMATIC CHANNEL SET UP You can automatically program the tuner to scan only the channels you receive in your area. ¡ Channel memory programming is NOT needed when you connect the VCR to a cable box or a satel- lite box as in "DVD/VCR TO TV CONNECTION" on page 13.

  • Page 17: To Change The On-screen Language, Clock Set Up

    TO ADD/DELETE CHANNELS When scanning, some channels may be skipped due to a weak signal. In such cases, you can add the channels to the VCR memory manually. Press MENU until the main menu appears.(If you have already set the clock, you only have to press it once.

  • Page 18: Normal Playback, Auto Repeat Playback, Search Functions

    PLAYBACK FUNCTION NORMAL PLAYBACK Insert a prerecorded tape. The VCR will turn ¡ If the safety tab has been removed, the VCR will start playback automatically. Turn on the TV and set the TV to channel 3. ¡ If noise appears, change the RF output channel of the VCR to channel 4 by pressing PLAY for 3 sec- onds during playback.

  • Page 19: Normal Recording, Otr (one Touch Recording), Timer Recording

    RECORDING FUNCTION It may be UNLAWFUL to record copyrighted materi- al without the consent of the copyright owner. Accidental Erasure Prevention To prevent accidental recording on a recorded cassette, remove its record safety tab. To record on it later, cover the hole with cellophane tape.

  • Page 20: Hints For Timer Recording

    4) Set the start time First, press K or L for the hour. Then, press B. Next, press K or L for the minute. Then, press B. And then, press K or L for AM or PM. Then, press B. 5) Set the end time Follow the instructions of "Set the start time"...

  • Page 21: Copying A Video Tape, Auto Rewind, Real Time Tape Counter

    COPYING A VIDEO TAPE You can make copies of video tapes made by friends or relatives for your enjoyment. Warning: Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws. Connect the recording VCR (this unit), the playing VCR (another source) and your TV using the follow- ing diagram.

  • Page 22: Basic Playback, General Features, Pause

    BASIC PLAYBACK Getting started ¡ Turn on the power of the TV, amplifier and any other components which are connected to the DVD. ¡ Make sure the TV and audio receiver (commercially available) are set to the correct channel. ¡ Select DVD mode by pressing DVD on the remote control or output on the front panel.

  • Page 23: Disc Menu, Title Menu, Step By Step Playback, Resume, Slow Forward / Slow Reverse

    DISC MENU Press MENU. ¡ The DVD main menu will appear. If the feature is not available, may appear on the TV screen. If disc menu is available on the disc, audio language, subtitle options, chapters for the title and other options will appear for selec- tion.

  • Page 24: Zoom, Track, Title / Chapter Search, Time Search

    ZOOM The Zoom function allows you to enlarge the video image and to pan through the enlarged image. Press ZOOM during playback. ¡ Playback will continue. Press ZOOM repeatedly to select the required zoom factor: x2, x4 or OFF. /s/B Use the Arrow ( zoomed picture across the screen.

  • Page 25: Repeat, Program

    REPEAT REPEAT are available only during playback. REPEAT TITLE / CHAPTER To activate the repeat function, press REPEAT during playback. ¡ The repeat mode changes as described below every time you press the button. CHAPTER TITLE (current chapter repeat) (current title repeat) Notes ¡...

  • Page 26: Random Playback, Mp3 Playback, On-screen Information, Track Selection

    RANDOM PLAYBACK This shuffles the playing order of tracks instead of playback in the sequence. In stop mode, press MODE twice. ¡ RANDOM screen RANDOM appears. PLAY Press PLAY to start random playback. Note ¡ If you like to repeat the current track in the random selection, press REPEAT...

  • Page 27: Program, Random Playback, Audio Language, Stereo Sound Mode, Subtitle Language, Camera Angle

    RANDOM PLAYBACK Press MODE twice while playback is stopped. Press PLAY to play the tracks in random order. PROGRAM This feature allows you to program a mp3 disc to play in a desired sequence. Press MODE during playback is stopped. ¡...

  • Page 28: Changing The On-screen Display, Parental Control

    CHANGING THE ON-SCREEN DISPLAY You can check the information about the current disc by pressing DISPLAY on the remote control. For DVD-Vs Press DISPLAY during playback to show current Chapter. ¡ The elapsed and remaining playing time of the current chapter will be displayed.

  • Page 29: Marker Setup Screen, Audio Setting

    CONTROL LEVELS ¡ALL All parental lock is cancelled. ¡Level 8 DVD software of any grade (adult/general/children) can be played back. ¡Levels 7 to 2 Only DVD software intended for general use and children can be played back. ¡Level 1 Only DVD software intended for children can be played back, with those intended for adult and general use prohibited.

  • Page 30: Black Level Setting, Virtual Surround, Display Setting

    BLACK LEVEL SETTING Adjust the Black Level Settings to make the black parts of the picture brighter. Press MODE during playback. Press ENTER to switch ON/OFF. ON: Makes the dark parts brighter. OFF: Shows the original picture as recorded. Press MODE twice or RETURN to exit. VIRTUAL SURROUND DVD-V You can enjoy stereophonic visual space on your exist-...

  • Page 31: Language Setting

    LANGUAGE SETTING Language options are not available with some discs. Press SETUP in STOP mode. Press B to select CUSTOM, then press ENTER. ¡ CUSTOM mode will appear. Press Arrow (s/ B) to select LANGUAGE, then press ENTER to confirm. LANGUAGE AUDIO ORIGINAL...

  • Page 32: Troubleshooting Guide

    TROUBLESHOOTING GUIDE If the DVD/VCR COMBINATION UNITS does not perform properly when operated as instructed in this Owner's Manual, check the player consulting the following checklist. PROBLEM No power. The player does not respond to. • Check if the power plug is connected to an AC outlet. the remote control.

  • Page 33: Cleaning The Cabinet, Cleaning Discs, Disc Handling

    SERVICING ¡ Should your DVD/VCR COMBINATION UNITS become inoperative, do not try to correct the prob- lem by yourself. There are no user-serviceable parts inside. Turn off, unplug the power cord, and please call our help line at 1-800-256-2487 to locate an Authorized Service Center.

  • Page 34: Specifications

    Product type: DVD player with Video Cassette Recorder Discs: DVD video Audio CD Video Cassette tape Converter output: VHF Channel 3 or 4. Power source: 120 V AC +/- 10%, 60 Hz +/- 0.5% Power consumption: 24 W (standby: 7.0 W) Operating temperature: 41˚F (5°C) to 104˚F (40°C) Dimensions:...

  • Page 35: Controles Del Funcionamiento Y Sus Funciones

    CONTROLES DEL FUNCIONAMIENTO Y SUS FUNCIONES PANEL DELANTERO STOP PANEL REMOTO POWER SPEED AUDIO SKIP/CH. VCR/TV SLOW DISPLAY PAUSE PLAY STOP RECORD MENU ENTER SETUP TITLE RETURN SEARCH CLEAR/ MODE ZOOM MODE C.RESET SUBTITLE ANGLE REPEAT T-SET 1. Bandeja de carga del disco 2.

  • Page 36

    22. Botón FWD (DVD) Presione para avanzar rápidamente el Disco. Presione el Botón PAUSE, luego presione el Botón FWD iniciar a reproducción en movimiento lento. Presione el Botón FWD repetidamente para cambiar la velocidad de avance del movimiento lento. Presione para saltar Capítulos o Pistas. 23.

  • Page 37

    48. Botón g Modo DVD Pulse para avanzar rápidamente el disco. Pulse PAUSE, luego pulse este botón para comenzar la reproducción en movimiento lento. Pulse este botón en forma repetida para cambiar la velocidad de avance en movimiento lento. Modo VCR Pulse para avanzar rápidamente la cinta o para ver la imagen rápidamente en avance durante la reproduc- ción (Búsqueda en avance).

  • Page 38

    CAMBIO DE VCR/DVD Como este producto se utiliza del reproductor VCR y DVD, es necesario cambiar uno del otro. CAMBIO AL MODO VCR Presione el Botón VCR en el control remote. (Verifique que la Luz VCR OUTPUT está enendida.) Notas ¡...

  • Page 39: Dvd/vcr A ConexiÓn De Tv, Canal De Salida Rf, Conectando A Un Tv, Componente

    DVD/VCR A CONEXIÓN DE TV 1. Desconecte el cordón de alimentación AC del toma de corriente AC. 2. Desconecte la antena o cable del TV. 3. Conecte la antena o cable a la toma ANT.IN del DVD/VCR. 4. Conecte el DVD/VCR al TV utilizando el cable coaxi- 5.

  • Page 40: PreparaciÓn De Reloj, Reproduciendo Un Dvd, Video O Un Cd Audio

    PREPARACIÓN DE RELOJ Ajuste el reloj con precisión para grabación con tempo- rizador automática adecuada. Le sugerimos que usted utilice un TV o estación de radio como su fuente de tiempos. Presione MENU dos veces para llamar el menú principal. (Si usted ha ajustado ya el reloj, usted sólo tiene que presionarlo una vez).

  • Page 41

    MEMO – 41 – 1L25...

  • Page 42

    MEMO – 42 – 1L25...

  • Page 43

    MEMO – 43 – 1L25...

  • Page 44: Limited Warranty

    FUNAI CORP. will repair this Emerson product, free of charge in the USA in the event of defect in materials or workmanship as follows: DURATION: PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase.
