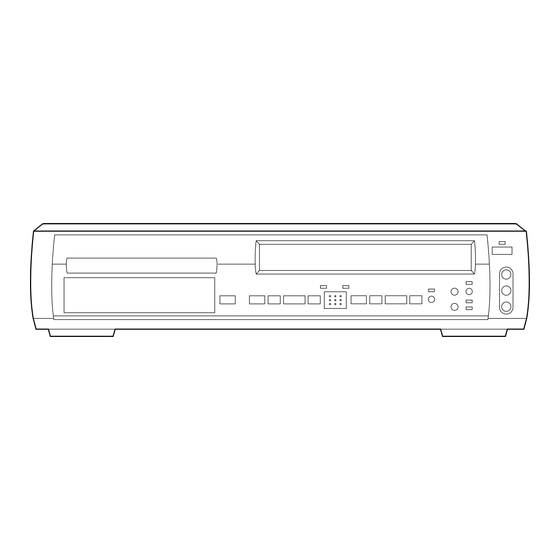

Emerson EWD2202 Owner's Manual

Dvd player with video cassette recorder
Hide thumbs

Advertisement

Quick Links

Download this manual
Table of Contents
OWNER'S
MANUAL
DVD PLAYER with VIDEO CASSETTE RECORDER
EWD2202
INSTRUCCIONES EN ESPAÑOL INCLUIDAS.
EMERSON AND THE G-CLEF LOGO ARE REGISTERED
TRADEMARKS OF EMERSON RADIO CORP., PARSIPPANY,
NEW JERSEY, U.S.A.
If you need additional assistance for set-up or operating
after reading owner's manual, please call
TOLL FREE : 1 - 800 - 256-2487
Please read before using this equipment.

Advertisement

Table of Contents
loading

  Also See for Emerson Emerson EWD2202

Emerson EWD2202 Owner's Manual
Emerson EWD2202 Owner's Manual 48 pages

  Related Manuals for Emerson Emerson EWD2202

  Summary of Contents for Emerson Emerson EWD2202

  • Page 1 OWNER’S MANUAL DVD PLAYER with VIDEO CASSETTE RECORDER EWD2202 INSTRUCCIONES EN ESPAÑOL INCLUIDAS. EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS OF EMERSON RADIO CORP., PARSIPPANY, NEW JERSEY, U.S.A. If you need additional assistance for set-up or operating after reading owner’s manual, please call TOLL FREE : 1 - 800 - 256-2487 Please read before using this equipment.

  • Page 2: Laser Safety

    WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, CAUTION within an equilateral triangle, is intended to RISK OF ELECTRIC SHOCK alert the user to the presence of uninsulated DO NOT OPEN “dangerous voltage”...

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read Instructions - All the safety and operating instruc- proper grounding of the mast and supporting structure, tions should be read before the appliance is operated. grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-dis- 2.

  • Page 4: About Copyright

    A NOTE ABOUT RECYCLING This product’s packaging materials are recyclable and can be reused. Please dispose of all materials in accordance with your local recycling regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS LASER SAFETY ........2 PLAYING A DISC .

  • Page 6: Features

    FEATURES Mode ¡ ¡ Dolby Digital sound On-screen display This player can handle Dolby Digital surround sound Information about the current operation can be displayed with 5.1 channels when connected to a Dolby Digital on the TV screen, allowing you to confirm the currently decoder.

  • Page 7: Precautions

    Playback Mode ¡ S-VHS Quasi Playback (SQPB) Hardware specifications (Allows you to view a tape recorded in S-VHS format.) ¡ Auto Head Cleaner ¡ Auto Repeat ¡ 4 Head HiFi Stereo ¡ 2 Step Picture Search Operation ¡ Bilingual on-screen menu display selectable in ¡...

  • Page 8: About The Discs

    ABOUT THE DISCS PLAYABLE DISCS DISC TYPES [ DVD ] The following discs can be played back on this DVD/VCR. Data on a DVD is divided into sections called "titles", and then into subsections called "chapters", each of which is Maximum Disc Type Logo...

  • Page 9: Operating Controls And Functions

    OPERATING CONTROLS AND FUNCTIONS FRONT PANEL POWER VIDEO CHANNEL DVD OPERATION VCR OPERATION TIMER AUDIO VCR/TV OPEN/CLOSE STOP SKIP/REV PLAY FWD/SKIP STOP/EJECT REW PLAY F.FWD REC/OTR CST.IN OUTPUT 14 12 REMOTE CONTROL tape in the DVD/VCR. It flashes when all timer recordings or One-Touch Recordings are finished.
  • Page 10 example: setting clock or timer program). Press to Button on the front panel first, you need to re- add or delete channel numbers during channel preset. select the corresponding mode by pressing the 19. STOP/EJECT Button (VCR) [page 21] DVD or the VCR button on the remote control. EJECT Button 32.

  • Page 11: Rear View

    48. ENTER Button 51. VCR Button [page 13] Press to accept a setting. Press to select VCR mode for the remote control. 49. g Button You can switch the OUTPUT mode either by DVD mode pressing the OUTPUT Button on the front panel, or Press to fast forward the Disc.

  • Page 12: Display

    and to the component Video In jacks of a televi- source (laser disc player, video disc player, etc.) sion. here. COAXIAL Jack CH3/CH4 Switch Connect an optional coaxial digital audio cable Set to channel 3 or 4 to use your TV with your here and to the Coaxial Digital Audio In jack of a DVD/VCR.

  • Page 13: Video/Dvd Switching

    VCR/DVD SWITCHING Since this product comprises VCR and DVD players, it is necessary to switch one from the other. SWITCHING TO VCR MODE SWITCHING TO DVD MODE Press the VCR button on the remote control. Press the DVD button on the remote control. (Verify that the VCR OUTPUT Light is lit.) (Verify that the DVD OUTPUT Light is lit.) Press the OUTPUT button on the front panel, and then...

  • Page 14: Hookups

    HOOKUPS SETTING THE CH3/CH4 DVD/VCR TO TV CONNECTION SWITCH 1. Disconnect the AC power cord of the TV from the If your TV does not have A/V terminals: AC outlet. When the DVD/VCR is in the VCR Playback mode or 2.

  • Page 15: Deck

    FOR TVs WITH COMPONENT VIDEO IN JACKS Use a component video cable (commercially available) in place of the yellow video cable to enjoy higher qual- ity pictures. The component video connection only supplies video (picture) in the DVD mode of the DVD/VCR. Therefore, in order to use the VCR features or view TV channels at the DVD/VCR, you still need to either connect the RF coax- ial cable between the ANT-OUT jack of the DVD/VCR and the TV’s Antenna In jack, or connect the yellow video cable as described earlier (Fig.

  • Page 16: Dts Decoder

    CONNECTING TO A DOLBY DIGITAL DECODER OR DTS DECODER If using this DVD/VCR to play a DVD disc in 5.1 channel Dolby Digital surround, or DTS surround formats, the DVD/VCR outputs a Dolby Digital, or DTS data stream from its COAXIAL DIGITAL AUDIO OUT jack. By hooking the DVD/VCR up to a Dolby Digital or DTS decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound of a professional standard such as can be heard in movie theaters.

  • Page 17: Setup

    SETUP AUTOMATIC CHANNEL SET UP Begin channel preset by pressing the F.FWD The DVD/VCR can automatically program the tuner to button once. The tuner scans and memorizes scan only the channels which are available in your area. all active channels in your CH 01 ¡...

  • Page 18: To Change The On-Screen Language

    TO ADD/DELETE CHANNELS CLOCK SET UP When scanning, some channels may be skipped due to a weak signal. In such cases, you can add the channels to the DVD/VCR memory manually. Set the clock accurately for proper automatic timer recording. We suggest that you use a TV or radio sta- Press the MENU button until the main menu tion as your time source.

  • Page 19: Playback Function

    PLAYBACK FUNCTION NORMAL PLAYBACK Select "AUTO REPEAT" by pressing the PLAY or the STOP button. Begin auto repeat playback by pressing the Insert a prerecorded tape. The DVD/VCR will F.FWD button so that [ON] appears next to turn on, and the VCR/TV Light "AUTO REPEAT".

  • Page 22: Special Features

    SPECIAL FEATURES ¡ Always use video-quality shielded cables with COPYING A VIDEO TAPE RCA-type connectors. Standard audio cables are not recommended. ¡ You can use a video disc player, satellite receiver, or other audio/video component with A/V outputs in You can make copies of video tapes made by friends or place of the playing VCR.

  • Page 23: Playing A Disc

    AUTO REWIND REAL TIME TAPE COUNTER When a tape reaches the end during recording, play- ¡ This shows the elapsed recording or playback time back, or fast-forward, the tape will automatically in hours, minutes, and seconds. (The displayed time rewind to the beginning. After rewinding finishes, the will not change during blank portions of the tape.) DVD/VCR will eject the tape and switch itself off.

  • Page 24: Using The Title Menu

    RESUMING PLAYBACK FROM USING THE TITLE MENU THE POINT WHERE PLAYBACK STOPPED With a DVD containing a title menu, you can select the desired titles from the menu. Press the STOP button during playback. ¡ Press the TITLE button. Playback will stop, and then appear the resuming message at the center.

  • Page 25: Fast Forward/Reverse

    STARTING FROM A DESIRED FAST FORWARD/REVERSE TRACK Press the FWD or the REV button Press the Number buttons to enter the during playback. desired track number. ¡ For DVDs, pressing the FWD g or REV h but- ¡ The selected track will be located, and playback will start. ton cycles the playback speed in four steps.

  • Page 26: Starting From A Desired Time Count

    By using only the Number buttons. MARKER TITLE SEARCH: Directly enter the desired title number with the Number buttons with playback stopped. CHAPTER SEARCH: You can define the part to be called back. Directly enter the desired chapter number with the Number buttons when the disc is Press the SEARCH MODE button three being played or paused.

  • Page 27: Repeat

    REPEAT A-B REPEAT Press the REPEAT button during playback. You can define a section to be played back repeatedly. For DVDs Press the A-B REPEAT button during playback. ¡ A single title or chapter can be played back repeat- ¡ The starting point (A) will then be REPEAT edly.

  • Page 28: Program (Audio Cd)

    ZOOM PLAYBACK PROGRAM (Audio CD) (enlargement on-screen) Press the MODE button in stop mode. Images can be enlarged on the screen to your taste. ¡ The program screen will appear. Press the ZOOM button during playback. PROGRAM TIME 0:00:00 1/1 ¡...

  • Page 29: Playing An Mp3 Disc

    CHANGING THE ON-SCREEN PLAYING AN MP3 DISC DISPLAY DURING MP3 DISC PLAY The information on an MP3 disc in play can be Insert an MP3 file recorded on disc. checked. ¡ The MP3 menu screen is displayed. Press the DISPLAY button during playback. ¡...

  • Page 30: Playing A Desired Track From An Mp3 Disc

    PLAYING A DESIRED TRACK PLAYING AN MP3 DISC IN A FROM AN MP3 DISC PROGRAM Press the SEARCH MODE button during play- Press the MODE button in STOP mode. back. ¡ The program screen is displayed. ¡ The SEARCH menu is displayed. ¡...

  • Page 31: Settings

    SETTINGS Notes CHANGING THE AUDIO ¡ Pressing the Audio button may not work on some LANGUAGE OR SOUND MODE DVDs with multiple audio languages (e.g. DVDs which allow audio language setting on the disc menu). Operation varies between discs, so refer to the manual accompanying the disc.

  • Page 32: Changing The Subtitle Language

    ¡ It may take time to display the subtitles in the CHANGING THE SUBTITLE selected language. LANGUAGE ¡ The screen display will disappear after about 5 seconds. ¡ When “SUBTITLE NOT AVAILABLE” appears on screen, it means that no subtitle has been recorded. The DVD/VCR has a function which allows you to select the desired language for subtitles.

  • Page 33: Changing The On-Screen Display

    CHANGING THE ON-SCREEN DISPLAY Press the DISPLAY button again. ALL 4/12 0:13:45 -0:45:40 B ALL: You can check the information regarding the disc by TIME: Current track number Elapsed time of the pressing the DISPLAY button on the remote control. / the total number of current disk and tracks.

  • Page 34: Changing The Setup Items

    CHANGING THE SETUP ITEMS PLAYER MENU: LANGUAGE SETTINGS (The on-screen display appears in selected language.) SET-UP LANGUAGE CONTROLS 1.AUDIO ORIGINAL 2.SUBTITLE Press the SETUP button in STOP mode. 3.DISC MENU ORIGNAL 4.PLAYER MENU ENGLISH ¡ The setup screen is displayed. SELECT: SET: ENTER...

  • Page 35: Display Settings

    DISPLAY SETTINGS ANGLE ICON (Default: ON) Display or not display the Angle icon on the screen. SET-UP DISPLAY CONTROLS Press the SETUP button in STOP mode. 1.TV ASPECT 4:3 LETTER BOX 2.PANEL DISPLAY BRIGHT 3.ANGLE ICON ¡ The setup screen will appear. 4.AUTO POWER OFF ON 5.BACKGROUND BLUE...

  • Page 36: Audio Settings

    DTS (Default: OFF) AUDIO SETTINGS On : Output DTS sound Set to On when the unit is connected to DTS Decoder. SET-UP Press the SETUP button in STOP mode. AUDIO CONTROLS 1.DRC ¡ The setup screen will appear. SET-UP 2.DOLBY DIGITAL 3.DTS 1.LANGUAGE 4.DOWN SAMPLING...

  • Page 37: Parental Lock

    When Parental Level is selected PARENTAL LOCK ¡ Press the buttons to select an item from “ALL” or 8 to 1 and then press the ENTER button. Press the SETUP button in STOP mode. SET-UP ¡ The setup screen will appear. PARENTAL CONTROLS 1.PARENTAL LEVEL 2.CHANGE...

  • Page 38: Language Code List

    LANGUAGE CODE LIST Language Country code Language Country code Afar 4 7 4 7 Latvian; Lettish 5 8 6 8 4 7 4 8 Malagasy 5 9 5 3 Abkhazian Maori Afrikaans 4 7 5 2 5 9 5 5 Amharic 4 7 5 9 Macedonian...

  • Page 39: Troubleshooting Guide

    TROUBLESHOOTING GUIDE If the DVD/VCR does not perform properly when operated as instructed in this Owner's Manual, check the player consulting the following checklist. PROBLEM CORRECTIVE ACTION No power. • Make sure the power plug is connected to an AC outlet. •...

  • Page 40: Handling Precautions

    HANDLING PRECAUTIONS AUTO HEAD CLEANING SERVICING • Automatically cleans video heads as you insert or remove a Should your DVD/VCR become inoperative, do not try cassette, so you can see a clear picture. to correct the problem by yourself. There are no user- •...

  • Page 41: Specifications

    SPECIFICATIONS Product type: DVD player with Video Cassette Recorder Discs: DVD video Audio CD Video Cassette tape Converter output: VHF Channel 3 or 4. Power source: 120 V AC +/- 10%, 60 Hz +/- 0.5% Power consumption: 25 W (standby: 7.2 W) Operating temperature: 5°C to 40°C Dimensions:...

  • Page 42: Controles Del Funcionamiento Y Sus Funciones

    CONTROLES DEL FUNCIONAMIENTO Y SUS FUNCIONES PANEL DELANTERO POWER VIDEO CHANNEL DVD OPERATION VCR OPERATION TIMER AUDIO VCR/TV CST.IN OPEN/CLOSE STOP SKIP/REV PLAY FWD/SKIP STOP/EJECT REW PLAY F.FWD REC/OTR OUTPUT 14 12 PANEL REMOTO Conecte aquí un cable de videó procedente de la toma de salida de videó...
  • Page 43 Presione detener el movimiento de la cinta. ajuste programa. (Por ejemplo: ajuste de reloj o Presione para entrar dígitos cuando ajuste progra- programa con temporizador). Presione para añadir ma. (Por ejemplo: ajuste reloj o programa con tem- o cancelar números de canal durante preajuste de porizador).
  • Page 44 ción. (Búsqueda en Avance). Cuando ajuste pro- ción DVD. grama. (Por ejemplo: ajuste reloj o programa con 54. Botón VDR/TV temporizador), presione para determinar su selec- Utilice para seleccionar la posición VCR o TV. Si la Luz ción y proceder al siguiente paso que usted desea VCR/TV aparece en la parte delantera del DVD/VCR, está...

  • Page 45: Cambio De Vcr/Dvd

    CAMBIO DE VCR/DVD Como este producto se utiliza del reproductor VCR y DVD, es necesario cambiar uno del otro. CAMBIO AL MODO VCR CAMBIO AL MODO DVD Presione el Botón VCR en el control remote. Presione el Botón DVD en el control remote. (Verifique que la Luz VCR OUTPUT está...

  • Page 46: Conexiones

    CONEXIONES AJUSTANDO EL CONMUTADOR DVD/VCR A CONEXIÓN DE TV CH3/CH4 1. Desconecte el cordón de alimentación AC del toma de Si su TV no tiene terminales A/V: corriente AC. Cuando el DVD/VCR está en modo de Reproducción 2. Desconecte la antena o cable del TV. VCR o cuando el DVD/VCR está...

  • Page 47: Preparación De Reloj

    REPRODUCCIÓN DE UN DISCO PREPARACIÓN DE RELOJ REPRODUCIENDO UN DVD, VIDEO O UN CD AUDIO Ajuste el reloj con precisión para grabación con tempo- rizador automática adecuada. Le sugerimos que usted utilice un TV o estación de radio como su fuente de tiempos. Para empezar Presione [MENU] dos veces para llamar el menú...

  • Page 48: Limited Warranty

    LIMITED WARRANTY FUNAI CORP. will repair this Emerson product, free of charge in the USA in the event of defect in materials or workmanship as follows: DURATION: PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase.
